This guide covers the eleventh-generation Honda Accord (2023–present) (Model Code: CY1). Here you’ll find fuse box diagrams for Honda Accord 2023, 2024, 2025 and 2026 , along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

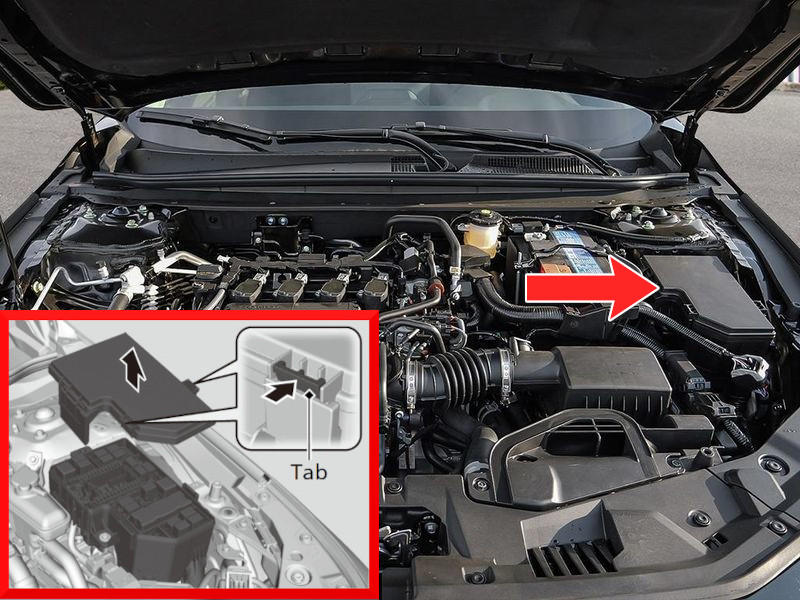

The fuse box is located near the 12-volt battery in the engine compartment. Press the locking tabs to open the cover.

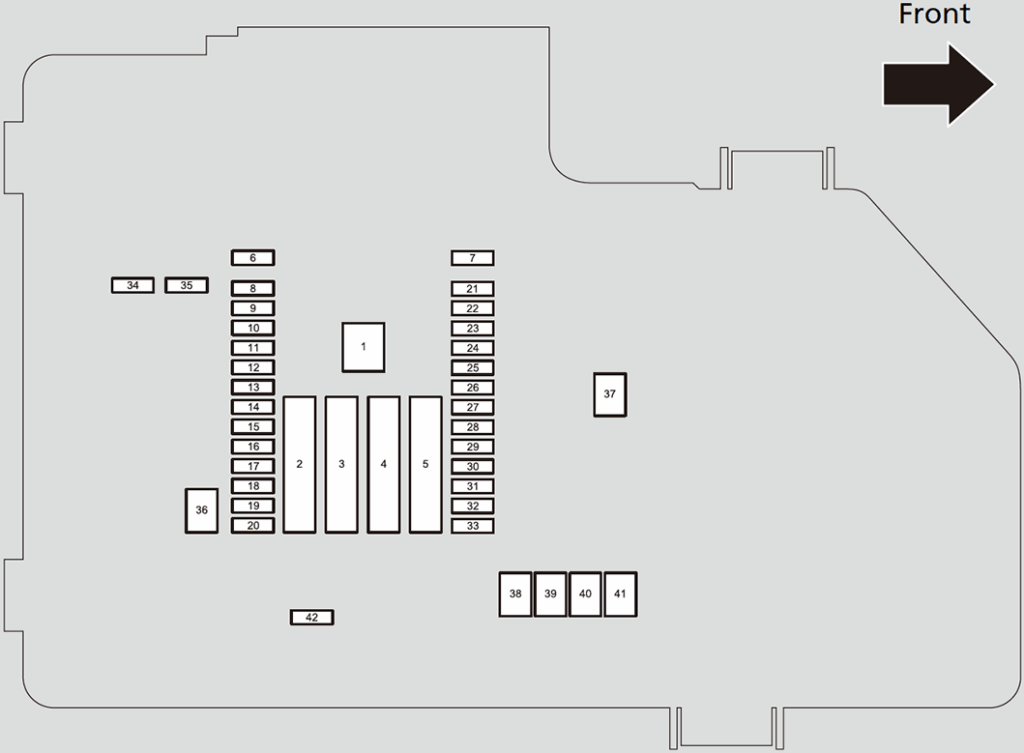

Assignment of the fuses in the engine compartment
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
Amps. No. Description 125A 1 (BATTERY) Battery and charging system 30A 2-1 (DC/DC2) DC to DC transformer 400 watts 60A 2-3 F/BOX OPTION 60A 2-5 F/BOX OPTION2 60A 2-7 F/BOX MAIN 30A 3-2 ST MAGNETIC SW 40A 3-6 (HTR MTR) AC blower motor 40A 3-7 (RR DEFROSTER) Rear window defogger 40A 4-1 (ABS/VSA FSR) Anti-lock braking system/vehicle stability assist 40A 4-2 (ABS/VSA MTR) Anti-lock braking system/vehicle stability assist 40A 4-4 EBB 30A 4-5 (IG MAIN) Protects several circuits 30A 4-7 R/M2 30A 5-1 (DC/DC) DC to DC transformer 400 watts 30A 5-2 Wipers 70A 5-3 (EPS) Electric power steering 30A 5-4 R/M1 30A 5-6 (MAIN FAN) Radiator fan 60A 5-7 F/BOX MAIN2 30A 6 (SUB FAN) Cooling fan motor 30A 7 (IG MAIN2) Protects several circuits 15A 9 (BACK UP) Backup lights 15A 10 (WASHER) Windshield washer 10A 15 SHUTTER GRILLE 10A 17 (MG CLUTCH) A/C magnetic clutch 10A 18 Horn 15A 22 (DBW) Drive-by-Wire Throttle System 15A 23 (HAZARD) Hazard light 10A 24 BACKUP FI-ECU 15A 25 (IGP) Ignition 15A 26 (TCU) Transmission control unit 20A 27 LCM L 20A 28 (INJ) Fuel injectors 10A 29 (STOP) Stop lights 20A 30 LCM R 15A 31 (IG COIL) Ignition coil 10A 36 (IGPS [LAF]) Protects several circuits 30A 37 (BACKUP2) Backup lights 10A 39 VBACT 7.5A 40 (IGPS FAN) Electric cooling fan 7.5A 42 MON2
This content requires JavaScript and a valid membership to view.

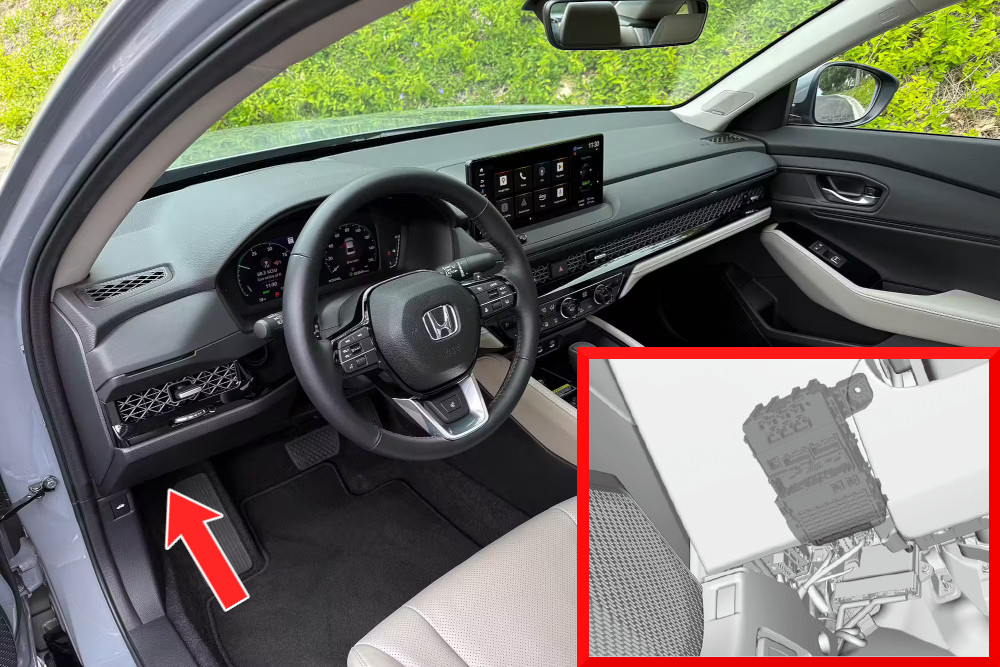

Found under the dashboard—check below the steering column area.
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
Fuse Amp Protected Component / Circuit
* Not available on all models.
