This guide covers the sixth-generation Honda Civic (1995–2000) (Model Codes: EM — coupe; EK — sedan/hatchback; EJ — sedan/hatchback/coupe; MA/MB/MC — Aerodeck/Fastback 5-door). Here you’ll find fuse box diagrams for Honda Civic 1996, 1997, 1998, 1999 and 2000 , along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

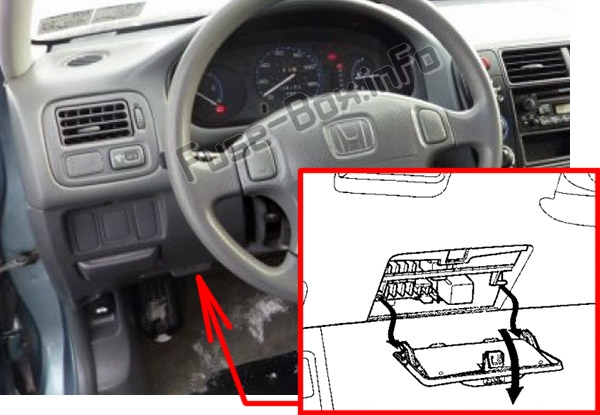

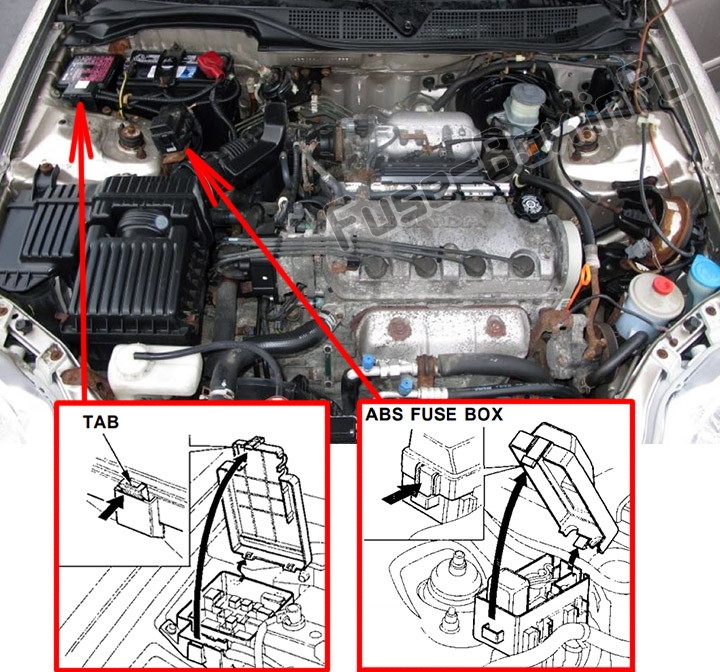

The interior fuse box is located underneath the steering column behind the cover.

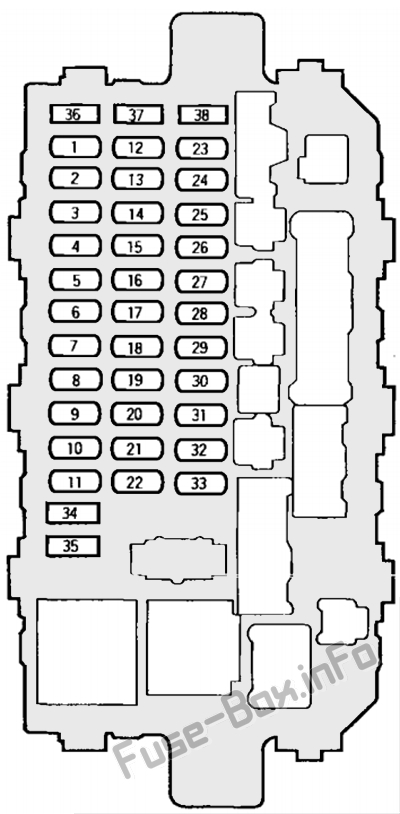

Assignment of the fuses in the Passenger compartment
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Amps. Circuits Protected 1 — Not Used 2 — Not Used 3 — / 10 A Sedan, Coupe: Not Used 4 10 A Right Headlight High Beam 5 10 A Left Headlight High Beam 6 — Not Used 7 20 A Sedan, Coupe: Rear Left Power Window 8 20 A Sedan, Coupe: Rear Right Power Window 9 15 A Ignition Coil 10 20 A Sedan, Coupe: Front Right Power Window 11 20 A Sedan, Coupe: Front Left Power Window 12 7.5 A Turn Signal Lights 13 15 A Fuel Pump (SRS Unit) 14 7.5 A Sedan, Coupe: Cruise Control, Keyless 15 7.5 A Alternator, SP Sensor 16 7.5 A Rear Defroster Relay 17 7.5 A Heater, Air Conditioning Relay 18 7.5 A Daytime Running Light Relay (Canadian models) 19 7.5 A Back-up Lights 20 10 A Daytime Running Light (Canadian models) 21 10 A Right Headlight Low Beam 22 10 A Left Headlight Low Beam 23 10 A SRS 24 7.5 A Sedan, Coupe: Power Window Relay, Moonroof Relay 25 7.5 A Meter 26 20 A Front Wiper, Front Washer 27 10 A Accessory Socket 28 10 A Radio, Clock 29 — Not Used 30 7.5 A Instrument Lights 31 7.5 A Starter Signal 32 7.5 A License Plate Lights, Taillights 33 7.5 A Inter Lock Unit 34 20 A Spare Fuse 35 30 A / 7.5 A Spare Fuse 36 — / 7.5 A Not Used / Spare Fuse 37 10 A Spare Fuse 38 15 A Spare Fuse
This content requires JavaScript and a valid membership to view.

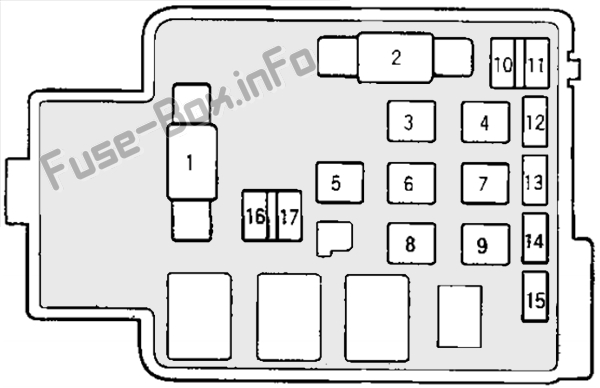

Assignment of the fuses in the engine compartment (1996-1997)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Amps. Circuits Protected 1 80 A Battery 2 40 A Ignition I 3 30 A U.S. model: Small Light, Stop Light 3 — Canadian model: Not Used 4 30 A U.S. model: Power Window, Moonroof 4 40 A Canadian model: Power Window 5 30 A Headlight 6 30 A U.S. model: Ignition 2 6 — Canadian model: Not Used 7 30 A Rear Defroster 8 30 A U.S. model: Option 8 40 A Canadian model: Option 9 30 A U.S. model: Heater Motor 9 40 A Canadian model: Heater Motor 10 7.5 A Interior Light 11 10 A U.S. model: FI E/M (ECM/PCM) 11 15 A Canadian model: FI E/M (ECM/PCM) 12 7.5 A Back Up 13 20 A Door Lock Unit 14 20 A A/C Compressor Magnetic Clutch 15 15 A U.S. model: Cooling Fan 15 20 A Canadian model: Cooling Fan 16 7.5 A U.S. model: Horn 16 15 A Canadian model: Horn, Stop Light 17 10 A Hazard
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (1998-2000)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Amps. Circuits Protected 1 80 A Battery 2 40 A Ignition 1 3 — Not Used 4 40 A Power Window 5 30 A Headlight, Small Light 6 — Not Used 7 30 A Rear Defroster 8 40 A Option 9 40 A Heater Motor 10 7.5 A Interior Light 11 15 A FI E/M (ECM/PCM) 12 7.5 A Back Up, Radio 13 20 A Door Lock Unit, Moonroof 14 20 A Magnetic Clutch (A/C), Condenser Fan (A/C) 15 20 A Cooling Fan 16 15 A Horn, Slop Light 17 10 A Hazard
This content requires JavaScript and a valid membership to view.

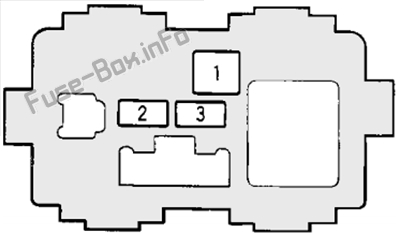

Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
№ Amps. Circuits Protected 1 40 A ABS Pump Motor 2 20 A ABS +B 3 7.5 A Motor Check
