Honda Civic (2012-2015)

This guide covers the ninth-generation Honda Civic (2011–2017) (Model Codes: FB1, FB2, FB3, FB4, FB5, FB6 — sedan; FG2, FG3, FG4 — coupe). Here you’ll find fuse box diagrams for Honda Civic 2012, 2013, 2014 and 2015, along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

Fuse box locations

Passenger compartment

Located under the dashboard.
Fuse locations are shown on the label on the side panel.

The location of the fuses in the passenger compartment: Honda Civic (2012-2015)

Engine compartment

Located near the brake fluid reservoir.
Fuse locations are shown on the fuse box cover.

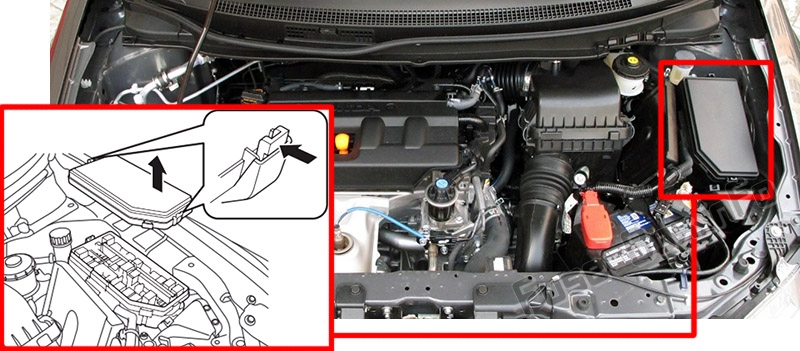

The location of the fuses in the engine compartment: Honda Civic (2012-2015)

Fuse Box Diagrams

2012, 2013

Passenger compartment

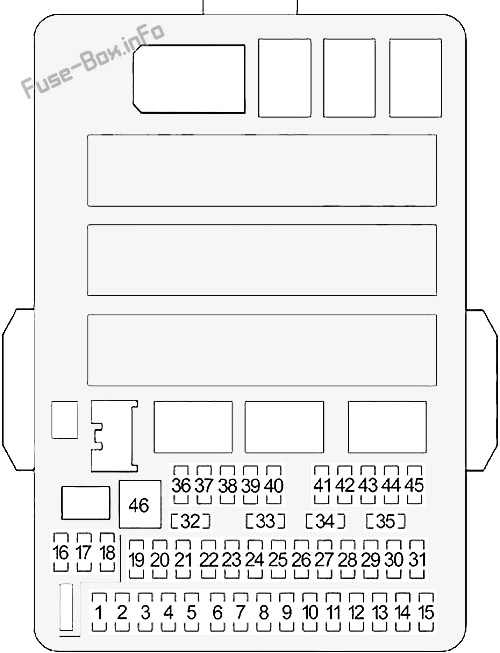

Instrument panel fuse box diagram: Honda Civic (2012, 2013)

Assignment of the fuses in the passenger compartment (2012, 2013)

Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register

№Circuit ProtectedAmps
1——
2ACG15 A
3SRS10 A
4Fuel Pump15 A
5Meter7.5 A
6Power Window7.5 A
7VB SOL (option)(15 A)
8Door Lock Motor 2 (Unlock)15 A
9Door Lock Motor 1 (Unlock)15 A
10——
11Moonroof(20 A)
12Accessory Power Socket (Center Console) (option)(15 A)
13——
14Seat Heaters (option)(15 A)
15Driver’s Door Lock Motor (Unlock) (option)(10 A)
16——
17——
18——
19ACC7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22HAC7.5 A
23——
24ABS/VSA7.5 A
25——
26——
27Accessory Power Socket (Front)15 A
28Washer15 A
29ODS7.5 A
30Driver’s Door Lock Motor (Lock) (option)(10 A)
31——
32Door Lock Motor 2 (Lock)15 A
33Door Lock Motor 1 (Lock)15 A
34Small Lights7.5 A
35Illumination7.5 A
36——
37——
38Left Headlight High Beam10 A
39Right Headlight High Beam10 A
40TPMS (option)(7.5 A)
41Door Lock20 A
42Driver’s Power Window20 A
43Rear Passenger’s Side Power Window(20 A)
44Front Passenger’s Side Power Window20 A
45Rear Driver’s Side Power Window(20 A)
46Wiper30 A

Engine compartment

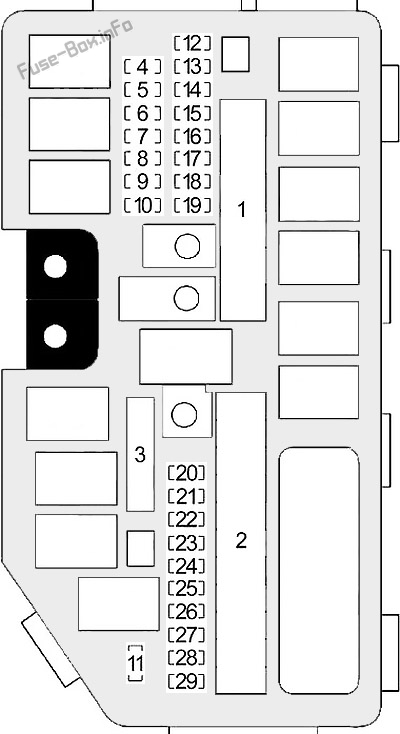

Under-hood fuse box diagram: Honda Civic (2012, 2013)

Assignment of the fuses in the engine compartment (2012, 2013)

Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register

№Circuit ProtectedAmps
1EPS70 A
1––
1ABS/VSA Motor30 A
1ABS/VSA FSR30 A
1––
1Main Fuse100 A
2IG Main50 A
2Fuse Box Main60 A
2Fuse Box Main 260 A
2Headlight Main30 A
2––
2Rear Defogger30 A
2––
2Blower40 A
2––
2Sub Fan Motor20 A
2Main Fan Motor20 A
3——
4Left Headlight Low Beam10 A
5Starter DIAG, ST MG7.5 A
6Right Headlight Low Beam10 A
7——
8——
9——
10——
11Oil Level7.5 A
12Fog Lights (option)(20 A)
13Driver’s Power Seat Sliding (option)(20 A)
14Hazard10 A
15FI Sub15 A
16IG Coil15 A
17Stop15 A
18Horn10 A
19Premium Amp (option)(20 A)
20INJ(15 A)
21IGP15 A
22DBW15 A
23H/L LO20 A
24Driver’s Power Seat Reclining (option)(20 A)
25MG Clutch7.5 A
26——
27SMALL20 A
28Interior Lights7.5 A
29Backup10 A

2014, 2015

Passenger compartment

Instrument panel fuse box diagram: Honda Civic (2014, 2015)

Assignment of the fuses in the passenger compartment (2014, 2015)

Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register

№Circuit ProtectedAmps
1HAC Option (option)(20 A)
2ACG10 A
3SRS10 A
4Fuel Pump15 A
5Meter7.5 A
6Power Window7.5 A
7VB SOL (option)(15 A)
8Door Lock Motor 2 (Unlock)15 A
9Door Lock Motor 1 (Unlock)15 A
10—–
11Moon roof (option)(20 A)
12Accessory Power Socket (Center Console) (option)(20 A)
13——
14Seat Heaters (option)(15 A)
15Driver’s Door Lock Motor (Unlock) (option)(10 A)
16—–
17——
18—–
19ACC7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22HAC7.5 A
23HAC (option)(7.5 A)
24ABS/VSA7.5 A
25ACC (option)(7.5 A)
26—–
27Accessory Power Socket (Front)20 A
28Washer(15 A)
29ODS7.5 A
30Driver’s Door Lock Motor (Lock) (option)(10 A)
31SMART (option)(10 A)
32Door Lock Motor 2 (Lock)15 A
33Door Lock Motor 1 (Lock)15 A
34Small Lights7.5 A
35Illumination7.5 A
36——
37——
38Left Headlight High Beam10 A
39Right Headlight High Beam10 A
40TPMS (option)(7.5 A)
41Door Lock20 A
42Driver’s Power Window20 A
43Rear Passenger’s Side Power Window(20 A)
44Front Passenger’s Side Power Window20 A
45Rear Driver’s Side Power Window(20 A)
46Wiper(30 A)
–STS (option)(7.5 A)

Engine compartment

Under-hood fuse box diagram: Honda Civic (2014, 2015)

Assignment of the fuses in the engine compartment (2014, 2015)

Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register

№Circuit ProtectedAmps
1EPS70 A
1—(40 A)
1ABS/VSA Motor30 A
1ABS/VSA FSR30 A
1Wiper Motor (with smart entry system) /
– (without smart entry system)		30 A /
(30 A)
1Main Fuse100 A
2IG Main30 A (with smart entry system) /
50 A (without smart entry system)
2Fuse Box Main60 A
2Fuse Box Main 260 A
2Headlight Main30 A
2ST MG Switch (with smart entry system) /
– (without smart entry system)		30 A /
(30 A)
2Rear Defogger30 A
2IG Main 2 (with smart entry system) /
– (without smart entry system)		30 A /
(30 A)
2Blower40 A
2—(30 A)
2Sub Fan Motor20 A
2Main Fan Motor20 A
3——
4– (with smart entry system)
4Left Headlight Low Beam (without smart entry system)15 A
5START DIAG (with smart entry system)7.5 A
5ST MG (without smart entry system)7.5 A
6– (with smart entry system)–
6Right Headlight Low Beam (without smart entry system)15 A
7——
8——
9——
10——
11Oil Level7.5 A
12Fog Lights (option)(20 A)
13Driver’s Power Seat Sliding (option)(20 A)
14Hazard10 A
15FI Sub15 A
16IG Coil15 A
17Stop15 A
18Horn10 A
19Premium Amp (option)(20 A)
20Right Headlight Low Beam (with smart entry system)15 A
20Injection (option) (without smart entry system)(15 A)
21IGP15 A
22DBW15 A
23Left Headlight Low Beam (with smart entry system)15 A
23Headlight Low Beam (without smart entry system)20 A
24Driver’s Power Seat Reclining (option)(20 A)
25MG Clutch7.5 A
26Washer (with smart entry system)15 A
26– (without smart entry system)–
27SMALL20 A
28Interior Lights7.5 A
29Backup10 A
