Honda CR-V Fuse Box Locations and Diagrams (1997-2001)

This guide covers the first-generation Honda CR-V (1995–2001) (Model Codes: RD1, RD2, RD3). Here you’ll find fuse box diagrams for Honda CR-V 1997, 1998, 1999, 2000 and 2001, along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

What’s Included

Fuse box locations

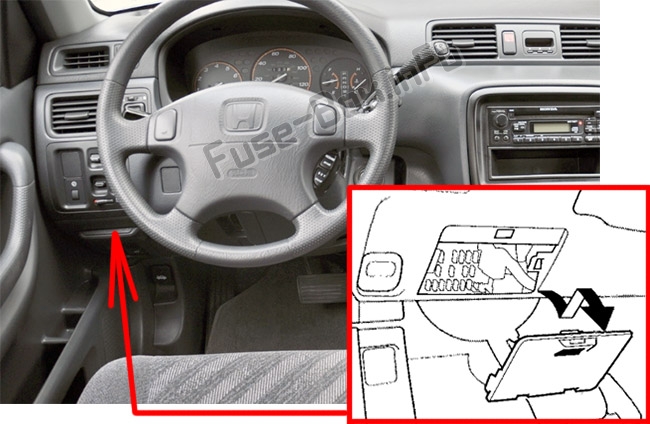

Passenger compartment

The interior fuse box is underneath the dashboard on the driver’s side.
Remove the lid by swinging the lid down and pulling it straight out of its hinges.

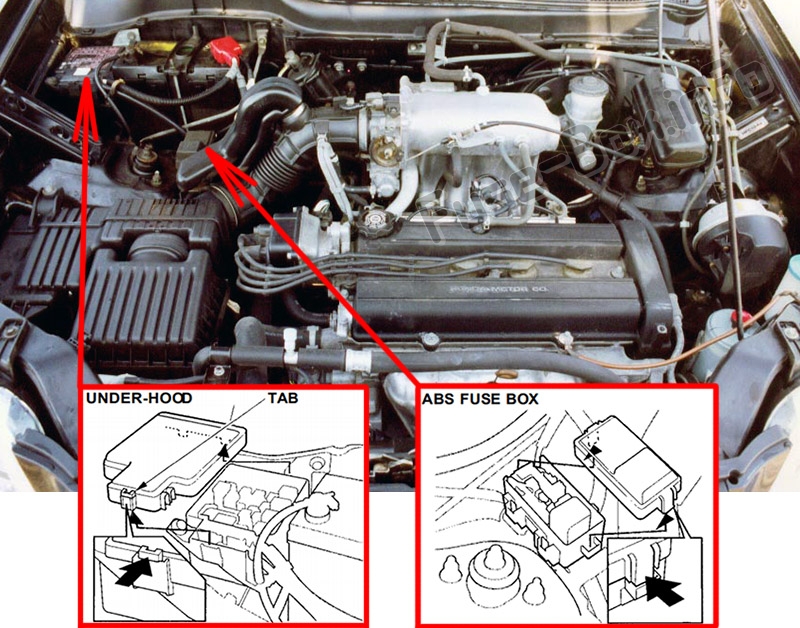

Engine compartment

The under-hood fuse box is located in the engine compartment.
Vehicles equipped with ABS have a third fuse box for the ABS. It is in the engine compartment on the passenger’s side.

Fuse box diagrams

Passenger compartment

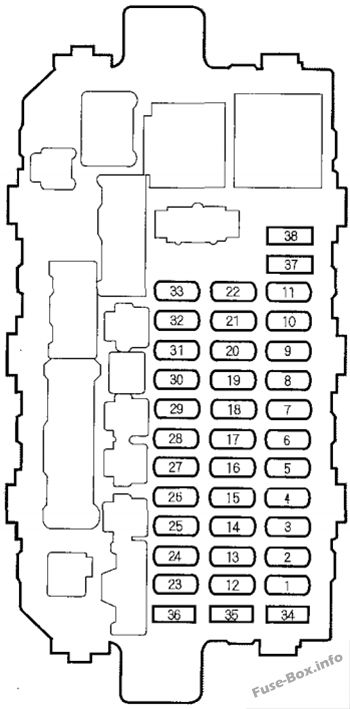

Instrument panel fuse box diagram: Honda CR-V (2000, 2001)

Assignment of the fuses in the instrument panel

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	—	Not used
2	—	Not used
3	10 A	Rear Wiper, Washer
4	10 A	Right Headlight High Beam
5	10 A	Left Headlight High Beam
6	10 A	Rear Accessory Power Socket
7	20 A	Power Window Rear Left
8	20 A	Power Window Rear Right
9	15 A	IGN Coil
10	20 A	Power Window Front Assistant
11	20 A	Power Window Front Driver
12	7.5 A	Turn Lights
13	15 A	Fuel Pump (SRS Unit)
14	7.5 A	Cruise Control
15	7.5 A	ACG (IG), SP Sensor
16	7.5 A	ABS
17	7.5 A	Heater A/C Relay
18	7.5 A	Running Light Relay (canadian model)
19	7.5 A	Back-up Light
20	7.5 A	Running Light (canadian model)
21	10 A	Right Headlight Low Beam
22	10 A	Left Headlight Low Beam
23	10 A	SRS
24	7.5 A	Power Window Relay
25	7.5 A	Meter
26	20 A	Front Wiper, Front Washer
27	10 A	Front Accessory Power Socket
28	10 A	Radio
29	—	Not used
30	7.5 A	Meter Light
31	7.5 A	Starter Signal
32	7.5 A	License Light, Taillight
33	7.5 A	Inter Lock Unit
34	7.5 A	Spare Fuse
35	10 A	Spare Fuse
36	15 A	Spare Fuse
37	20 A	Spare Fuse
38	—	Not used

Engine compartment

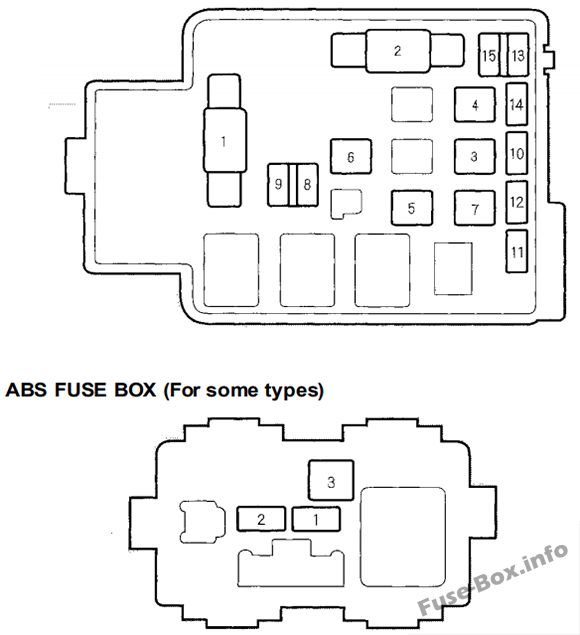

Under-hood fuse box diagram: Honda CR-V (2000, 2001)

Assignment of the fuses in the Engine compartment

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	100 A	Main Fuse Battery
2	40 A	Main Fuse Ignition Starter
3	20 A	Rear Defogger
4	40 A	Power Window
5	40 A	Option
6	30 A	Headlight
7	40 A	Healer Motor
8	10 A	Hazard
9	15 A	Horn, Stop Light
10	20 A	Door Lock Unit
11	20 A	Cooling Fan
12	20 A	Condenser Fan
13	15 A	FI E/M (ECM/PCM)
14	7.5 A	Back-up (Radio)
15	7.5 A	Interior Light

ABS FUSE BOX:
1	7.5 A	Motor Check
2	20 A	ABS + B
3	40 A	ABS Pump Motor

FAQ

Which fuses control the cigar lighter (power outlets) in the Honda CR-V?

Fuses #6 (Rear Accessory Power Socket) and #27 (Front Accessory Power Socket) in the instrument panel fuse box.
