This guide covers the second-generation Honda CR-V (2001–2006) (Model Codes: RD4, RD5, RD6, RD7, RD8, RD9). Here you’ll find fuse box diagrams for Honda CR-V 2002, 2003, 2004, 2005 and 2006 , along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

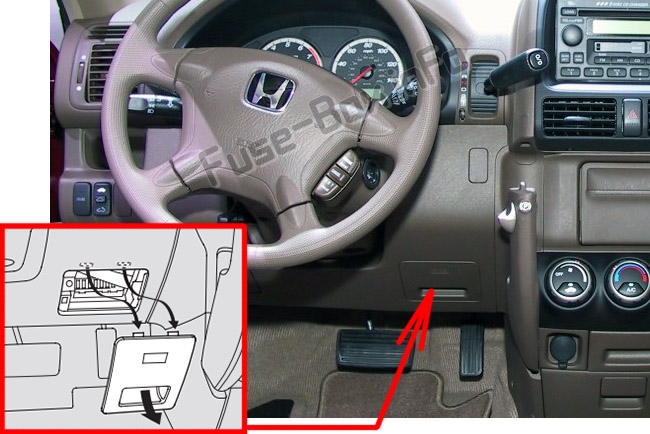

The interior fuse box is underneath the steering column.
The primary under-hood fuse box is in the engine compartment on the driver’s side.

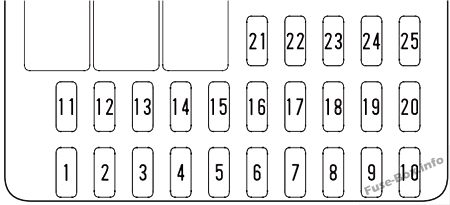

Assignment of the fuses in the instrument panel (2002, 2003, 2004)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 15 A Ignition Coil 2 10 A Rear Accessory Power Socket 3 10 A Daytime running lights (Canadian models) 4 10 A ACG 5 — Not Used 6 7.5 A Power Window Relay 7 20 A Moonroof 8 7.5 A Accessory, Radio 9 7.5 A Rear Wiper 10 7.5 A Meter 11 — Not Used 12 7.5 A Daytime running lights (Canadian models) 13 10 A SRS 14 10 A Remote Control Mirrors 15 20 A LAF Heater 16 20 A Heated Seat 17 15 A Fuel Pump 18 15 A Front Accessory Power Socket 19 7.5 A Turn Signal Lights 20 20 A Front Wiper 21 — Not Used 22 20 A Front Right Power Window 23 20 A Front Left Power Window 24 20 A Rear Left Power Window 25 20 A Rear Right Power Window
This content requires JavaScript and a valid membership to view.

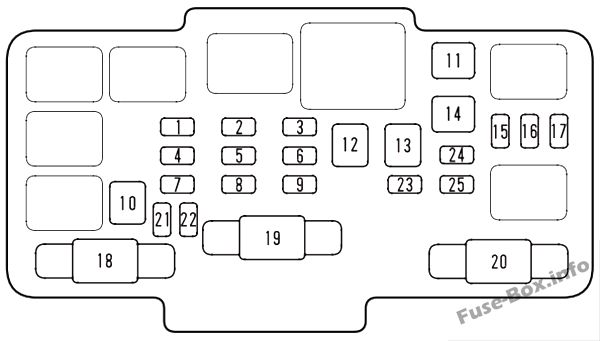

Assignment of the fuses in the Engine compartment (2002, 2003, 2004)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 20 A Condenser Fan 2 15 A Small Light 3 15 A Interior Light 4 20 A Cooling Fan 5 15 A Hazard 6 15 A FI ECU 7 15 A Horn, Stop 8 — Not Used 9 10 A Back Up 10 30 A ABS Motor 11 20 A Rear Defroster 12 40 A Heater Motor 13 40 A Power Window 14 40 A Option 15 15 A Left Headlight 16 20 A Door Lock 17 15 A Right Headlight 18 30 A ABS F/S 19 100 A Battery 20 50 A Ignition 1 21-25 7.5A-30A Spare Fuses
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the instrument panel (2005, 2006)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 15 A Ignition Coil 2 10 A Rear Accessory Power Socket 3 10 A Daytime running lights (Canadian models) 4 10 A ACG 5 — Not Used 6 7.5 A Power Window Relay 7 20 A Moonroof 8 7.5 A Accessory, Radio 9 7.5 A Rear Wiper 10 7.5 A Meter 11 — Not Used 12 7.5 A Daytime running lights (Canadian models) 13 10 A SRS 14 10 A Remote Control Mirrors 15 15 A + B FR ACC 16 20 A Heated Seat 17 15 A Fuel Pump 18 15 A Front Accessory Power Socket 19 7.5 A Turn Signal Lights 20 20 A Front Wiper 21 — Not Used 22 20 A Front Right Power Window 23 20 A Front Left Power Window 24 20 A Rear Left Power Window 25 20 A Rear Right Power Window
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine compartment (2005, 2006)
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 20 A Condenser Fan 2 30 A Engine 3 15 A Interior Light 4 20 A Cooling Fan 5 15 A Hazard 6 15 A Small Light 7 15 A Horn, Stop 8 15 A DBW 9 10 A Back Up 10 30 A ABS Motor 11 20 A Rear Defroster 12 40 A Heater Motor 13 40 A Power Window 14 40 A Option 15 20 A Left Headlight 16 20 A Door Lock 17 20 A Right Headlight 18 30 A ABS F/S 19 100 A Battery 20 50 A Ignition 1 21-25 7.5A-30A Spare Fuses
This content requires JavaScript and a valid membership to view.

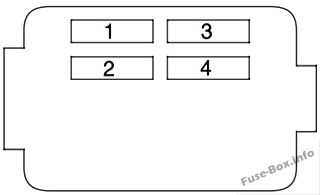

Secondary Fuse Box
Premium fuse data
Full access is available to registered users — log in or register to unlock this content.
Log in or register
No. Amps. Circuits Protected 1 20 A LAF Heater 2 7.5 A Daytime running lights (On Canadian models) 3 15 A FI ECU (ECM/PCM) 4 15 A IG Coil
