Honda CR-V Fuse Box Locations and Diagrams (2007-2011)

This guide covers the third-generation Honda CR-V (2006–2012) (Model Codes: RE1–RE5, RE7). Here you’ll find fuse box diagrams for Honda CR-V 2007, 2008, 2009, 2010 and 2011, along with information about the locations of the fuse panels inside the vehicle and the functions of each fuse (fuse layout).

What’s Included

Fuse box locations

Passenger compartment

The interior fuse box is located under the dashboard on the driver’s side.
The fuse label is attached under the steering column.

The auxiliary fuse box (If equipped) is located next to the interior fuse box.
To open the lid, pull the tab in the direction as shown in the illustration.

The location of the fuses in the passenger compartment: Honda CR-V (2007-2011)

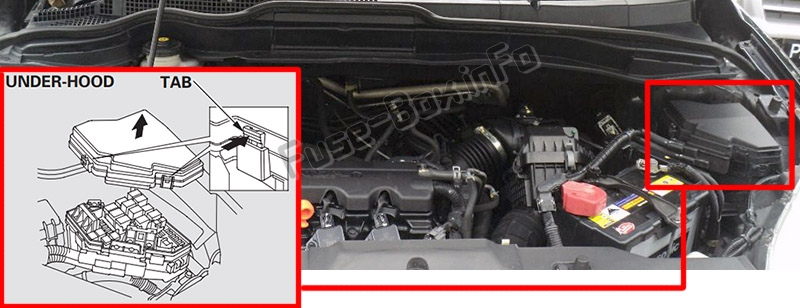

Engine compartment

The under-hood fuse box is on the driver’s side.

Fuse box diagrams

2007, 2008, 2009

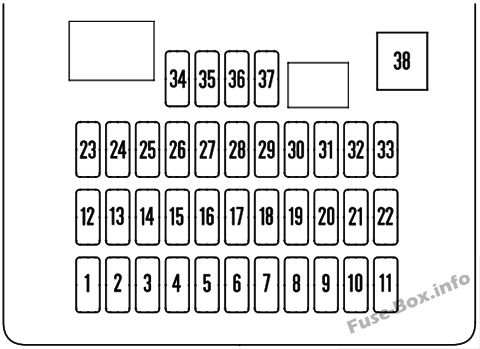

Passenger compartment

Assignment of the fuses in the Passenger compartment (2007, 2008, 2009)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	7.5 A	Power Window Relay
2	15 A	Fuel Pump
3	10 A	ACG
4	7.5 A	ABS/VSA
5	(15 A)	Heated Seats (If equipped)
6	(20 A)	Front Fog Lights (If equipped)
7	—	Not used
8	10 A	Rear Wiper
9	7.5 A	ODS (Ocupant Detection System)
10	7.5 A	Meter
11	10 A	SRS
12	10 A	Right Headlight High Beam
13	10 A	Left Headlight High Beam
14	7.5 A	Small Light (Interior)
15	7.5 A	Small Light (Exterior)
16	10 A	Right Headlight Low Beam
17	10 A	Left Headlight Low Beam
18	20 A	Main Headlight High Beam
19	15 A	Small Lights MAIN
20	7.5 A	TPMS
21	20 A	Headlight Low Beam
22	—	Not used
23	—	Not used
24	(20 A)	Moonroof (If equipped)
25	20 A	Door Lock
26	20 A	Front Left Power Window
27	(20 A)	HAC Option
28	15 A	Rear Accessory Socket
29	15 A	Accessory
30	20 A	Front Right Power Window
31	(15 A)	Accessory Power Socket on the Center Table (If equipped)
32	20 A	Rear Right Power Window
33	20 A	Rear Left power window
34	7.5 A	ACC Radio
35	7.5 A	ACC Key lock
36	10 A	HAC
37	7.5 A	Daytime Running Lights
38	30 A	Front Wiper

Engine compartment

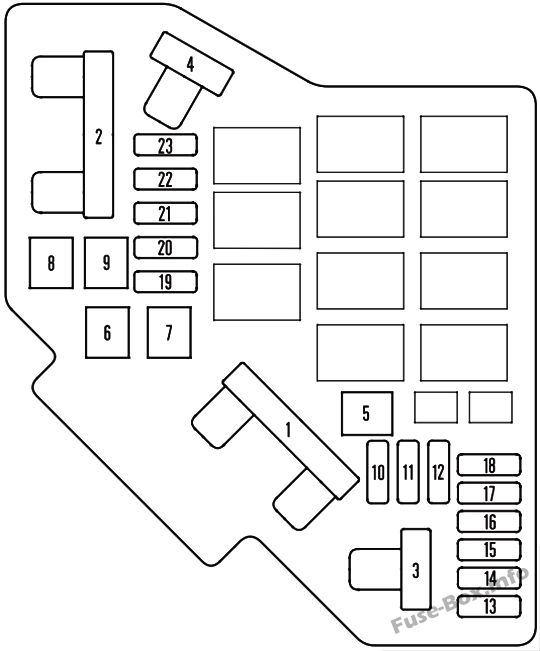

Under-hood fuse box diagram: Honda CR-V (2007, 2008, 2009)

Assignment of the fuses in the Engine compartment (2007, 2008, 2009)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	100 A	Battery
1	(70 A)	EPS (If equipped)
2	80 A	Option Main
2	50 A	Ignition Switch Main
3	20 A	ABS/VSA FSR
3	40 A	ABS/VSA Motor
4	50 A	Headlight Main
4	40 A	Power Window Main
5	(30 A)	EPT-R (If equipped)
6	20 A	Sub Fan Motor
7	20 A	Main Fan Motor
8	30 A	Rear Defogger
9	40 A	Blower
10	15 A	Hazard
11	15 A	LAF
12	15 A	Stop and Horn
13	(20 A)	Power Seat DR RR HI/ Reclining (If equipped)
14	(20 A)	Power Seat DR FR Hl/Sliding (If equipped)
15	7.5 A	IGPS OIL LEVEL
16	(30 A)	EPT-L (If equipped)
17	(15 A)	High Power Sound (If equipped)
18	15 A	IG Coil
19	15 A	FI Main
20	7.5 A	MG Clutch
21	15 A	DBW
22	7.5 A	Interior Light
23	10 A	Back Up

2010, 2011

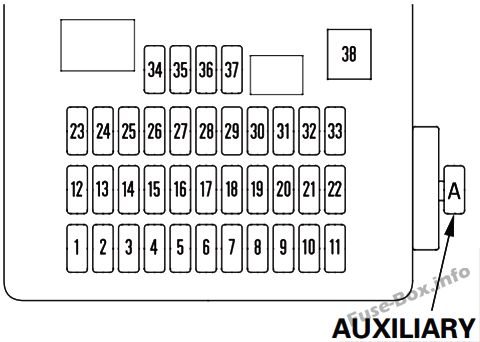

Passenger compartment

Assignment of the fuses in the Passenger compartment (2010, 2011)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	7.5 A	Power Window Relay
2	15 A	Fuel Pump
3	10 A	ACG
4	7.5 A	ABS/VSA
5	(15 A)	Heated Seats (If equipped)
6	—	Not used
7	—	Not used
8	10 A	Rear Wiper
9	7.5 A	ODS (Occupant Detection System)
10	7.5 A	Meter
11	10 A	SRS
12	10 A	Right Headlight High Beam
13	10 A	Left Headlight High Beam
14	7.5 A	Small Light (Interior)
15	7.5 A	Small Light (Exterior)
16	10 A	Right Headlight Low Beam
17	10 A	Left Headlight Low Beam
18	20 A	Main Headlight High Beam
19	15 A	Small Lights MAIN
20	7.5 A	TPMS
21	20 A	Main Headlight Low Beam
22	—	Not used
23	—	Not used
24	(20 A)	Moonroof (If equipped)
25	20 A	Door Lock
26	20 A	Front Left Power Window
27	—	Not used
28	15 A	Rear Accessory Power Socket
29	15 A	Front Accessory Power Socket
30	20 A	Front Right Power Window
31	(15 A)	Accessory Power Socket (If equipped) (in the Console Compartment/ on the Center Table)
32	20 A	Rear Right Power Window
33	20 A	Rear Left power window
34	7.5 A	ACC Radio
35	7.5 A	ACC Key lock
36	10 A	HAC
37	7.5 A	Daytime Running Lights
38	30 A	Front Wiper

Auxiliary:
A	10 A	VB SOL
B	—	—

Engine compartment

Under-hood fuse box diagram: Honda CR-V (2010, 2011)

Assignment of the fuses in the Engine compartment (2010, 2011)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

No.	Amps.	Circuits Protected
1	100 A	Battery
1	—	Not used
2	80 A	Option Main
2	50 A	Ignition Switch Main
3	20 A	ABS/VSA FSR
3	40 A	ABS/VSA Motor
4	50 A	Headlight Main
4	40 A	Power Window Main
5	—	Not used
6	20 A	Sub Fan Motor
7	20 A	Main Fan Motor
8	30 A	Rear Defogger
9	40 A	Blower
10	15 A	Hazard
11	15 A	LAF
12	15 A	Stop and Horn
13	(20 A)	Power Seat DR RR HI/ Reclining (If equipped)
14	(20 A)	Power Seat DR FR HI/Sliding (If equipped)
15	7.5 A	IGPS OIL LEVEL
16	—	Not used
17	(15 A)	High Power Sound (If equipped) / Windshield Defroster
18	15 A	IG Coil
19	15 A	FI Main
20	7.5 A	MG Clutch
21	15 A	DBW
22	7.5 A	Interior Light
23	10 A	Back Up

FAQ

Which fuses control the cigar lighter (power outlets) in the Honda CR-V?

Fuses #28 (Rear Accessory Socket), #29 (Front Accessory Socket), and #31 (Accessory Power Socket on the Center Table) in the instrument panel fuse box.
