Honda CR-V Fuse Box Locations and Diagrams (2012-2016)

This guide covers the fourth-generation Honda CR-V (2011–2018) (Model Codes: RM1, RM2, RM3, RM4, RE5, RE6). Here you’ll find fuse box diagrams for Honda CR-V models from 2012 to 2016, along with details about the locations of the fuse panels inside the vehicle and the purpose of each fuse (fuse layout).

What’s Included

Fuse box locations

Passenger compartment

Located under the dashboard.
Fuse locations are shown on the label on the cover.

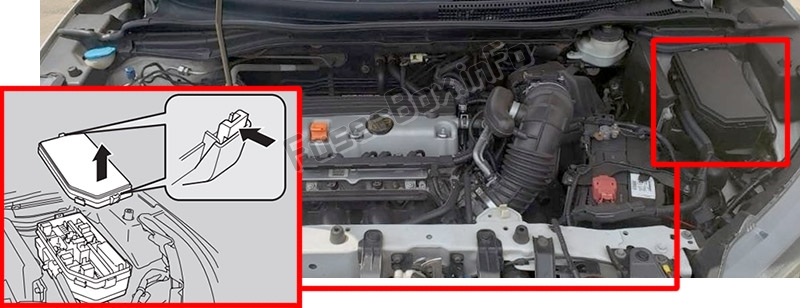

Engine compartment

Located near the brake fluid reservoir.

Fuse Box Diagrams

2012, 2013, 2014

Passenger compartment

Assignment of the fuses in the passenger compartment (2012, 2013, 2014)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Circuit Protected	Amps
1	–	–
2	ACG	10 A
3	SRS	10 A
4	Fuel Pump	15 A
5	Meter	10 A
6	Power Window	7.5 A
7	VB SOL	7.5 A
8	Door Lock Motor 2 (Unlock)	15 A
9	Door Lock Motor 1 (Unlock)	10 A
10	Trailer (option)	(7.5 A)
11	Moonroof (option)	(20 A)
12	Accessory Power Socket (Center Console) (option)	(15 A)
13	–	–
14	Seat Heaters (option)	(20 A)
15	Driver’s Door Lock Motor (Unlock)	10 A
16	Driver’s Power Seat Sliding (option)	(20 A)
17	Driver’s Power Seat Reclining (option)	(20 A)
18	–	–
19	ACC	7.5 A
20	ACC Key Lock	7.5 A
21	Daytime Running Lights	7.5 A
22	A/C	7.5 A
23	Rear Wiper	10 A
24	ABS/VSA	7.5 A
25	Audio	10 A
26	–	–
27	Accessory Power Socket (Front)	15 A
28	Washer	15 A
29	ODS	7.5 A
30	Driver’s Door Lock Motor (Lock) (option)	10 A
31	—	—
32	Door Lock Motor 2 (Lock)	15 A
33	Door Lock Motor 1 (Lock)	15 A
34	Small Lights	10 A
35	Illumination	7.5 A
36	–	–
37	–	–
38	Left Headlight High Beam	10 A
39	Right Headlight High Beam	10 A
40	TPMS	7.5 A
41	Door Lock	20 A
42	Driver’s Power Window	20 A
43	Rear Passenger’s Side Power Window	20 A
44	Front Passenger’s Side Power Window	20 A
45	Rear Driver’s Side Power Window	20 A
46	–	–

Engine compartment

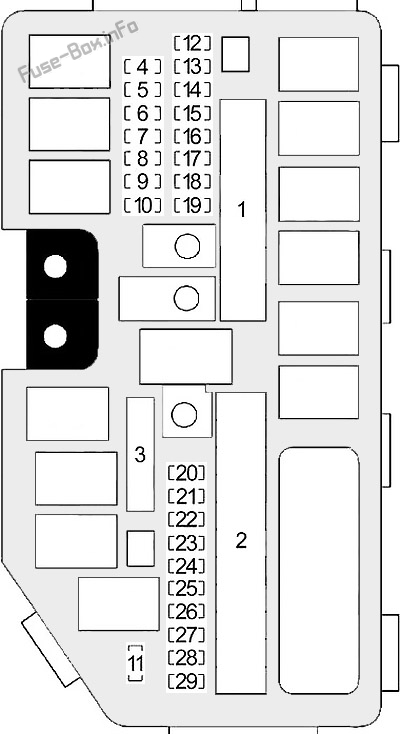

Under-hood fuse box diagram: Honda CR-V (2012, 2013, 2014)

Assignment of the fuses in the engine compartment (2012, 2013, 2014)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Circuit Protected	Amps
1	EPS	70 A
1	–	–
1	ABS/VSA Motor	40 A
1	ABS/VSA FSR	20 A
1	E-DPS (option)	(30 A)
1	Main Fuse	100 A
2	IG Main	50 A
2	Fuse Box Main	60 A
2	Fuse Box Main 2	60 A
2	Headlight Main	30 A
2	–	–
2	Rear Defogger	30 A
2	–	–
2	Blower	40 A
2	Front Wiper Main	30 A
2	Sub Fan Motor	20 A
2	Main Fan Motor	20 A
3	–	–
4	–	–
5	–	–
6	–	–
7	–	–
8	Sub Fan Rly CL	7.5 A
9	–	–
10	Heated Door Mirror (option)	(7.5 A)
11	STRLD	7.5 A
12	Fog Lights (option)	(20 A)
13	Premium Amp (option)	(20 A)
14	Horn	10 A
15	Hazard	10 A
16	Stop	10 A
17	IG Coil	15 A
18	IGP2	15 A
19	–	–
20	–	–
21	–	–
22	DBW	15 A
23	IGP	15 A
24	Left Headlight Low Beam	10 A
25	Right Headlight Low Beam	10 A
26	SMALL	20 A
27	MG Clutch	7.5 A
28	Interior Lights	7.5 A
29	Backup	10 A

2015, 2016

Passenger compartment

Assignment of the fuses in the passenger compartment (2015, 2016)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Circuit Protected	Amps
1	—	—
2	ACG	10 A
3	SRS	10 A
4	Fuel Pump	15 A
5	Meter	10 A
6	Power Window	7.5 A
7	VB SOL	7.5 A
8	Passenger’s Side Door Lock, Motor 2 (Unlock)	15 A
9	Driver’s Side Door Lock, Motor 1 (Unlock)	15 A
10	Trailer (option)	(7.5 A)
11	Moonroof (option)	(20 A)
12	Accessory Power Socket (Center Console)	20 A
13	Washer Main (option)	(15 A)
14	Seat Heaters (option)	(20 A)
15	Driver’s Door Lock Motor (Unlock)	10 A
16	Driver’s Power Seat Sliding (option)	(20 A)
17	Driver’s Power Seat Reclining (option)	(20 A)
18	–	–
19	ACC	7.5 A
20	ACC Key Lock	7.5 A
21	Daytime Running Lights	7.5 A
22	A/C	7.5 A
23	Wiper	10 A
24	ABS/VSA	7.5 A
25	Audio	10 A
26	Power Tailgate (option)	(20 A)
27	Accessory Power Socket (Front)	20 A
28	Washer (option)	15 A
29	OPDS	7.5 A
30	Driver’s Door Lock Motor (Lock)	10 A
31	Smart (option)	(10 A)
32	Passenger’s Side Door Lock Motor 2 (Lock)	15 A
33	Driver’s Side Door Lock, Motor 1 (Lock)	15 A
34	Small Lights	10 A
35	Illumination	7.5 A
36	Rear Wiper Main (option)	(10 A)
37	Front Fog Lights (option)	(20 A)
38	Left Headlight High Beam	10 A
39	Right Headlight High Beam	10 A
40	–	–
41	Door Lock	20 A
42	Driver’s Side Power Window	20 A
43	Rear Passenger’s Side Power Window	20 A
44	Front Passenger’s Side Power Window	20 A
45	Rear Driver’s Side Power Window	20 A
46	–	–

Engine compartment

Under-hood fuse box diagram: Honda CR-V (2015, 2016)

Assignment of the fuses in the engine compartment (2015, 2016)

Premium fuse data

Full access is available to registered users — log in or register to unlock this content.

№	Circuit Protected	Amps
1	EPS	70 A
1	Power Tailgate	(40 A)
1	ABS/VSA FSR	20 A
1	ABS/VSA Motor	40 A
1	E-DPS (option)	(30 A)
1	Main Fuse	120 A
2	Main	50 A
2	Fuse Box Main	60 A
2	Fuse Box Main 2	60 A
2	Headlight High Beam Main	30 A
2	ST Magnetic Switch	(30 A)
2	Rear Defogger	30 A
2	Heater Motor	40 A
2	Front Wiper Main	30 A
2	Sub Fan Motor	20 A
2	Main Fan Motor	20 A
3	DC/DC1	(30 A)
3	DC/DC2	(30 A)
3	IG MAIN	(30 A)
3	IG MAIN2	(30 A)
4	–	–
5	—	—
6	–	–
7	—	—
8	Sub Fan Rly CL	7.5 A
9	VSA ECU	7.5 A
10	Heated Door Mirror (option)	(7.5 A)
11	STRLD	7.5 A
12	Injector	20 A
13	Premium Amp (option)	(20 A)
14	Horn	10 A
15	Hazard	10 A
16	Stop	10 A
17	IG Coil	15 A
18	IGP2	15 A
19	Daytime Running Lights	(10 A)
20	Passenger’s Power Seat Reclining	(20 A)
21	Deicer	(15 A)
22	DBW	15 A
23	IGP	15 A
24	Left Headlight Low Beam	10 A
25	Right Headlight Low Beam	10 A
26	SMALL	20 A
27	MG Clutch	7.5 A
28	Interior Lights	7.5 A
29	Backup	10 A

FAQ

Which fuses control the cigar lighter (power outlets) in the 2012–2016 Honda CR-V?

Fuses #12 (Center Console Accessory Power Socket) and #27 (Front Accessory Power Socket) in the instrument panel fuse box.
