Fuse box information about the Honda HR-V / ZR-V (2022–2025) , third-generation (North American version) (Model Codes: RV, RS1, RZ). Here you will find fuse box diagrams of Honda HR-V (US) / ZR-V 2023, 2024 and 2025 , get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout).

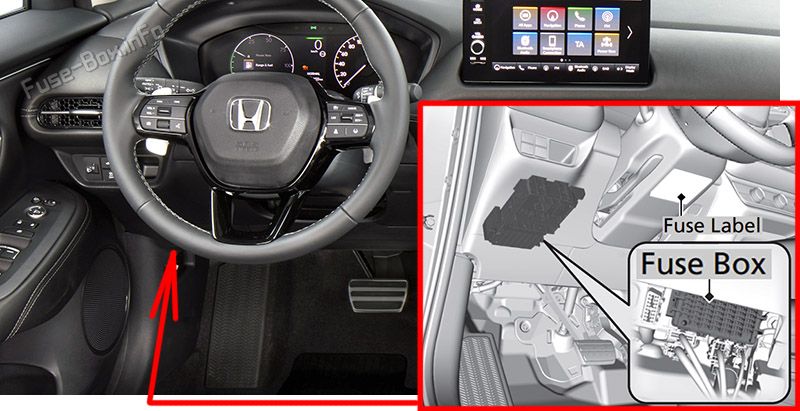

The fuses are located under the dashboard. Fuse locations are shown on the label under the steering column.

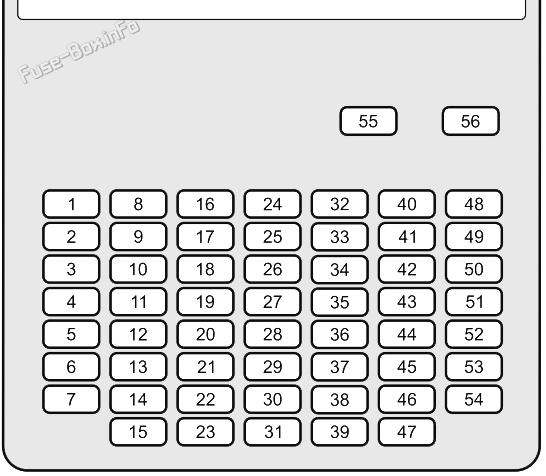

Assignment of the fuses in the instrument panel
№ Amps Circuit Protected 1 20A P/W DR 2 20A P/W AS 3 20A P/W RR R 4 20A P/W RR L 5 10A OPTION 6 10A SRS 7 10A T/G MTR 8 10A ZR-V: IDAS / HUD 9 20A ZR-V: FR ACC SOCKET 10 20A DOOR LOCK 11 10A METER 12 10A ST CUT RLY 13 10A OPTION2 14 10A OPTION6 (VB SOL) 15 10A DR DOOR UNLOCK 16 20A SUNROOF 17 10A ZR-V: SBW 18 – – 19 – – 20 10A ZR-V: RR FOG 21 20A CARGO ACC SOCKET 22 10A SMART 23 10A DR DOOR LOCK 24 – – 25 10A IMG 26 10A SRS 27 10A ACG 28 10A ABS/VSA 29 20A FUEL PUMP 30 10A L SIDE DOOR UNLOCK 31 10A R SIDE DOOR UNLOCK 32 – – 33 10A USB CHG 34 – – 35 – – 36 20A ZR-V: PTG CLOSER 37 20A HR-V (US): E-PTL 38 20A ZR-V: IGA2 39 10A R SIDE DOOR LOCK 40 20A P SEAT REC / RR HI 41 20A P SEAT SLIDE / FR HI 42 10A ZR-V: IG1 MON 43 10A A/C 44 10A DRL 45 10A ACC 46 10A ACC KEY LOCK 47 10A L SIDE DOOR LOCK 48 20A HR-V (US): H/SEAT 49 20A ZR-V: AS P SEAT REC 50 – – 51 20A ZR-V: RR H/SEAT 52 20A HR-V (US): E-DPS 53 20A ZR-V: AS P SEAT SLIDE 54 10A OPTION 1 / FUEL LID 55 – – 56 – –
Login or Register to view this content

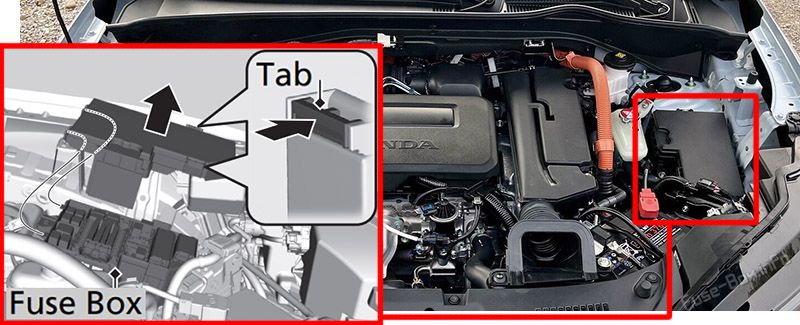

The fuse box is located near the battery. Push the tabs to open the box. Fuse locations are shown on the fuse box cover.

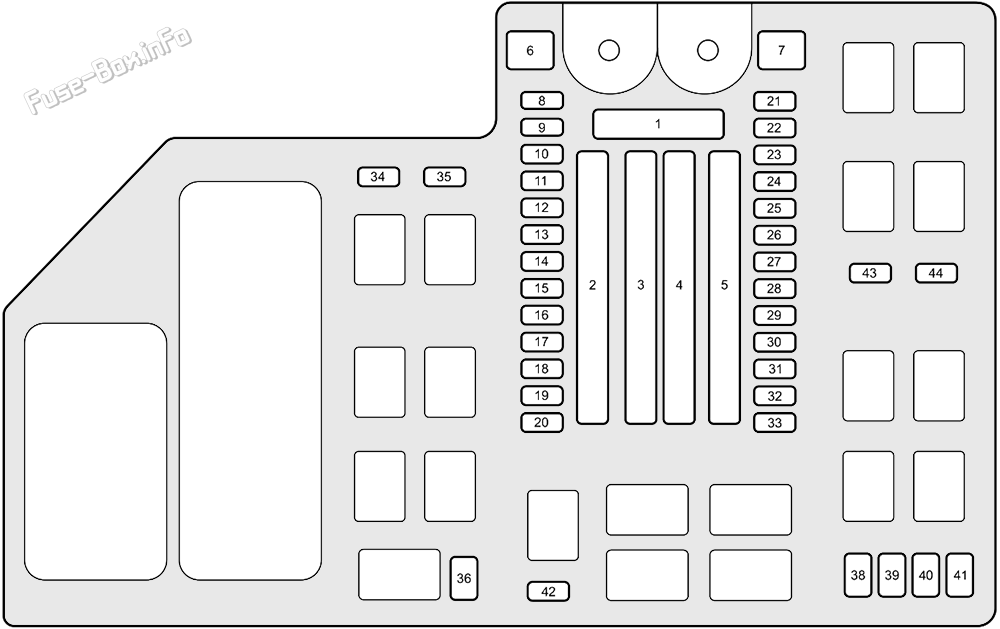

Assignment of the fuses in the engine compartment
№ Amps Circuit Protected 1 125A BATTERY 2-1 40A ZR-V: A/C PTC1 2-2 40A – 2-3 60A F/BOX OPTION 2-4 40A – 2-5 40A F/BOX OPTION2 2-6 30A – 2-7 60A F/BOX MAIN 3-1 30A – 3-2 30A – 3-3 70A – 3-4 30A RR DEFROSTER 3-5 40A ZR-V: PTG MTR 3-6 30A ZR-V: A/C PTC3 3-7 40A HTR MTR 4-1 30A ZR-V: ESB 4-2 40A ABS/VSA MTR 4-3 30A ZR-V: RFC 4-4 30A ZR-V: P-ACT MTR 4-5 30A IG MAIN 4-6 30A ZR-V: OPTION6 4-7 30A HR-V (US): IG MAIN2 5-1 30A HR-V (US): ST MAGNETIC SW 5-2 30A WIPER 5-3 70A EPS 5-4 30A ZR-V: IG MAIN2 5-5 40A ABS/VSA FSR 5-6 30A/40A HR-V (US): MAIN FAN 5-7 40A F/BOX MAIN2 6 30A HR-V (US): SUB FAN 7 40A HR-V (US): BOOSTER MTR 8 20A/30A ZR-V: AUDIO AMP 9 20A ZR-V: SUNSHADE 10 7.5A AUDIO SUB 11 15A HR-V (US): FR DEICER 12 20A ZR-V: SUPER LOCK 13 10A H/STRG 14 10A ZR-V: BATT IR 15 15A ZR-V: H/L ADJ 16 10A MG CLUTCH 17 15A WASHER 18 10A HORN 19 15A BACK UP 20 15A AUDIO 21 20A R/M1 22 15A DBW 23 20A R/M2 24 10A BACKUP FI-ECU 25 15A IGP 26 10A/15A HR-V (US): TCU 27 20A LCM L 28 20A ZR-V: INJ 29 10A STOP 30 20A LCM R 31 15A IG COIL 32 20A ZR-V: EVTC 33 15A HAZARD 34 10A ZR-V: IGA 35 – – 36 – – 37 30A – 38 10A ZR-V: PCU EWP 39 10A ZR-V: P-ACT DRV 40 7.5A/10A ZR-V: IGB 41 10A IGPS (LAF) 42 10A IG1 MON2 43 – – 44 – –
