Honda Insight Fuse Box Locations and Diagrams (2010-2014)

Fuse box information about the Honda Insight (2009–2014), second-generation (Model Codes: ZE2, ZE3). Here you will find fuse box diagrams of Honda Insight 2010, 2011, 2012, 2013 and 2014, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout).

What’s Included

Fuse box location

Passenger compartment

The interior fuse box is behind the dashboard on the driver’s side.

The interior fuse box label is attached to the back side of the cover.
To see the interior fuse box label, remove the cover by pulling it toward you while holding the bottom center part of the cover.

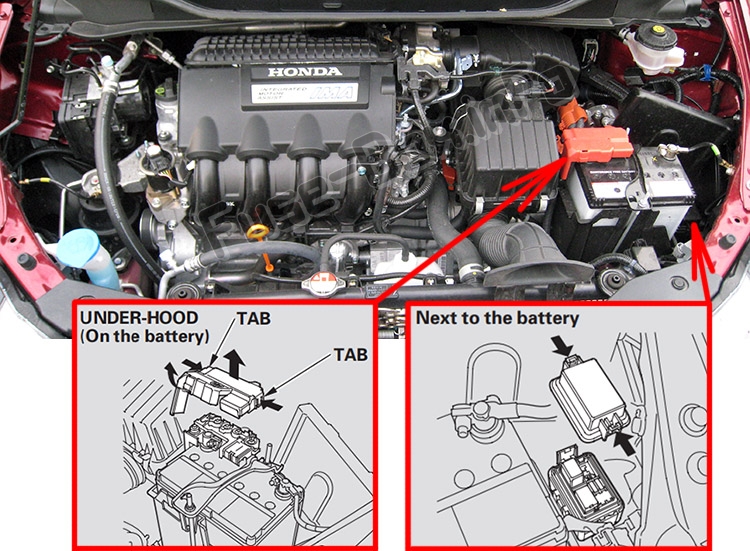

Engine compartment

The under-hood fuse is on the positive terminal of the battery.
The secondary fuse box is located next to the battery.

Fuse box diagrams

Passenger compartment

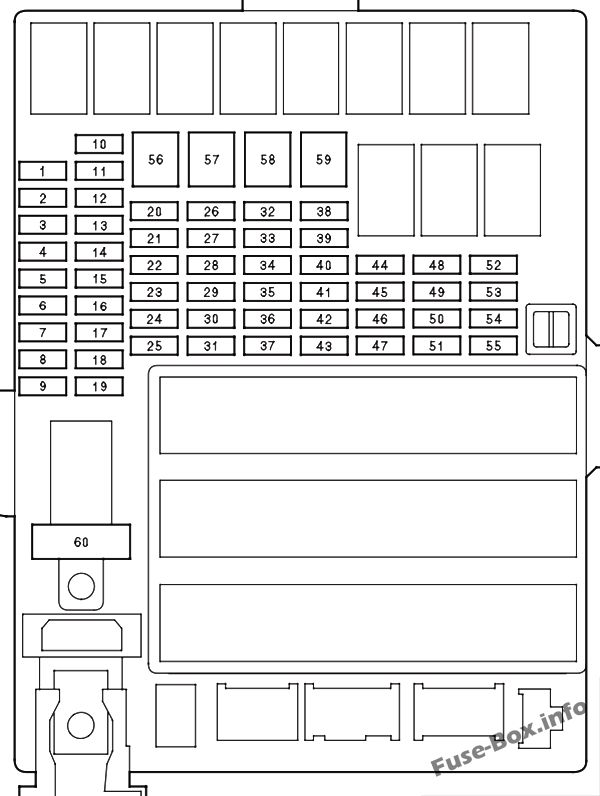

Instrument panel fuse box diagram: Honda Insight (2010, 2011, 2012, 2013, 2014)

Assignment of the fuses in the Passenger compartment

No.	Amps.	Circuits Protected
1	15 A	Back Up
2	(7.5 A)	TPMS (U.S. models)
3	20 A	Driver’s Power Window
4	—	Not Used
5	10 A	Back Up Light
6	10 A	SRS
7	10 A	Transmission SOL
8	7.5 A	OPDS
9	—	Not Used
10	7.5 A	A/C
11	7.5 A	ABS/VSA
12	10 A	IMA
13	20 A	ACC Socket
14	7.5 A	Accessory
15	7.5 A	Daytime Running Light
16	10 A	Rear Wiper
17	20 A	Front Passenger’s Power Window
18	20 A	Rear Passenger’s Side Power Window
19	20 A	Rear Driver’s Side Power Window
20	15 A	Fuel Pump
21	15 A	Washer
22	7.5 A	Meter
23	10 A	Hazard
24	10 A	Stop/Horn
25	—	Not Used
26	10 A	LAF
27	30 A	Door Lock Main
28	20 A	Headlight Main
29	10 A	Small Light
30	30 A	Radiator Fan Motor
31	7.5 A	IGPS
32	10 A	Right Headlight Low Beam
33	20 A	IG Coil
34	10 A	Left Headlight Low Beam
35	15 A	Door Lock Motor 2 (Lock)
36	15 A	Door Lock Motor 1 (Lock)
37	30 A	ABS/VSA FSR
38	15 A	Selectable Door Lock
39	15 A	IGP
40	—	Not Used
41	—	Not Used
42	10 A	IMA 1
43	7.5 A	MG Clutch
44	7.5 A	STS
45	7.5 A	Hatch Lock
46	—	Not Used
47	30 A	Condenser Fan Motor
48	10 A	Left Headlight High Beam
49	15 A	Door Lock Motor 2 (Unlock)
50	15 A	Door Lock Motor 1 (Unlock)
51	10 A	Right Headlight High Beam
52	15 A	DBW
53	10 A	IMA 2
54	—	Not Used
55	10 A	Heated Mirror (Canadian models) (EX models)
56	30 A	Front Wiper
57	30 A	Blower Motor
58	30 A	ABS/VSA Motor
59	30 A	Rear Defogger (Insight model and U.S. LX model)
59	40 A	Rear Defogger (Canadian models) (EX models)
60	—	Not Used
60	50 A	IG Main

Engine compartment

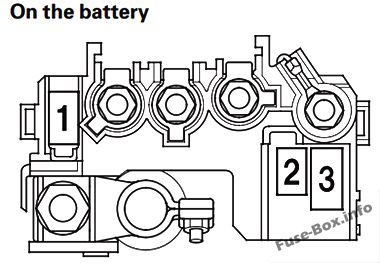

Under-hood fuse box diagram (on the battery): Honda Insight (2010, 2011, 2012, 2013, 2014)

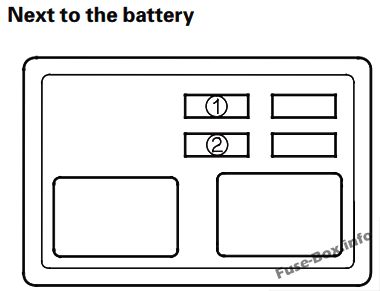

Under-hood fuse box diagram (next to th battery): Honda Insight (2010, 2011, 2012, 2013, 2014)

Assignment of the fuses in the Engine compartment

No.	Amps.	Circuits Protected
On the battery:
1	100 A	Battery, Main, ACG
2	60 A	EPS
3	20 A	Horn, Stop, Hazard

Next to the battery:
1	15 A	Ignition Coil (EX)
2	15 A	Ignition Coil (IN)

FAQ

Which fuse controls the cigar lighter (power outlet) in the Honda Insight?at is FAQ?

Fuse #13 in the instrument panel fuse box.
