In this article, we consider the second-generation Honda Passport (Model Codes: CK58, CM58, DM58 ), produced from 1998 to 2002 . Here you will find fuse box diagrams of Honda Passport 1998, 1999, 2000, 2001, and 2002 , get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout) and relay .

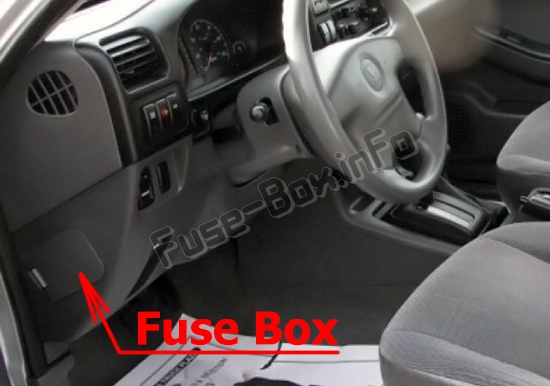

It is located on the driver’s side of the instrument panel, behind the cover.

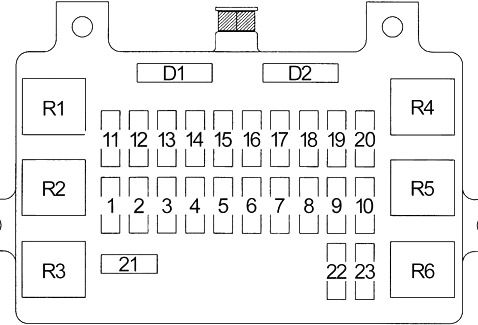

Assignment of the fuses in the passenger compartment
№ Amp Protected component 1 20A Accessory power sockets 2 – Not Used 3 15A Cigarette lighter 4 15A Dash/parking lights 5 10A Interior lights 6 15A Brake lights, cruise control 7 20A Power door locks 8 10A Mirror defoggers 9 15A Rear window defogger 10 15A Rear window defogger 11 15A Gauges, indicators 12 15A Charging system, fuel injection 13 15A Ignition system 14 15A Turn signals, backup lights 15 15A ABS, 4WD, cruise control 16 20A Windshield wiper/washer 17 10A Rear wiper/washer 18 10A Security and keyless entry 19 15A Audio system 20 20A Starter 21 30A Power windows, moonroof 22 10A SRS 23 – Not Used
Login or Register to view this content

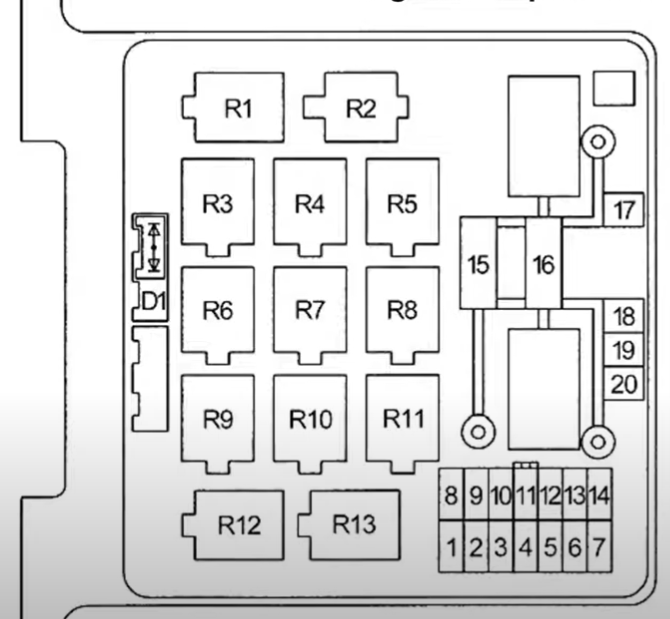

Assignment of the fuses in the engine compartment
№ Amperage Protected component 1 15A Hazard Warning Light 2 10A Horn 3 – Not Used 4 20A Blower 5 10A Air conditioner 6 – Not Used 7 – Not Used 8 10A Headlight; left 9 10A Headlight; right 10 15A Fog lights 11 10A O2 Sensor 12 20A Fuel pump 13 15A ECM 14 – Not Used 15 60A Power distribution 16 100A Main 17 60A ABS 18 30A Condenser fan 19 – Not Used
Login or Register to view this content
