Honda Pilot Fuse Box Locations and Diagrams (2003-2008)

The first-generation Honda Pilot (Model Codes: YF1, YF2) was produced from 2003 to 2008. As Honda’s first full-size SUV, the Pilot was built to combine car-like handling with rugged utility, featuring three-row seating, advanced safety features, and a strong V6 engine. It quickly became a favorite among families and outdoor enthusiasts thanks to its versatility and reliability.

In this article, you will find fuse box diagrams for the Honda Pilot, covering model years 2003, 2004, 2005, 2006, 2007, and 2008. These diagrams are key to understanding the fuse layout, making it easier to locate, inspect, and replace fuses and relays.

What’s Included:

Fuse Box Diagrams – Clear illustrations of fuse and relay arrangements.
Fuse Panel Locations – Step-by-step details on where to find fuse panels inside the vehicle.
Fuse Assignments – Complete descriptions of the function of each fuse and relay for effective troubleshooting.

Whether you’re replacing a blown fuse or investigating an electrical fault, this guide will help ensure that your Honda Pilot (2003–2008) remains dependable for daily driving, road trips, and family adventures.

What’s Included

Fuse Box Locations

Passenger compartment

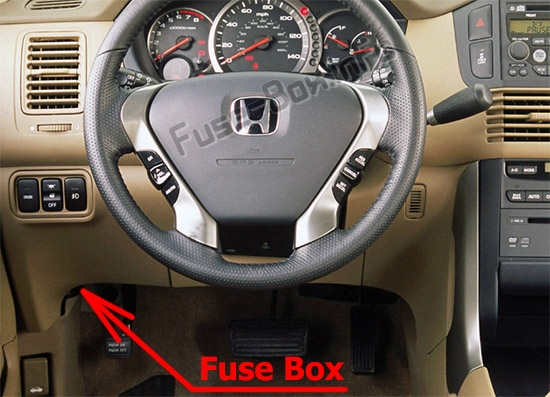

The interior fuse boxes are located underneath the dashboard on each side.

Driver’s Side

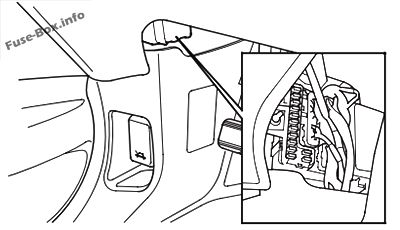

The location of the fuses in the passenger compartment: Honda Pilot (2003-2008)

Passenger’s Side

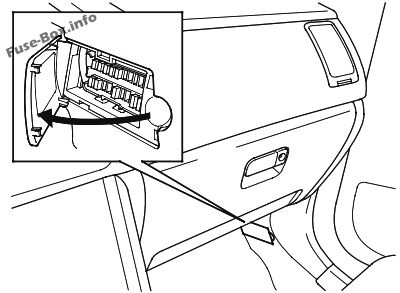

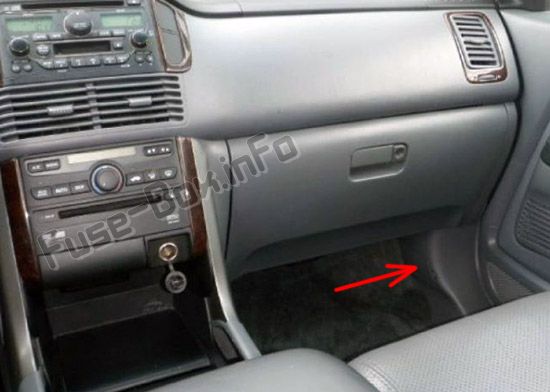

To open the fuse box on the passenger’s side, pull the right edge of the cover.

Engine compartment

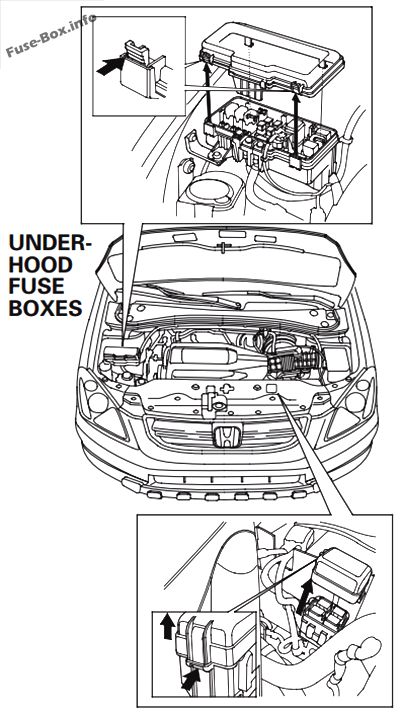

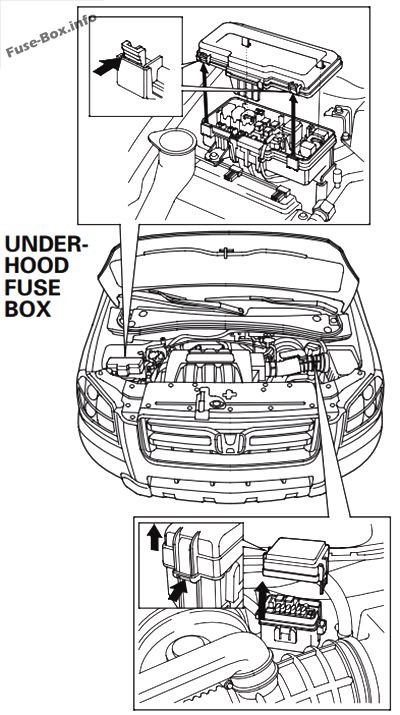

The primary under-hood fuse box is located on the passenger’s side of the engine compartment.
The secondary fuse box is in the engine compartment next to the battery, or on the left.

Fuse Box Diagrams

2003, 2004

Passenger compartment (Driver’s Side)

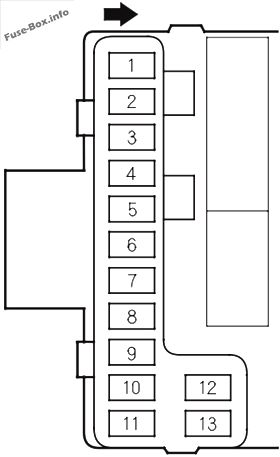

Assignment of the fuses in the Passenger compartment, Driver’s Side (2003, 2004)

No.	Amps.	Circuits Protected
1	15 A	Fuel Pump
2	10 A	SRS
3	7.5 A	Heater Control, A/C Clutch Relay, Cooling Fan Relay
4	7.5 A	Power Mirror, VTM-4
5	7.5 A	Daytime Running Light (On Canadian models)
6	15 A	ECU (PCM), Cruise Control
7	7.5 A	OPDS, Rear Wiper
8	7.5 A	ACC Relay
9	10 A	Back-up Lights, Instrument Lights
10	7.5 A	Turn Signals
11	15 A	IG Coil
12	30 A	Front Wiper
13	7.5 A	Starter Signal

Passenger compartment (Passenger’s Side)

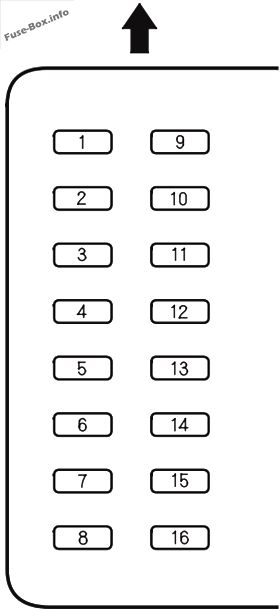

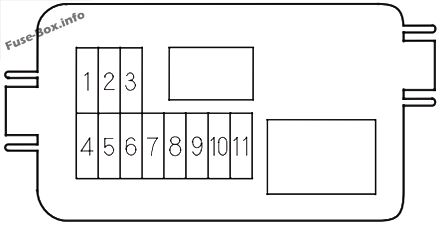

Interior fuse box diagram (Passenger’s Side): Honda Pilot (2003, 2004)

Assignment of the fuses in the Passenger compartment, Passenger’s Side (2003, 2004)

No.	Amps.	Circuits Protected
1	20 A	Driver’s Power Window
2	20 A	Driver’s Power Seat Reclining
3	20 A	Heated Seat (On Canadian models)
4	20 A	Driver’s Power Seat Sliding
5	—	Not used
6	10 A	Daytime Running Light (On Canadian models)
7	20 A	Driver’s side Rear Power Window
8	20 A	Front Passenger’s Power Window
9	15 A	Front Accessory Socket, Radio
10	15 A	Small Light
11	10 A	Interior Light, Navi
12	20 A	Power Door Lock
13	7.5 A	Back Up
14	—	Not used
15	—	Not used
16	20 A	Passenger’s Side Rear Power Window

Engine compartment (primary fuse box)

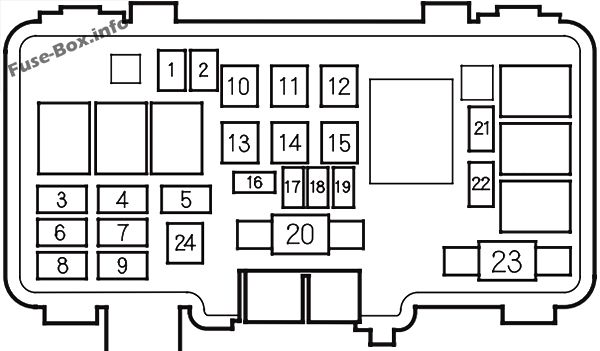

Assignment of the fuses in the Engine compartment, primary fuse box (2003, 2004)

No.	Amps.	Circuits Protected
1	20 A	Spare Fuse
2	30 A	Spare Fuse
3	20 A	Right Headlight
4	15 A	ACG S
5	15 A	Hazard
6	—	Not used
7	20 A	Stop
8	20 A	Left Headlight
9	20 A	Radio
10	40 A	Power Window Motor
11	40 A	Power Seat
12	30 A	Rear Defroster
13	40 A	Back Up, ACC
14	30 A	Rear A/C
15	40 A	Heater Motor
16	30 A	Cooling Fan
17	7.5 A	Spare Fuse
18	10 A	Spare Fuse
19	15 A	Spare Fuse
20	120 A	Battery
21	30 A	Condenser Fan
22	7.5 A	MG Clutch
23	50 A	IGI Main
24	20 A	Trailer (accessory)

Engine compartment (secondary fuse box)

Assignment of the fuses in the Engine compartment, secondary fuse box (2003, 2004)

No.	Amps.	Circuits Protected
1	40 A	ABS Motor
2	20 A	ABS F/S
3	20 A	Rear ACC Socket
4	20 A	4WD

2005, 2006, 2007, 2008

Passenger compartment (Driver’s Side)

Assignment of the fuses in the Passenger compartment, Driver’s Side (2005, 2006, 2007, 2008)

No.	Amps.	Circuits Protected
1	15 A	Fuel Pump
2	10 A	SRS
3	7.5 A	Heater Control, A/C Clutch Relay, Cooling Fan Relay
4	7.5 A	Power Mirror, VTM-4
5	7.5 A	Daytime Running Light (Canadian models)
6	15 A	ECU (PCM), Cruise Control
7	7.5 A	OPDS, Rear Wiper
8	7.5 A	ACC Relay
9	10 A	Back-up Lights, Instrument Lights
10	7.5 A	Turn Signals
11	7.5 A	VTM-4
12	30 A	Front Wiper
13	—	Not used

Passenger compartment (Passenger’s Side)

Interior fuse box diagram (Passenger’s Side): Honda Pilot (2005, 2006, 2007, 2008)

Assignment of the fuses in the Passenger compartment, Passenger’s Side (2005, 2006, 2007, 2008)

No.	Amps.	Circuits Protected
1	20 A	Driver’s Power Window
2	20 A	Driver’s Power Seat Reclining
3	20 A	Heated Seat (Canadian models)
4	20 A	Driver’s Power Seat Sliding
5	—	Not used
6	10 A	Daytime Running Light (Canadian models)
7	20 A	Driver’s side Rear Power Window
8	20 A	Front Passenger’s Power Window
9	15 A	Front Accessory Socket, Radio
10	15 A	Small Light
11	10 A	Interior Light, Navi
12	20 A	Power Door Lock
13	7.5 A	Back Up
14	7.5 A	Moonroof
15	20 A	Moonroof
16	20 A	Passenger’s Side Rear Power Window

Engine compartment (primary fuse box)

Assignment of the fuses in the Engine compartment, primary fuse box (2005, 2006, 2007, 2008)

No.	Amps.	Circuits Protected
1	20 A	Spare Fuse
2	30 A	Spare Fuse
3	20 A	Right Headlight
4	15 A	ACG S
5	15 A	Hazard
6	—	Not used
7	20 A	Stop
8	20 A	Left Headlight
9	20 A	Radio
10	40 A	Power Window Motor
11	40 A	Power Seat
12	30 A	Rear Defroster
13	40 A	Back Up, ACC
14	30 A	Rear A/C
15	40 A	Heater Motor
16	30 A	Cooling Fan
17	7.5 A	Spare Fuse
18	10 A	Spare Fuse
19	15 A	Spare Fuse
20	120 A	Battery
21	30 A	Condenser Fan
22	7.5 A	MG Clutch
23	50 A	IGI Main
24	—	Trailer (accessory)

Engine compartment (secondary fuse box)

Assignment of the fuses in the Engine compartment, secondary fuse box (2005)

No.	Amps.	Circuits Protected
1	40 A	ABS F/S Relay
2	20 A	VSA F/S Relay
3	30 A	VSA Motor
4	40 A	ABS Motor
5	20 A	4WD
6	20 A	Rear Accessory Socket
7	15 A	ETCS
8	15 A	IG Coil
9	15 A	LAP
10	7.5 A	TPMS
11	(15 A)	(FR FOG)

Assignment of the fuses in the Engine compartment, secondary fuse box (2006, 2007, 2008)

No.	Amps.	Circuits Protected
1	20 A	AC INVERTER
2	40 A	VSA F/S Relay
3	30 A	VSA Motor
4	20 A	VTM-4
5	10 A	ACM
6	15 A	Rear Accessory Socket
7	15 A	ETCS
8	15 A	IG Coil
9	15 A	LAF
10	7.5 A	TPMS
11	(20 A)	(FR FOG)

FAQ

What are the cigar lighter (power outlet) fuses in the Honda Pilot?

Fuse #9 (front accessory socket) in the passenger’s side instrument panel fuse box, and fuse #3 (2003–2004) or #6 (since 2005) for the rear accessory socket in the secondary engine compartment fuse box.
