The fifth-generation Honda Prelude (Model Codes: BB5/6/7/8/9) was produced from 1996 to 2001. Known for its sporty styling, sharp handling, and advanced technology for its time—including features like ATTS (Active Torque Transfer System) on certain trims—the Prelude remained a favorite among driving enthusiasts who valued both performance and reliability.
In this article, you will find fuse box diagrams for the Honda Prelude, covering model years 1996, 1997, 1998, 1999, 2000, and 2001. These diagrams provide essential details about the fuse layout, helping you identify, inspect, and replace fuses or relays as needed.
What’s Included:
- Fuse Box Diagrams – Clear visuals showing the arrangement of fuses and relays.
- Fuse Panel Locations – Guidance on where the fuse panels are positioned inside the vehicle.
- Fuse Assignments – Detailed explanations of what each fuse and relay controls for accurate troubleshooting.
Whether you’re replacing a blown fuse or diagnosing an electrical issue, this guide will help you maintain the Honda Prelude (1996–2001) in peak condition, ensuring reliable performance and functionality.
Passenger Compartment

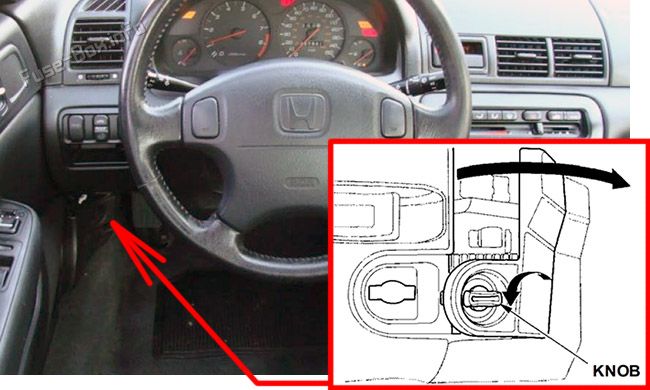

Fuse box location
The interior fuse box is underneath the dashboard on the driver’s side. To open it, turn the knob as shown.

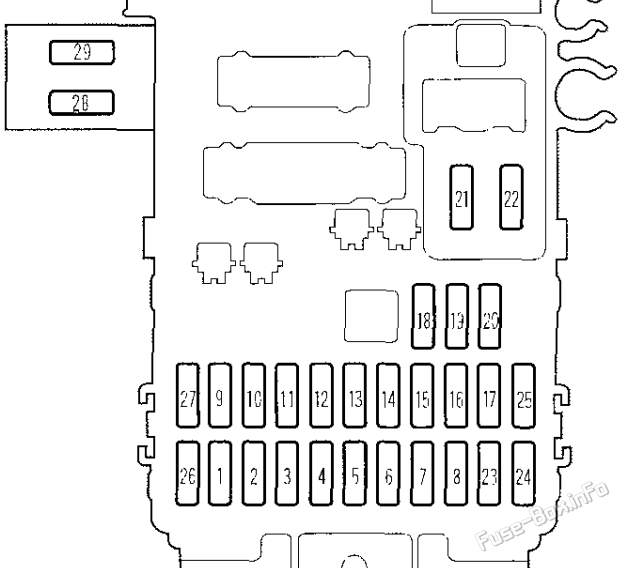

Fuse box diagram
Assignment of the fuses in the instrument panel
Engine Compartment

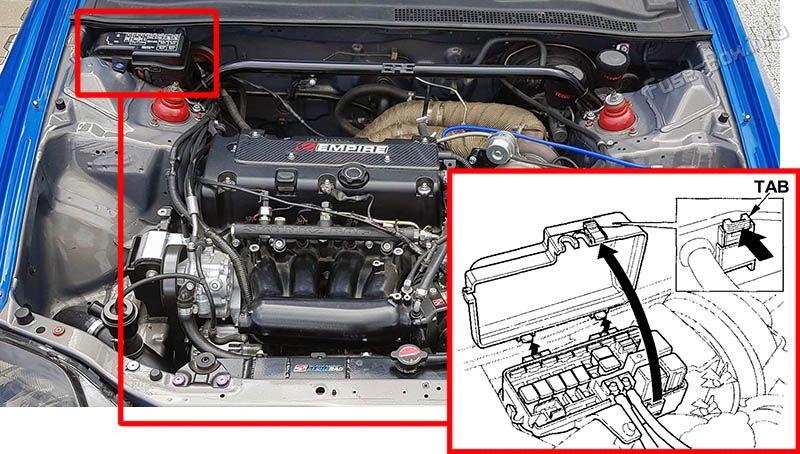

Fuse box location
The under-hood fuse box is located in the back of the engine compartment on the passenger’s side. To open it, push the tab as shown.

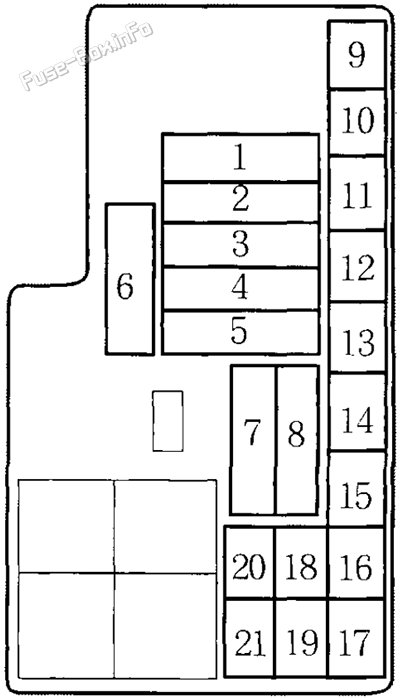

Fuse box diagram
Assignment of the fuses in the engine compartment
