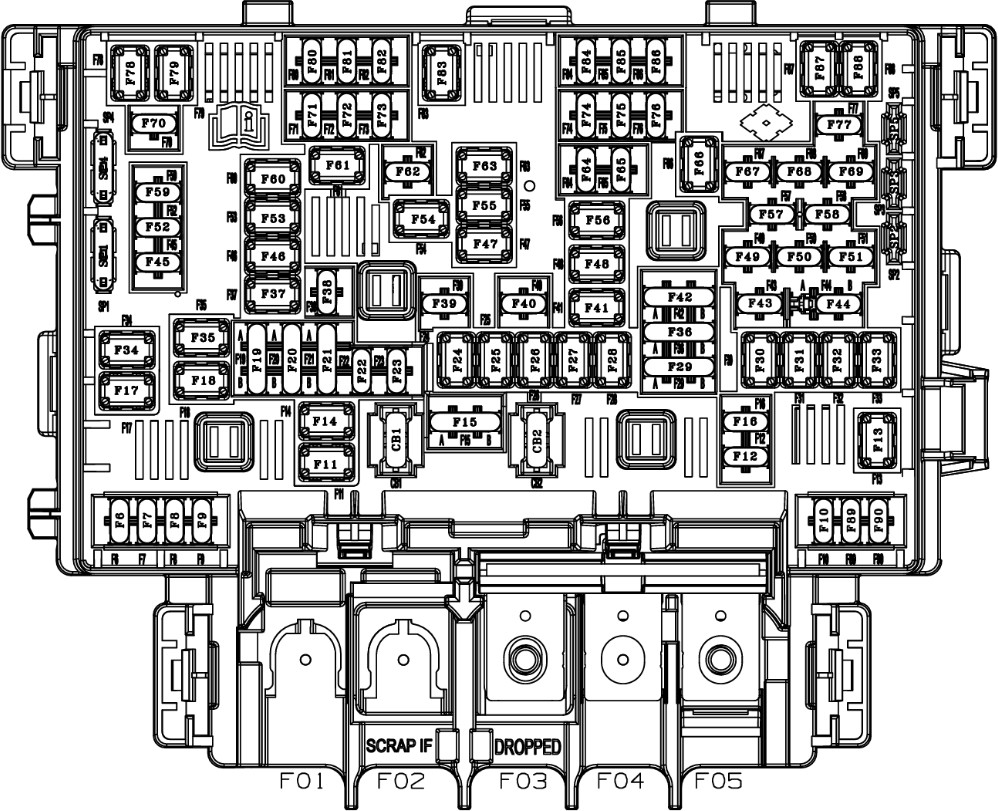

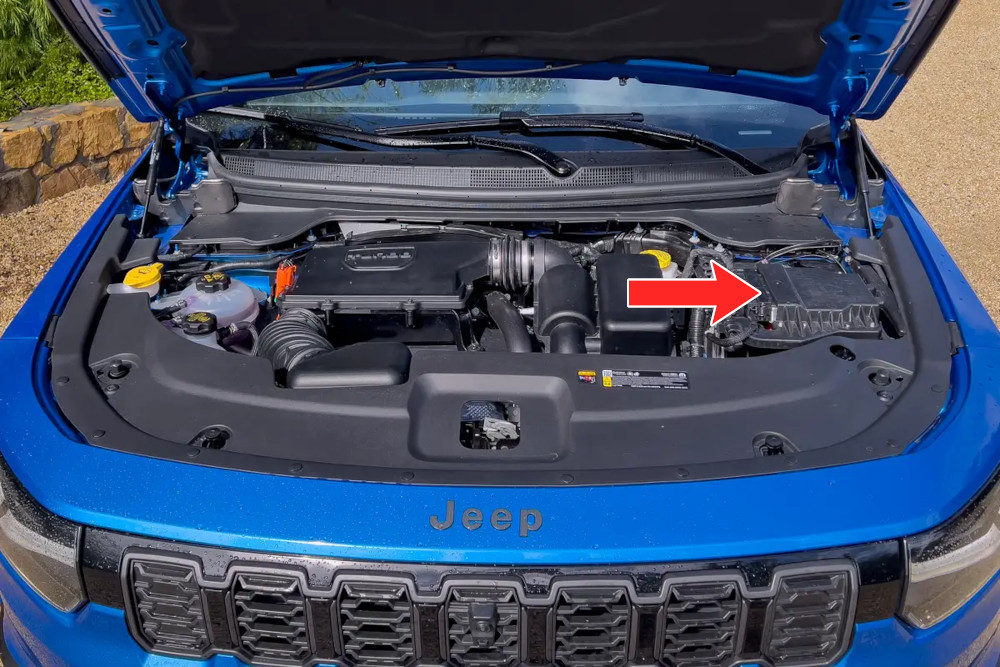

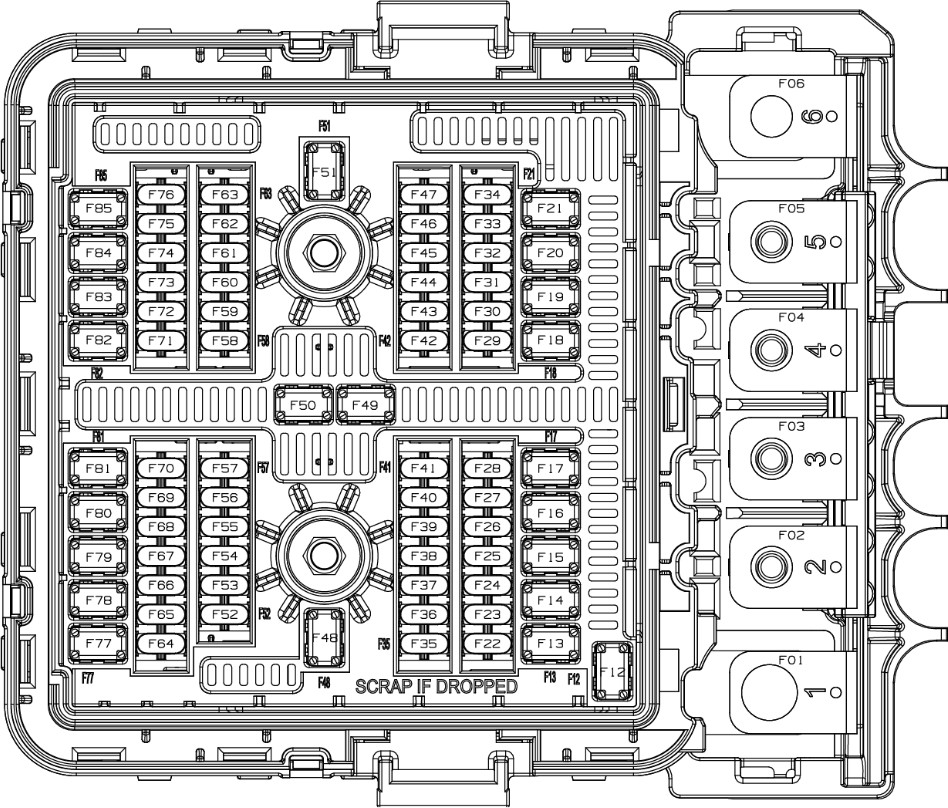

| F03 | Shunt | – | Input from Main Battery |
| F05 | 250 Amp | – | Feed to Underhood PDC |
| F06 | – | – | Spare |
| F07 | – | – | Spare |
| F08 | – | – | Spare |
| F09 | – | – | Spare |
| F10 | – | – | Spare |
| F11 | 50 Amp Red | – | MOD_BCM FEED #2 |
| F12 | – | 5 Amp Tan | INTELLIGENT BATTERY SENSOR (IBS) * |
| F13 | – | – | Spare |
| F14 | 20 Amp Blue | – | MOD DOOR MUX_PASSENGER REAR OR SMART MOTOR |
| F15A / F15B | – | 10 Amp Red | INTELLIGENT EVENT BASE LIGHTING MODULE / ANIMATION LIGHTING – TAILLAMP
OCCUPANT RESTRAINT CONTROLLER (ORC) |
| F16 | – | 10 Amp Red | IDCM/AMD |
| F17 | – | – | Spare |
| F18 | 20 Amp Blue | – | 400V ELECTRIC OIL PUMP EDM REAR |
| F19A / F19B | – | 10 Amp Red | BEV: EVU – 2_FEED #2 IHEV & BEV
MOD_ICS_SWITCH BANK / ASSY_OVERHEAD_CONSOLE-OCH W SUN_SHADE / HEADS UP DISPLAY (HUD) / SW_HDLP / CUTLENGTH UPFITTER / ASSY_OVERHEAD_CONSOLE-OHC W SUN_SHADE |
| F20A / F20B | – | 10 Amp Red | ELECTRIC DRIVE MOTOR FEED #1 – Front
ELECTRIC DRIVE MOTOR FEED #2 – Front |
| F21A / F21B | – | 10 Amp Red | ANIMATION LIGHTING – RR LT
KEYLESS IGNITION NODE MOD (KNM) / RADIO FREQUENCY HUB (RFHM) / BRAKE PEDAL SWITCH – NORMALLY OPEN / ELECTRIC PARK BRAKE SWITCH (EPB) |
| F22 | – | – | Spare |
| F23 | – | – | Spare |
| F24 | 20 Amp Blue | – | Park By Wire (PBW) – Redundant Power |
| F25 | – | – | Spare |
| F26 | 20 Amp Blue | – | ELECTRIC DRIVE MOTOR FEED #2 – REAR |
| F27 | – | – | Spare |
| F28 | – | – | Spare |
| F29A / F29B | – | 15 Amp Blue | INSTRUMENT PANEL CLUSTER (IPC) / DRIVETRAIN CONTROL MODULE (DTCM) / DRIVER ASSISTANCE SYSTEM MODULE (DASM) / EVCU-2 / HVAC_CTRL_FT
Spare |
| F30 | 30 Amp Pink | – | MOD_MEMORY / POWER SEAT – PASS FRT |
| F31 | – | – | Spare |
| F32 | – | – | Spare |
| F33 | – | – | Spare |
| F34 | – | – | Spare |
| F35 | – | – | Spare |
| F36A / F36B | – | 10 Amp Red | L2+: DRIVER ALERT LIGHTING MODULE (DALM) / ADAS_E_STOP (VP ONLY) BEV: EVCU-2
QUIET PEDESTRIAN MODULE (QVPM) / ANIMATION LIGHTING RR RT / LIFTGATE TAILLAMP |
| F37 | 30 Amp Pink | – | TRAILER TOW ELECTRIC BRAKE_AFTERMARKET |
| F38 | – | 10 Amp Red | HVIL-MAIN POWER FEED / HVIL-REDUNDANT POWER FEED |
| F39 | – | 20 Amp Yellow | MODULE SEAT HEATER FRT (PASS) |
| F40 | – | 30 Amp Green | MOD AUDIO AMPLIFIER #1A |
| F41 | 30 Amp Pink | – | MOD DOOR MUX_DRIVER |
| F42A / F42B | – | 10 Amp Red | Spare
APO-ILLUMINATION / 2ND & 3RD ROW SEAT_SWITCHES-ILLUMINATION / REAR VIEW MIRROR |
| F43 | – | – | Spare |
| F44A / F44B | – | 20 Amp Yellow | 12V POWER OUTLET CARGO AREA (IGN)
12V POWER OUTLET CARGO AREA BATTERY |
| F45 | – | 15 Amp Blue | PORT_UCI_DUAL-USB-REAR/PORT_PWR_OR_USB CONSOLE_USB_CH_ONLY / WIRELESS CHARGING PAD – FT. CONSOLE |
| F46 | 30 Amp Pink | – | MOD_MEMORY/POWER SEAT – DRIVER FRT |
| F47 | 20 Amp Blue | – | EVCU – 2_FEED #3 (HEV & BEV) |
| F48 | 30 Amp Pink | – | MOD DOOR MUX_PASSENGER |
| F49 | – | – | Spare |
| F50 | – | 10 Amp Red | OCCUPANT RESTRAINT CONTROLLER (ORC) |
| F51 | – | 20 Amp Yellow | MPAD -1 / RIMU / MID RANGE RADAR ECU * |
| F52 | – | 15 Amp Blue | SSMD SEAT MASSAGE DRIVER MOD / SSMP SEAT MASSAGE PASS MOD |
| F53 | 20 Amp Blue | – | EVCU – 2 _FEED #4 (HEV & BEV) |
| F54 | 20 Amp Blue | – | MOD DOOR MUX_DRIVER REAR OR SMART MOTOR |
| F55 | 25 Amp White | – | TRAILER TOW MODULE #2 |
| F56 | 30 Amp Pink | – | SUNROOF |
| F57 | – | 20 Amp Yellow | HAPTIC LANE FEEDBACK MODULE (HALF) / OCCUPANT CLASSIFICATION MODULE (OCM) / TRAILER TOW MODULE (TTM) / HEADLAMP LEVELING – MOTOR FEED & REF SIGNAL TO SWITCH / MOD_SECURITY GATEWAY (SGW) / REAR VIEW MIRROR / PARKTRONICS SYSTEM MODULE (PTS) |
| F58 | – | 15 Amp Blue | BATTERY PACK CONTROL MODULE (BPCM) (BEV+HEV) |
| F59 | – | 15 Amp Blue | TELEMATICS BOX MODULE (TBM) / VEHICLE THEFT MODULE (VTM) / GATEWAY SECURITY MOD / ALARM SIREN UNIT (ASU) / ULTRA-SONIC ALARM MODULE (UAM, AKA INTRUSION MODULE) / CLIMATE CONTROL DISPLAY MODULE FRONT (CCDMF) |
| F60 | – | – | Spare |
| F61 | 30 Amp Pink | – | ASSY_TRAILER_TOW_RECEPTACLE FUSE B+ |
| F62 | – | 20 Amp Yellow | MODULE SEAT HEATER FRT (DRIVER) |
| F63 | 25 Amp White | – | TRAILER TOW MODULE #1 |
| F64 | – | 5 Amp Tan | NFC DOOR HANDLE #2 |
| F65 | – | 10 Amp Red | ANIMATION LIGHTING – RR RT |
| F66 | 30 Amp Pink | – | POWER LIFTGATE MODULE (PLG) |
| F67 | – | 20 Amp Yellow | MOD_CRSM (HEAT SEAT RR LT) |
| F68 | – | 15 Amp Blue | PORT PWR OR USB CONSOLE USB CH_ONLY / DIGITAL TV (DTV – CHINA/JAPAN) / SUNROOF |
| F69 | – | 15 Amp Blue | LUMBAR SUPPORT DRVIER & PASSENGER SW |
| F70 | – | 10 Amp Red | EVCU – 2_Feed #1 / E-Stop Switch Feed (VP Only) |
| F71 | – | 15 Amp Blue | BATTERY PACK CONTROL MODULE (BPCM) – REDUNDANT (BEV + HEV) |
| F72 | – | 10 Amp Red | HEATED SEAT SWITCH – RR RT & RR LT ANIMATION LIGHTING – RR LT |
| F73 | – | 10 Amp Red | NIGHT VISION MODULE / DRIVER MONITORING SYSTEM MODULE (DMSM) * |
| F74 | – | 30 Amp Green | MOD AUDIO AMPLIFIER |
| F75 | – | 5 Amp Beige | NFC DOOR HANDLE #3 |
| F76 | – | 5 Amp Beige | NFC DOOR HANDLE #4 |
| F77 | – | 20 Amp Yellow | MOD_CRSM (HEAT SEAT RR RT) |
| F78 | 40 Amp Green | – | MOD_BCM FEED #3 |
| F79 | – | – | Spare |
| F80 | – | 10 Amp Red | ELECTRIC DRIVE MOTOR FEED #1 – REAR |
| F81 | – | 15 Amp Blue | VIDEO ROUTING MODULE (VRM) / PORT_POWER_OR_USB IP_USB_CH_ONLY / FRONT PASSENGER DISPLAY MODULE (FPDM) / DVD / BLU-RAY PLAYER (DVD) / REAR WINDOW SWITCHES / MOD_HVAC_CTRL_FT / SW_BANK_UPPER (ASBM#2) |
| F82 | – | 15 Amp Blue | MOD_COMFORT STEERING WHEEL SURFACE |
| F83 | – | – | Spare |
| F84 | – | – | Spare |
| F85 | – | 15 Amp Blue | UWB_SNSR (1-7) * |
| F86 | – | 5 Amp Tan | NFC DOOR HANDLE #1 |
| F87 | – | – | Spare |
| F88 | 30 Amp Pink | – | MOD_INVERTER 115V/230V |
