Jeep Liberty / Cherokee | 2008-2013

Explore Jeep Liberty / Jeep Cherokee fuse box diagrams in this straightforward guide that helps you quickly get acquainted with the KK generation’s electrical layout. Here we cover the second-generation Jeep Liberty / fourth-generation Jeep Cherokee, (2008–2013), (Model Code: KK) and provide fuse diagrams for 2008, 2009, 2010, 2011, 2012 and 2013, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear and organized look at how the system is set up.

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Fuse box location

The Totally Integrated Power Module (TIPM) is located in the engine compartment near the battery.
This center contains cartridge fuses, mini fuses and relays. A label that identifies each component is printed on the inside of the cover.

The location of the fuses in the engine compartment: Jeep Liberty (KK; 2008-2012)

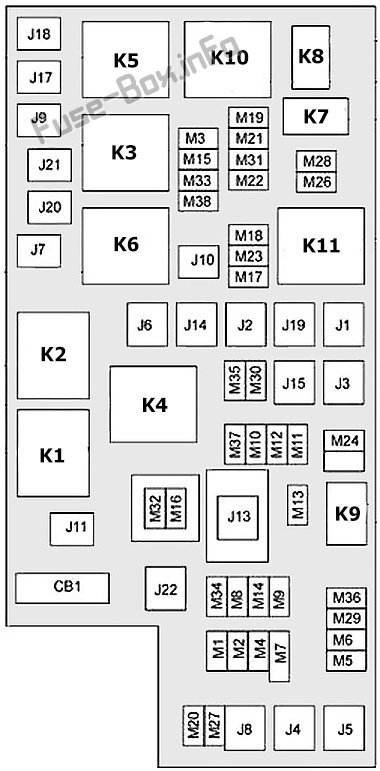

Fuse box diagram

Fuses

Assignment of the fuses in the Integrated Power Module

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

CavityAmpTypeDescription
J1——Not Used
J230ACartridgeTransfer Case Module – If Equipped
J330A/40ACartridge2008–2009: (40A) Rear Door Modules
2010: (30A) Rear Door Modules
J425ACartridgeDriver Door Node
J525ACartridgePassenger Door Node
J640ACartridgeAntilock Brake System (ABS) Pump / Stability Control (ESP) – If Equipped
J730ACartridgeAntilock Brake System (ABS) Valve / Stability Control (ESP) – If Equipped
J840ACartridgePower Seats – If Equipped
J940ACartridgePZEV / Flex Fuel – If Equipped
J1030ACartridgeHeadlamp Wash Relay / Manifold Tuning Valve – If Equipped
J1130ACartridge2010: (30A) Sway Bar / Thatcham Lock/Unlock / Power Sliding Door Module – If Equipped
2011–2013: (30A) Thatcham Lock/Unlock – If Equipped
J1360ACartridgeIgnition Off Draw (IOD)
J1440ACartridgeRear Window Defogger / Rear Defroster – If Equipped
J1530A/40ACartridge2010: (30A) Rear Blower – If Equipped
2011–2013: (40A) Front Blower
J1740ACartridgeStarter Solenoid
J1820ACartridge2008–2010: (20A) Powertrain Control Module (PCM) Transmission Relay
2011–2013: (20A) Powertrain Control Module
J1960ACartridgeRadiator Fan
J2030ACartridgeFront Wiper
J2120ACartridgeFront Washer / Rear Washer – If Equipped
J2225ACartridgeSunroof Module – If Equipped
M115AMiniStop Light Switch Feed – Center High Mounted Stop Light (CHMSL) / Rear Center Brake Lamp
M220AMiniTrailer Lighting – If Equipped
M320AMiniFront/Rear Axle Lockers – If Equipped
M410AMiniTrailer Tow – If Equipped
M525AMiniPower Inverter – If Equipped
M620AMini2008–2010: (20A) Power Outlet #1 (Cigar Lighter) / Rain Sensor / Trailer Tow – If Equipped
2011–2013: (20A) Rain Sensor – If Equipped
M720AMini2008–2010: (20A) Power Outlet #2 (Battery/Accessory Select)
2011–2013: (20A) Cigar Lighter
M820AMiniFront Heated Seats – If Equipped
M920AMiniRear Heated Seat – If Equipped
M1015AMiniIgnition Off Draw – Vehicle Entertainment System / Satellite Receiver / DVD / Hands-Free Module / Radio / Antenna / Universal Garage Door Opener / Vanity Light – If Equipped
M1110AMiniAutomatic / Climate Control System – If Equipped
M1230AMiniRadio / Amplifier – If Equipped
M1320AMini2008–2010: (20A) Cabin Compartment Node (CCN) / Wireless Control Module (WCM) / Multifunction Control Switch
2011–2013: (20A) Instrument Cluster / Wireless Control Module / Multifunction Control Switch / Siren – If Equipped
M1420AMini2010: (20A) Trailer Tow (BUX) – If Equipped
2011–2013: (20A) Trailer Tow (Export Only) – If Equipped
M1520AMini2008–2010: (20A) Multifunction Control Switch / Cabin Compartment Node (CCN) / Steering Column Control Module (SCM) / Rear View Mirror / Tire Pressure Monitor (TPM) / IR Sensor / Transfer Case Module – If Equipped
2011–2013: (20A) Instrument Cluster / Rear View Mirror / Tire Pressure Monitor / Transfer Case Module / Glow Plugs – If Equipped
M1610AMiniAirbag Module / Occupant Restraint Controller (ORC)
M1715AMiniExterior Lighting – Left Front Park & Side Marker, Left Tail & Running, License Lights
M1815AMiniExterior Lighting – Right Front Park & Side Marker, Right Tail & Running Lights
M1925AMiniAutomatic Shutdown (ASD) #1 & #2
M2015AMiniInterior Lighting / Steering Wheel Switches / Switch Bank / Electronic Vehicle Information Center (EVIC) / Steering Column Module – If Equipped
M2120AMiniAutomatic Shutdown (ASD) #3
M2210AMiniRight Horn (High/Low)
M2310AMiniLeft Horn (High/Low)
M2425AMiniRear Wiper – If Equipped
M2520AMiniFuel Pump / Diesel Lift Pump – If Equipped
M2610AMiniPower Mirror Switch / Driver Window Switch
M2710AMiniIgnition Switch / Wireless Control Module (WCM) / Steering Column Lock – If Equipped
M2810AMiniPowertrain Control Module (PCM)
M2910AMiniOccupant Classification Module (OCM)
M3015AMiniRear Wiper Module / Diagnostic Link / Power Folding Mirror – If Equipped
M3120AMiniBack-Up Lights
M3210AMiniAirbag Module / Occupant Restraint Controller (ORC)
M3310AMiniPowertrain Control Module (PCM)
M3410AMiniPark Assist Module / Climate Control System Module / Heating, Ventilation & Air Conditioning (HVAC) Module / Compass Module / Cabin Heater / Diesel Radiator Fan – If Equipped
M3510AMiniHeated Mirrors – If Equipped
M3620AMiniPower Outlet #3 (Battery)
M3710AMiniAntilock Brake System (ABS) / Electronic Stability Program (ESP) / Stability Control Module / Stop Light Switch / Fuel Pump Relay – If Equipped
M3825AMiniDoor & Liftgate Lock/Unlock Motors
CB125ACircuit BreakerPower Seat

Relays

Assignment of the relays in the Integrated Power Module

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

RelayDescription
K1Ignition (Run/Accessory)
K2Ignition (Run)
K3Starter
K4Ignition (Run-Start)
K5Transmission Control Module (TCM)
K6Rear Window Defogger
K7Not Used
K8Not Used
K9Not Used
K10Automatic Shutdown
K11Radiator Fan Control
