Jeep Compass | 2007-2010

Explore Jeep Compass fuse box diagrams in this easy-to-follow guide that walks you through the electrical setup of the early MK49 models. Here we cover the first-generation Jeep Compass (2007–2010) before its facelift (Model Code: MK49) and provide fuse diagrams for 2007, 2008, 2009 and 2010, along with the location of the fuse panels and the assignment of each fuse, giving you a clear look at how everything is wired on these early models.

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Fuse box location

An Integrated Power Module is located in the engine compartment near the air cleaner assembly.

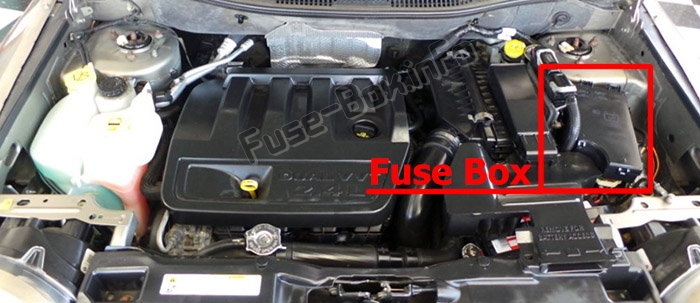

The location of the fuses in the engine compartment: Jeep Compass (MK49; 2007-2010)

This center contains cartridge fuses and mini fuses.
A label that identifies each component may be printed on the inside of the cover.

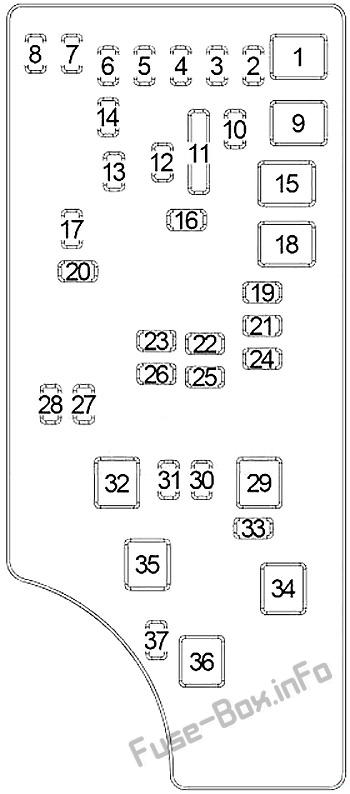

Fuse box diagram

Assignment of the fuses

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpTypeDescription
1——No Fuse (Hot Car / Hot Vehicle)
215AMiniAWD/4WD ECU Feed
310AMiniCHMSL Brake Switch Feed
410AMiniIgnition Switch Feed / OCM
520AMiniTrailer Tow – If Equipped
610AMiniIOD Switch / Power Mirror / Steering Control / SDAR / Hands-Free Phone
730AMiniIOD Sense 1
830AMiniIOD Sense 2
940ACartridgePower Seats
1020AMini2007–2008: CCN Power Locks
2009–2010: CCN Power Locks / Interior Lighting
1115AMiniPower Outlet
1220AMiniIgnition Run / ACC Inverter
1320AMiniRear Accessory Outlet / Dome Lamp / Cigar Lighter
1410AMini2007–2008: IOD CCN / Interior Lighting
2009–2010: IOD CCN
1540ACartridgeRadiator Fan Relay Battery Feed
1615AMini2007–2008: Ignition Run / ACC Cigar Lighter / Sunroof
2009–2010: Ignition Run / ACC Dome Lamp / Sunroof / Rear Wiper Motor / ACC Inverter
1710AMiniIOD Feed Module / WCM
1840ACartridgeASD Relay Contact Power Feed
1920AMiniPower Amplifier 1 & 2 Feed
2015AMiniIOD Feed Radio
2110AMiniIntrusion Module / Siren – If Equipped
2210AMiniIgnition Run – Heater / AC / Compass Sensor
2315AMiniEngine ASD Relay Feed 3
2415AMiniPower Sunroof Feed
2510AMiniHeated Mirror – If Equipped
2615AMiniEngine ASD Relay Feed 2
2710AMiniIgnition Run – ORC Feed
2810AMiniIgnition Run – ORC / OCM Feed
29——Hot Car (No Fuse Required)
3020AMiniHeated Seats – If Equipped
3110AMiniHeadlamp Washer Relay Control – If Equipped
3230ACartridgeEngine ASD Control Feed 1
3310AMiniABS Module / J1962 Connector / PCM
3430ACartridgeABS Valve Feed
3540ACartridgeABS Pump Feed
3630ACartridgeHeadlamp / Washer Control / Smart Glass – If Equipped
3725AMini2007–2008: 110V Inverter
2009–2010: Diesel Fuel Heater – If Equipped
