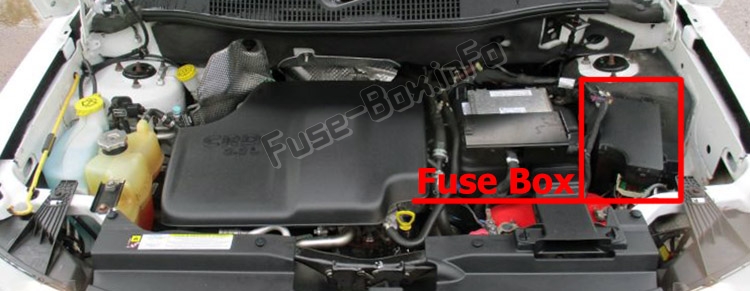

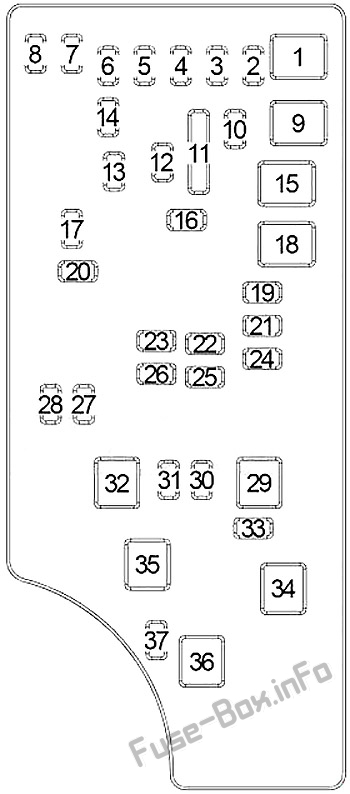

Explore Jeep Compass fuse box diagrams in this practical guide designed to help you understand the electrical layout of the facelifted MK49 model. Here we look at the first-generation Jeep Compass (2011–2017) after its update (Model Code: MK49) and provide fuse diagrams for 2011, 2012, 2013, 2014, 2015, 2016 and 2017, along with the location of the fuse panels and the assignment of each fuse, giving you the key information you need in a clear, organized way.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
2011–2013: (20A) Trailer Tow – If Equipped 2014–2017: (15A) Battery Feed for Power Tech
6
10A
Mini
Power Mirror / Steering Control / Satellite Radio / Hands-Free Phone
7
30A
Mini
Ignition Off Draw
8
30A
Mini
Ignition Off Draw
9
40A
Cartridge
Power Seats
10
20A
Mini
Power Locks / Interior Lighting
11
15A
Mini
Power Outlet
12
20A
Mini
115V AC Inverter – If Equipped
13
20A
Mini
Cigar Lighter / Rear Power Supply Outlet
14
10A
Mini
Instrument Cluster / Interior Lighting
15
40A
Cartridge
Radiator Fan
16
15A
Mini
2011–2013, 2014–2017: Dome Lamp / Sunroof / Rear Wiper Motor 2012: Sunroof / Cigar Lighter – If Equipped
17
10A
Mini
Wireless Control Module
18
40A
Cartridge
Auto Shutdown Relay
19
20A
Mini
Radio Amplifiers
20
15A
Mini
Radio
21
10A
Mini
Intrusion Module / Siren – If Equipped
22
10A
Mini
Heating / AC / Compass
23
15A
Mini
Auto Shutdown Relay
24
15A
Mini
Power Sunroof – If Equipped
25
10A
Mini
Heated Mirror – If Equipped
26
15A
Mini
Auto Shutdown Relay
27
10A
Mini
Airbag Control Module
28
10A
Mini
Airbag Control Module / Occupant Classification Module
29
—
—
Hot Vehicle (No Fuse Required)
30
20A
Mini
Heated Seat – If Equipped
31
10A
Mini
Headlamp Washer – If Equipped
32
30A
Cartridge
Auto Shutdown Relay
33
10A
Mini
ABS Module / J1962 Diagnostic Link / Powertrain Control Module
34
30A
Cartridge
Antilock Brake Valve
35
40A
Cartridge
Antilock Brake Pump
36
30A
Cartridge
Headlamp / Washer Control / Smart Glass – If Equipped
37
25A
Mini
2011–2013, 2014–2015: Diesel Fuel Heater – If Equipped 2012: 110V Inverter – If Equipped / Diesel Fuel Heater 2016–2017: Diesel Heater and H2/MOD Power Top
FAQ
Which fuses control the cigar lighter and power outlets in the Jeep Compass?
On the Jeep Compass, the cigar lighter and power outlets are protected by these engine compartment fuses: Fuse #11 – Power Outlet Fuse #13 – Cigar Lighter / Rear Power Supply Outlet Fuse #16 – Cigar Lighter (if equipped)
