Jeep Grand Cherokee | 2022-2026 | Fuse Box Diagrams and Locations

Explore Jeep Grand Cherokee fuse box diagrams in this focused guide made to simplify the WL series’ electrical layout. Here we cover the fifth-generation Jeep Grand Cherokee (produced from 2021) (Model Codes: WL74 and WL75 for the Grand Cherokee L) and provide fuse diagrams for 2021, 2022, 2023, 2024, 2025 and 2026, along with the location of the fuse panels and the assignment of each fuse, giving you a clear look at how the electrical system is organized.

What’s Included

Passenger compartment

Fuse box location

The Interior Power Distribution Center is located underneath the steering column on the driver’s side of the vehicle.

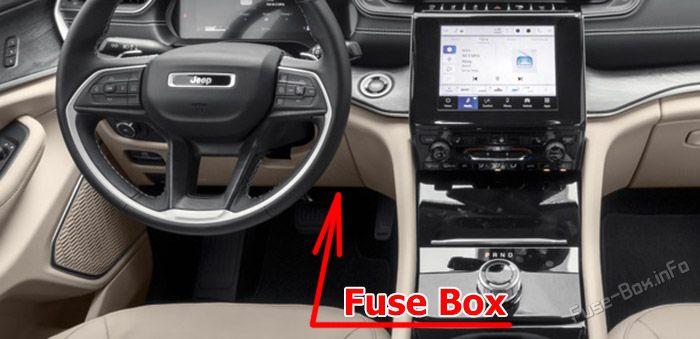

Location of the fuses in the instrument panel: Jeep Grand Cherokee (WL; 2021-2023)

Fuse box diagram

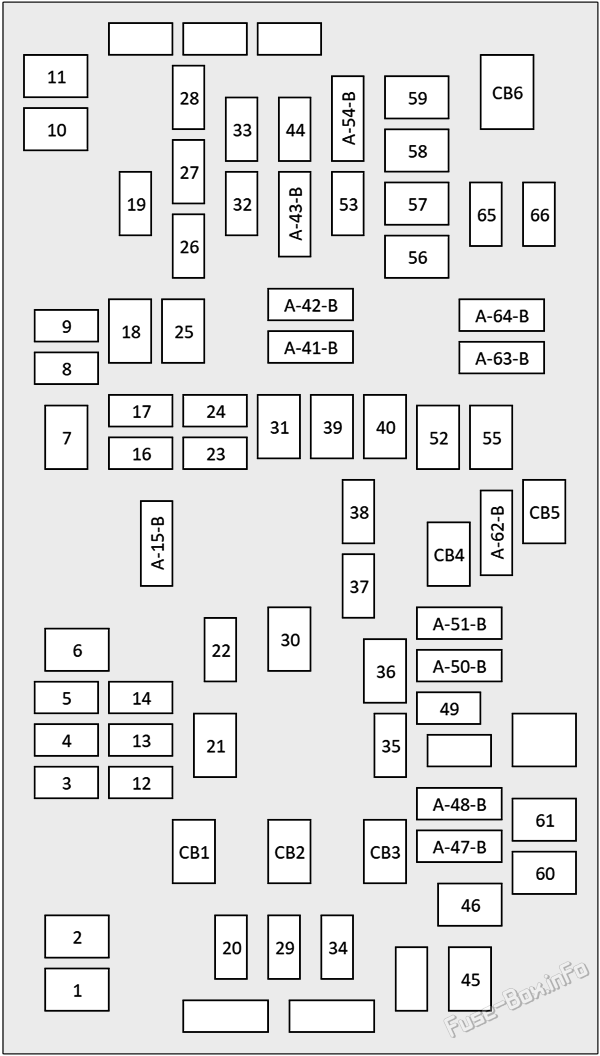

Assignment of the fuses in the Interior Power Distribution Center

Fuse Data

Full access is available to registered users — log in or register.

№	Cartridge Fuse	Micro Fuse	Description
F01	–	–	–
F02	25A Clear	–	MTR Sunshade Sunroof Dual Pane / MTR sunroof single Pane
F03	–	15A Blue	MOD Seat Heater Frt (Steering Wheel)
F04	–	10A Red	Night Vision Module / Driver Monitoring Camera (DMC)
F05	–	–	–
F06	–	–	–
F07	–	–	–
F08	–	15A Blue	Automatic Gearbox Shifter Module (AGSM) / Steering Column Lock
F09	–	–	–
F10	40A Green	–	HVAC Blower Motor
F11	–	–	–
F12	–	20A Yellow	Assy Cigar Lighter
F13	–	10A Red	Assy Mirror Inside Rearview / Digital TV (DTV) / Sunroof Single – Dual Pane / Port UC1 Dual USB RR / Interior Monitoring Camera
F14	–	–	–
F15A	–	–	–
F15B	–	–	–
F16	–	10A Red	MOD ORC
F17	–	–	–
F18	–	–	–
F19	–	–	–
F20	–	10A Red	Overhead Console Assy (OHC) W/Sunshade/ Intrusion Module / Intrusion Sensor/Siren/ Head Up Display (HUD) / Digital TV (DTV)
F21	30A Pink	–	Trailer Tow Electric Brake – Aftermarket
F22	–	–	–
F23	–	–	–
F24	–	–	–
F25	–	–	–
F26	–	–	–
F27	–	–	–
F28	–	–	–
F29	–	–	–
F30	–	–	–
F31	–	–	–
F32	–	15A Blue	MOD ICS Switch Bank/SW Bank Upper/ SW EPB / Aux Switch Bank Module (ASBM)
F33	–	15A Blue	Transfer case SW / Humidity Rain Light Sensor (HRLS) / Suspension SW
F34	–	–	–
F35	–	10A Red	IRCAM Heater
F36	–	–	–
F37	–	–	–
F38	–	–	–
F39	–	–	–
F40	–	–	–
F41A	–	10A Red	MOD Occupant Class / Steering Column Lock
F41B	–	10A Red	–
F42A	–	10A Red	Parktronics System MOD (PTS)/ MOD Haptic Lane Feedback / Trailer Tow Module
F42B	–	10A Red	MOD HVAC Control / Frt ERC Motor Ctrl / RR ERC Motor Ctrl
F43A	–	–	–
F43B	–	–	–
F44	–	15A Blue	MOD Cluster CCN / MOD SGW (Cybersecurity)
F45	–	–	–
F46	–	–	–
F47A	–	–	–
F47B	–	–	–
F48A	–	–	–
F48B	–	–	–
F49	–	7.5A Brown	MOD RF HUB / Module Ignition (MD KIN)
F50A	–	10A Red	Telematics Box Module (TBM)/ MOD Front Passenger Display Module (FPDM)/ MOD DCSD
F50B	–	10A Red	Port Diagnostics 1 & 2
F51A	–	–	–
F51B	–	–	–
F52	–	–	–
F53	–	20A Yellow	MOD CMCM (Radio)
F54A	–	–	–
F54B	–	–	–
F55	–	–	–
F56	–	–	–
F57	–	–	–
F58	–	–	–
F59	–	–	–
F60	–	–	–
F61	–	–	–
F62A	–	–	–
F62B	–	–	–
F63A	–	15A Blue	Media HUB #1 Frt / Port UC1 Dual USB Frt/ Wireless Charging Pad MOD (WCPM)
F63B	–	15A Blue	–
F64A	–	10A Red	MOD ORC
F64B	–	10A Red	Steering Column Control Module (SCCM)
F65	–	5A Tan	MOD SGW (Cybersecurity)
F66	–	–	–
CB1	–	–	–
CB2	–	–	–
CB3	–	–	–
CB4	–	–	–
CB5	–	–	–
CB6	–	–	–

Engine compartment

Fuse box location

The Power Distribution Center (PDC) is located on the passenger side of the engine compartment, behind the headlamp.

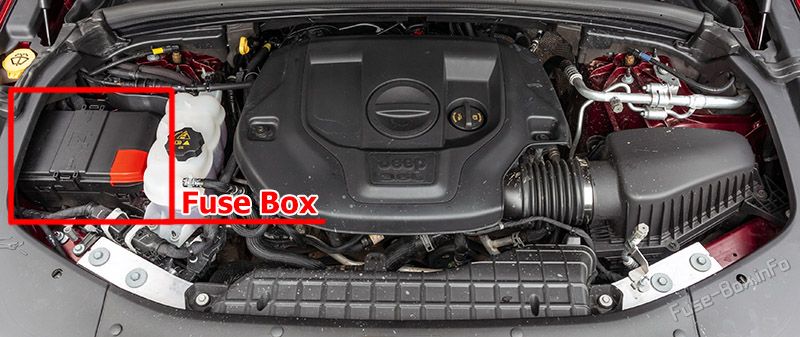

Location of the fuses in the engine compartment: Jeep Grand Cherokee (WL; 2021-2023)

Fuse box diagram

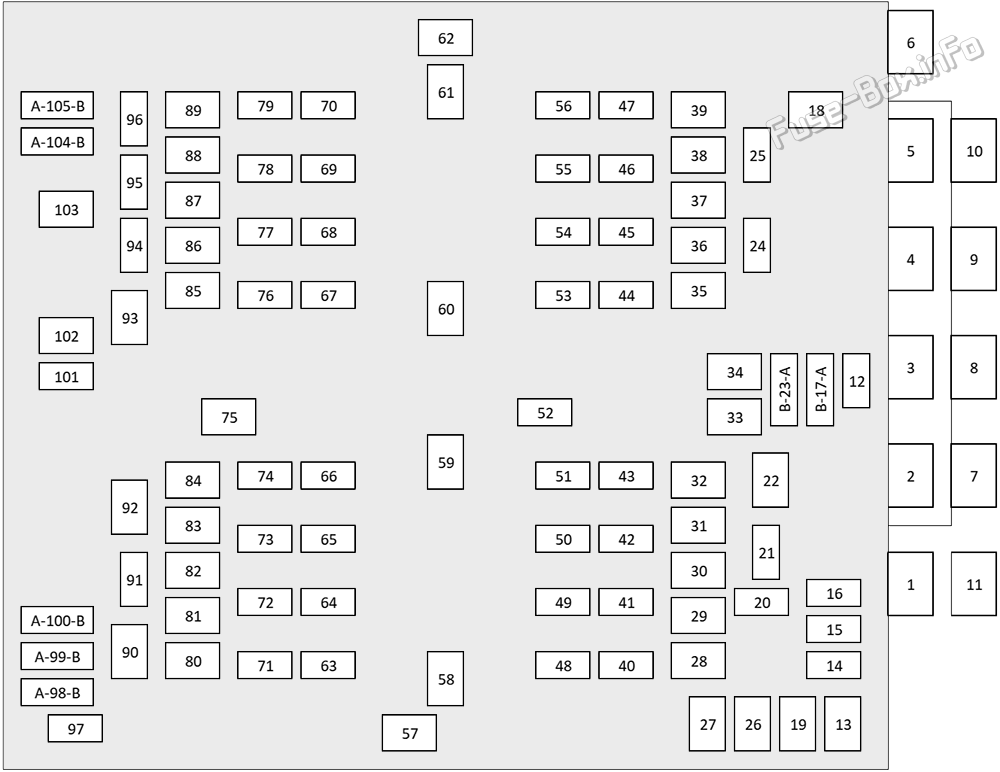

Assignment of the fuses in the Power Distribution Center

Fuse Data

Full access is available to registered users — log in or register.

№	Cartridge Fuse	Micro Fuse	Description
F01	–	–	Crank Batt
F02	–	–	Spare
F03	500A Gray	–	Starter
F04	250A Gray	–	Alternator
F05	–	–	Spare
F06	–	–	Aux Battery
F07	100A Gray	–	Rad Fan
F08	80A Gray	–	Electrical Power Steering Module (EPS) #1
F09	80A Gray	–	Electrical Power Steering Module (EPS) #2
F10	80A Gray	–	Feed to IPDC
F11	150A Gray	–	PCR
F12	–	–	–
F13	40A Green	–	Starter
F14	–	10A Red	GNMM/VPMS
F15	–	10A Red	ECM
F16	–	15A Blue	Cluster
F17A	–	10A Red	EPS
F17B	–	–	–
F18	30A Pink	–	2021-2022: Headlamp Washer
F19	30A Pink	–	BSM Valves #2
F20	–	–	–
F21	–	–	–
F22	–	–	–
F23A	–	10A Red	ECM / EPS / PIM / SLM / GPF
F23B	–	10A Red	Air Suspension / ELSD RR
F24	–	–	–
F25	–	–	–
F26	50A Red	–	BSM Motor #2
F27	30A Pink	–	Rear Defroster (EBL)
F28	–	–	–
F29	–	–	–
F30	–	–	–
F31	–	–	–
F32	–	–	–
F33	–	–	–
F34	–	–	–
F35	–	–	–
F36	50A Red	–	BCM Feed #1
F37	30A Pink	–	DTCM
F38	–	–	–
F39	–	–	–
F40	–	5A Tan	Battery Sensor #1
F41	–	20A Yellow	CADM MAP
F42	–	–	–
F43	–	10A Red	Engine Control Module (ECM)
F44	–	–	–
F45	–	15A Blue	Front Axle Disconnect
F46	–	–	–
F47	–	–	–
F48	–	10A Red	CVPAM
F49	–	–	–
F50	–	–	–
F51	–	20A Yellow	Fuel Pump
F52	–	–	–
F53	–	–	–
F54	–	20A Yellow	Headlamp (left)
F55	–	15A Blue	BPCM
F56	–	–	–
F57	–	–	–
F58	–	–	–
F59	–	–	–
F60	–	–	–
F61	–	–	–
F62	–	–	–
F63	–	20A Yellow	Camera Washer Front
F64	–	15A Blue	Smart Bar Control Module (ASBS)
F65	–	15A Blue	ACT Grille Shutter / ACT Rear Axle Coolant Valve / Active Air Dam
F66	–	20A Yellow	Horns
F67	–	10A Red	DTCM / ASBS / Switchable Engine Mount / BSM #2
F68	–	20A Yellow	Headlamp (right)
F69	–	–	–
F70	–	20A Yellow	IGN Coil / IGN Capacitors / Fuel Inj
F71	–	–	–
F72	–	–	–
F73	–	–	–
F74	–	–	–
F75	–	–	–
F76	–	5A Tan	IDCM
F77	–	20A Yellow	TCM SBW
F78	–	20A Yellow	ECM
F79	–	10A Red	Fuel Door / ELCM / Fuel Injectors
F80	20A Blue	–	ECM
F81	40A Green	–	BCM Feed #4
F82	–	–	–
F83	40A Green	–	LTR Coolant Pump / Trans Oil Pump
F84	–	–	–
F85	–	10A Red	PCR
F86	50A Red	–	2021-2022: BSM Feed #1 – Valves 2023: BSM Feed #1
F87	–	–	–
F88	50A Red	–	2021-2022: BSM Feed Motor #1 2023: BSM Feed #2
F89	–	–	–
F90	–	–	–
F91	–	–	–
F92	20A Blue	–	Front De-Icer
F93	–	–	–
F94	–	10A Red	A/C Compressor Clutch
F95	–	10A Red	Batt Cool Heater
F96	–	5A Tan	Elect Cool Heater
F97	–	–	–
F98	–	–	–
F99	–	–	–
F100A	–	–	–
F100B	–	–	–
F101	–	–	–
F102	–	–	–
F103	30A Pink	–	Front Wiper
F104A	–	15A Blue	PECP Low Temp Passive Pump
F104B	–	15A Blue	AHP High Temp Aux Pump
F105A	–	15A Blue	BCP Low Temp Active Pump
F105B	–	15A Blue	LTR Coolant Pump PECP – 2

Passenger compartment (Passenger’s side)

Fuse box location

The Rear Power Distribution Center is located underneath the passenger seat.

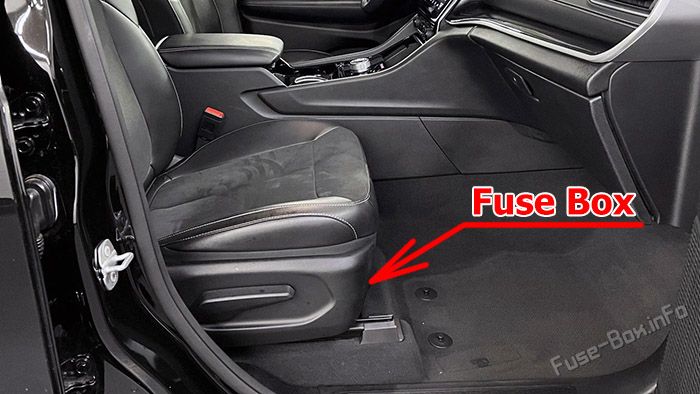

Location of the fuses (RPDC) in the passenger compartment: Jeep Grand Cherokee (WL; 2021-2023)

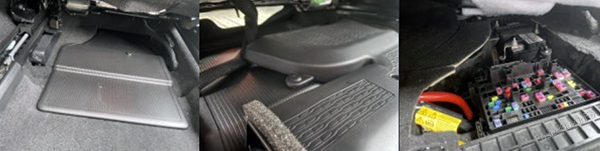

Access to Rear PDC: Jeep Grand Cherokee (WL; 2021-2023)

How to access it:

First, slide open the HVAC manifold door — slide it from the outside of the vehicle toward the center console.
Using a stubby Phillips screwdriver, remove the single screw (it’s one of those expanding trim-style screws). This step might be optional, but I did it to avoid accidentally damaging anything.
Gently remove the integrated HVAC manifold and floor vent, then set it aside somewhere safe.
From the rear passenger seat, firmly lift the floor cover from the back edge. It’s held in place by two friction clips — one on the rear left and one on the rear right — so a little force is normal.
Now you can unlatch and open the top fuse panel cover.
When you’re done, just reinstall everything by reversing the steps.

Fuse box diagram

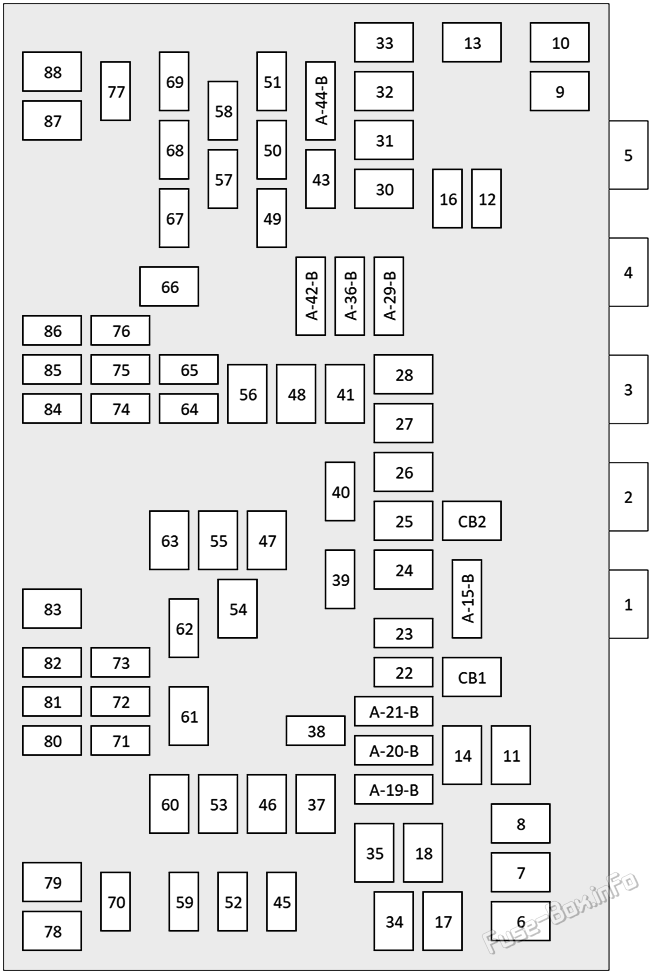

Assignment of the fuses under the passenger’s seat Power Distribution Center

Fuse Data

Full access is available to registered users — log in or register.

№	Cartridge Fuse	Micro Fuse	Description
F01	–	–	Spare
F02	–	–	Spare
F03	Shunt	–	Auxiliary Battery Feed
F04	–	–	Spare
F05	150A Gray	–	Underhood PDC Feed
F06	–	–	Spare
F07	–	–	Spare
F08	–	–	Spare
F09	–	–	Spare
F10	–	–	Spare
F11	50A Red	–	Mod BCM Feed #2
F12	–	–	Spare
F13	–	–	Spare
F14	–	–	Spare
F15A	–	–	Spare
F15B	–	10A Red	Hands-Free Liftgate/ Rear Window Switches / MOD HVAC Cntrl Frt
F16	–	–	Spare
F17	40A Green	–	Mod BCM Feed #3
F18	30A Pink	–	Power Liftgate Module
F19A	–	10A Red	L2+ Driver Alert Lighting Module
F19B	–	–	Spare
F20A	–	15A Blue	Central ADAS Decision Module (CADM)
F20B	–	15A Blue	Spare
F21A	–	–	Spare
F21B	–	–	Spare
F22	–	–	Spare
F23	–	10A Red	Media Hub #2(RR)/#3 (LR)
F24	–	–	Spare
F25	30A Pink	–	Mod Door MUX Passenger
F26	20A Blue	–	Headrest Dump 3rd Row (LT & RT)
F27	–	–	Spare
F28	30A Pink	–	MOD Memory / Power Seat (Passenger Frt)
F29A	–	10A Red	MOD ICS Switch Bank Rear (Frt Console)
F29B	–	–	Spare
F30	30A Pink	–	MOD Memory / Power Seat (Driver Frt)
F31	–	–	Spare
F32	–	–	Spare
F33	–	–	Spare
F34	30A Pink	–	MOD Door MUX Driver
F35	25A Clear	–	Trailer Tow Module #2
F36A	–	10A Red	Intelligent Event Base Lighting Module
F36B	–	10A Red	Port Pwr USB Console (USB CH Only) / Port UCI Dual USB Rear
F37	25A Clear	–	Trailer Tow Module #1
F38	–	–	Spare
F39	–	–	Spare
F40	–	30A Green	Mod Audio Amplifier #1A
F41	–	–	Spare
F42A	–	–	Spare
F42B	–	10A Red	Rear Entertainment Screens 1 (Resl) / (Res2)/ Media Hub #2 RR Wake Up / Media Hub #3 Wake Up / APO Illumination / 2nd -3rd Row Seat Switches-lllumination
F43	–	–	Spare
F44A	–	20A Yellow	12 Volt Power Outlet Cargo Area (Ign)
F44B	–	20A Yellow	12 Volt Power Outlet Cargo Area (Battery)
F45	–	20A Yellow	MOD CRSM (Heated Seat RR RT)
F46	30A Pink	–	Folding Seat Module 3rd Row Feed #1
F47	–	–	Spare
F48	–	–	Spare
F49	–	–	Spare
F50	–	15A Blue	Seat Massage Driver Mod (SSMD) / Seat Massage Passenger Mod (SSMP)
F51	–	30A Green	MOD lAir Suspension (Valves)
F52	–	20A Yellow	MOD CRSM (Heat Seat RR LT)
F53	30A Pink	–	Electronic Limited Slip Differential (ELSD) Rear #1
F54	–	–	Spare
F55	30A Pink	–	MOD Inverter
F56	30A Pink	–	Folding Seat Module 3rd Row Feed #2
F57	–	–	Spare
F58	–	15A Blue	3rd Row Additional USB charge (Only LT -RT) / Port Pwr USB Console UBS (CH Only)
F59	–	–	Spare
F60	–	–	Spare
F61	–	–	Spare
F62	–	20A Yellow	Module Seat Heater Frt (Driver)
F63	30A Pink	–	Assy Trailer Tow Receptacle B+
F64	–	–	Spare
F65	–	–	Spare
F66	20A Blue	–	MOD Door MUX Passenger Rear – Smart Motor
F67	–	30A Green	MOD Audio Amplifier #1B
F68	–	–	Spare
F69	–	20A Yellow	L2+ Central ADAS Decision Module (CADM) MID
F70	–	10A Red	Video Routing Module (VRM) / Port Power – USB IP (USB China Only)
F71	–	–	Spare
F72	–	–	Spare
F73	–	–	Spare
F74	–	5A Tan	L2+ Intelligent Battery Sensor (IBS) – 2
F75	–	–	Spare
F76	–	–	Spare
F77	–	–	Spare
F78	50A Red	–	MOD lAir Suspension
F79	–	–	Spare
F80	–	–	Spare
F81	–	20A Yellow	Module Seat Heater Fit (PASS)
F82	–	10A Red	SW Seat Heater (RR RT – RR LT)
F83	–	–	Spare
F84	–	–	Spare
F85	–	–	Spare
F86	–	15A Blue	Lumbar Support Driver – Passenger SW
F87	–	–	Spare
F88	20A Blue	–	MOD Door MUX Driver Rear – Smart Motor
