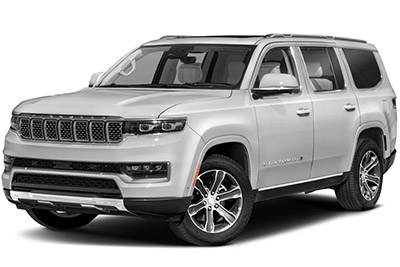

Explore Jeep Wagoneer / Grand Wagoneer fuse box diagrams in this straightforward guide designed to help you get familiar with the WS generation’s electrical setup. In this article, we look at the fourth-generation Jeep Wagoneer / Grand Wagoneer (produced from 2021) (Model Code: WS ) and provide fuse diagrams for 2022, 2023, 2024, 2025 and 2026 , along with the location of the fuse panels and the assignment of each fuse , making it easier to understand how everything is powered.

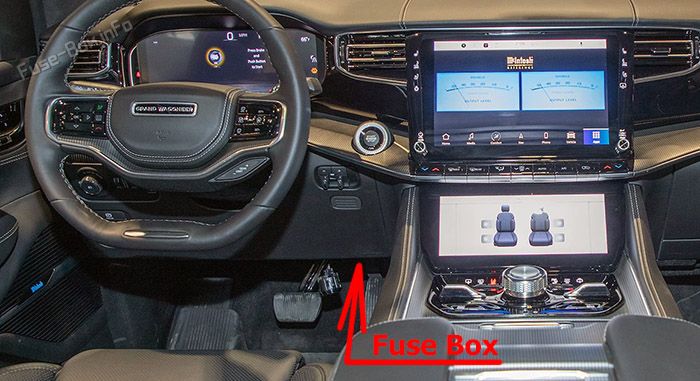

The Interior Power Distribution Center is located under the driver’s instrument panel.

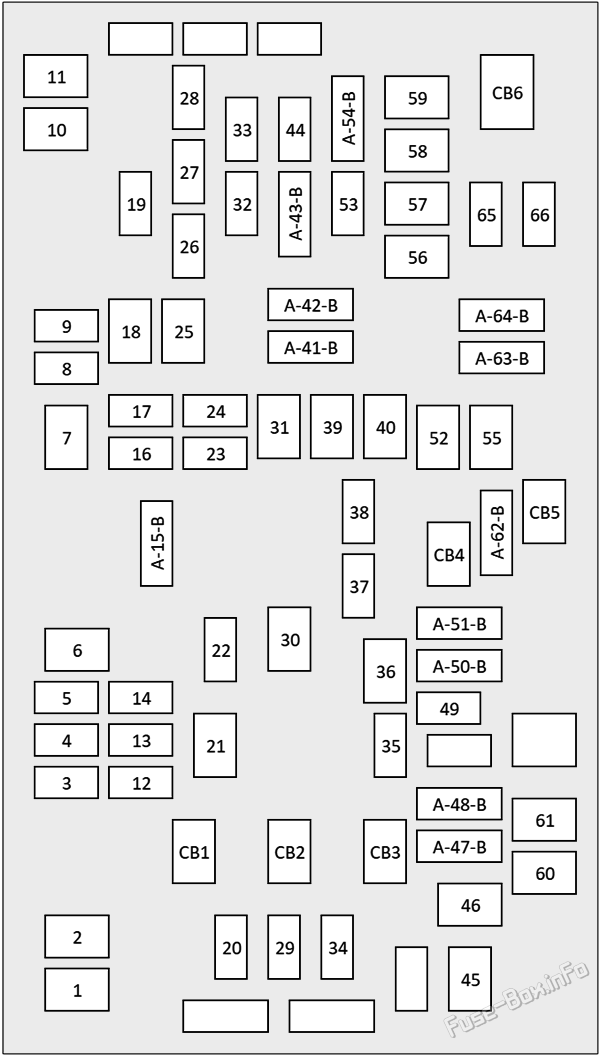

Assignment of the fuses in the Interior Power Distribution Center
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Cartridge Fuse Micro Fuse Description F01 – – Spare F02 – – Spare F03 – 15A Blue MOD Seat Heater Frt (Steering Wheel) F04 – 10A Red Night Vision Module / Driver Monitoring Camera (DMC) F05 – – Spare F06 – – Spare F07 – – Spare F08 – 10A Red Automatic Gearbox Shifter Module (AGSM) / Steering Column Lock / HUD F09 – – Spare F10 40A Green – HVAC Blower Motor F11 – – Spare F12 – 20A Yellow Assy Cigar Lighter F13 – 10A Red Assy Mirror Inside Rearview / Sunroof Single – Dual Pane / Port UC1 Dual USB RR / Interior Monitoring Camera F14 – 10A Red Refrigerator Box / In Vehicle Safe F15A – – Spare F15B – – Spare F16 – 10A Red MOD ORC F17 – – Spare F18 – – Spare F19 – – Spare F20 – 10A Red Overhead Console Assy (OHC) W/Sunshade / Intrusion Module F21 30A Pink – Trailer Tow Electric Brake – Aftermarket F22 – – Spare F23 – – Spare F24 – – Spare F25 – – Spare F26 – – Spare F27 – – Spare F28 – – Spare F29 – – Spare F30 – – Spare F31 – – Spare F32 – 10A Red MOD ICS Switch Bank / SW Bank Upper/ SW EPB / Aux Switch Bank Module (ASBM)/ Mod HVAC Cntrl Frt/ Humidity Rain Light Sensor (HRLS) F33 – 15A Blue Transfer case SW / SW Bank Lower / Mod ICS Switch Bank Rear / Climate Control Display / Suspension SW F34 – – Spare F35 – 10A Red IRCAM Heater F36 – – Spare F37 – – Spare F38 – – Spare F39 – – Spare F40 – – Spare F41A – – Spare F41B – – Spare F42A – – Spare F42B – 10A Red MOD HVAC Control Frt F43A – – Spare F43B – – Spare F44 – 15A Blue MOD Cluster CCN / MOD SGW (Cybersecurity) F45 30A Pink – MOD Inverter 150W F46 – – Spare F47A – – Spare F47B – – Spare F48A – – Spare F48B – – Spare F49 – 7.5A Brown MOD RF HUB/ Module Ignition (MD KIN) F50A – 10A Red Port UCI Dual USB Rear F50B – 10A Red Port Diagnostics 1 & 2 F51A – – Spare F51B – – Spare F52 – – Spare F53 – 20A Yellow MOD CMCM (Radio) F54A – – Spare F54B – – Spare F55 – – Spare F56 – – Spare F57 – – Spare F58 – – Spare F59 – – Spare F60 – – Spare F61 – – Spare F62A – – Spare F62B – – Spare F63A – 15A Blue Port UC1 Dual USB Frt / Wireless Charging Pad MOD (WCPM) – High/Premium Only F63B – 15A Blue Telematics Box Module (TBM)/ Mod-DCSD/Mod FPDM F64A – 10A Red MODORC F64B – 10A Red Steering Column Control Module (SCCM) F65 – 5A Tan MOD SGW (Cybersecurity) F66 – – Spare CB1-CB6 – – Spare
This content requires JavaScript and a valid membership to view.

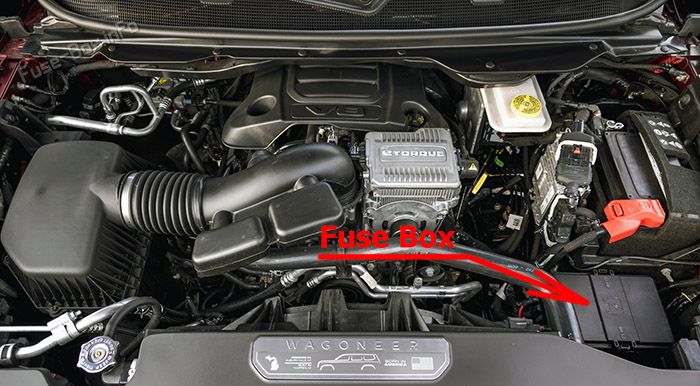

The Power Distribution Center (PDC) is located on the driver’s side of the engine compartment, behind the headlamp.

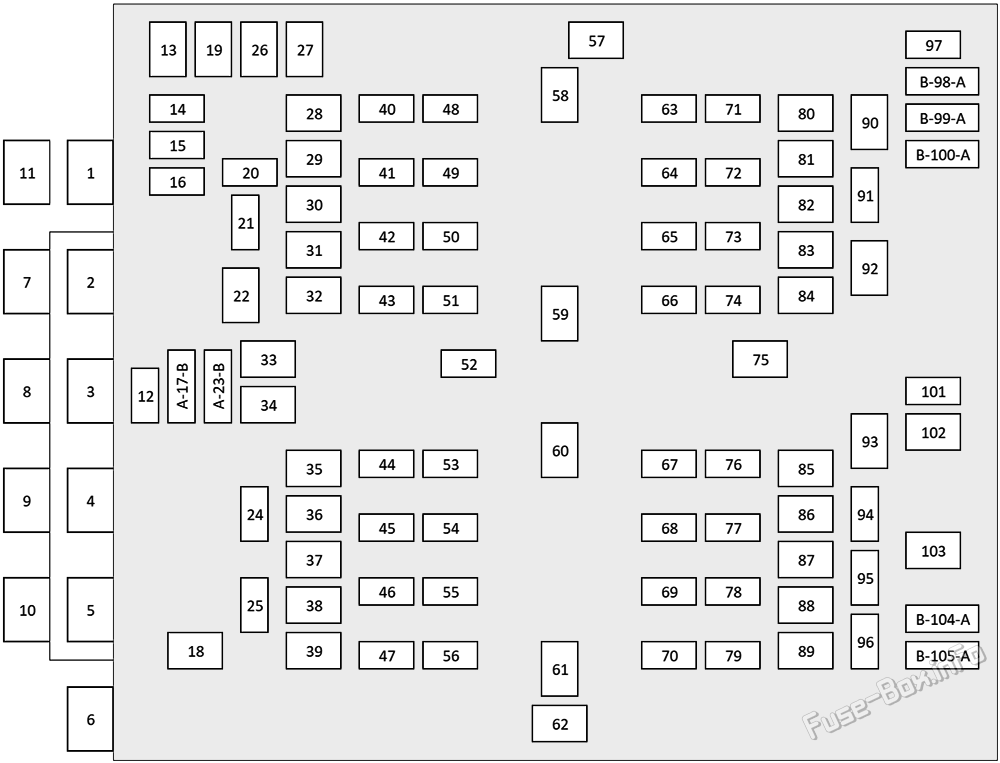

Assignment of the fuses in the Power Distribution Center (PDC)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Cartridge Fuse Micro Fuse Description F01 – – Crank Batt F02 80A Gray – Elec Pwr Str #1 F03 500A Gray – Starter F04 250A Gray – Alternator F05 80A Gray – Elec Pwr Str #2 F06 Shunt – Aux Battery F07 100A Gray – Rad Fan F08 – – Spare F09 80A Gray – IPDC F10 150A Gray – RPDC F11 150A Gray – PCR F12 – – Spare F13 40A Green – Starter F14 – 10A Red GNMM / VPMS F15 – 10A Red ECM F16 – 15A Blue Cluster F17A – 10A Red EPS F17B – 10A Red ATMM F18 – – Spare F19 30A Pink – BSM #2 Valves F20 – – Spare F21 – – Spare F22 – – Spare F23A – 10A Red ECM / PPU / MGU / BSM / SLM F23B – 10A Red AIR SUSPENSION / ELSD-RR/ EPS F24 – 20A Blue XFR Fuel Pump F25 – – SPARE F26 50A Red – BSM Motor #2 F27 30A Pink – Rear Defroster F28 – – Spare F29 – – Spare F30 – – Spare F31 40A Green – BCM Feed #3 F32 – – Spare F33 30A Pink – PWR Side Steps F34 – – Spare F35 – – Spare F36 50A Red – BCM Feed #1 F37 30A Pink – DTCM F38 50A Red – BCM Feed #2 F39 – – Spare F40 – 5A Tan Batt Snsr #1 F41 – 20A Yellow CADM MAP F42 – – Spare F43 – 10A Red ECM F44 – – Spare F45 – – Spare F46 – 5A Tan Batt Snsr #2 F47 – 10A Red BPCM F48 – 10A Red CVPAM F49 – 30A Green Air Suspension Valves F50 – – Spare F51 – 20A Yellow Fuel Pmp/ FPCM F52 – – Spare F53 – – Spare F54 – 20A Yellow Headlamp LT F55 – – Spare F56 – – Spare F57 – – Spare F58 – – Spare F59 50A Red – Air Suspension F60 – – Spare F61 – – Spare F62 – – Spare F63 – 20A Yellow Camera Washer Frt F64 – – Spare F65 – 15A Blue ACT Grille Shutter / ACT Air Dam / Coolant Valve LCVM F66 – 20A Yellow Horns F67 – 10A Red DTCM / Switchable Engine Mount / BSM F68 – 20A Yellow Headlamp RT F69 – – Spare F70 – 20A Yellow IGN Coil / IGN Cap/ Fuel Inj/ ISCM / Coil On Plug F71 – – Spare F72 – – Spare F73 – – Spare F74 – 5A Tan MGU F75 30A Pink – Front Wiper F76 – – Spare F77 – 20A Yellow TCM SBW F78 – 20A Yellow Short Runner Valve / ECM F79 – 15A Blue Fuel INJ / Surge Solenoid / Oil Sensor / Air Valve / OBD Bypass / O2 Heaters F80 20A Blue – ECM F81 40A Green – BCM Feed #4 F82 – – Spare F83 – – Spare F84 – – Spare F85 – 10A Red PCR F86 50A Red – BSM Feed 1 F87 – – Spare F88 50A Red – BSM Feed 2 F89 – – Spare F90 – – Spare F91 – – Spare F92 20A Blue – Front De-Icer F93 25A Clear – Fuel Pmp F94 – 10A Red A/C Comp Clutch F95 – – Spare F96 – – Spare F97 – – Spare F98A – 15A Blue Cooling Fan F98B – 15A Blue Pmp Battery Cooling F99 – – Spare F100 – – Spare F101 – – Spare F102 25A Clear – Fuel Pmp F103 – – Spare F104 – – Spare F105A – – Spare F105B – 15A Blue LTR Coolant Pump
This content requires JavaScript and a valid membership to view.

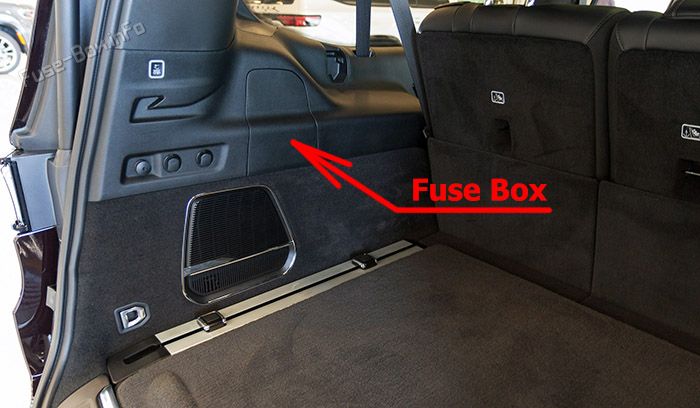

The Rear Power Distribution Center is located behind a trim cover in the rear driver’s side quarter panel.

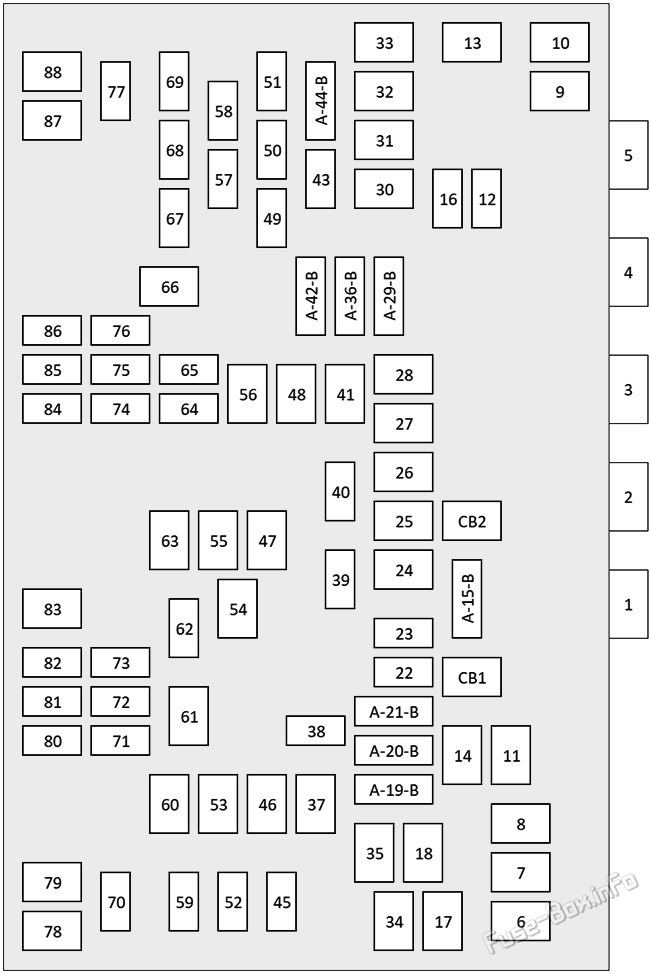

Assignment of the fuses in the Rear Power Distribution Center
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Cartridge Fuse Micro Fuse Description F05 150A Gray – Underhood Power Distribution Center Battery Feed F06 – – Spare F07 – – Spare F08 – – Spare F09 – – Spare F10 – – Spare F11 – – Spare F12 – – Spare F13 30A Pink – Air Compressor (Tire Inflator) F14 25A Clear – MTR Sunshade Sunroof F15A – – Spare F15B – 10A Red Hands Free Liftgate / Rear Window Switches / MOD HVAC Cntrl Rr F16 – – Spare F17 – – Spare F18 25A Clear – Power Liftgate Module F19A – 10A Red L2+ Driver Alert Lighting Module F19B – 10A Red Animation Lighting RR-LT F20A – 15A Blue Central ASAS Decision Module (CADM) – LO F20B – – Spare F21A – – Spare F21B – 10A Red Sunroof – Dual Pane 2nd & 3rd Row Seat SW-lllumination F22 – – Spare F23 – 10A Red Rear Seat Entertainment (Driver / Passenger) F24 – – Spare F25 30A Pink – Mod Door MUX Passenger F26 – – Spare F27 – – Spare F28 30A Pink – MOD Memory / Power Seat (Passenger Frt) F29A – 10A Red Animation Lighting RR-RT F29B – 10A Red Animation Lighting RR-LT F30 30A Pink – MOD Memory / Power Seat (Driver Frt) F31 – – Spare F32 – – Spare F33 – – Spare F34 30A Pink – MOD Door MUX Driver F35 25A Clear – Integrated Trailer Tow Module #2 F36A – 10A Red Intelligent Event Base Lighting Module F36B – – Spare F37 25A Clear – Integrated Trailer Tow Module #1 F38 – – Spare F39 – – Spare F40 – 30A Green MOD Audio Amplifier #1A F41 – – Spare F42A – 10A Red 2023: RSE Video USB Console Frt/Port Media Hub FPDM F42B – – Spare F43 – – Spare F44A – 20A Yellow 12 Volt Power Outlet Cargo Area (Ign) F44B – 20A Yellow 12 Volt Power Outlet Cargo Area (Battery) F45 – 20A Yellow MOD CRSM (Heated Seat RR RT) F46 30A Pink – Folding Seat Module 3rd Row Feed #1 F47 – – Spare F48 – – Spare F49 – – Spare F50 – 15A Blue Seat Massage Driver Mod (SSMD)/ Seat Massage Passenger Mod (SSMP) F51 – – Spare F52 – 20A Yellow MOD CRSM (Heat Seat RR LT) F53 30A Pink – Electronic Limited Slip Differential (ELSD) Rear #1 F54 – – Spare F55 30A Pink – Folding Seat Modules 3rd Row Feed #2 F56 – – Spare F57 – 10A Red MOD HVAC RR / Mod Occupant Classic / CVPAM / Mod Parktronics/ ITCM F58 – 15A Blue 3rd Row Additional USB charge (Only LT – RT) / Port Pwr USB Console UBS (CH Only) F59 – – Spare F60 25A Clear – RR_HVAC Blower F61 – – Spare F62 – 20A Yellow Module Seat Heater Frt (Driver) F63 30A Pink – Assy Trailer Tow Receptacle B+ F64 – – Spare F65 – – Spare F66 20A Blue – MOD Door MUX Passenger Rear-Smart Motor F67 – 30A Green MOD Audio Amplifier #1B F68 – – Spare F69 – 20A Yellow L2+ Central ASAS Decision Module (CADM) MID F70 – 10A Red Video Routing Module (VRM) F71 – – Spare F72 – – Spare F73 – – Spare F74 – – Spare F75 – – Spare F76 – – Spare F77 – – Spare F78 – – Spare F79 – – Spare F80 – – Spare F81 – 20A Yellow Module Seat Heater Frt (PASS) F82 – 10A Red Animation Lighting RR / Air Compressor (Tire Inflator)/ Animation Lighting Liftgate Taillamp F83 – – Spare F84 – – Spare F85 – – Spare F86 – 15A Blue Lumbar Support Driver & Passenger SW F87 – – Spare F88 20A Blue – MOD Door MUX Driver Rear – Smart Motor CB1 – 20A Yellow Power Outlet RR CB2 – – Spare
This content requires JavaScript and a valid membership to view.
