Lincoln MKX (U388) | 2011-2015

Browse Lincoln MKX fuse box diagrams for 2011–2015 models featuring relay assignments, fuse panel locations, and detailed electrical layout information. This article covers the facelifted first-generation Lincoln MKX (Model Code: U388), produced from 2011, and includes fuse box diagrams for Lincoln MKX 2011, 2012, 2013, 2014 and 2015, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Passenger Compartment

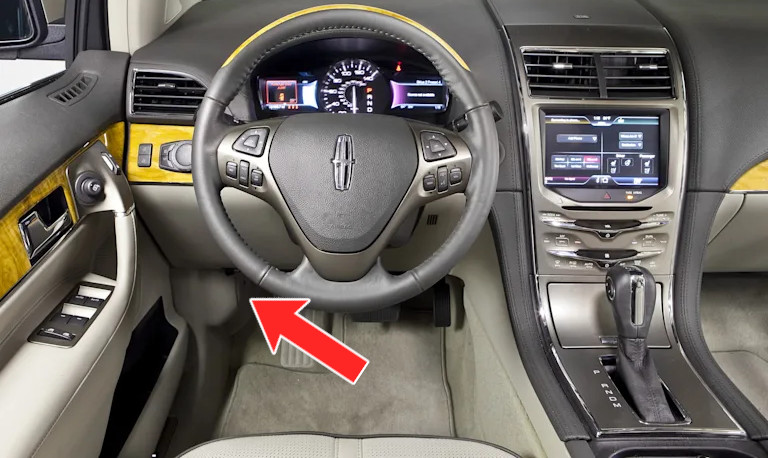

Fuse Box Location

The fuse box is located behind a trim panel on the driver’s footwell near the parking brake.

Lincoln MKX 2011-2015 Passenger Compartment Fuse Box Location
  • To remove the trim panel:
    Slide the release lever to the right, then pull the trim panel outward.
  • To remove the fuse panel cover:
    Press the tabs on both sides of the cover and pull it off.
  • To reinstall the fuse panel cover:
    Place the top part of the cover onto the fuse panel, then press the bottom until it clicks into place. Gently pull on the cover to ensure it is secure.
  • To reinstall the trim panel:
    Align the tabs on the bottom of the panel with the grooves, push the panel closed, and slide the release lever to the left to lock it in place.

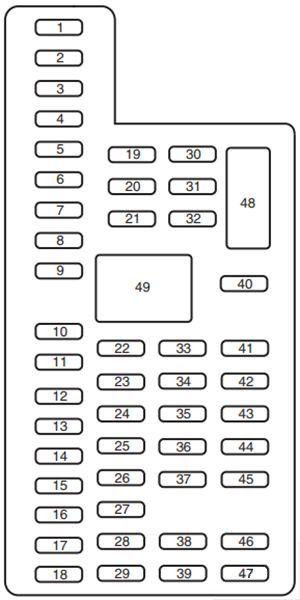

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
130ADriver front smart window
215ANot used (spare)
330APassenger front smart window
410ADemand lamps relay
520ASubwoofer
65ARadio frequency module
77.5APower mirror switch, Memory seat switch, Driver seat module
810ANot used (spare)
910APower liftgate
1010ARun/accessory relay
1110AInstrument panel cluster, Heads-up display
1215AInterior lighting, Puddle lamps, Backlighting
1315ARight turn/stop lamps and turn signals
1415ALeft turn/stop lamps and turn signals
1515AReverse lamps, High-mounted stop lamps
1610ALow beam headlamps (right)
1710ALow beam headlamps (left)
1810AKeypad illumination, Brake shift interlock, Start button LED, Passive anti-theft system, Powertrain control module wake-up, Second row power enable
1920AAudio amplifier
2020ALock/unlock relays – vehicles without intelligent access
2110ANot used (spare)
2220AHorn relay
2315ASteering wheel control, Intelligent access, Headlamp switch
2415APower tilt/telescope steering column, On-board diagnostics
2515ALiftgate release
265AGlobal positioning system module
2720AIntelligent access
2815AIgnition switch (without intelligent access), Key inhibit solenoid, Push button start (with intelligent access)
2920ARadio, Electronic finish panel, SYNC module
3015AFront park lamps
315ANot used (spare)
3215AMoonroof, Power windows (front), Compass/auto-dimming rear view mirror
3310ANot used (spare)
3410AReverse sensing system, Rearview camera, Blind spot monitor, Rear heated seat module
355AHeads-up display
3610AHeated steering wheel
3710AClimate control
3810ANot used (spare)
3915AHigh beam headlamps
4010ARear park lamps, License plate lamps
417.5AOccupant classification sensor, Restraints control module
425ANot used (spare)
4310ANot used (spare)
4410ANot used (spare)
455ANot used (spare)
4610AClimate control
4715AFog lamps relay, LED signal mirrors

Circuit Breaker and Relay

Assignment of the circuit breaker and relay in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
48Circuit Breaker30ARear power windows
49Relay—Delayed accessory relay

Engine Compartment

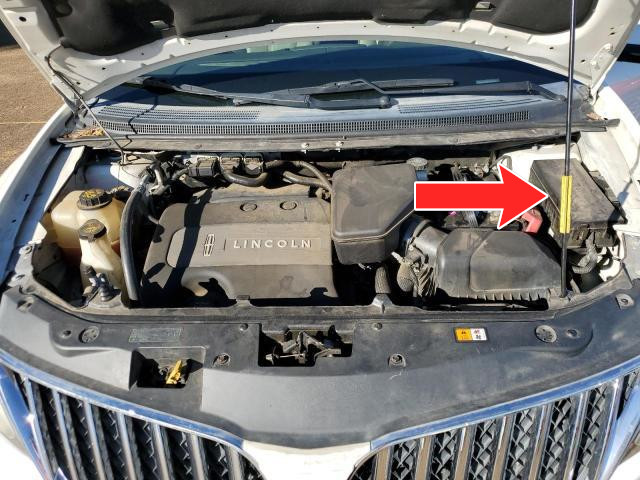

Fuse Box Location

The fuse box (Power Distribution Box) is located in the engine compartment on the driver’s side.

Lincoln MKX 2011-2015 Engine Compartment Fuse Box Location

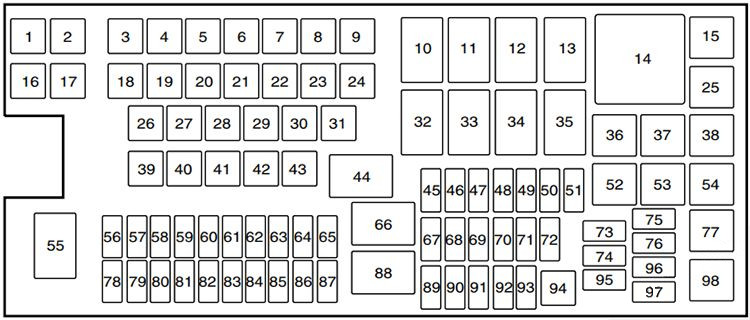

Fuse Box Diagram

Lincoln MKX 2011-2015 Engine Compartment Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1——N/A
2——N/A
3——N/A
4Cartridge fuse30AWipers
5Cartridge fuse40AAnti-lock brake system pump
6——N/A
7Cartridge fuse30APower liftgate
8Cartridge fuse20AMoonroof
9Cartridge fuse20APower point #2 (console rear)
10——N/A
12——N/A
14——N/A
16——N/A
17——N/A
18Cartridge fuse40ABlower motor
19Cartridge fuse30AStarter motor
20Cartridge fuse20APower point #1 (console bin)
21Cartridge fuse20ACargo area power point
22——N/A
23Cartridge fuse30ADriver seat module
24——N/A
25——N/A
26Cartridge fuse40ARear window defroster
27Cartridge fuse20AFront power point or lighter
28Cartridge fuse30AClimate controlled seats
29——N/A
30Cartridge fuse30ARear heated seats
31——N/A
32——N/A
33——N/A
35——N/A
38——N/A
39Cartridge fuseVehicles with trailer tow: 40A
Vehicles without trailer tow: 60A		Cooling fan
40Cartridge fuse40ACooling fan (trailer tow only)
41——N/A
42Cartridge fuse30APassenger seat
43Cartridge fuse25AAnti-lock brake system valves
45Mini fuse5ARain sensor
46——N/A
47——N/A
48——N/A
49——N/A
50Mini fuse15AHeated mirror
51——N/A
52——N/A
54——N/A
56——N/A
57Mini fuse20ALeft HID headlamps
58Mini fuse10AAlternator sensor
59Mini fuse10ABrake on/off switch
60——N/A
61Mini fuse10ARear seat release
62Mini fuse10AAir conditioner clutch
63Mini fuse15ATrailer tow stop/turn lamps relay
64Mini fuse20ARear wiper motor
65Mini fuse15AFuel pump
67Mini fuse20AVehicle power #2
68Mini fuse15AVehicle power #4
69Mini fuse15AVehicle power #1
70Mini fuse10AAir conditioner relay, All-wheel drive module
71——N/A
72——N/A
73——N/A
74——N/A
75DiodeN/AAir conditioner clutch diode
76——N/A
78Mini fuse20ARight HID headlamps
79Mini fuse5AAdaptive cruise control
80——N/A
81——N/A
82Mini fuse15ARear washer
83——N/A
84Mini fuse20ATrailer tow park lamps
85——N/A
86Mini fuse7.5APowertrain control module keep-alive, Powertrain control module relay
87Mini fuse5ARun/start relay
89Mini fuse5AAdaptive lighting
90Mini fuse10APowertrain control module
91Mini fuse10AAdaptive cruise control
92Mini fuse10AAnti-lock brake system module
93Mini fuse5ABlower motor/rear defroster relay
94Cartridge fuse30APassenger compartment fuse panel run/start
95——N/A
96——N/A
97——N/A

Relays

Assignment of the relays in the Engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
11Rear window defroster and heated mirror relay
13Starter relay
15Fuel pump relay
34Blower motor relay
36Rear seat relay
37Right trailer tow stop/turn lamps relay
44Rear washer relay
53Left trailer tow stop/turn lamps relay
55Wiper relay
66Powertrain control module relay
77Trailer tow park lamps relay
88Run/start relay
98Air conditioner clutch relay
