Lincoln MKX (U388) | 2007-2010

Discover Lincoln MKX fuse box diagrams for 2007–2010 models, including relay identification, fuse assignments, panel locations, and wiring details. This article covers the first-generation Lincoln MKX before the facelift (Model Code: U388), available from 2007, and includes fuse box diagrams for Lincoln MKX 2007, 2008, 2009 and 2010, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Passenger Compartment

Fuse Box Location

The fuse box is located behind a lid on the driver’s footwell near the parking brake.

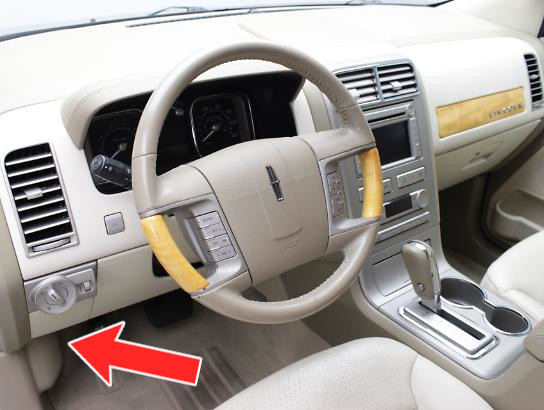

Lincoln MKX 2007-2010 Passenger Compartment Fuse Box Location
  • To reach the fuse panel, first move the release lever to the right and carefully pull the trim panel outward. Once the trim panel is removed, press the retaining tabs on both sides of the fuse panel cover and lift the cover away.
  • When reinstalling, position the upper part of the fuse cover first, then press the lower section until it snaps securely into place. Give the cover a light pull to confirm it is properly locked.
  • To refit the trim panel, align the lower tabs with the guide slots, press the panel back into position, and slide the release lever to the left to secure it.

Fuse Box Diagram

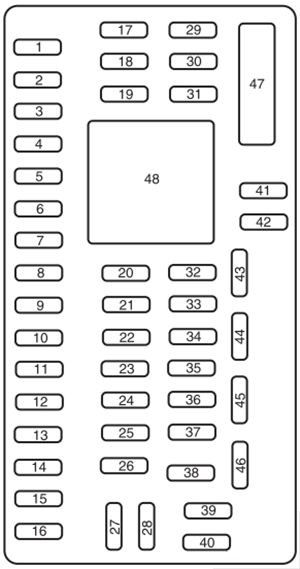

Lincoln MKX 2007-2010 Passenger Compartment Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
130A2007: Driver front smart window
2008-2010: Passenger front smart window
215A2007-2009: N/A
2010: High-mount brake lamp (brake on/off)
315A2007: Family entertainment system (FES)/Rear seat control
2008: Family entertainment system (FES)/Rear seat control, SYNC
2009-2010: SYNC module
430A2007: Passenger front smart window
2008-2010: Driver front smart window
510A2007-2008: Keypad illumination, 2nd row seat, Tire Pressure Monitoring System (TPMS), Brake Shift Interlock (BSI)
2009: Keypad illumination, 2nd row seat, Tire Pressure Monitoring System (TPMS), Brake Shift Interlock (BSI), Smart junction box (SJB)
2010: Keypad illumination, 2nd row seat
620ATurn signals
710ALow beam headlamps (left)
810ALow beam headlamps (right)
915AInterior lights, Cargo lamps
1015ABacklighting, Puddle lamps, Ambient lighting
1110AAll wheel drive (AWD)
127.5APower mirror switch, Driver side power seat memory, Driver seat module – keep alive power
132007: 7.5A
2008-2010: 5A		2007-2008: N/A
2009: Satellite radio, DSP
2010: Satellite radio
1410A2007-2009: Power liftgate module
2010: Power liftgate – keep alive power
1510A2007-2009: Climate control
2010: Climate control, GPS module
16—N/A
1720A2007-2008: All power lock motor feeds, Liftgate release, Moonroof
2009-2010: All power lock motor feeds, Liftgate release, Express up/down front windows
1820A2007-2008, 2010: THX system
2009: THX system, Heated seats
1925ARear wiper
2015ADatalink
2115AFog lamps
2215APark lamps
2315AHigh beam headlamps
2420AHorn relay
2510A2007-2008: Demand lamps/Interior lamps
2009-2010: Demand lamps
2610AInstrument panel cluster
2720AIgnition switch
285ARadio
295AInstrument panel cluster
305AOverdrive cancel switch
3110A2007: Compass, Automatic dimming rear view mirror
2008-2009: Automatic dimming rear view mirror
2010: N/A
3210A2007-2009: N/A
2010: Restraint control module
33—N/A
345ASteering angle sensor
3510A2007-2009: Rear park assist, AWD, Heated seat module
2010: Rear park assist, Yaw rate sensor, Heated seats
365APassive anti-theft system (PATS) transceiver
3710AClimate control
3820A2007-2009: THX System
2010: Subwoofer/amplifier
3920ARadio
40—N/A
4115A2007-2008: Delayed accessory function for radio and lock switch illumination
2009: Delayed accessory function for radio and lock switch illumination, Ambient lighting
2010: Automatic dimming rear view mirror
42—N/A
4310ARear wiper logic
4410ACustomer accessory feed
455A2007-2009: Front wiper logic, Climate control relay feed
2010: Front wiper logic
467.5AOccupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI)

Circuit Breaker and Relay

Assignment of the circuit breaker and relay in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
47Circuit breaker30APower windows
48Relay—Delayed accessory relay

Engine Compartment

Fuse Box Location

The fuse panel (Power Distribution Box) is located in the engine compartment on the driver’s side.

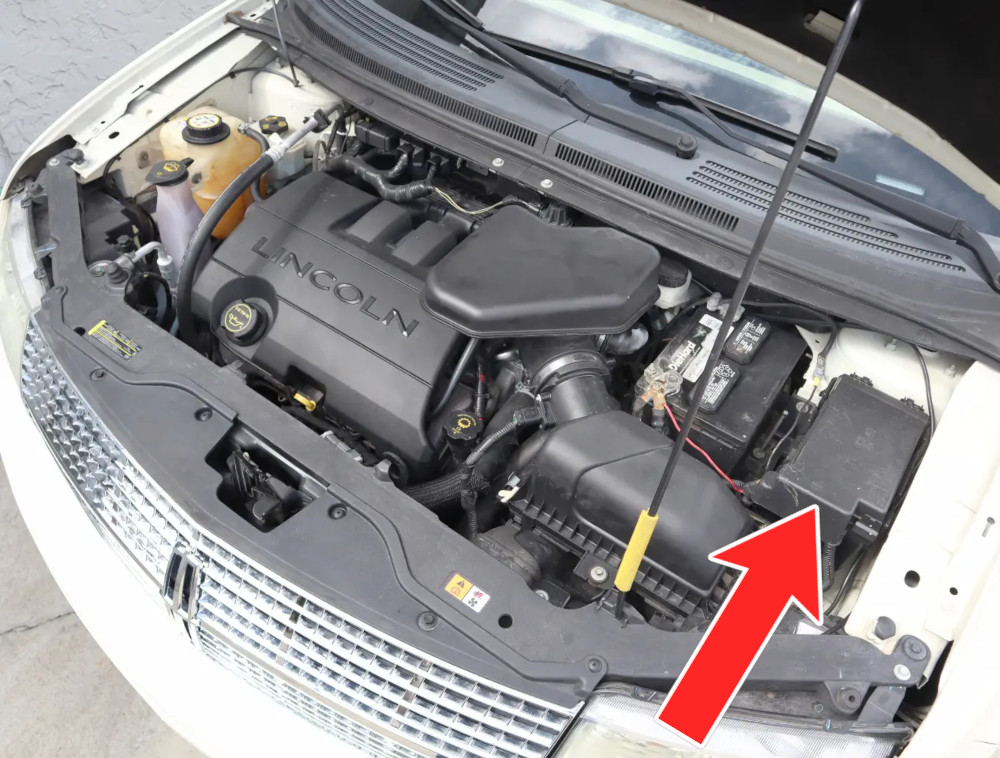

Lincoln MKX 2007-2010 Engine Compartment Fuse Box Location

Fuse Box Diagram

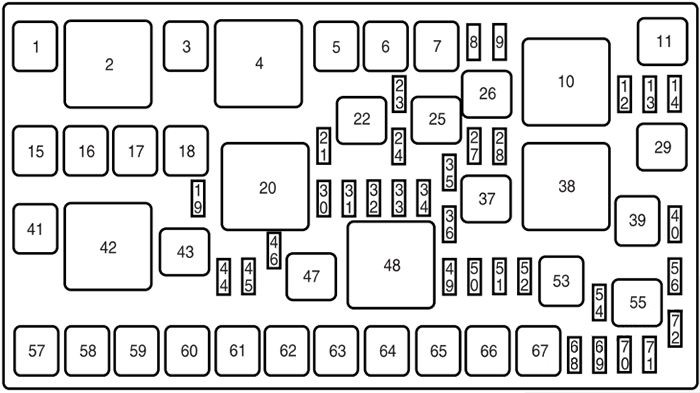

Lincoln MKX 2007-2010 Engine Compartment Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1——N/A
3——N/A
5Cartridge fuseVehicles with trailer tow: 40A
Vehicles without trailer tow: 60A		Cooling fan
6Cartridge fuse40ACooling fan (trailer tow only)
7Cartridge fuse30ARear heated seats
8Mini fuse10AAlternator
9Mini fuse20ATrailer tow parking lamps
12——N/A
13——N/A
14——N/A
15Cartridge fuse40AAnti-lock brake system pump motor
16Cartridge fuse30AFront heated seats
17Cartridge fuse20ACigar lighter/Power point
18Cartridge fuse2007: 30A
2008-2010: 20A		Panoramic moon roof
21Mini fuse7.5APCM – keep alive power
24Mini fuse2007: 15A
2008-2010: 10A		Trailer tow left stop/turn lamp
27Mini fuse10ARear seat release
28Mini fuse15AHeated mirror
30Mini fuse15AVehicle power 1 (PCM)
31Mini fuse10AVehicle power 3 (PCM)
32Mini fuse10AVehicle power 2 (PCM)
33Mini fuse15AVehicle power 4 (PCM)
34——N/A
35Mini fuse10AA/C clutch
36——N/A
39Cartridge fuse40ARear window defroster
40——N/A
41Cartridge fuse30AStarter
44Mini fuse10ABackup lamps
45——N/A
46Mini fuse2007: 15A
2008-2010: 10A		Trailer tow right stop/turn lamp
49Mini fuse10APCM ISPR
50Mini fuse10AABS Run/start
51Mini fuse5AAdaptive lighting
52Mini fuse5A2007-2009: Fuel pump relay coil
2010: Fuel pump diode feed
53Cartridge fuse30APassenger compartment fuse panel run/start
54——N/A
55——N/A
57Cartridge fuse40AAnti-lock brake system valves
58Cartridge fuse30AFront wipers
59Cartridge fuse30APower liftgate
60Cartridge fuse30A2007-2009: Driver power seat
2010: Driver power seat/memory module
61Cartridge fuse30APassenger power seat
62——N/A
63Cartridge fuse40ABlower motor
64Cartridge fuse20ACigar lighter/Power point
65Cartridge fuse20ACigar lighter/Power point
66Cartridge fuse20ACigar lighter/Power point
67——N/A
68Mini fuse15AFuel pump
69——N/A
70——N/A
71Mini fuse10A2007-2009: Stop lamps
2010: Brake on/off switch (brake lights)
72——N/A

Relays and Diodes

Assignment of the relays and diodes in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
2RelayBlower motor relay
4RelayN/A
10RelayN/A
11RelayTrailer tow parking lamp relay
19DiodeFuel pump diode
20RelayPowertrain control module (PCM) relay
22RelayTrailer tow left stop/turn lamp relay
23Diode2007-2008: N/A
2009-2010: One-touch integrated start diode
25RelayRear seat release relay
26RelayFuel pump relay
29RelayHeated mirror relay
37RelayA/C clutch relay
38RelayRear window defroster relay
42RelayStarter relay
43RelayBackup lamp relay
47RelayTrailer tow right stop/turn lamp relay
48RelayRun/start relay
56DiodeA/C clutch diode
