Browse Nissan Versa fuse box diagrams for 2020–2025 models with fuse locations, panel layouts, and detailed fuse and relay assignment information for this compact sedan. This article covers the fourth-generation Nissan Versa (Model Code: N18), available from 2020 to 2025 , and includes fuse box diagrams for Nissan Versa 2020, 2021, 2022, 2023, 2024 and 2025 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

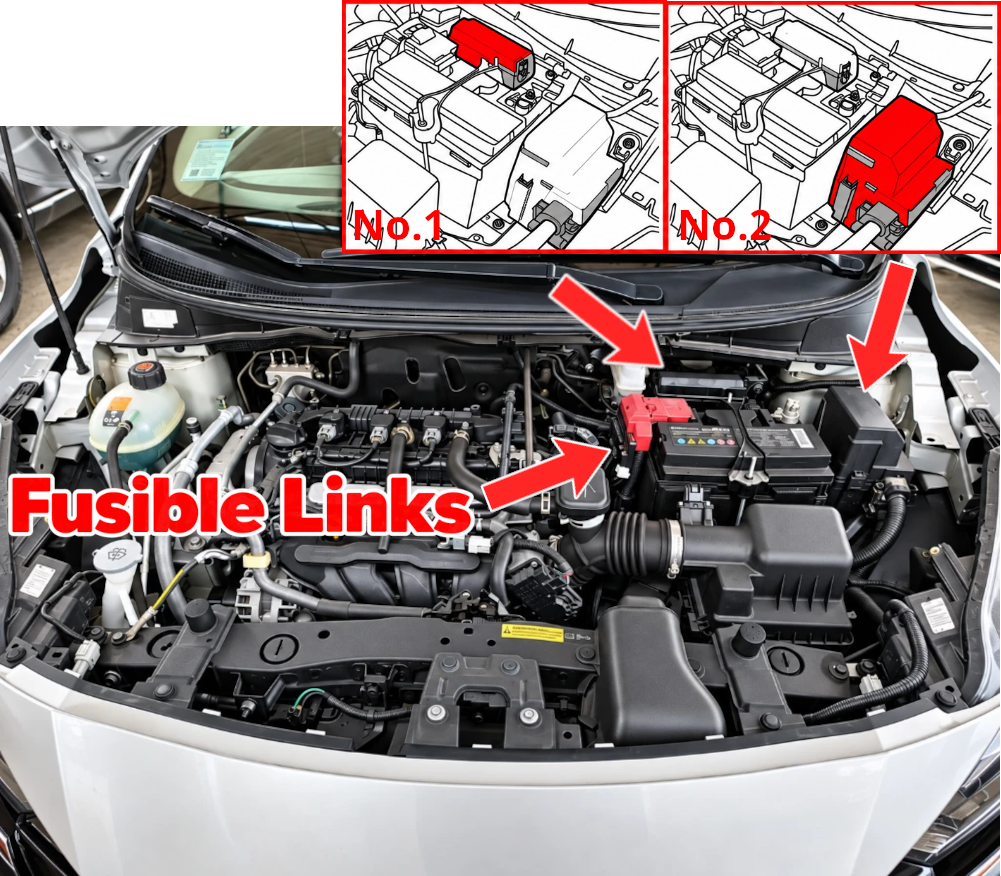

There are several fuse box locations in the engine compartment; please refer to the image below to find them.

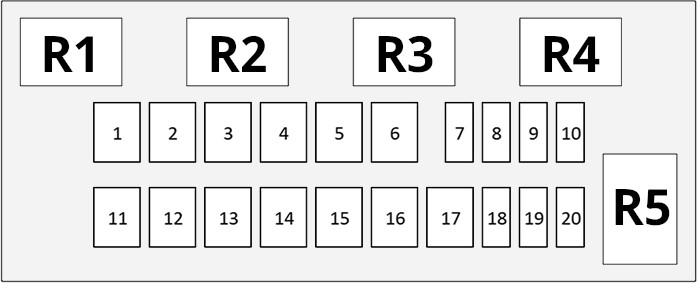

Assignment of the fuses in the engine compartment fuse box No.1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 FMM/MCase 50A (ABS / VDC MOTOR) Anti-lock braking system; Vehicle dynamics control solenoid 2 FMM/MCase 30A (ABS/ VDC SOL) Anti-lock braking system; Vehicle dynamics control solenoid 3 FMM/MCase 40A (PTC HEATER 2) Additional heater 4 FMM/MCase — Not Used 5 FMM/MCase 50A VTC CONT 6 FMM/MCase 40A (POWER WINDOW) Power windows 7 MICRO2 10A (RAD FAN 2) Radiator fan 8 MICRO2 10A CVT CONT 9 MICRO2 15A (HORN) Horn 10 MICRO2 30A (PTC HEATER) Additional heater 11 FMM/MCase 40A USM 12 FMM/MCase — Not Used 13 FMM/MCase 40A (IGN SW) Ignition switch 14 FMM/MCase — Not Used 15 FMM/MCase — Not Used 16 FMM/MCase 60A (RAD FAN 1) Radiator fan 17 FMM/MCase — Not Used 18 MICRO2 15A (HEATED SEAT) Seat heater 19 MICRO2 10A CVT CONT 20 MICRO2 30A (PTC HEATER) Additional heater
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box No.1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Not Used R2 Not Used R3 (STARTER) Starter system R4 Not Used R5 (HORN) Horn
This content requires JavaScript and a valid membership to view.

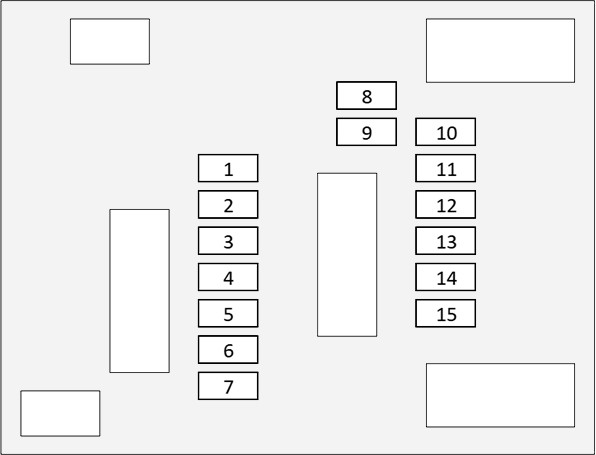

Assignment of the fuses in the engine compartment fuse box No.2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MICRO2 10A Reversing lights (from ignition) / Air conditioner electromagnetic valve 2 MICRO2 — Not Used 3 MICRO2 10A Automatic transmission control system 4 MICRO2 10A Airbag; Anti-lock braking system 5 MICRO2 10A Various engine actuators (throttle valve, turbine control valves, etc., depending on the configuration) 6 MICRO2 5A (ECM) Engine control unit; Steering lock 7 MICRO2 30A Wipers 8 MICRO2 — Not Used 9 MICRO2 15A ACTUATOR 1 10 MICRO2 15A ACTUATOR 5 11 MICRO2 15A LCS_CABIN/INJECTOR 12 MICRO2 15A ACTUATOR 3 13 MICRO2 10A ACTUATOR 4 14 MICRO2 10A BAT_ABS_VALVES/ECM_BAT 15 MICRO2 20A Fuel pump
This content requires JavaScript and a valid membership to view.

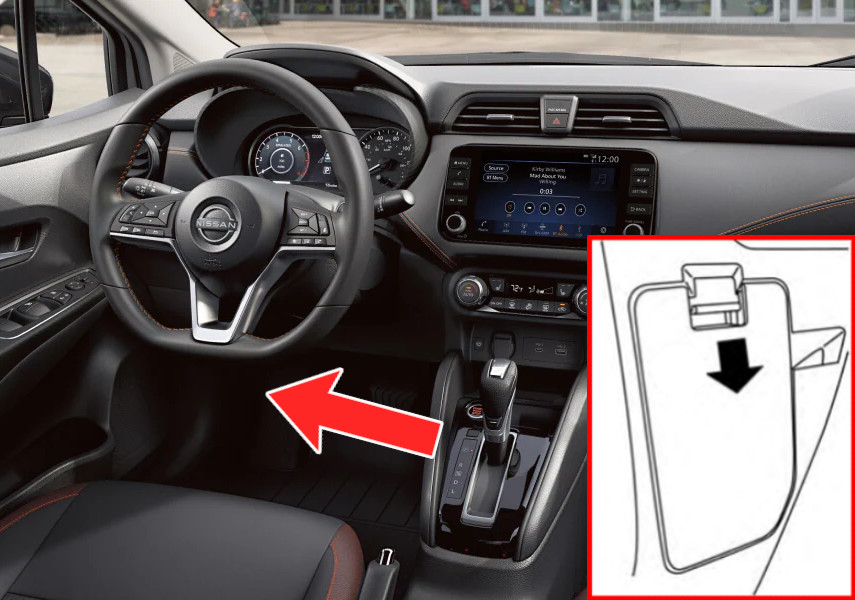

Inside the car, the fuse box is positioned beneath the instrument panel, on the pillar beside the driver’s left foot.

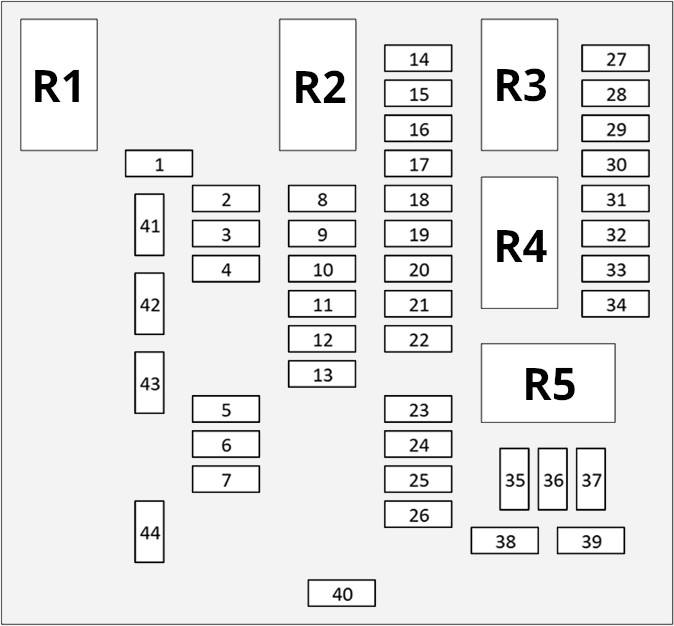

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 — — Not Used 2 — — Not Used 3 — — Not Used 4 — — Not Used 5 MICRO2 15A (AUDIO) Audio system 6 — — Not Used 7 — — Not Used 8 MICRO2 10A (AIR BAG) Airbag 9 MICRO2 10A (ELEC PARTS (IGN)) Protects several circuits 10 MICRO2 10A ELEC PARTS (IGN RUN) 11 MICRO2 10A WASH PUMP 12 MICRO2 10A (METER (IGN)) Instrument cluster 13 MICRO2 10A STRG SENS 14 MICRO2 5A (BCM) Body control module 15 MICRO2 15A (TURN LAMP) Turn signal 16 MICRO2 20A (RR DEF-4) Rear window defogger 17 MICRO2 10A ELEC PARTS (BAT-2) 18 MICRO2 10A (ROOM LAMP) Dome light and interior light 19 MICRO2 10A (FOG LAMP RR) Rear fog lights 20 MICRO2 20A (POWER SOCKET) Cigar lighter / power outlet 21 MICRO2 5A INMOBI ANT 22 MICRO2 20A (RR DEF-3) Rear window defogger 23 MICRO2 10A (STOP LAMP-1) Stop lights 24 MICRO2 10A ELEC PARTS (BAT-RUN) 25 MICRO2 15A (DOOR LOCK FR) Power door lock system 26 MICRO2 15A (DOOR LOCK RR) Power door lock system 27 — — Not Used 28 MICRO2 10A ELEC PARTS (AUTO ACC) 29 MICRO2 10A (STOP LAMP-2) Stop lights 30 MICRO2 10A (AIR COND) Air conditioning 31 MICRO2 10A (ABS/VDC CONT) Anti-lock braking system; Vehicle dynamics control solenoid 32 — — Not Used 33 MICRO2 10A (HEATED MIRROR) Mirror heater 34 MICRO2 20A (RR DEF-2) Rear window defogger 35 MICRO2 15A (BLOWER MOTOR-2) AC blower motor 36 — — Not Used 37 MICRO2 15A (BLOWER MOTOR-1) AC blower motor 38 MICRO2 10A (METER (BAT)) Instrument cluster 39 — — Not Used 40 MICRO2 — EXTENDED STORAGE SW 41 MICRO2 5A (SPARE) Spare fuse 42 MICRO2 10A (SPARE) Spare fuse 43 MICRO2 15A (SPARE) Spare fuse 44 MICRO2 20A (SPARE) Spare fuse
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 (POWER WINDOW) Power windows R2 (IGNITION 2) Ignition R3 (ACCESSORY) Protects several accesory circuits R4 (REAR WINDOW DEFOGGER 1) Rear window defogger R5 (BLOWER MOTOR) AC blower motor
