Find Nissan Pathfinder fuse box diagrams for 1996–2004 models with fuse locations, panel layouts, and detailed fuse assignment information for this popular SUV. This article covers the second-generation Nissan Pathfinder (Model Code: R50), available from 1996 to 2004 , and includes fuse box diagrams for Nissan Pathfinder 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 and 2004 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

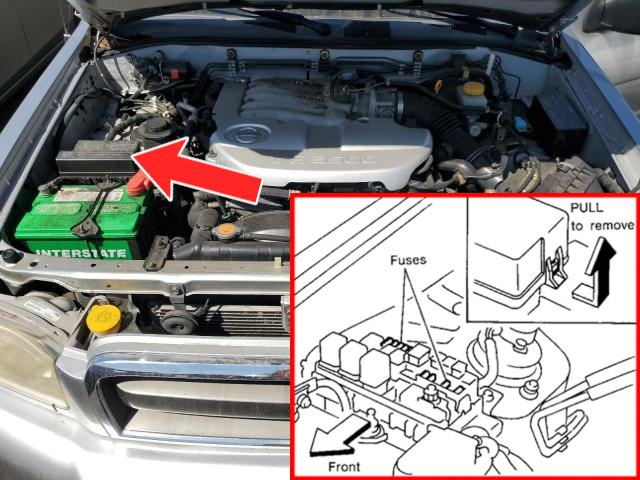

The fuse box is situated in the engine compartment on the passenger side, close to the main battery.

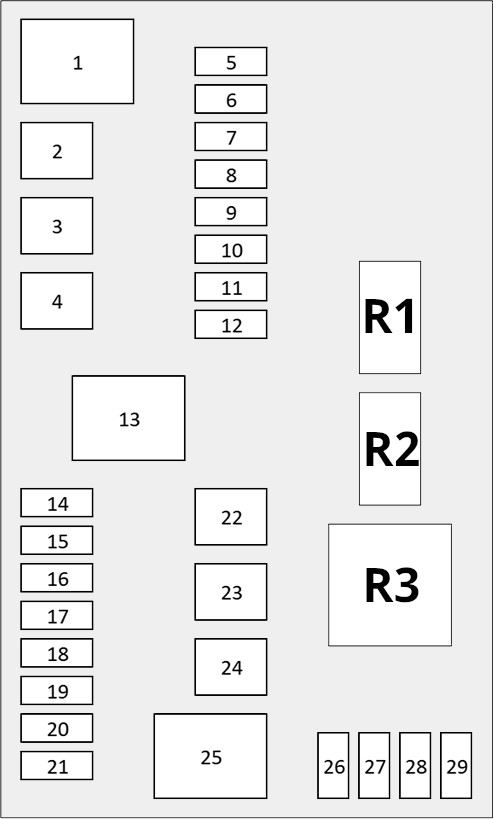

Assignment of the fuses in the engine compartment fuse box (Version 1)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 FLM — Not Used 2 FMX/JCase 40A (ABS SOL) Anti-lock braking system solenoid 3 FMX/JCase 40A (ABS MTR) Anti-lock braking system 4 FMX/JCase 40A (IGN SW) Ignition switch 5 MINI 20A (TRAILER TOW) Trailer 6 MINI 7.5A (ANTI HORN) Anti-theft system 7 MINI 15A (FR FOG) Front fog lights 8 MINI 10A (HORN) Horn 9 MINI 20A ETS MTR 10 MINI 20A (RR DEF) Rear window defogger 11 MINI 20A (RR DEF) Rear window defogger 12 MINI 10A (HEATER MIRROR) Mirror heater 13 FLM 100A (BATTERY) Battery and charging system 14 MINI 15A (H/LAMP RH) Right-hand headlight 15 MINI 15A (H/LAMP LH) Left-hand headlight 16 MINI 10A (TAIL) Tail lights 17 MINI 7.5A (ECCS) Air conditioning system 18 MINI 10A (INJ) Fuel injectors 19 MINI 15A (POWER SOCKET 2) Cigar lighter / power outlet 20 MINI 7.5A (ALT) Battery and charging system 21 MINI — Not Used 22 FMX/JCase 40A (POWER WINDOW) Power windows 23 FMX/JCase 40A (BAT) Battery and charging system 24 FMX/JCase 30A (RAD FAN) Radiator fan 25 FLM 80A (ACC IGN) Protects several accessory circuits 26 MINI 15A (THROT MTR) Electronic throttle control 27 MINI 20A (HID LH) Daytime running lights 28 MINI 20A (HID RH) Daytime running lights 29 MINI — Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box (Version 1)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 T/F IND R2 (FUEL PUMP) Fuel pump R3 N.P
This content requires JavaScript and a valid membership to view.

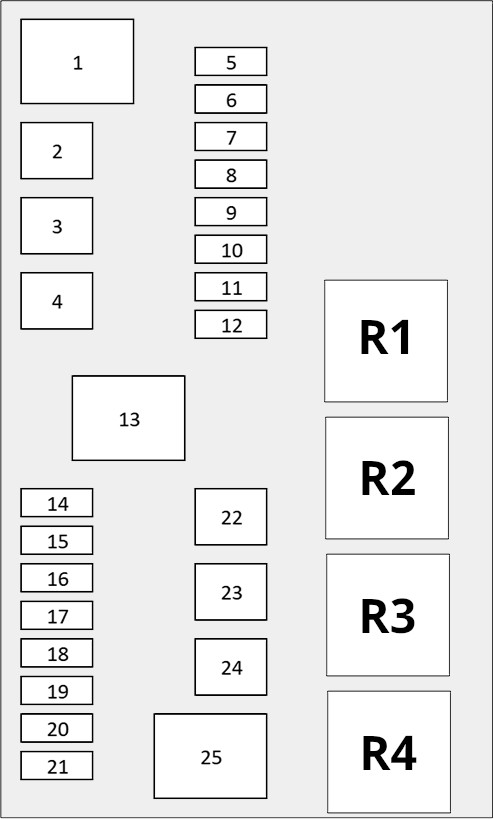

Assignment of the fuses in the engine compartment fuse box (Version 2)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 FLM — Not Used 2 FMX/JCase 40A (ABS SOL) Anti-lock braking system solenoid 3 FMX/JCase 40A (ABS MTR) Anti-lock braking system 4 FMX/JCase 40A (IGN SW) Ignition switch 5 MINI 15A (POWER SOCKET 1) Cigar lighter / power outlet 6 MINI 7.5A (ANTI HORN) Anti-theft system 7 MINI 15A (FR FOG) Front fog lights 8 MINI 10A (HORN) Horn 9 MINI 20A ETS MTR 10 MINI 20A (RR DEF) Rear window defogger 11 MINI 20A (RR DEF) Rear window defogger 12 MINI 10A (HEATER MIRROR) Mirror heater 13 FLM 100A (BATTERY) Battery and charging system 14 MINI 15A (H/LAMP RH) Right-hand headlight 15 MINI 15A (H/LAMP LH) Left-hand headlight 16 MINI 10A (TAIL) Tail lights 17 MINI 7.5A (ECCS) Air conditioning system 18 MINI 10A (INJ) Fuel injectors 19 MINI 15A (POWER SOCKET 2) Cigar lighter / power outlet 20 MINI 7.5A (ALT) Battery and charging system 21 MINI — Not Used 22 FMX/JCase 40A (POWER WINDOW) Power windows 23 FMX/JCase 40A (BAT) Battery and charging system 24 FMX/JCase 30A (RAD FAN) Radiator fan 25 FLM 80A (ACC IGN) Protects several accessory circuits
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box (Version 2)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 T/F IND R2 (FUEL PUMP) Fuel pump R3 N.P R4 EGI
This content requires JavaScript and a valid membership to view.

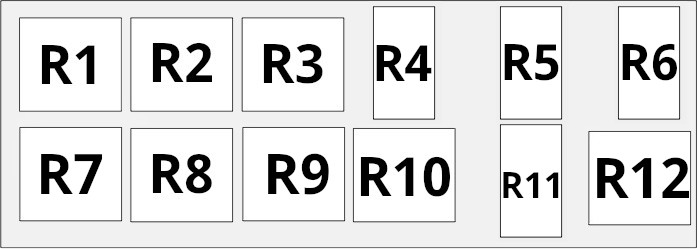

Assignment of the relays in the engine compartment relay box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 (FR FOG) Luces antiniebla delanteras R2 (KEY LESS) Acceso a distancia sin llaves R3 TRANSFER SHIFT LOW ATP R4 (FUEL PUMP) Bomba de combustible R5 TRANSFER SHIFT HI R6 (RR DEF) Desempañador trasero R7 (HEAD LAMP) Faros R8 ANTITHEFT HEAD LAMP R9 (HEAD LAMP) Faros R10 (HORN) Bocina R11 (AIR CON) Aire acondicionado R12 (TAIL LAMP) Luces traseras
This content requires JavaScript and a valid membership to view.

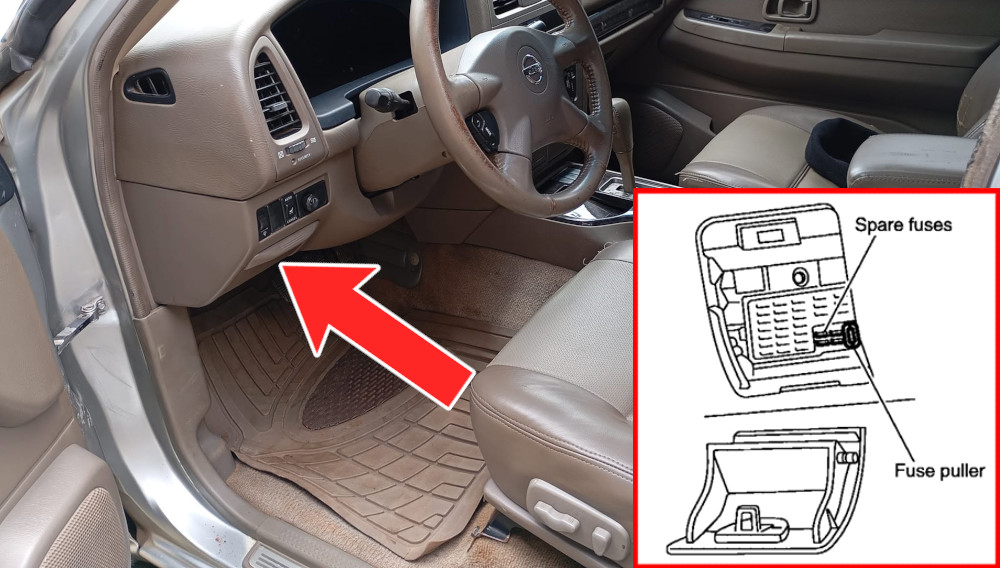

The fuse box is located on the driver’s side, to the left of the steering wheel beneath the lid.

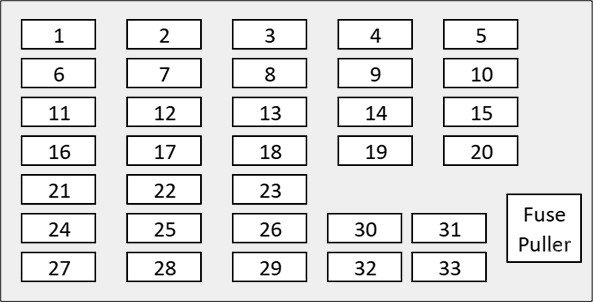

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MINI 15A (BLOWER MOTOR) AC blower motor 2 MINI 15A (BLOWER MOTOR) AC blower motor 3 MINI 20A TRANSFER SHIFT 4 MINI 15A (AUDIO AMP) Audio system 5 MINI 10A BACK WDW 6 MINI 7.5A (AIR CON) Air conditioning 7 MINI 7.5A/10A (ABS CONT) Anti-lock braking system 8 MINI 10A (METER) Instrument cluster 9 MINI 10A (MIRROR) Power control mirror 10 MINI 10A (AUDIO) Audio system 11 MINI 7.5A (ELEC IGN) Protects several circuits 12 MINI 7.5A (TURN SIGNAL) Turn signal 13 MINI 15A (CIG LIGHTER) Cigar lighter / power outlet 14 MINI 10A (STOP LAMP) Stop lights 15 MINI 7.5A (ROOM LAMP) Dome light and interior light 16 MINI 10A (ENG CONT) Engine control unit 17 MINI 15A (FUEL PUMP) Fuel pump 18 MINI 10A (AT CONT.) Automatic transmission controller 19 MINI 20A (FR WIPER) Front wipers 20 MINI 15A (HAZARD) Hazard light 21 MINI 10A (INJECTOR) Fuel injectors 22 MINI 10A (AIR BAG) Airbag 23 MINI — Not Used 24 MINI 7.5A (ELEC B) Protects several circuits 25 MINI 10A/15A (ENG CONT) Engine control unit 26 MINI 7.5A (STARTER) Starter system 27 MINI — Not Used 28 MINI 10A/15A (HEATER SEAT) Seat heater 29 MINI 10A (RR WIP) Rear wiper 30 MINI — Not Used 31 MINI — Not Used 32 MINI — Not Used 33 MINI — Not Used
This content requires JavaScript and a valid membership to view.
