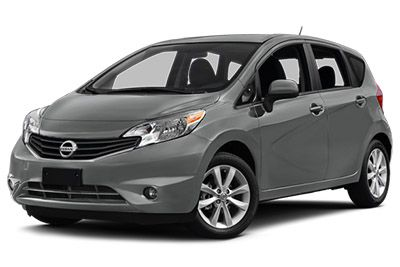

Nissan Versa Note (E12) | 2014-2019

Find Nissan Versa Note fuse box diagrams for 2014–2019 models with fuse locations, panel layouts, and detailed fuse and relay assignments for this compact hatchback. This article covers the second-generation Nissan Versa Note (Model Code: E12), available from 2014 to 2019, and includes fuse box diagrams for Nissan Versa Note 2014, 2015, 2016, 2017, 2018 and 2019, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Engine Compartment

Fuse Box Location

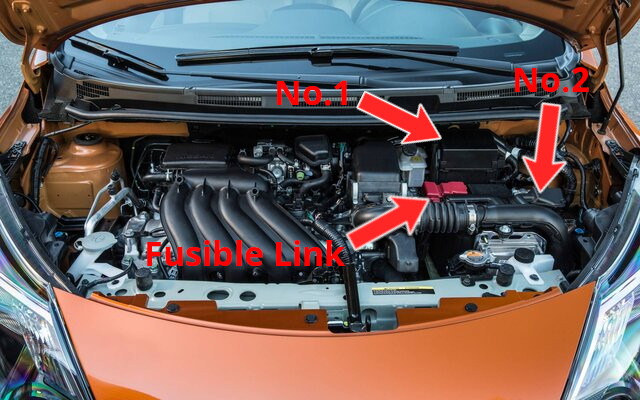

The fuse boxes are located in the engine compartment on the driver’s side. Fuse box No. 1 is positioned below the cowl panel, fuse box No. 2 is located deeper near the battery, and the fusible links are attached to the battery positive terminal.

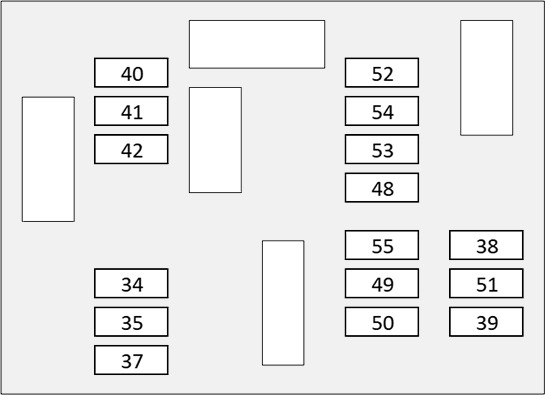

Fuse Box Diagram (No.1)

Fuses

Assignment of the fuses in the engine compartment fuse box No.1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
34MINI10AHeadlights (High Beam)
35MINI10AHeadlights (High Beam)
36——Not Used
37MINI10ATail Lamp Relay Parking Lamps License Plate Lamps Headlamp Aiming Motor – Manual Daytime Light System
38MINI10AENG ST IG
39MINI30AFront Wiper And Washer System
40MINI15AHeadlights (Low Beam)
41MINI15AHeadlights (Low Beam)
42MINI10AAir Conditioner Relay
43——Not Used
44——Not Used
45——Not Used
46——Not Used
47——Not Used
48MINI15AFuel Pump Relay
49MINI10ABack-Up Lamp BCM (Body Control Module) CVT Control System Engine Control System Intelligent Key System/Engine Start Function NVIS Power Distribution System Navigation System Starting System
50MINI10ABrake Control System
51MINI10AEngine Control System
52MINI15AThrottle Control Motor Relay
53MINI20AECM Relay Engine Control System NVIS
54MINI15AEngine Control System
55MINI10AEngine Control System

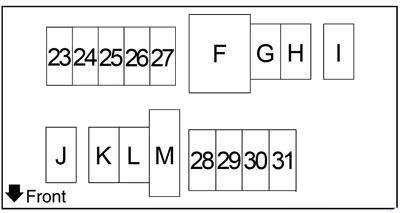

Fuse Box Diagram (No.2)

Fuses

Assignment of the fuses in the engine compartment fuse box No.2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
23MINI10A(TAIL LAMP) Tail lights
24MINI10AALT S HORN
25MINI10A/30AAT CONT / HP FUEL
(PTC) Additional heater
26MINI10A(ESCL) Steering lock
27MINI5A/20A/30APTC / VINJ1 / GRILL SHUTTER
28MINI10A/15ATAIL LAMP / HEATED SEAT
29MINI10A/15A/20AAUDIO / VINJ2
30MINI10A(STOP LAMP) Stop lights
31MINI15A(FR FOG) Front fog lights
FFMX/JCase30A/40A/50A(RAD FAN / ABS) Radiator fan; Anti-lock braking system
GMPF—P/WDW BCM
HMPF—IG SW
IMPF—(ABS / VDC / RAD FAN) Anti-lock braking system; Vehicle dynamics control solenoid; Radiator fan
JMPF—(EPS) Electric power steering
KMPF—4WD / HLC / DCDC B1
LMPF—DCDC B2 / ABS
MFMX/JCase30A/40A(ABS SOL / VDC SOL) Anti-lock braking system solenoid; Vehicle dynamics control solenoid

Passenger Compartment

Fuse Box Location

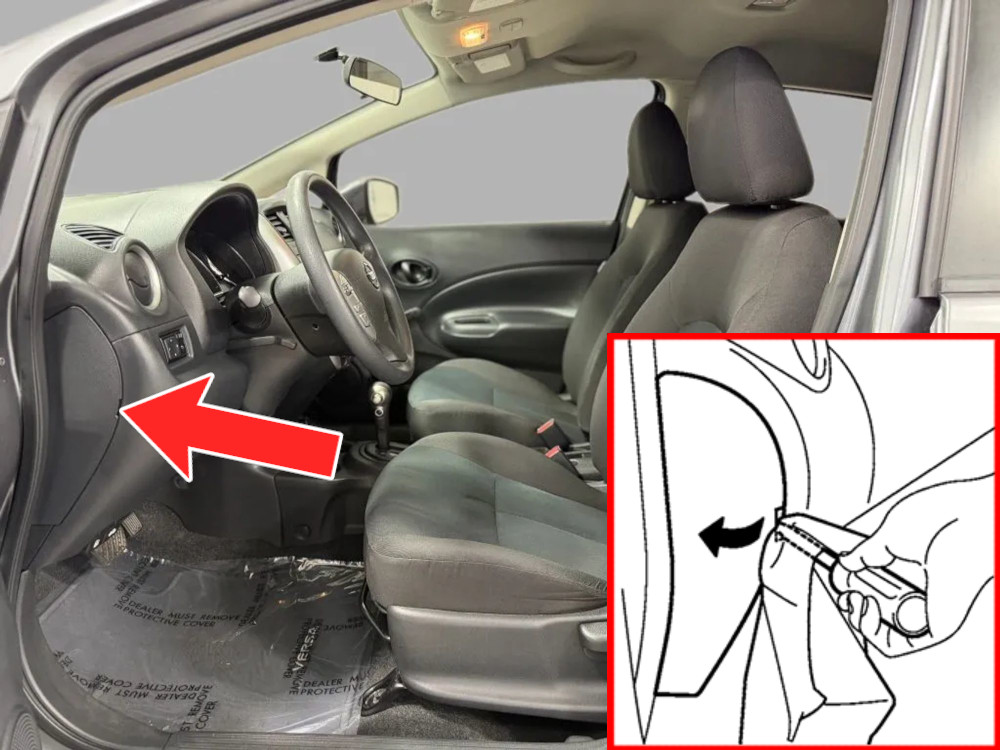

The fuse box is positioned at the edge of the instrument panel on the driver’s side, behind the lid.

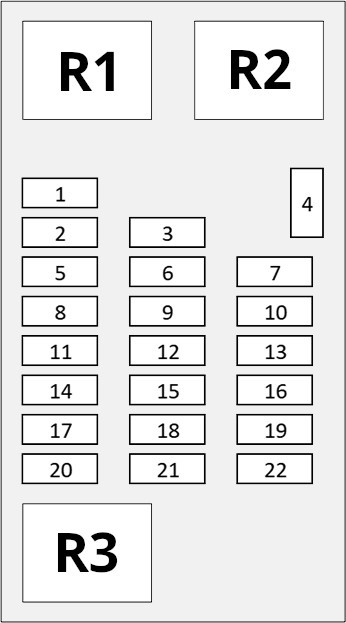

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1MINI20APower Socket (Cigarette Lighter) Power Distribution System
2——Not Used
3MINI10ABase Audio System, BCM (Body Control Module, Brake Control System, CVT Control System, Daytime Light System, Display Audio System, Engine Control System, Electronically Controlled Power Steering System, Front Fog Lamp, Headlamp, Illumination, Intelligent Key System/Engine Start Function, Meter, Navigation System, NVIS, Parking Lamps, License Plate And Tail Lamps, Power Door Lock Systen, SRS Air Bag Control System, Tire Pressure Monitoring System, Turn Signal And Hazard Warning Lamps, Warning Chime System, Vehicle Security System
4——Not Used
5MINI10ADisplay Audio System Door Mirror Power Distribution System
6MINI20ANot Used
7——Not Used
8MINI10ABase Audio System BCM (Body Control Module) Meter Display Audio System Power Distribution System Navigation System
9MINI10ABCM (Body Control Module) Intelligent Key System/Engine Start Function NVIS Power Distribution System Starting System
10MINI10ABack-up Lamp, BCM (Body Control Module), Base Audio System, Brake Control System, Charging System, CVT Control System , Daytime Light System , Display Audio System, Engine Control System, Front Fog Lamp, Headlamp, Illumination, Intelligent Key System/Engine Start Function, Meter , Navigation System, NVIS, Parking Lamps, License Plate And Tail Lamps, Power Distribution System, SRS Air Bag Control System, Steering Control System, Tire Pressure Monitoring System, Warning Chime System
11MINI10ADC DC CVT B
12MINI20ARear Window Defogger BCM (Body Control Module)
13——Not Used
14MINI15AAir Conditioner
15MINI10AInterior Room Lamp Illumination BCM (Body Control Module) Daytime Light System Front Fog Lamp Headlamp Headlamp Aiming System-Manual Intelligent Key System/Engine Start Function NVIS Power Window System Power Distribution System Parking Lamps License Plate And Tail Lamps Power Door Lock System Rear Window Defogger Turn Signal And Hazard Warning Lamps Warning Chime System Vehicle Security System
16MINI10ABCM (Body Control Module, CVT Shift Lock System, Engine Control System, Electronically Control, Power Steering System, Display Audio System, Headlamp Aiming System Manual, Power Distribution System, Rear Window Defogger, Navigation System, Steering Control System
17MINI10AAir Conditioner
18MINI15AHEATED SEAT
19MINI10AFront Wiper And Washer System, Rear Wiper And Washer System, BCM (Body Control Module), Power Distribution System
20MINI15AAir Conditioner
21MINI10APUSH ENG START
22MINI10ASRS Air Bag Control System Power Distribution System

Relays

Assignment of the relays in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Accessory
R2Ignition 2
R3Blower
