Explore Nissan Note fuse box diagrams for 2004–2013 models with fuse locations, panel layouts, and detailed fuse and relay assignment information for this compact hatchback. This article covers the first-generation Nissan Note (Model Code: E11), available from 2004 to 2013, and includes fuse box diagrams for Nissan Note 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 and 2013, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

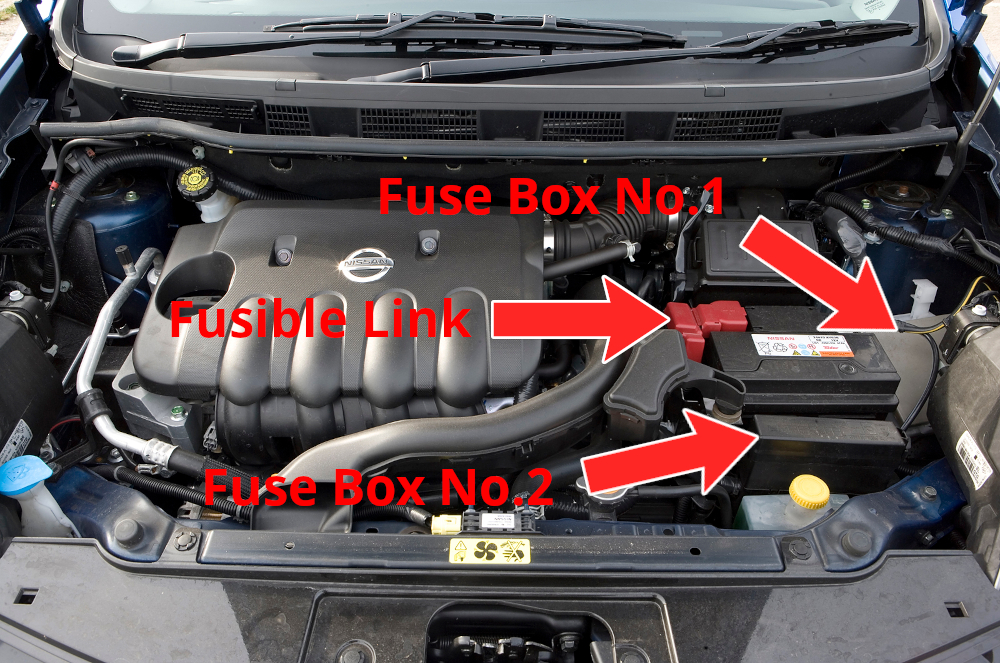

Fuse Box Location

There are 3 known fuse boxes in the engine compartment, all located on the driver’s side near the main battery. The fusible link is connected directly to the main battery’s positive terminal.

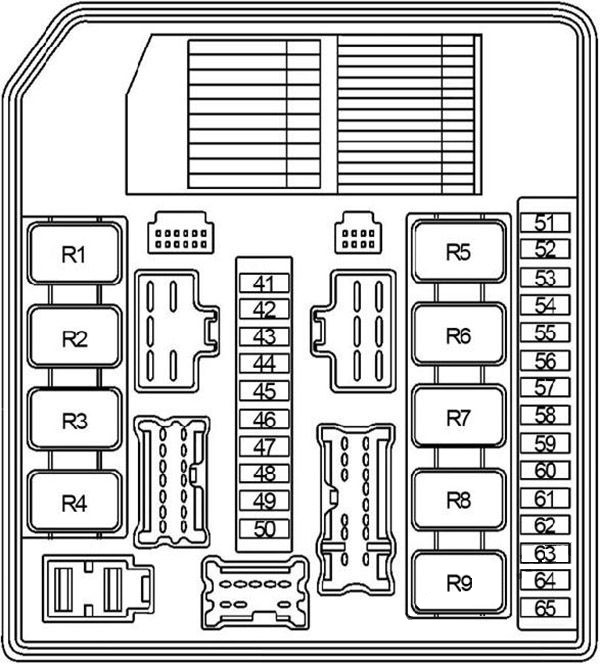

Fuse Box Diagram (No.1)

Fuses

Assignment of the fuses in the engine compartment fuse box No.1

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
41	—	Not Used
42	—	Not Used
43	10A	Right-Hand Headlights (High Beam), Daytime Light System, Auto Light Control
44	10A	Left-Hand Headlights (High Beam), Daytime Light System, Auto Light Control
45	10A	Tail Light, Parking Light, Auto Light Control, Illumination
46	10A	Tail Light, Parking Light, Auto Light Control, Headlamp, Illumination
47	—	Not Used
48	20A	Front Wiper and Washer System (With Rain Sensor)
49	15A	Left-Hand Headlights (Low Beam), Daytime Light System, Auto Light Control
50	15A	Right-Hand Headlights (Low Beam), Daytime Light System, Auto Light Control
51	10A	Air Conditioner
52	—	Not Used
53	—	Not Used
54	—	Not Used
55	15A	Rear Window Defogger, “5” fuse
56	15A	Rear Window Defogger, “5” fuse
57	15A	CR, HR: Fuel Pump Relay
58	10A	Vehicle Speed Sensor A/T (Revolution Sensor), A/T Fluid Temperature Sensor and TCM Power Supply, Main Power Supply and Ground Circuit, Turbine Revolution Sensor
59	10A	Anti-lock Brake System, Electronic Stability Program System
60	10A	Park/Neutral Position Switch, NON-detective Items, Starting System, Back-up Lamp, A/T Indicator Lamp, Rear Wiper and Washer
61	20A	CR, HR: Throttle Control Motor Relay
62	20A	Engine Control Module Relay, Main Power Supply and Ground Circuit, Mass Air Flow Sensor, Crankshaft Position Sensor (CKPS), Camshaft Position Sensor (PHASE), EVAP Canister Purge Volume Control Solenoid Valve, Ignition System, Intake Valve Timing Control Solenoid Valve, After Market Alarm – Prewire, Fuel Injector, Camshaft Position Sensor, Fuel Flow Actuator, Turbocharger Boost Control Solenoid Valve, Brake Switch, ECM Power Supply For Back-up (CR engine)
63	10A	CR, HR: Front Heated Oxygen Sensor, Rear Heated Oxygen Sensor, Fuel Injection System Function
64	10A	CR, HR: Fuel Injection System Function, Fuel Injector
65	20A	Front Fog Lamp

Relays

Assignment of the relays in the engine compartment fuse box No.1

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Rear Window Defogger
R2	Engine Control Module (ECM)
R3	Headlamp Low
R4	Front Fog Lamp
R5	Starter
R6	Not Used
R7	Cooling Fan (High)
R8	Cooling Fan (Low)
R9	Ignition

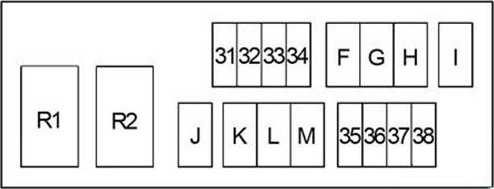

Fuse Box Diagram (No.2)

Fuses

Assignment of the fuses in the engine compartment fuse box No.2

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
31	—	Not Used
32	—	Not Used
33	—	Not Used
34	15A	Audio System
35	10A	Horn
36	10A	CR, HR: Charging System
37	10A	Daytime Light System
38	—	Not Used
F	40A	Anti-lock Brake System, Electronic Stability Program System
G	40A	Cooling Fan Low Relay, Cooling Fan High Relay
H	40A	Ignition Switch
I	40A	PTC Heater
J	40A	Power Window, Body Control Module (BCM)
K	30A	Anti-lock Brake System, Electronic Stability Program System
L	30A	Headlamp Washer
M	60A	Electric Controlled Power Steering System

Relays

Assignment of the relays in the engine compartment fuse box No.2

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Daytime Light
R2	Horn

Fusible Link Diagram (Diesel)

High Voltage Fuses

Assignment of the high-voltage fuses in the engine compartment fusible link box (K9K – Diesel Engines)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
N	80A	PTC Heater
O	60A	Quick Glow System
P	80A	PTC Heater

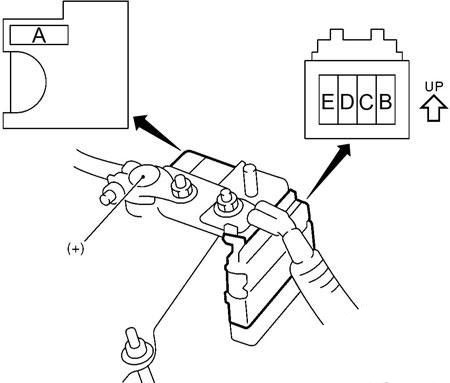

Fusible Link Diagram

High Voltage Fuses

Assignment of the high-voltage fuses in the engine compartment fusible link box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
A	80A/140A/250A	CR: Charging System, Starting System, “B”, “C” fuses HR: Charging System, Starting System, “B”, “C” fuses K9K: Charging System, “B”, “C”, “N”, “0”, “P” fuses
B	80A/100A	CR, K9K: “35”, “36”, “37”, “38”, “F”, “G”, “H”, “I”, “J”, “K”, “L”, “M” fuses HR: “35”, “36”, “37”, “38”, “F”, “G”, “H”, “I”, “J”, “K”, “L”, “M” fuses
C	80A	Headlamp High RH Relay (“43” fuse), Headlamp High LH Relay (“44” fuse), Tail Lamp Relay (“45”, “46” fuses), Headlamp Low Relay (“49”, “50” fuses), Front Fog Lamp Relay (“65” fuse), “48”, “51” fuses
D	60A	Ignition Relay (Front Wiper Main Relay, Front Wiper Hi/Lo Relay, “57” (CR, HR), “58”, “59”, “60”, “63” (CR, HR), “64” (CR, HR) fuses), Fuel Pump Relay (CR, HR), “55”, “56”, “61”, “62” fuses
E	80A	Accessory Relay (“18”, “19”, “20” fuses), Blower Motor Relay (“15”, “16”, “17” fuses), “1”, “2”, “3”, “4”, “5”, “6”, “7”, “8”, “9”, “12”, “14” fuses

Passenger Compartment

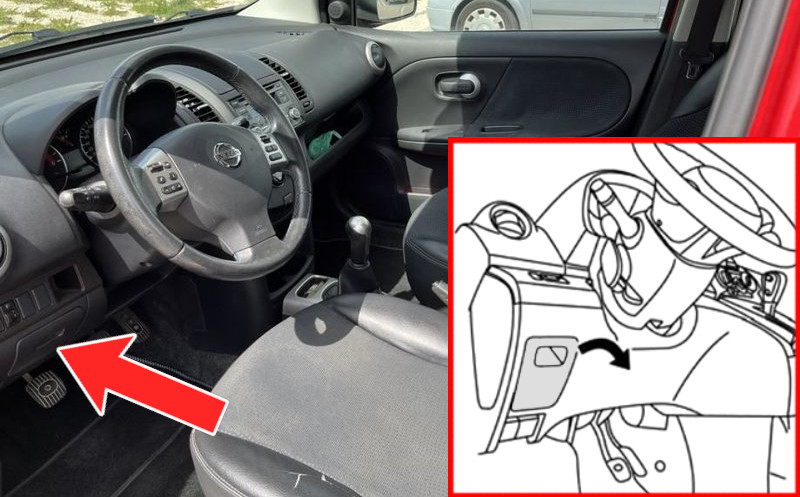

Fuse Box Location

The fuse box is located beneath the steering wheel, under the lid.

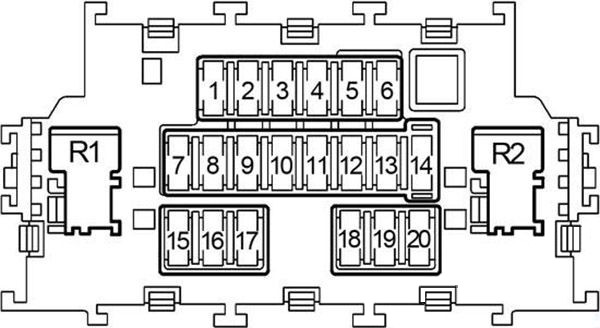

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	10A	Supplemental Restraint System
2	10A	Electric Controlled Power Steering System, Ignition Relay, Fuel Pump Relay, Nissan Anti-Theft System, Intelligent Key System, Body Control Module (BCM)
3	10A	Cluster, Warning Lamps, Illumination, Warning Chime, Charging System
4	15A	Front Washer, Rear Washer
5	10A	Mirror Defogger
6	10A	Audio, Intelligent Key System, Nissan Anti-Theft System, Door Mirror
7	10A	Body Control Module (BCM)
8	10A	Central Locking, Multi-remote Control System, Intelligent Key System, After Market Alarm – Prewire, Warning Chime, Nissan Anti-Theft System
9	10A	Stop Lamp, Brake Switch, Anti-lock Brake System, Electronic Stability Program System, Warning Lamps, Intelligent Key System
10	—	Not Used
11	—	Not Used
12	10A	Interior Lamp, Multi-remote Control System, Illumination, Vanity Mirror and Trunk Room Lamps, Rain Sensor, Warning Chime
13	—	Not Used
14	10A	Panel Illumination, OBD II (Board Computer Diagnostics), Intelligent Key System, Turn Signal and Hazard Warning Lamps
15	15A	Air Conditioner
16	10A	PTC Heater
17	15A	Air Conditioner
18	15A	Rear Power Point
19	10A	Heated Seat
20	15A	Front Power Point (Cigarette Lighter)

Relays

Assignment of the relays in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Blower motor
R2	Accessory
