Find Nissan Xterra fuse box diagrams for 2005–2015 models with fuse locations, panel layouts, and detailed fuse and relay assignment information. This article covers the second-generation Nissan Xterra (Model Code: N50) , available from 2005 , and includes fuse box diagrams for Nissan Xterra 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and 2015 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

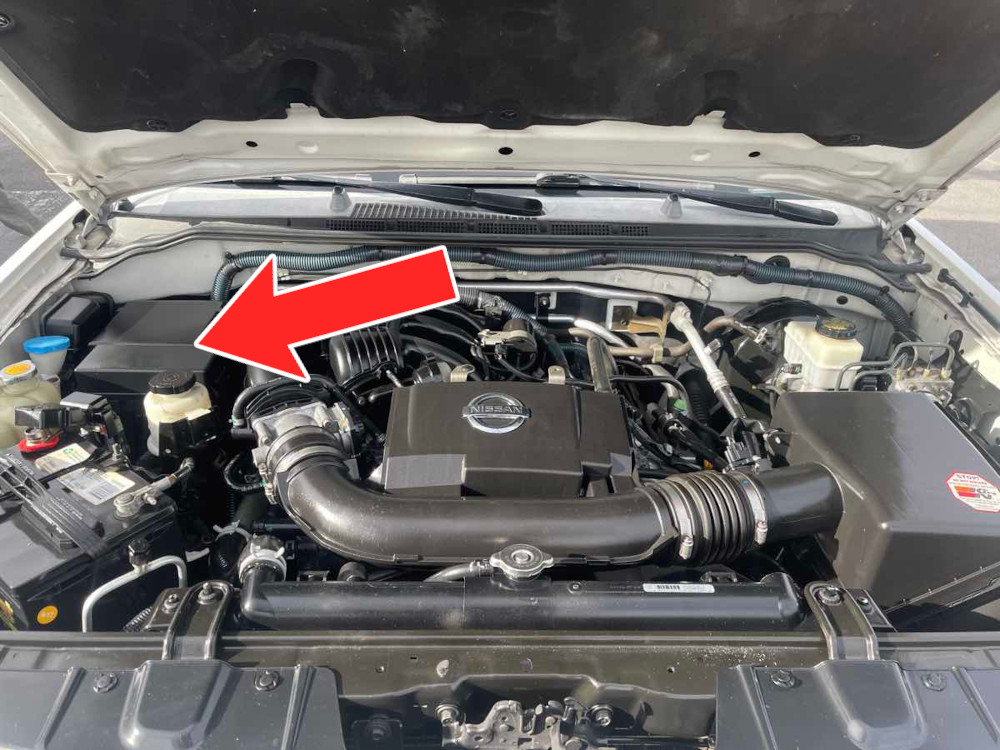

The fuse and relay boxes are located side by side in the engine compartment on the passenger side.

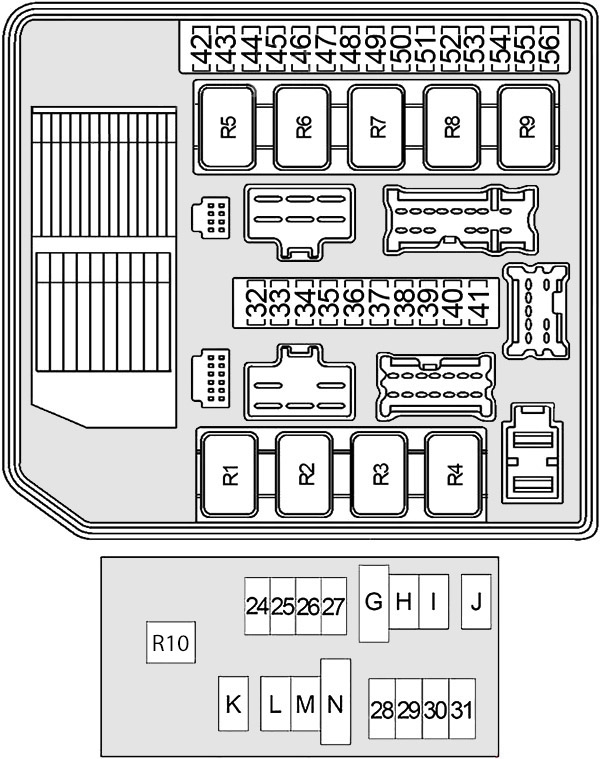

Assignment of the fuses in the engine compartment fuse box (2005-2009)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 24 15A Front Blower Motor Relay 25 10A Key Switch 26 20A Lower Front Power Socket 27 15A Front Blower Motor Relay 28 — Not Used 29 20A Audio 30 15A Generator, Horn Relay 31 — Not Used G 50A BCM (Body Control Module), Circuit Breaker 2 H 30A Electric Brake (Trailer Tow) I 40A Cooling Fan Relay, Heated Mirror Relay J 40A Ignition Switch, Transfer Shut Off Relay 1 and Relay 2 K — Not Used L 30A / 40A ABS2005: 40A2006-2009: 30A M 30A Trailer Tow Relay N 30A / 40A ABS 2005: 30A2006-2009: 40A 32 10A Trailer Tow Relay 2 33 — Not Used 34 10A Headlamp – Right (High) 35 10A Headlamp – Left (High) 36 10A Front Combination Lamps 37 10A Rear Combination Lamps, License Plate Lamps, Switch Illumination, Trailer Tow Relay 1 38 10A Back-Up Lamp Relay (automatic transmission) , Trailer Tow Relay 2 39 30A Front Wiper Relay 40 15A Headlamp – Left (Low), Daytime Light Relay 2 41 15A Headlamp – Right (Low) 42 10A Air Conditioner Relay 43 15A Heated Mirror Relay 44 — Not Used 45 10A Daytime Light Relay 1 46 15A Rear Window Defogger Relay 47 15A Rear Window Defogger Relay 48 15A Fuel Pump Relay 49 10A Automatic Transmission Assembly, Clutch Interlock Switch, Interlock Cancel Switch, Clutch Interlock Cancel Relay 2 50 10A ABS, Steering Angle Sensor 51 10A Back-Up Lamp Relay (automatic transmission) , Back-Up Lamp Switch (manual transmission) 52 20A Throttle Control Motor Relay 53 20A Engine Control Module (ECM), ECM Relay, NATS Antenna Amplifier 54 10A Air Flow Sensor, Heated Oxygen Sensor 55 15A Injectors 56 20A Front Fog Lamps
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box (2005-2009)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Rear Window Defogger R2 Engine Control Module (ECM) R3 Headlamp Low R4 Front Fog Lamp R5 Starter R6 Heated Mirror R7 Cooling Fan (High) R8 Cooling Fan (Low) R9 Ignition R10 Horn
This content requires JavaScript and a valid membership to view.

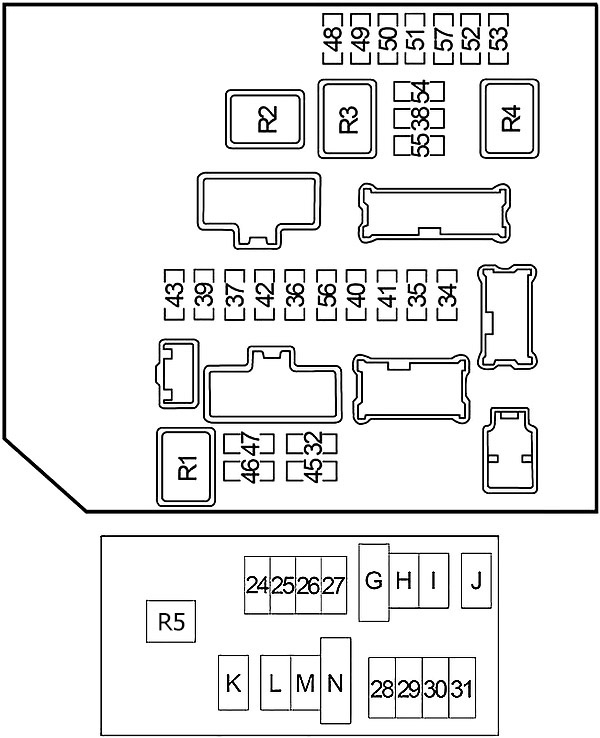

Assignment of the fuses in the engine compartment fuse box (2010-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 24 15A Front Blower Motor Relay 25 10A Key Switch 26 20A Lower Front Power Socket 27 15A Front Blower Motor Relay 28 — Not Used 29 20A Audio 30 15A Generator, Horn Relay 31 — Not Used G 50A BCM (Body Control Module), Circuit Breaker 2 H 30A Electric Brake (Trailer Tow) I 40A Cooling Fan Relay, Heated Mirror Relay J 40A Ignition Switch, Transfer Shut Off Relay 1 and Relay 2 K — Not Used L 30A ABS M 30A Trailer Tow Relay N 40A ABS 32 10A Trailer Tow 33 — Not Used 34 10A Headlamp – Right (High), Auto Light System, Vehicle Security System 35 10A Headlamp – Left (High), Auto Light System, Vehicle Security System 36 10A Front Combination Lamps 37 10A Rear Combination Lamps, License Plate Lamps, Switch Illumination 38 10A Back-Up Lamp Relay (automatic transmission) , Trailer Tow 39 30A Front Wiper Relay 40 15A Headlamp – Left (Low), Daytime Light Relay 2, Auto Light System, Vehicle Security System 41 15A Headlamp – Right (Low), Auto Light System, Vehicle Security System 42 10A Air Conditioner Relay 43 15A Heated Mirror Relay 44 — Not Used 45 10A Daytime Light Relay 1 46 15A Rear Window Defogger Relay 47 15A Rear Window Defogger Relay 48 15A Fuel Pump Relay 49 10A Automatic Transmission Assembly, Clutch Interlock Switch, Interlock Cancel Switch, Clutch Interlock Cancel Relay 2 50 10A ABS 51 10A Back-Up Lamp Relay (automatic transmission) , Back-Up Lamp Switch (manual transmission) , Sonar System, Audio 52 20A Throttle Control Motor Relay 53 20A Engine Control Module (ECM), ECM Relay, NVIS 54 15A Air Flow Sensor, Heated Oxygen Sensor 55 15A Injectors 56 20A Front Fog Lamps 57 — Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box (2010-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Rear Window Defogger R2 Cooling Fan (Low) R3 Cooling Fan (High) R4 Ignition R5 Horn
This content requires JavaScript and a valid membership to view.

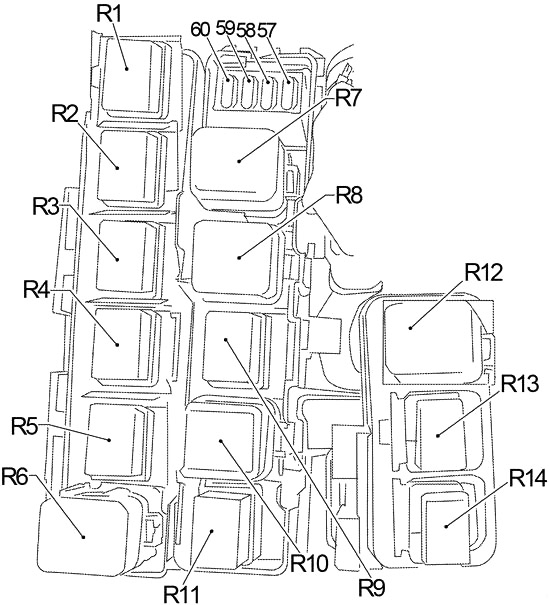

Assignment of the fuses in the engine compartment relay box (2005-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 57 10A Transfer Shut Off Relay 1 and Relay 2, Transfer Control Unit 58 10A 4WD Shift Switch, Transfer Control Unit 59 — Not Used 60 15A 2006-2014: BCM (Body Control Module), Trailer Tow
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment relay box (2005-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 2006-2014: Trailer Turn (right)R2 Transfer Shut Off Relay 2 (4WD) R3 Daytime Light Relay 2 R4 Stop Lamp (with hill descent control and hillstart assist) 2006-2014: Clutch Interlock Cancel Relay 1 R5 Daytime Light Relay 1 R6 Back-up Lamp (automatic transmission) 2006-2014: Clutch Interlock Cancel Relay 2 R7 Front Blower Motor R8 Transfer Shift Low (4WD) R9 Transfer Shut Off Relay 1 (4WD) R10 Transfer Shift High (4WD) R11 2005: Clutch Interlock Cancel Relay 22006-2014: Trailer Turn (left)R12 2006-2014: Back-up Lamp (manual transmission) R13 2006-2014: Trailer Tow Relay 1R14 2006-2014: Trailer Tow Relay 2
This content requires JavaScript and a valid membership to view.

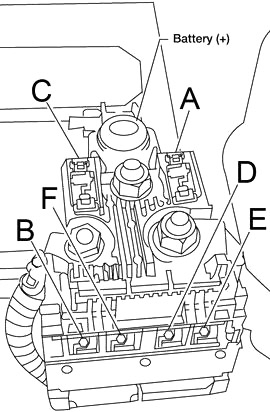

High-voltage fuses are located on the battery’s “+” terminal.
Assignment of the high voltage fuses in the engine compartment on the battery “+” (2005-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description A 140A Generator, Fuse: “D”, “E”, “F” B 60A Accessory Relay (2004- (Fuse: “4”, “5”, “6”, “7”)), Fuse: “17”, “18”, “19”, “20”, “21”, “22” C 80A Ignition Relay (Fuse: “38”, “48”, “49”, “50”, “51”, “54”, “55”), Fuse: “46”, “47”, “52”, “53” D 80A Headlamp High Relay (Fuse: “34”, “35”), Headlamp Low Relay (Fuse: “40”, “41”), Front Fog Lamp Relay (Fuse: “56”), Tail Lamp Relay (Fuse: “36”, “37”), Fuse: “32”, “39”, “42”, “43”, “45” E 100A Cooling Fan High Relay, Cooling Fan Low Relay, Heated Mirror Relay, Fuse: “24”, “25”, “26”, “27”, “G”, “H”, “I” F 80A Fuse: “J”, “L”, “M”, “N”, “29”, “30”
This content requires JavaScript and a valid membership to view.

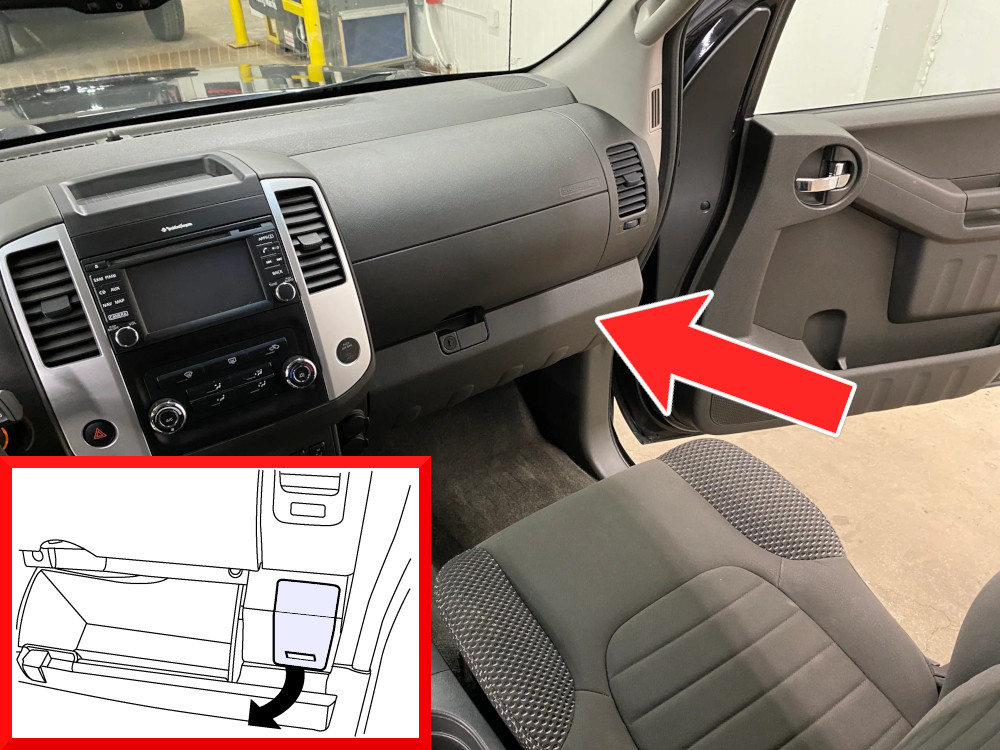

The fuse box can be found behind the glove compartment lid.

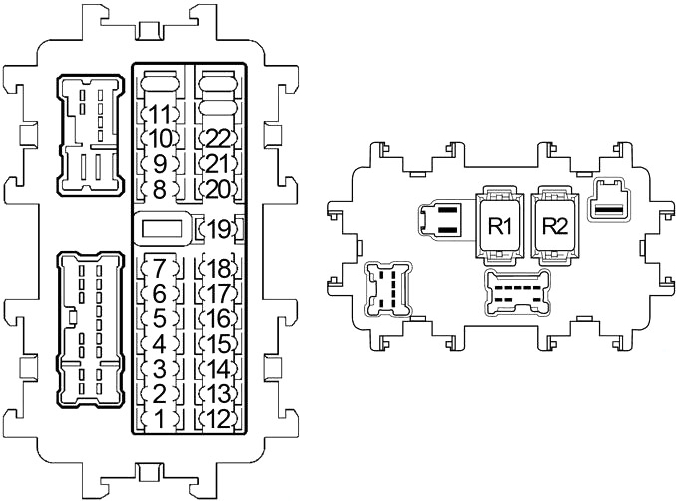

Assignment of the fuses in the passenger compartment (2005-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 10A Body Control Module, Engine Control Module 2 — Not Used 3 10A Differential Lock Control Unit, Differential Lock Mode Switch 4 10A Audio, Body Control Module, Satellite Radio Tuner 5 15A / 20A 2005-2009: Console Power Socket (15A) 2010-2015: Power Socket (20A) 6 10A Door Mirror Remote Control Switch 7 15A / — 2005-2009: Upper Front Power Socket2010-2015: Not Used8 10A Front Air Control, Front Blower Motor Relay 9 — Not Used 10 — Not Used 11 — Not Used 12 10A ASCD Brake Switch, Heated Seat Relay, Data Link Connector, Stop Lamp Switch, Sonar System, Automatic Transmission Control System, Audio 13 10A Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit 14 10A Combination Meter, Auto Anti-Dazzling Inside Mirror 15 10A Combination Switch 16 10A Heated Seat Relay 17 15A Audio Amplifier, Satellite Radio Tuner 18 10A Body Control Module, Cargo Lamp Relay, Front Room/Map Lamp, Ignition Keyhole Illumination, Room Lamp 2-nd Row, Brake Control System, 4WD 19 10A Auto Anti-Dazzling Inside Mirror, Combination Meter, Data Link Connector, Differential Lock Control Unit, Front Air Control, Tire Pressure Monitoring System 20 10A Stop Lamp Relay, Stop Lamp Switch 21 10A Steering Angle Sensor, Transfer Control Unit, Body Control Module, Interior Room Lamp, Power Door Lock System, NVIS, Vehicle Security System 22 10A Automatic Transmission Assembly
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment (2005-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Not Used R2 Accessory
