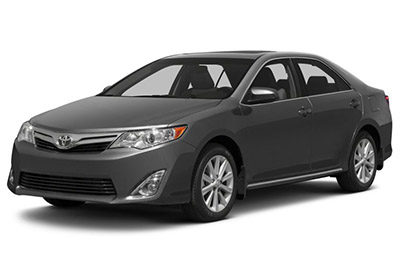

The fifth-generation Toyota Camry (Model Code: XV50 ) was produced from 2011 to 2019 . With improved fuel efficiency, a sleeker design, and enhanced safety features, this generation marked a significant refinement in Toyota’s popular midsize sedan lineup.
In this article, you will find fuse box diagrams for the Toyota Camry, covering model years 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, and 2019. These diagrams are essential for locating, inspecting, or replacing fuses that control various electrical components.
What’s Included:
Fuse Box Diagrams – Visual layouts showing the fuse and relay locations and arrangement.Fuse Panel Locations – Step-by-step guidance on where to find the fuse panels inside your Camry.Fuse Assignments – A detailed breakdown of what each fuse and relay controls for quick troubleshooting.
Whether you’re troubleshooting a non-working accessory, replacing a blown fuse, or diagnosing an electrical issue, this guide will help you keep your Toyota Camry (2011–2019) in optimal condition.

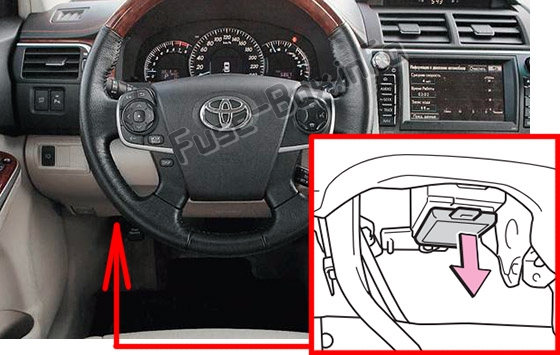

The fuse box is located under the instrument panel (on the driver’s side), under the cover.

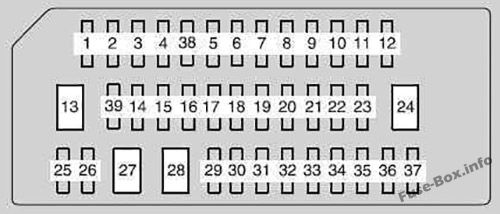

Assignment of the fuses in the Passenger Compartment
№ Name Amp Circuit 1 ECU-IG1 NO.2 10 Shift lock control system, seat heaters, smart key system, tire pressure warning system, wireless remote control, multiplex communication system, audio system, navigation system, moon roof, auto anti-glare inside rear view mirror 2 ECU-IG1 NO.1 10 Vehicle stability control system, electric cooling fans, steering sensor, multiport fuel injection system/ sequential multiport fuel injection system, charging system, rear window defogger, outside rear view mirror defoggers, Blind Spot Monitor 3 PANEL 10 Switch illumination, air conditioning system, shift lever light, glove box light, interior lights, personal lights, audio system, navigation system 4 TAIL 15 Parking lights, side marker lights, tail lights, license plate lights, fog lights 5 EPS-IG1 7.5 Electric power steering 5 DOOR R/R 20 Rear right-hand power windows 6 ECU-IG1 NO.3 7.5 Blind Spot Monitor 6 DOOR F/L 20 Front left-hand power windows, outside mirror control ECU 7 S/HTR&FAN F/L 10 Seat heaters 7 DOOR R/L 20 Rear left-hand power windows 8 H-LP LVL 7.5 Automatic headlight leveling system 9 WASHER 10 Windshield wipers and washer 10 A/C-IG1 7.5 Air conditioning system 11 WIPER 25 Windshield wipers and washer 12 BKUP LP 7.5 Back-up lights, multiport fuel injection system/sequential multiport fuel injection system, electronic controlled transmission, audio system, navigation system 13 DOOR NO.1 30 Power windows 14 WIPER-S 5 No circuit 14 EPS-IG1 7.5 Electric power steering 15 P/OUTLET RR 20 Power outlet 16 SFT LOCK-ACC 5 Shift lock control system 17 DOOR R/R 20 Rear right-hand power windows 17 S./HTR&FAN F/R 10 Seat heaters (front right) 18 DOOR R/L 20 Rear left-hand power windows 18 S/HTR&FAN F/L 10 Seat heaters (front left) 19 OBD 10 On-Board diagnosis system 20 ECU-B NO.2 10 Smart key system, tire pressure warning system 21 DOOR NO.2 20 Power windows 22 AM1 7.5 Multiport fuel injection system/ sequential multiport fuel injection system, starter system 23 STOP 7.5 Tail lights, multiport fuel injection system/sequential multiport fuel injection system, vehicle stability control system, anti-lock brake system, electronic controlled transmission, high mounted stoplight, smart key system, shift lock control system 24 P/SEAT RR 30 No circuit 25 A/C -B 7.5 Air conditioning system 26 S/ROOF 10 Moon roof 27 P/SEAT FR 30 Power seats 28 PSB 30 No circuit 29 D/L-AM1 20 Multiplex communication system, power door lock, trunk opener switch 30 TI&TE 20 No circuit 31 A/B 10 Front passenger occupant classification system, SRS airbag system 32 ECU-IG2 NO.1 7.5 Multiport fuel injection system/ sequential multiport fuel injection system 33 ECU-IG2 NO.2 7.5 Smart key system, Blind Spot Monitor 34 CIG&P/ OUTLET 15 Power outlet 35 ECU-ACC 7.5 Clock, outside rear view mirrors, multiplex communication system, audio system, navigation system 36 S/HTR&FAN FI R 10 Seat heaters 37 S/HTR RR 20 No circuit 38 DOOR F/R 10 Front right-hand power windows, outside mirror control ECU 39 ECU-IG1 NO.3 7.5 No circuit
Login or Register to view this content

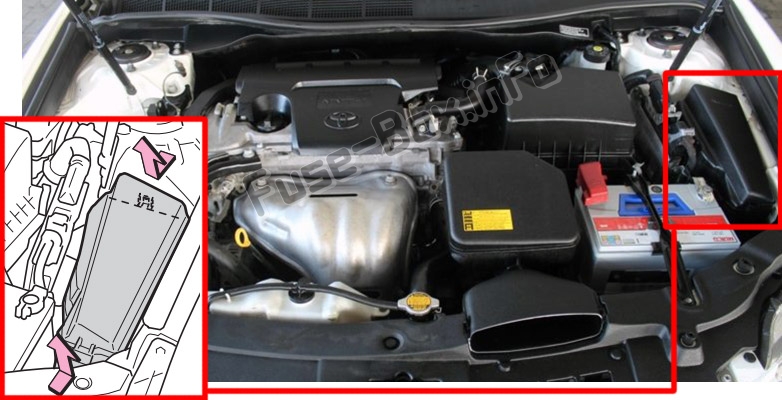

It is located in the engine compartment (left-side).

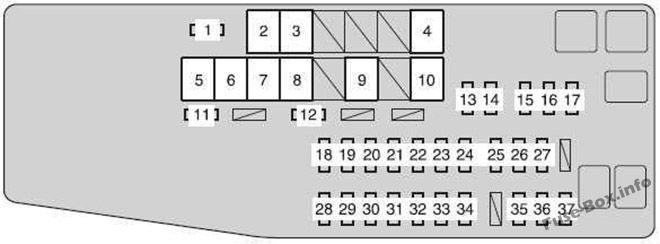

Assignment of the fuses in the Engine Compartment
№ Name Amp Circuit 1 METER-IG2 5 Gauge and meters 2 FAN 50 2GR-FE: Electric cooling fans 3 H-LPCLN 30 No circuit 4 HTR 50 Air conditioning system 5 ALT 120 Charging system 6 ABS NO.2 30 Vehicle stability control system 7 ST/AM2 30 Starter system, ECU-IG2 NO.1, A/B, ECU-IG2 NO.2 8 H-LP-MAIN 30 H-LP LH-LO, H-LP RH-LO, MNL H-LP LVL, headlights (low beam) 9 ABS NO.1 50 Vehicle stability control system 10 EPS 80 Electric power steering 11 S-HORN 7.5 S-HORN 12 HORN 10 Horns 13 EFI NO.2 15 Multiport fuel injection system/ sequential multiport fuel injection system, electronic controlled transmission 14 EFI NO.3 7.5 2AR-FE: Multiport fuel injection system/ sequential multiport fuel injection system 14 EFI NO.3 10 2GR-FE: Multiport fuel injection system/ sequential multiport fuel injection system 15 INJ 7.5 Multiport fuel injection system/ sequential multiport fuel injection system 16 ECU-IG2 NO.3 7.5 Multiport fuel injection system/ sequential multiport fuel injection system, steering lock system, electronic controlled transmission 17 IGN 15 Starter system 18 D/L-AM2 20 No circuit 19 IG2-MAIN 25 IGN, INJ, METER-IG2, ECU-IG2 NO.3, A/B, ECU-IG2 NO.2, ECU-IG2 NO.1 20 ALT-S 7.5 Charging system 21 MAYDAY 5 MAYDAY 22 TURN&HAZ 15 Turn signal lights, emergency flashers, gauge and meters 23 STRG LOCK 10 Steering lock system 24 AMP 15 Audio system 25 H-LP LH-LO 15 Halogen headlight: Left-hand headlight (low beam), manual headlight leveling system 25 H-LP LH-LO 20 Discharge headlight: Left-hand headlight (low beam), manual headlight leveling system 26 H-LP RH-LO 15 Halogen headlight: Right-hand headlight (low beam) 26 H-LP RH-LO 20 Discharge headlight: Right-hand headlight (low beam) 27 MNL H-LP LVL 7.5 Discharge headlight: Manual headlight leveling system 28 EFI-MAIN NO.1 30 Multiport fuel injection system/ sequential multiport fuel injection system, EFI NO.2, EFI NO.3, A/F sensor 29 SMART 5 No circuit 30 ETCS 10 Electronic throttle control system 31 TOWING 20 No circuit 32 EFI NO.1 7.5 Multiport fuel injection system/ sequential multiport fuel injection system, electronic controlled transmission 33 EFI-MAIN NO.2 20 2AR-FE: A/F sensor 33 A/F 20 2GR-FE: A/F sensor 34 AM 2 7.5 Smart key system 35 RADIO-B 20 Audio system, navigation system 36 DOME 7.5 Clock, vanity lights, interior lights, personal lights, trunk light, door courtesy lights 37 ECU-B NO.1 10 Multiplex communication system, smart key system, gauge and meters, tire pressure warning system, wireless remote control, steering sensor, front passenger occupant classification system, Blind Spot Monitor
