The third-generation Toyota Land Cruiser (Model Code: J80), produced from 1990 to 1997, is revered for its rugged design, full-time 4WD system, and exceptional off-road capabilities. Combining legendary durability with increased comfort and interior refinement, the J80 has become an icon among enthusiasts and overlanders worldwide.
In this article, you will find fuse box diagrams for the Toyota Land Cruiser J80, covering model years 1990, 1991, 1992, 1993, 1994, 1995, 1996, and 1997. These diagrams are essential for identifying each fuse and relay, enabling effective troubleshooting and electrical maintenance.
What’s Included:

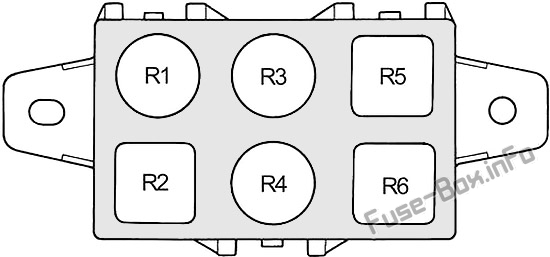

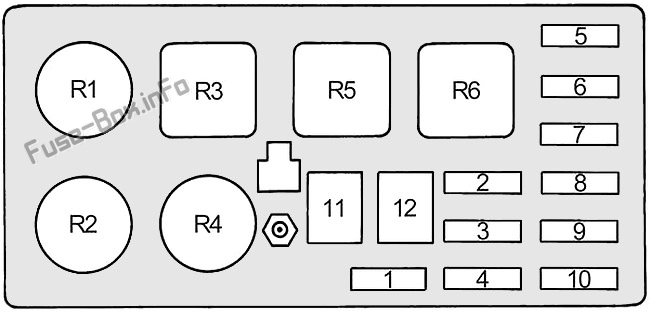

Fuse Box Diagrams – Detailed visuals showing fuse and relay configurations for clarity and quick reference.

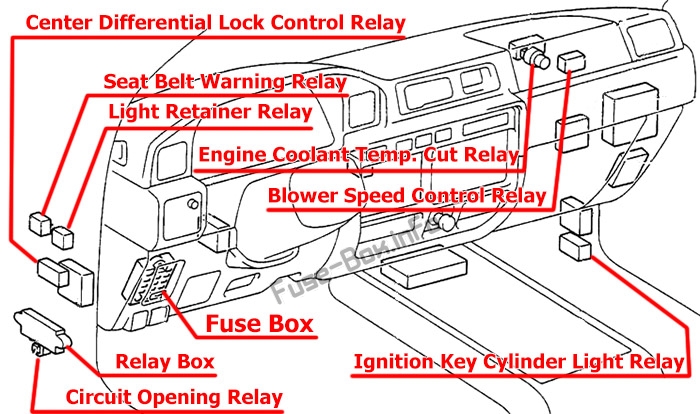

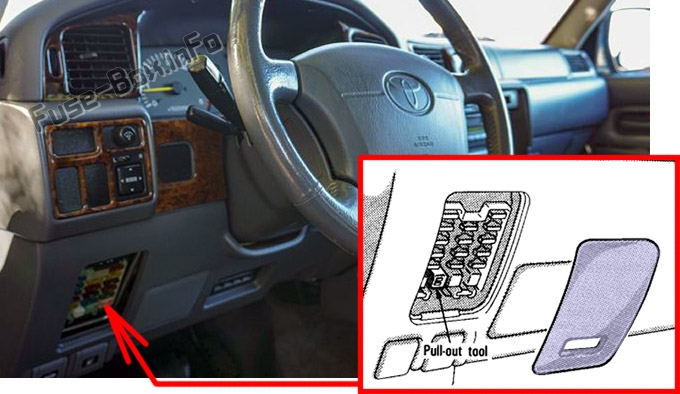

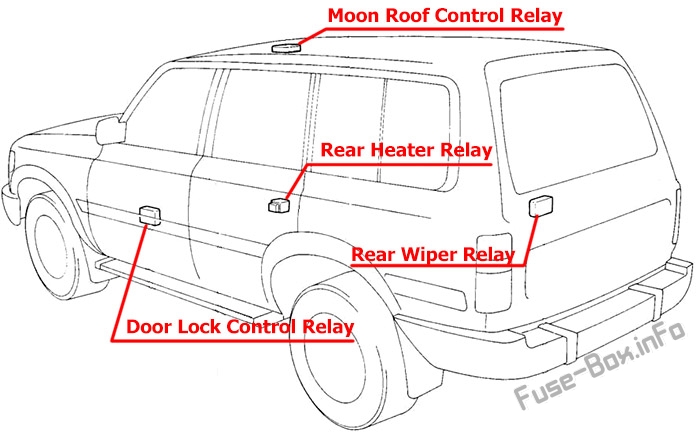

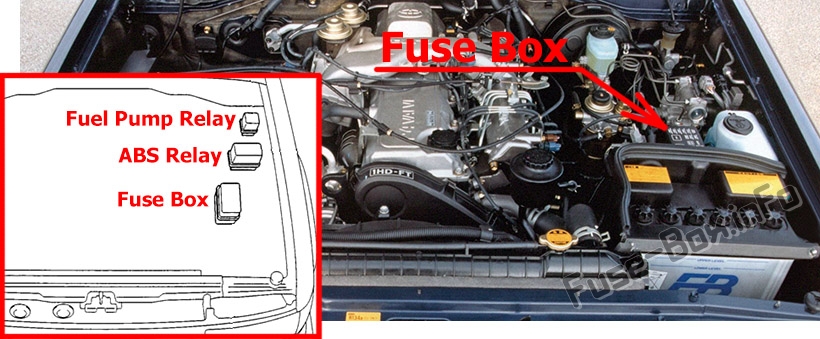

Fuse Panel Locations – Guidance on where to find the fuse boxes inside the vehicle and under the hood.
Fuse Assignments – Explanations of what each fuse and relay is responsible for, aiding in diagnostics and part replacement.
Whether you’re addressing a power issue, replacing a specific fuse, or ensuring your electrical system remains reliable, this guide is a valuable tool to support the upkeep of your Toyota Land Cruiser J80 (1990–1997).
