Toyota Prius | 2009-2015 | Fuse Box Diagrams and Locations

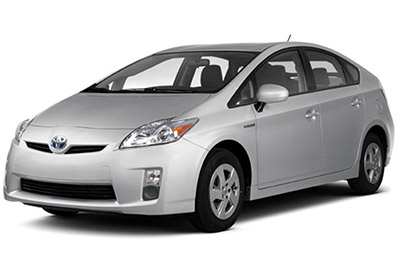

The third-generation Toyota Prius (XW30), produced from 2009 to 2015, brought significant improvements in performance, fuel efficiency, and eco-friendly technology. It featured a more refined hybrid powertrain, aerodynamic design, and expanded interior space, making it one of the most successful and recognizable hybrid vehicles globally.

In this article, you will find fuse box diagrams for the Toyota Prius, covering model years 2009, 2010, 2011, 2012, 2013, 2014, and 2015. These diagrams provide essential information for identifying fuses and relays related to the car’s electrical systems.

What’s Included:

Fuse Box Diagrams – Easy-to-read visuals detailing the layout of fuses and relays in each fuse panel.
Fuse Panel Locations – Step-by-step information on where to locate each fuse box inside the Prius.
Fuse Assignments – Accurate listings of fuse and relay functions for diagnostics and replacement.

Whether you’re troubleshooting an electrical issue, replacing a fuse, or performing routine maintenance, this guide is your go-to resource for keeping your Toyota Prius (2009–2015) operating reliably and efficiently.

What’s Included

Fuse box locations overview

Left-hand drive vehicles

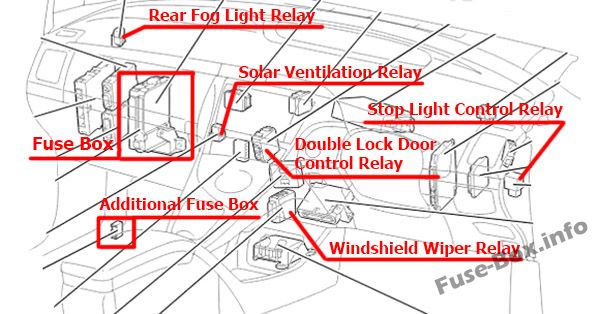

Right-hand drive vehicles

Passenger Compartment

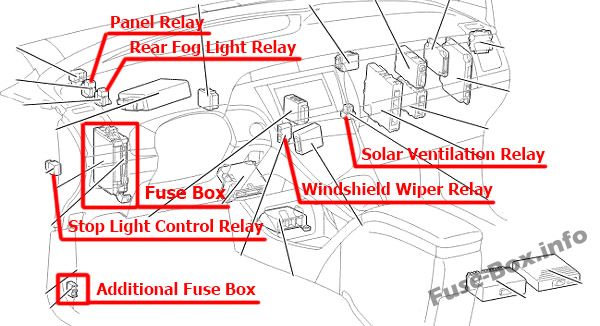

Fuse box location

The fuse box is located under the instrument panel (left side).
Left-hand drive vehicles: Open the lid.
Right-hand drive vehicles: Remove the cover and open the lid.

The location of the fuses in the passenger compartment: Toyota Prius (XW30; 2010-2015)

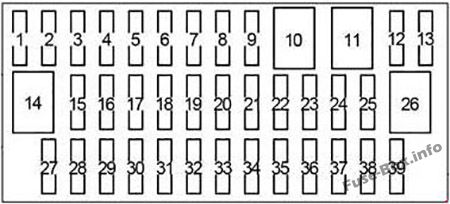

Fuse box diagram

Assignment of the fuses in the Passenger Compartment

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	CIG	15	Power outlets
2	ECU-ACC	10	Multiplex communication system, outside rear view mirrors, driver support system, audio system, navigation system, advanced parking guidance system, head-up display
3	PWR OUTLET	15	Power outlets
4	–	–	–
5	SEAT HTR FR	10	Seat heater
6	–	–	–
7	SEAT HTR FL	10	Seat heater
8	DOOR NO.1	25	Power door lock system
9	–	–	–
10	PSB	30	Pre-Collision System
11	PWR SEAT FR	30	Power seat
12	DBL LOCK	25	RHD: Double locking
13	FR FOG	15	Before Dec. 2011: Front fog lights
13	FR FOG	7.5	From Dec. 2011: Front fog lights
14	PWR SEAT FL	30	Power seat
15	OBD	7.5	On-board diagnosis system
16	–	–	–
17	RR FOG	7.5	Rear fog lights
18	–	–	–
19	STOP	10	Stop lights, high mounted stoplight, brake system, driver support system, vehicle proximity notification system
20	–	–	–
21	P FR DOOR	25	Power windows
22	D FR DOOR	25	Power windows
23	–	–	–
24	DOOR RR	25	Power windows
25	DOOR RL	25	Power windows
26	S/ROOF	30	Moon roof
27	ECU-IG NO.1	10	Electric cooling fans, multiplex communication system, vehicle proximity notification system
28	ECU-IG NO.2	10	Driver support system, Pre-Collision System, LKA system, inside rear view mirror, garage door opener, yaw rate & G sensor, brake system, electric power steering, navigation system, moon roof, tire pressure warning system, seat belt pretensioners, audio system, emergency flashers, turn signal lights, windshield wipers, headlight cleaner
29	–	–	–
30	GAUGE	10	Headlight leveling system, gauges and meters, emergency flashers, turn signal lights
31	A/C	10	Air conditioning system, Solar Ventilation System, Remote Air Conditioning System
32	WASHER	15	Windshield washer
33	RR WIP	20	Rear window wiper and washer
34	WIP	30	Windshield wipers
35	–	–	–
36	MET	7.5	Gauges and meters
37	IGN	10	Brake system, driver support system, multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system, front passenger occupant classification system (ECU and sensors), power management system, smart key system, front passenger’s seat belt reminder light
38	PANEL	10	Air conditioning system, personal light, transmission, P position switch, navigation system, Solar Ventilation System, Remote Air Conditioning System, advanced parking guidance system, headlight cleaner, front passenger’s seat belt reminder light, headlight leveling system, glove box light, clock, audio system, MPH or km/h switch
39	TAIL	10	Headlight leveling system, parking lights, tail lights, license plate lights, front fog lights, side marker lights

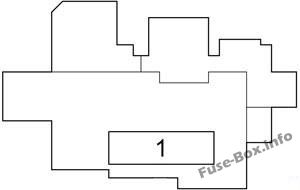

Additional Fuse Box

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	WIP NO.4	10	Cruise control, dynamic radar cruise control, engine control
2	–	–	–

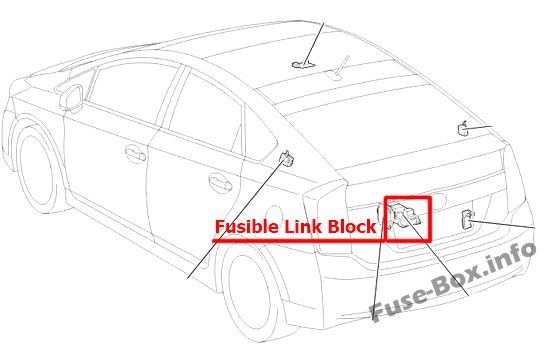

Fusible Link Block

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	MAIN	140	“DC/DC”, “DRL”, “AMP”, “AMP NO.1”, “AMP NO.2”, “H-LP HI MAIN”, “EPS”, “ABS MTR 1”, “ABS MTR 2”, “DC/DC-S”, “P/I 2”, “ECU-B2”, “AM2”, “ECU-B3”, “TURN & HAZ”, “P CON MAIN”, “SHORT PIN”, “ABS MAIN NO.1”, “P-CON MTR”, “MAYDAY”, “ETCS”, “IGCT”, “P/I 1” fuses

Engine Compartment

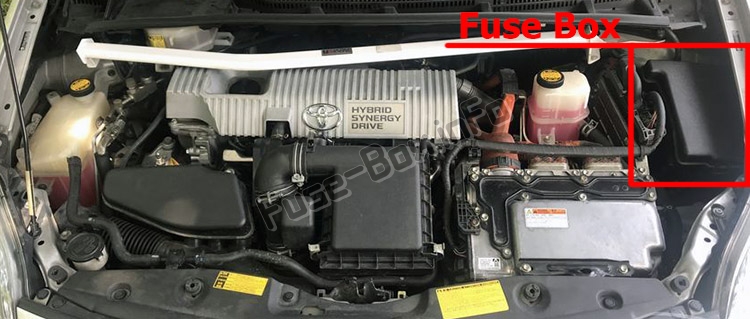

Fuse box location

Fuse box diagram

A

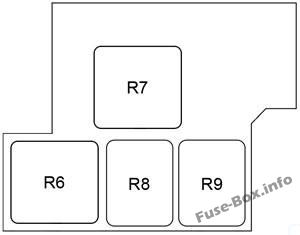

Before Dec. 2011

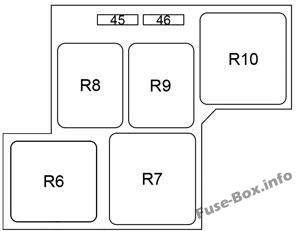

From Dec. 2011

Assignment of the fuses and relay in the Engine Compartment

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	ABS MAIN NO.2	7.5	Anti-lock brake system
2	ENG W/P	30	Cooling system
3	S-HORN	10	Theft deterrent
4	–	–	–
5	ABS MAIN NO.1	20	Anti-lock brake system
6	ETCS	10	Multiport fuel injection system/sequential multiport fuel injection system
7	TURN & HAZ	10	Turn signal lights
8	ECU-B3	10	Air conditioning system
9	MAYDAY	10	Mayday system
10	ECU-B2	7.5	Smart key system, hybrid system
11	AM2	7.5	Power management system
12	P CON MAIN	7.5	Shift control system, P position switch
13	DC/DC-S	5	Inverter and converter
14	IGCT	30	“PCU”, “IGCT NO.2”, “IGCT NO.3” fuses
15	AMP	30	Before Dec. 2011: Audio system
15	AMP NO.1	30	From Dec. 2011: Audio system
16	SHORT PIN	–	“ECU-B”, “RAD NO.1”, “DOME” fuses
17	AMP NO.2	30	Audio system, navigation system
18	DRL	7.5	Daytime running lights
19	H-LP HI MAIN	20	Headlight high beams, daytime running lights
20	IGCT NO.3	10	Cooling system
21	EFI NO.2	10	Multiport fuel injection system/sequential multiport fuel injection system
22	H-LP RH HI	10	Right-hand headlight (high beam)
23	H-LP LH HI	10	Left-hand headlight (high beam)
24	ECU-B	7.5	Smart key system, personal lights, gauges and meters, emergency flashers
25	DOME	10	Door courtesy lights, luggage compartment light, personal light, interior light, foot lights, vanity lights, inside rear view mirror, garage door opener
26	RAD NO.1	15	Audio system, navigation system
27	MIR HTR	10	Outside rear view mirror defoggers
28	IGCT NO.2	10	Hybrid system, shift control system, power management system, multiport fuel injection system/sequential multiport fuel injection system
29	PCU	10	Inverter and converter
30	IG2	20	Multiport fuel injection system/sequential multiport fuel injection system, “MET”, “IGN” fuses, power management system
31	BATT FAN	10	Battery cooling fan
32	EFI MAIN	20	Multiport fuel injection system/sequential multiport fuel injection system, cooling system, “EFI NO.2” fuse
33	–	–	–
34	H-LP CLN	30	Headlight cleaner
35	–	–	–
36	CDS	30	Electric cooling fans
37	RDI	30	Electric cooling fans
38	HTR	50	Air conditioning system
39	P-CON MTR	30	Shift control system, transmission
40	EPS	60	Electric power steering
41	P/I 1	60	“IG2”, “EFI MAIN”, “BATT FAN” fuses
42	ABS MTR 2	30	Anti-lock brake system
43	ABS MTR 2	30	Anti-lock brake system
44	P/I 2	40	Shift control system, horn, headlight low beams, back-up lights
45	H-LP LH LO	15	From Dec. 2011: Left-hand headlight (low beam)
46	H-LP RH LO	15	From Dec. 2011: Right-hand headlight (low beam)

Relay
R1			Cooling system (ENG W/P)
R2			Electric cooling fan (FAN NO.3)
R3			Shift control actuator (P-CON MTR)
R4			Electric cooling fan (FAN NO.1)
R5			Theft deterrent (S-HORN)
R6			Dimmer / daytime running lights (DIM/DRL)
R7			Power management control (IGCT)
R8			Electric cooling fan (FAN NO.2)
R9			Before Dec. 2011: – From Dec. 2011: Daytime running lights (DRL)
R10			From Dec. 2011: –

Additional fuse box

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	DC/DC	125	Integration relay, “TAIL” relay, “P/POINT relay”, “ACC” relay, “IG1 NO.1” relay, “IG1 NO.2” relay, “IG1 NO.3” relay, “HTR”, “RDI”, “CDS”, “S-HORN”, “ENG W/P”, “ABS MAIN NO.2”, “H-LP CLN”, “FR FOG”, “PWR SEAT FL”, “OBD”, “STOP”, “RR FOG”, “DBL LOCK”, “PWR SEAT FR”, “DOOR NO.1”, “PSB”, “D FR DOOR”, “P FR DOOR”, “DOOR RL”, “DOOR RR”, “S/ROOF” fuses

FAQ

Which fuses protect the cigar lighter and power outlet in the Toyota Prius?

In the Toyota Prius, the interior cigar lighter and auxiliary power outlet are protected by two fuses located in the Instrument Panel Fuse Box:

Fuse #1, labeled “CIG” – serves the cigar lighter (cigarette socket).
Fuse #3, labeled “PWR OUTLET” – covers the 12 V auxiliary power outlet.

If the cigarette lighter or power outlet stops working, inspect these fuses and replace any blown fuse with the correct amperage rating indicated in your owner’s manual.
