Toyota RAV4 | 1996-1997 | Fuse Box Diagrams and Locations

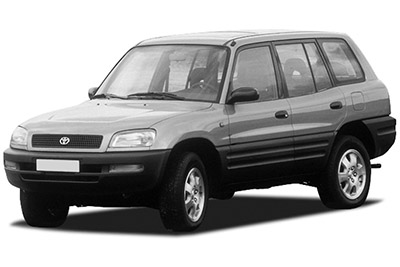

The first-generation Toyota RAV4 (Model Code: XA10), pre-facelift and produced from 1995 to 1997, introduced the world to one of the first modern compact crossover SUVs. With its unibody construction, available all-wheel drive, and a focus on versatility and fuel economy, the early RAV4 quickly gained popularity among urban drivers and outdoor enthusiasts alike.

In this article, you will find fuse box diagrams for the Toyota RAV4, covering model years 1996 and 1997. These diagrams provide essential information to help owners and technicians locate and understand the function of each fuse and relay within the vehicle’s electrical system.

What’s Included:

Fuse Box Diagrams – Detailed visuals for identifying specific fuses and relays.
Fuse Panel Locations – Clear instructions on where to locate each fuse panel inside the vehicle.
Fuse Assignments – Comprehensive listing of each fuse and relay function to aid diagnostics and repairs.

This guide is an indispensable tool for maintaining and troubleshooting the Toyota RAV4 (1996–1997), ensuring optimal performance of its electrical components.

What’s Included

Passenger Compartment

Fuse box locations

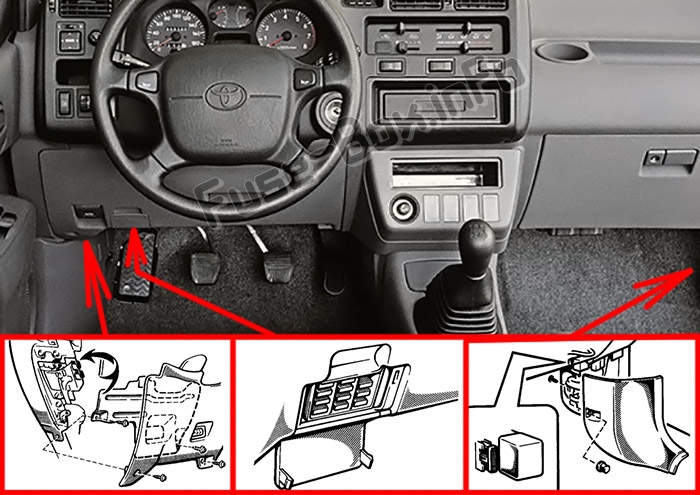

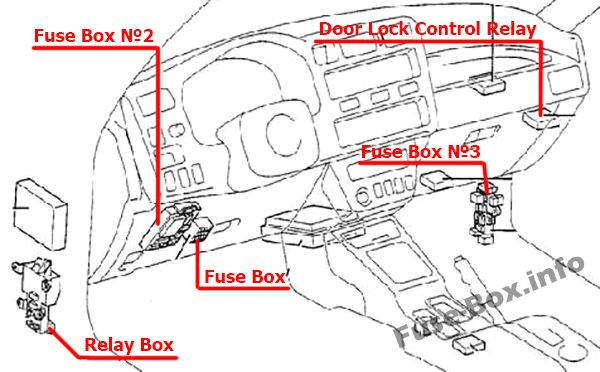

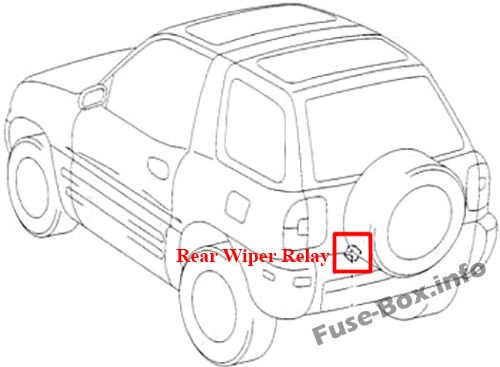

The location of the fuses in the passenger compartment: Toyota RAV4 (XA10; 1995-1997)

Fuse Box No.1 Diagram

The fuse box is located in the left side of the instrument panel, behind the cover.

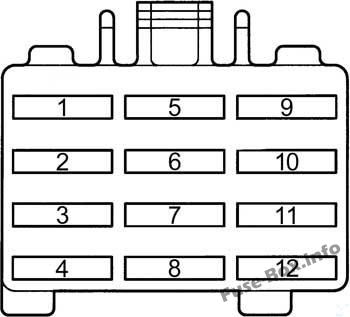

Instrument panel fuse box #1 diagram: Toyota RAV4 (1995, 1996, 1997)

Assignment of the fuses in the Passenger Compartment Fuse Box №1

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	TAIL	10	Tail lights, parking lights, license plate lights, interior lights
2	GAUGE	11	Gauges and meters, service reminder indicators (except discharge and open door warning lights), backup lights, air conditioning system, power windows, rear window defogger, center differential lock system, electronically controlled automatic transmission system
3	TURN	7.5	Turn signal lights
4	CIG & RAD	15	Cigarette lighter, clock, car audio system, power rear view mirrors
5	DEF-I/UP	7.5	Multiport fuel injection system/sequential multiport fuel injection system
6	IGN	7.5	Multiport fuel injection system/sequential multiport fuel injection system, discharge warning light
7	ECU-IG	7.5	Anti-lock brake system, electronically controlled automatic transmission system
8	WIPER	20	Windshield wipers and washer, rear window wiper and washer
9	–	–	–
10	SRS	7.5	SRS airbag system
11	OBD	7.5	On-board diagnosis system
12	STOP	10	Stop lights

Fuse Box No.2 Diagram

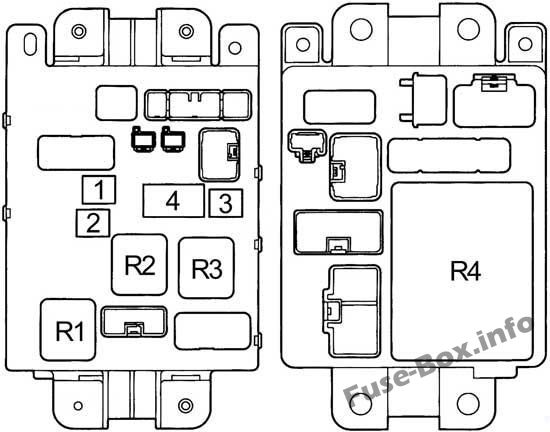

Instrument panel fuse box #2 diagram: Toyota RAV4 (1995, 1996, 1997)

Assignment of the fuses and relay in the Passenger Compartment Fuse Box №2

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	POWER	30	Power windows, power door lock system
2	DEF	30	Rear window defogger
3	AM1	40	“CIG & RAD”, “WIPER”, “GAUGE”, “ECU-IG”, “TURN”, “TAIL” and “PANEL” fuses
4	–	–	Noise Filter

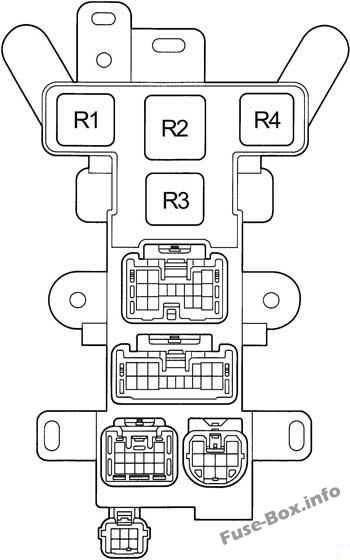

Relay
R1			Defogger
R2			Power Main Relay
R3			Taillight
R4			Integration Relay

Fuse Box No.3 Diagram

Instrument panel fuse box #3 diagram: Toyota RAV4 (1995, 1996, 1997)

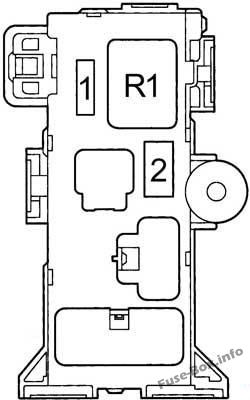

Assignment of the fuses and relay in the Passenger Compartment Fuse Box №3

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	A/C	7.5	Air conditioning system
2	–	–	–

Relay
R1			Heater

Relay Box

Fuse Data

Full access is available to registered users — log in or register.

№	Relay
R1	Circuit Opening Relay
R2	–
R3	Turn Signal Flasher
R4	–

Engine Compartment

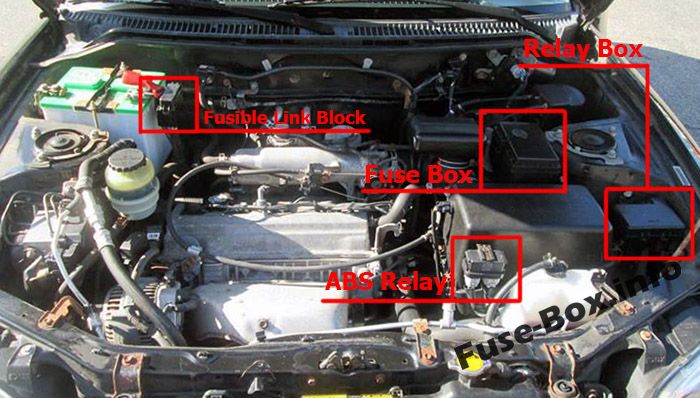

Fuse box locations

Fuse box diagram

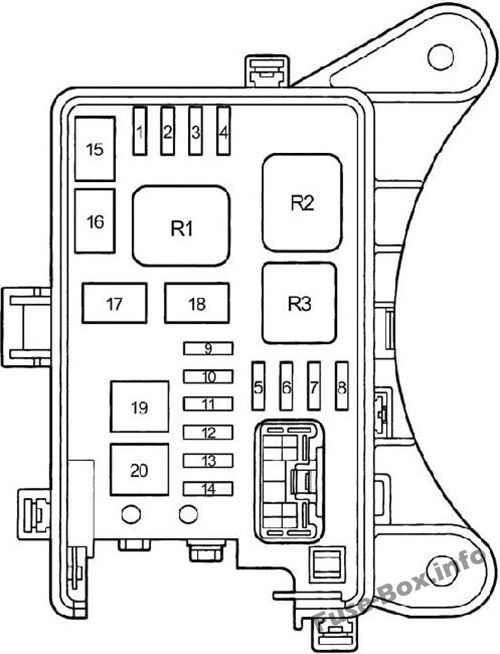

Assignment of the fuses and relay in the Engine Compartment

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	–	–	–
2	–	–	–
3	H-LP (LH)	15	Left-hand headlight
4	H-LP (RH)	15	Right-hand headlight
5	–	–	–
6	–	–	–
7	SPARE	15	Spare fuse
8	SPARE	10	Spare fuse
9	ALT-S	5	Charging system
10	–	–	–
11	HAZ-HORN	15	Emergency flashers, horns
12	EFI	15	Multiport fuel injection system/sequential multiport fuel injection system
13	DOME	15	Personal lights, open door warning light, clock
14	AM2	20	Multiport fuel injection system/sequential multiport fuel injection system, charging system
15	CDS FAN	30	Electric cooling fan
16	RDI FAN	30	Electric cooling fan
17	–	–	–
18	MAIN No. 1	30	Starting system, headlights
19	ABS	60	-1997: Anti-lock brake system
20	–	–	–

Relay
R1			Main
R2			Headlights
R3			Starter

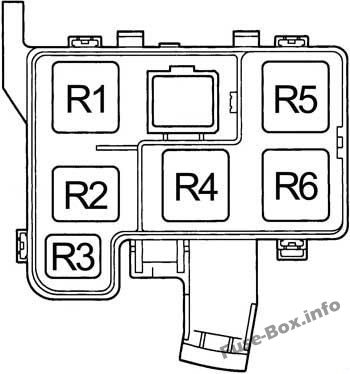

Relay Box

Fuse Data

Full access is available to registered users — log in or register.

№	Relay
R1	EFI Main
R2	Electric cooling fan (No.1)
R3	Horn
R4	Electric cooling fan (No.3)
R5	Magnetic clutch (A/C)
R6	Electric cooling fan (No.2)

Fusible Link Block

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	Main	80	“AM2”, “HAZ-HORN”, “EFI” “DOME”, “RADIO” and “ALT-S” fuses
2	ALT	100	Tail lights, “ABS”, “RADIO”, “HTR”, “AM1”, “POWER”, “STOP” and “DEF” fuses
3	HTR	50	Air conditioning system

FAQ

Which fuse protects the cigarette lighter (power outlet) in the Toyota RAV4?

In the Toyota RAV4, the primary cigar lighter (12 V power outlet) is protected by:
Fuse #4 “CIG & RAD” located in Instrument Panel Fuse Box #1. This fuse supplies power to both the cigar lighter and the radio circuits.

Additionally, some models include:
Fuse “AM1” in Passenger Compartment Fuse Box #2, which provides auxiliary power for related systems.

If the cigar lighter or radio stops functioning, check fuse #4 first. For broader power issues, the AM1 fuse may be involved as well—refer to your owner’s manual to verify the exact layout and wattage ratings.
