Toyota RAV4 | 2001-2005 | Fuse Box Diagrams and Locations

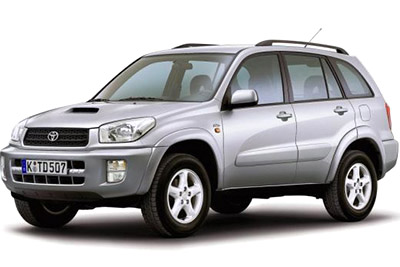

The second-generation Toyota RAV4 (Model Code: XA20), produced from 2000 to 2005, brought a more refined and spacious design to the compact SUV segment. With improved safety features, versatile cargo capacity, and a smoother ride, this generation became a popular choice for both city commuting and light off-road adventures.

In this article, you will find fuse box diagrams for the Toyota RAV4, covering model years 2001, 2002, 2003, 2004, and 2005. These diagrams are essential for identifying the fuses and relays associated with key vehicle functions.

What’s Included:

Fuse Box Diagrams – Clear illustrations showing the location and layout of each fuse and relay.
Fuse Panel Locations – Instructions for locating fuse panels inside the cabin and engine compartment.
Fuse Assignments – Detailed descriptions of each fuse’s function to aid in troubleshooting and repairs.

Whether you’re replacing a blown fuse or diagnosing an electrical issue, this guide will help keep your Toyota RAV4 (2001–2005) running smoothly and reliably.

What’s Included

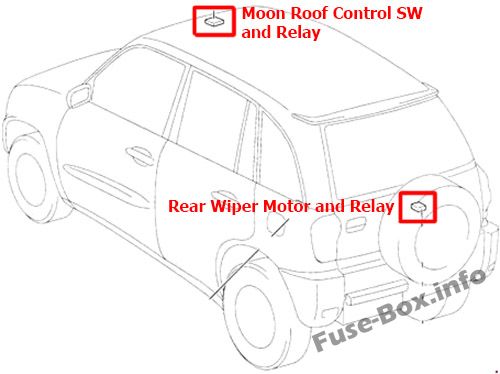

Fuse Box Overview

Left-hand drive vehicles

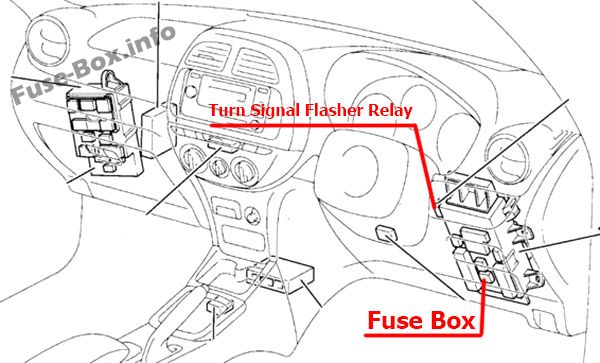

Right-hand drive vehicles

Passenger Compartment

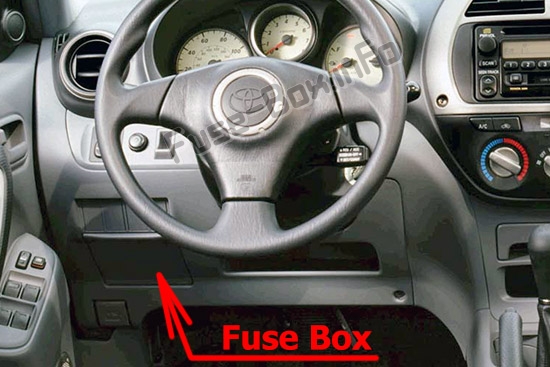

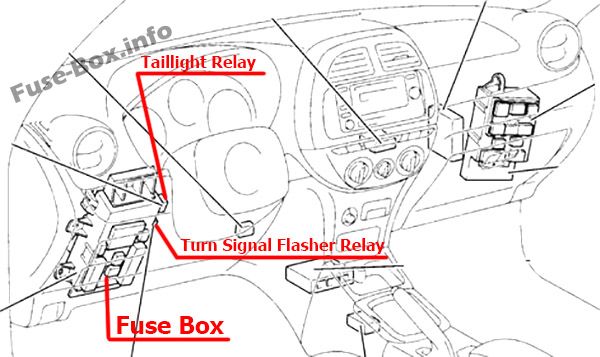

Fuse box location

The fuse box is located in the instrument panel (on the driver’s side), behind the cover.

The location of the fuses in the passenger compartment: Toyota RAV4 (XA20; 2001-2005)

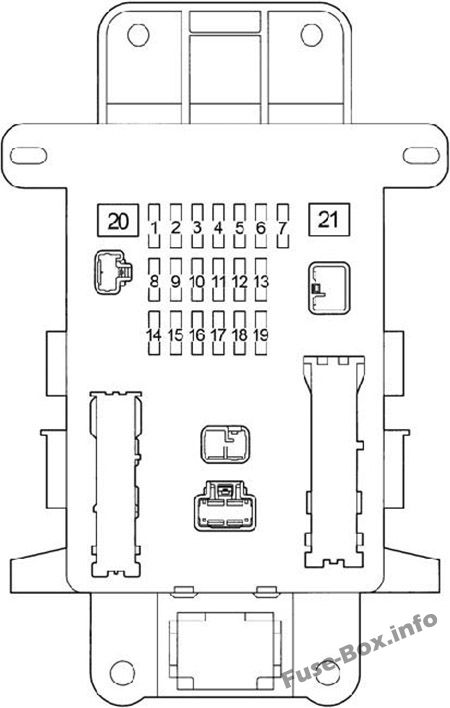

Fuse box diagram

Assignment of the fuses in the Passenger Compartment Fuse Box

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	STOP	10	Stop lights, high-mounted stoplight, anti-lock brake system, shift lock control system, multiport fuel injection system/sequential multiport fuel injection system, cruise control system
2	CIG	15	Cigarette lighter
3	POWER OUTLET	15	Power outlets
4	S-HTR	10	Seat heater
5	PANEL	7.5	Instrument panel light, gauges and meters, front fog lights, instrument panel light control, outside rear view mirror defoggers, air conditioning system
6	FR FOG	15	Front fog lights
7	HORN	10	Horn
8	TAIL	7.5	Tail lights, license plate lights, instrument cluster lights
9	TAIL&PANEL	15	“PANEL” and “TAIL” fuses
10	ACC	7.5	Car audio system, shift lock control system, clock, power rear view mirrors
11	DEF	20	Rear window defogger
12	GAUGE	10	Back-up lights, electric cooling fans, air conditioning system, automatic transmission indicator lights, charging system
13	OBD	7.5	On-board diagnosis system
14	IG2	10	Discharge warning light, multiport fuel injection system/sequential multiport fuel injection system, starting system, SRS airbag system, gauges and meters
15	DOOR	20	Power door lock system
16	MIR HTR	10	Outside rear view mirror defoggers
17	RR WIP	15	Rear window wiper and washer
18	WIP	25	Windshield wipers and washer
19	ECU IG	10	Emergency flashers, gauges and meters, anti-lock brake system, SRS airbag system, shift lock control system, cruise control system, vehicle stability control system, traction control system
20	POWER	30	Electric moon roof, power windows
21	AM1	40	Power outlets, rear window defogger, “ACC”, “CIG”, “ECU IG”, “GAUGE”, “RR WIP”, “S-HTR” and “WIP” fuses

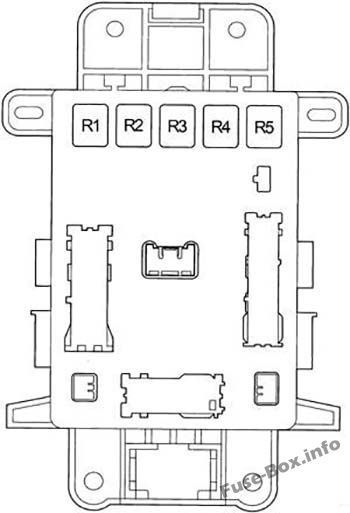

Relays

Fuse Data

Full access is available to registered users — log in or register.

№	Relay
R1	Horn
R2	Rear fog light (RR FOG)
R3	Rear window defogger (DEF)
R4	Power outlet (PWR OUTLET)
R5	Power window (PWR)

Engine Compartment

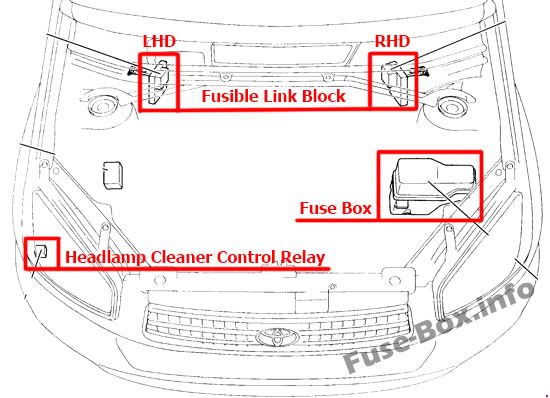

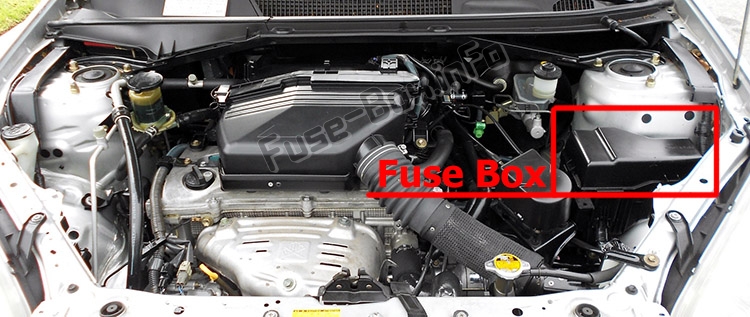

Fuse box locations

The location of the fuses in the engine compartment: Toyota RAV4 (XA20; 2001-2005)

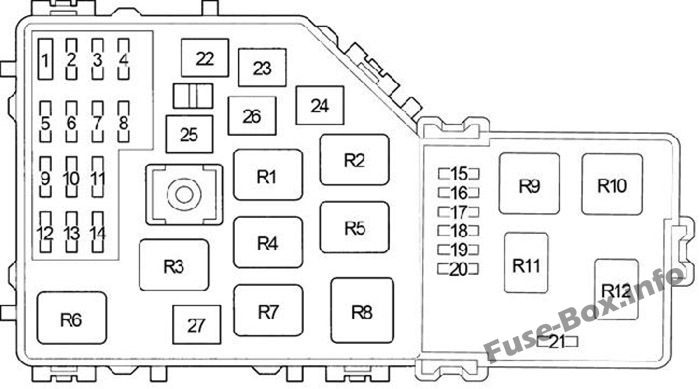

Fuse box diagram

Assignment of the fuses and relay in the Engine Compartment

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	–	–	Short pin
2	ALT-S	5	Charging system
3	A/F	20	A/F sensor
3	RADIO NO.2	30	Audio system
4	EFI1	20	Multiport fuel injection system/sequential multiport fuel injection system, automatic transmission fluid temperature sensor, “EFI2” and “EFI3” fuses
5	CUT	30	“RADIO” and “DOME” fuses
6	HAZ	10	Emergency flashers
7	EFI2	5	Multiport fuel injection system/sequential multiport fuel injection system
8	ABS 2	30	Anti-lock brake system, vehicle stability control system, traction control system, brake assist system
9	DOME	10	Clock, personal light, interior lights, air conditioning system, wireless remote control system, headlight high beam indicator light, gauges and meters, headlight high beam indicator light
10	MAIN	30	“H-LP RH” and “H-LP LH” fuses
11	EFI3	10	Multiport fuel injection system/sequential multiport fuel injection system, emission control system
12	RADIO	15	Car audio system
13	A/C	5	Air conditioning system
14	IGN	15	Starting system, multiport fuel injection system/sequential multiport fuel injection system
15	–	–	–
16	–	–	–
17	ETCS	10	Electronic throttle control system
18	H-LP RH	10	Right-hand headlight
19	H-LP LH	10	Left-hand headlight
20	INJ	–	Multiport fuel injection system/sequential multiport fuel injection system
21	ST	5	Starting system
22	AM2	30	Discharge warning light, multiport fuel injection system/sequential multiport fuel injection system, starting system, SRS airbag system and “IG2” fuse
23	HTR	40	Air conditioning system
24	H-LP CLN	30	Headlight cleaner
24	F-HTR	30	Fuel heater
25	CDS	30	Electric cooling fan
26	ABS 1	40/50	Anti-lock brake system
27	RDI	30	Electric cooling fan

Relay
R1			Engine control unit (EFI MAIN)
R2			Electric cooling fan (FAN NO.3)
R3			Ignition (IG2)
R4			Electric cooling fan (FAN NO.2)
R5			Air fuel ratio sensor (A/F)
R6			Electric cooling fan (FAN NO.2)
R7			Fuel pump (C/OPN)
R8			Heater (HTR)
R9			Starter (ST)
R10			Daytime running light (DRL)
R11			Engine control unit
R12			–

FAQ

Which fuses protect the cigar lighter and power outlets in the Toyota RAV4?

In the Toyota RAV4, the following fuses in the Instrument Panel Fuse Box are responsible for the cigarette lighter and auxiliary power outlets:

Fuse #2 “CIG” — Powers the cigarette lighter (cigar lighter).
Fuse #3 “POWER OUTLET” — Protects the 12 V auxiliary power outlets (power ports).

Check these fuses if your vehicle’s lighter or power outlets stop working, and replace any blown fuse with the correct amperage as specified in the manufacturer’s guide.
