The Toyota T100, produced from 1992 to 1998, was Toyota’s first full-size pickup truck designed specifically for the North American market. Positioned between compact trucks and traditional full-size domestic pickups, the T100 offered a spacious bed, a smooth ride, and Toyota’s renowned reliability. While it never reached the sales numbers of its competitors, it laid the groundwork for future models like the Tundra.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
In this article, you will find fuse box diagrams for the Toyota T100, covering model years 1992, 1993, 1994, 1995, 1996, 1997, and 1998. These diagrams provide vital information for identifying and servicing the electrical components of your truck.
What’s Included:

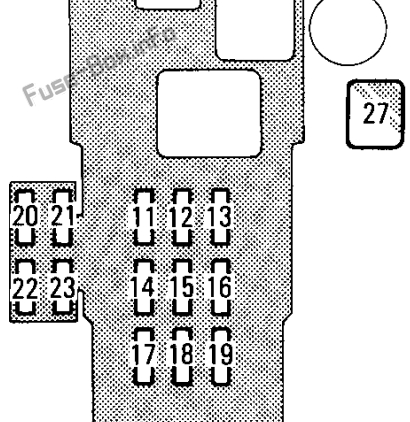

Fuse Box Diagrams – Clear, labeled layouts of the fuse boxes to help identify fuses and relays.

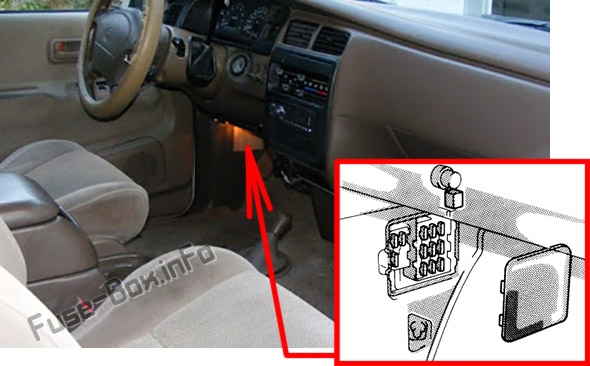

Fuse Panel Locations – Guidance on where to find the fuse panels inside the cabin and engine compartment.
Fuse Assignments – Descriptions of each fuse and relay function, useful for diagnostics and repairs.
Whether you’re troubleshooting electrical issues or performing routine maintenance, this guide ensures that your Toyota T100 (1992–1998) remains dependable and road-ready.
Automatic transmission overdrive control system, gauges and meters, service reminder indicators and warning buzzers (except discharge cruise warning light), A.D.D. control system, cruise control system, back-up lights, power door lock system
16
STOP
15A
Stop lights, High-mounted stoplight, cruise control system, electronically controlled automatic transmission system
17
RADIO
7.5A
Radio, cassette tape player, power antenna, power rear view mirrors
18
CIG
15A
Cigarette lighter, digital clock display, shift lock control system (automatic transmission)
19
TURN
10A
Turn signal lights, emergency flashers
20
ECU-B
15A
Anti-lock brake system, SRS airbag system, cruise control system, daytime running light system
21
DRL
7.5A
Canada: Daytime running light system
22
ECU-IG
20A
Anti-lock brake system, cruise control system
23
OBD
7.5A
On-board diagnosis system
27
PWR
30A
Power door lock system, power windows
Engine Compartment

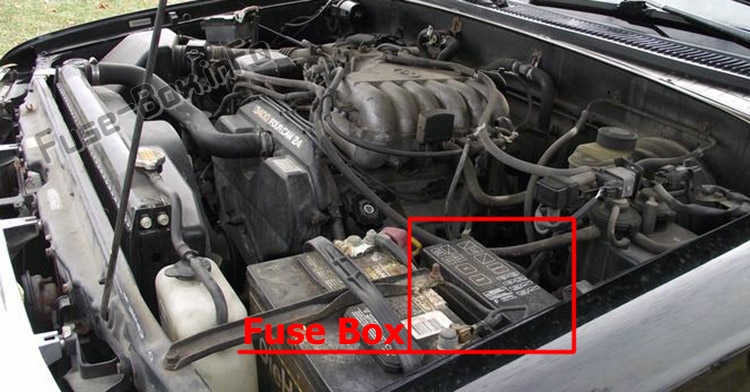

Fuse Box Location

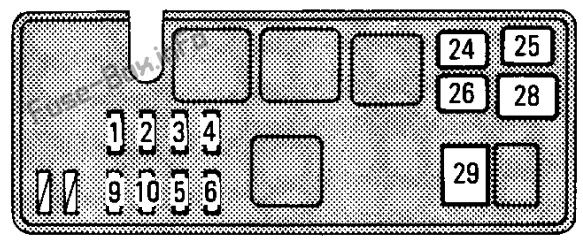

Fuse Box Diagram
Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Interior light, personal lights, step lights, ignition switch light, radio, cassette tape player, power antenna, clock
9
HEAD_(LH-LO)
10A
Canada: Left-hand headlight (low beam)
10
HEAD_(RH-LO)
10A
Canada: Right-hand headlight (low beam)
24
AM1
40A
Starting system, all components in “ENGINE”, “IGN.”, “WIPER”, “GAUGES”. “RADIO”, “CIG.”, “TURN” and “PWR” fuses
25
AM2
30A
Starting system, all components in “ENGINE”, “IGN.”, “WIPER”, “GAUGES”, “RADIO”, “CIG.” and “TURN” fuses
26
HEATER
40A
Air conditioning heating system
28
ABS
60A
Anti-lock brake system
29
ALT
100A
All components in “A/C”, “TAIL”, “STOP”, “ECU-B”, “AM1” and “HEATER” fuses
FAQ
Which fuse controls the cigar lighter (power outlet) in the Toyota T100?
In the Toyota T100, the cigar lighter (12 V power outlet) is protected by fuse #18, located in the Instrument Panel Fuse Box.
