The first-generation Toyota Tacoma (Model codes: N140, N150, N160, N170, N190) was introduced in 1995 and remained in its pre-facelift form until 2000. Designed as a compact pickup truck with an emphasis on ride comfort and improved safety over its predecessor, the Toyota Pickup (Hilux in some markets), this generation marked a major shift toward a more car-like driving experience. It was available in multiple configurations, including Regular Cab, Xtracab, and PreRunner models.

In this article, you will find fuse box diagrams for the Toyota Tacoma, covering model years 1995, 1996, 1997, 1998, 1999, and 2000. These diagrams are essential for identifying and understanding the function of each fuse and relay in your vehicle’s electrical system.

What’s Included:

Fuse Box Diagrams – Detailed layouts of the fuse boxes to help you locate and identify each fuse and relay.
Fuse Panel Locations – Information on where to find the main fuse panels inside the cabin and under the hood.
Fuse Assignments – Full descriptions of each fuse and relay’s purpose, aiding in diagnostics and electrical troubleshooting.

Whether you’re replacing a blown fuse or resolving a power issue, this guide is a valuable resource for keeping your Toyota Tacoma (1995–2000) running smoothly and reliably.

What’s Included

Fuse Box Locations

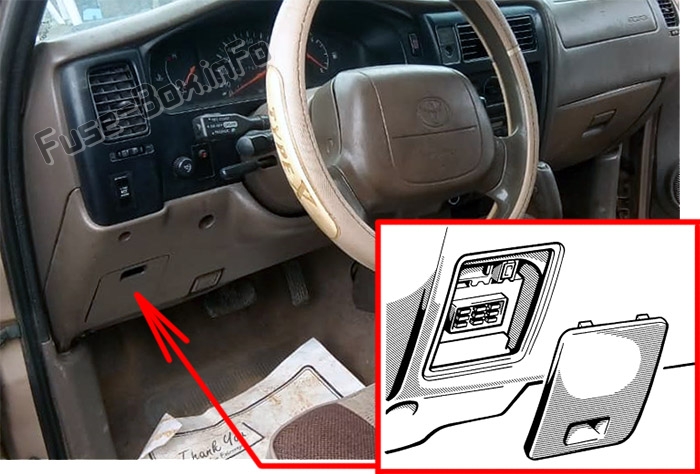

Passenger Compartment

The fuse box is located behind the cover to the left and below the steering wheel.

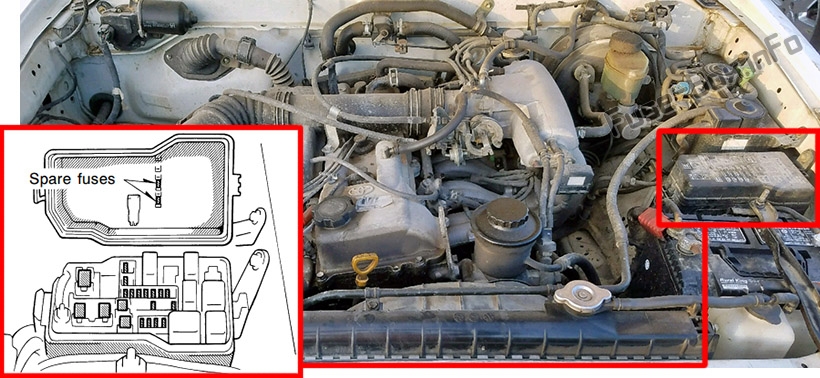

Engine Compartment

Fuse Box Diagrams

1995, 1996, 1997

Passenger Compartment

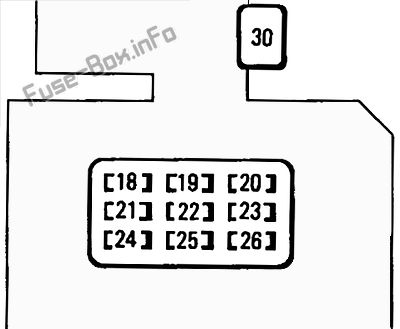

Assignment of the fuses in the instrument panel (1995-1997)

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Description
18	4WD	15A	A.D.D. control system, four-wheel drive control system, rear differential lock system
19	GAUGE	10A	Gauges and meters, back-up lights, cruise control system, power antenna, power door lock control system, electronically controlled automatic transmission system, starting system, charging system, heater control system
20	TURN	10A	Turn signal lights
21	ECU-IG	15A	Cruise control system, anti-lock brake system, shift lock system
22	WIPER	20A	Windshield wipers and washer
23	IGN	7.5A	Discharge warning light, SRS airbag system
24	RADIO	7.5A	Car audio system, power antenna
25	CIG	15A	Cigarette lighter, clock, power rear view mirrors, back-up lights, shift lock system
26	ECU-B	15A	SRS airbag warning light, daytime running light system, cruise control syste, anti-lock brake system
30	POWER	30A	Power windows, power door lock control system

Engine Compartment

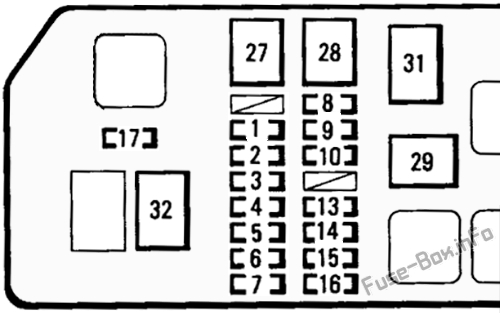

Under-hood fuse box diagram: Toyota Tacoma (1995, 1996, 1997)

Assignment of the fuses in the engine compartment (1995-1997)

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Description
1	STOP	15A	Stop lights, high-mounted stoplight, cruise control system
2	ALT-S	7.5A	Charging system
3	STA	7.5A	Multiport fuel injction system/sequential multiport fuel injection system, starting system, gauges and meters
4	OBD	10A	On-board diagnosis system
5	EFI	15A	Multiport fuel injection sys-tem/sequential multiport fuel injection system
6	HORN	15A	Emergency flashers, horns
7	DOME	15A	Car audio system, power antenna, interior light, clock, ignition switch light, personal ligths, door courtesy lights
8	TAIL	10A	Tail lights, license plate lights
9	PANEL	10A	Emergency flashers, heater cotnrol system, air conditioning cooling system, gauges and meters, clock, car audio system overdrive indicator light, glovebox light, cigarette lighter, instrument panel lights
10	A/C	10A	Air conditionin cooling system
13	HEAD (HI RH)	10A	With DRL: Right-hand headlight (high beam), hi-beam indicator light
13	HEAD (RH)	10A	Without DRL: Right-hand headlight
14	HEAD (HI LH)	10A	With DRL: Left-hand headlight (high beam)
14	HEAD (LH)	10A	Without DRL: Left-hand headlight
15	HEAD (LO RH)	10A	With DRL: Right-hand headlight (low beam); Without DRL: Not Used
16	HEAD (LO LH)	10A	With DRL: Left-hand headlight (low beam); Without DRL: Not Used
17	DRL	7.5A	With DRL: Daytime running light system; Without DRL: Not Used
27	HEATER	40A	“A/C” fuse
28	AM1	40A	All components in “STA”, “ECU-B”, “POWER”’ “RADIO”, “CIG”, “GAUGE”, “TURN”, “ECU-IG”, “WIPER” and “4WD” fuses
29	AM2	30A	All components in “IGN” fuse
31	ABS	60A	Anti-lock brake system
32	ALT	80A	All components in “ABS”, “AM1”, “STA”, “ECU-B”, “POWER”, “RADIO”, “CIG”, “GAUGE”, “TURN”, “ECU-IG”, “WIPER”, “4WD”, “HEATER”, “A/C”, “TAIL”, “PANEL”, “STOP” and “ALT-S” fuses

1998, 1999, 2000

Passenger Compartment

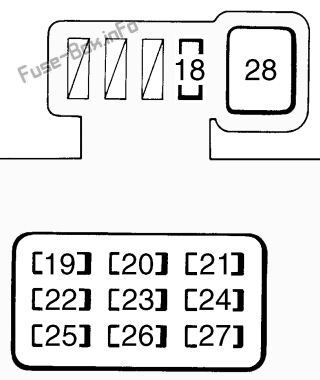

Assignment of the fuses in the instrument panel (1998-2000)

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Description
18	STA	7.5A	Clutch start cancel system, starting system, gauges and meters
19	4WD	20A	A.D.D. control system, four-wheel drive control system, rear differential lock system
20	GAUGE	10A	Gauges and meters, back-up lights, cruise control system, power antenna, power door lock control system, electronically controlled automatic transmission system, starting system, charging system, air conditioning system
21	TURN	10A	Turn signal lights, emergency flashers
22	ECU-IG	15A	Cruise control system, anti-lock brake system, automatic transmission shift lock system
23	WIPER	20A	Windshield wipers and washer
24	IGN	7.5A	Discharge warning light, SRS airbag system, seat belt pretensioners, multiport fuel injection system/ sequential multiport fuel injection system
25	RADIO	7.5A	Car audio system, power antenna
26	CIG	15A	Cigarette lighter, clock, power rear view mirrors, back-up lights, automatic transmission shift lock system, SRS airbag system, seat belt pretensioners
27	ECU-B	15A	SRS warning light, daytime running light system, cruise control system, SRS airbag system, seat belt pretensioners
28	POWER	30A	Power windows

Engine Compartment

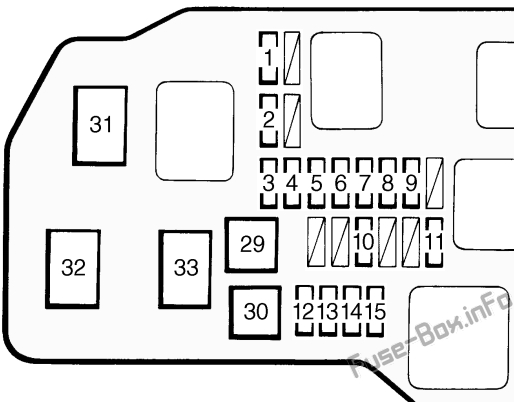

Under-hood fuse box diagram: Toyota Tacoma (1998, 1999, 2000)

Assignment of the fuses in the engine compartment (1998-2000)

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Description
1	PWR OUTLET	15A	Power outlet
2	DRL	7.5A	with DRL: Daytime running light system; without DRL: Not Used
3	HEAD (HI RH)	10A	with DRL: Right-hand headlight (high beam), high beam indicator light; without DRL: Not Used
4	HEAD (HI LH)	10A	with DRL: Left-hand headlight (high beam); without DRL: Not Used
5	HEAD (LO RH)	10A	with DRL: Right-hand headlight (low beam)
5	HEAD (RH)	10A	without DRL: Right-hand headlight
6	HEAD (LO LH)	10A	with DRL: Left-hand headlight (low beam)
6	HEAD (LH)	10A	without DRL: Left-hand headlight
7	TAIL	10A	Tail lights, licence plate lights
8	PANEL	10A	Emergency flashers, heater control system, air conditioning system, gauges and meters, clock, car audio system, overdrive indicator light, glove box light, cigarette lighter, instrument panel lights, rear differential lock system, Multiport fuel injection system/ sequential multiport fuel injection system, electronically controlled automatic transmission system
9	A.C.	10A	Air conditioning system
10	STOP	15A	Stop lights, high mounted stoplight, cruise control system
11	ALT-S	7.5A	Charging system
12	DOME	15A	Car audio system, power antenna, interior light, clock, ignition switch light, personal lights, door courtesy lights
13	OBD	10A	On-board diagnosis system
14	HORN	15A	Emergency flashers, horns
15	EFI	20A	Multiport fuel injection system/sequential multiport fuel injection system
29	AM1	40A	Starting system
30	AM2	30A	Ignition system
31	ABS	60A	Anti-lock brake system
32	HEATER	40A	“A.C.” fuse
33	ALT	120A	“ABS”, “AM1”, “HEATER”, “A.C”, “TAIL”, “PANEL”, “STOP” and “ALT-S”, “PWR OUTLET” fuses

FAQ

What are the cigar lighter (power outlet) fuses for the Toyota Tacoma (1995–2000)?

The fuse locations for the cigar lighter and power outlet in the Toyota Tacoma vary by year:

1995–1997:
Fuse #25 “CIG” in the Instrument Panel Fuse Box (controls the cigarette lighter).

1998–2000:
Fuse #26 “CIG” in the Instrument Panel Fuse Box (cigarette lighter), and
Fuse #1 “PWR OUTLET” in the Engine Compartment Fuse Box (auxiliary power outlet).

If your lighter or outlet is not working, check these fuses first and replace any that are blown using the correct amperage.
