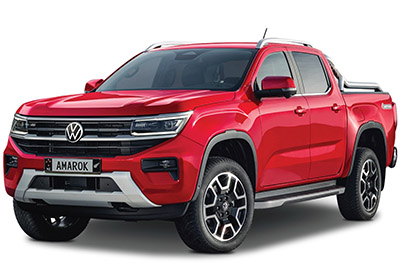

Volkswagen Amarok (2022-2026)

Looking for Volkswagen Amarok fuse box diagrams? This article covers the second-generation Volkswagen Amarok (Model Code: NF), available from 2022, and includes fuse box diagrams for Volkswagen Amarok 2022, 2023, 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Engine Compartment

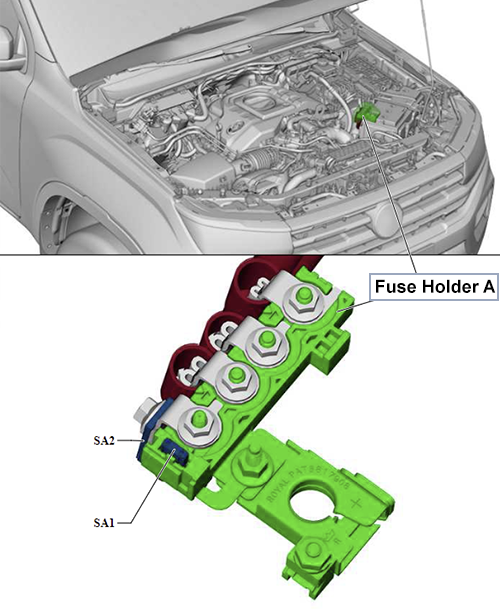

Fuse Box (A)

Location and Diagram

High Voltage Fuses

Assignment of the high voltage fuses in the engine compartment fuse box A

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA13ABattery monitor control unit -J367-
SA2125AConnection and distribution box 3 (Fuse Holder E) -SX3-

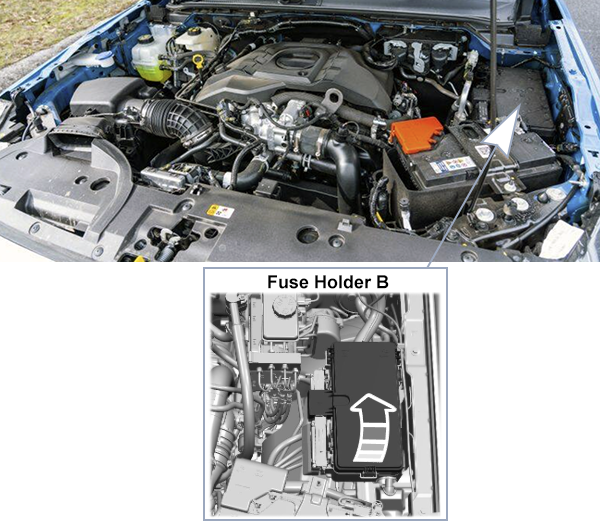

Fuse Box (B)

Location

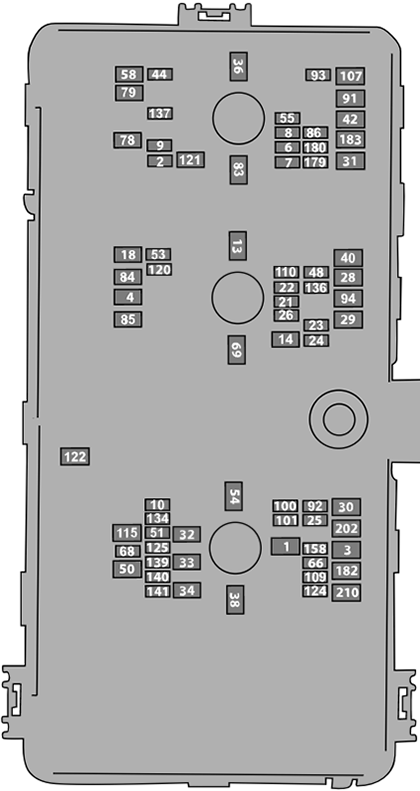

Diagram

Fuses

Assignment of the fuses in the engine compartment fuse box B

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB130AOnboard supply control unit
SB220AHeater element for crankcase breather (2.0L diesel)
SB330AOnboard supply control unit
SB430AFuel pump control unit, Fuse 120 on fuse holder B
SB625AEngine/motor control unit
SB730ADiesel: Charge pressure control solenoid valve 2, Turbine changeover valve, Exhaust gas recirculation cooling bypass valve
30APetrol: Camshaft control valve 1, Exhaust camshaft control valve 1, Lambda probe 1 before catalytic converter, Lambda probe 1 after catalytic converter, Activated charcoal filter solenoid valve 1
SB820ARadiator blind control motor 2, Radiator fan relay, Radiator fan 2 relay, Valve for oil pressure control, Heater element for crankcase breather (3.0L diesel), Air conditioner compressor, Turbocharger air recirculation valve (petrol)
SB920ADiesel: Control unit for NOx sender 1, 2 & 3, Control unit 1 for particulate sensor, Glow plug relay, Automatic glow period control unit
20AGeneral: Onboard supply control unit 2 (60-pin electrical connector Pin 23), Ignition coils 1-4 with output stage (petrol)
SB1020AFuel pressure regulating valve (3.0L diesel), Fuel metering valve (3.0L diesel), Automatic gearbox control unit
SB1340AFresh air blower control unit
SB1830AStarter
SB2110AFront left headlight, Front right headlight
SB2310AABS control unit
SB2410AAutomatic glow period control unit, Power steering control unit, Engine/motor control unit
SB2520AAll-wheel drive control unit, Reversing camera
SB2615AAutomatic gearbox control unit, Auxiliary hydraulic pump 1 for gearbox oil
SB2860AABS control unit
SB2960AABS control unit
SB3040ALHD Vehicles: Operating unit for front left seat adjustment
40ARHD Vehicles: Operating unit for front right seat adjustment
SB3140ALHD Vehicles: Operating unit for front right seat adjustment
40ARHD Vehicles: Operating unit for front left seat adjustment
SB3220A12 V socket
SB3320A12 V socket 2
SB3660ADC/AC converter without socket, 12 V – 230 V
SB3830AHeater and air conditioning system control unit
SB4230ATrailer detector control unit
SB4410ABrake light switch
SB5040AHeated rear window
SB5315ADifferential lock valve 1
SB54–Not used
SB6440AAll-wheel drive control unit
SB6820AControl unit for electronic steering column lock
SB6930AWindscreen wiper
SB7850AHeated windscreen (Right heating circuit)
SB7950AHeated windscreen (Left heating circuit)
SB83 – SB8550AAuxiliary heater
SB8615AControl unit for reducing agent metering system, Automatic glow period control unit
SB9140ATrailer detector control unit
SB935ARemote control receiver for auxiliary heater
SB9420AAuxiliary heater control unit
SB10020AFront left headlight
SB10120AFront right headlight
SB10730ATrailer detector control unit
SB10920ADigital sound package control unit
SB11030ATrailer socket
SB1125ARemote control receiver for auxiliary heater
SB11320AAuxiliary heater control unit
SB11530AControl unit for load area roller blind
SB12010AOnboard supply control unit 2 (60-pin connector Pin 20), Fuse 121 on fuse holder B, Fuel filter heater relay
SB12140AFuel filter heater module (diesel)
SB12230AOnboard supply control unit 2 (Transfer box control motor)
SB1245ARain sensor
SB13720ADriver assist systems control unit
SB1405AUSB connection 2
SB1415AUSB charging socket in headlining
SB17915AControl unit for reducing agent metering system
SB18010AControl unit for reducing agent metering system
SB18260ALHD Vehicles: Front passenger door control unit
60ARHD Vehicles: Driver door control unit
SB18360ALHD Vehicles: Driver door control unit
60ARHD Vehicles: Front passenger door control unit
SB20260AOnboard supply control unit
SB21030AOnboard supply control unit

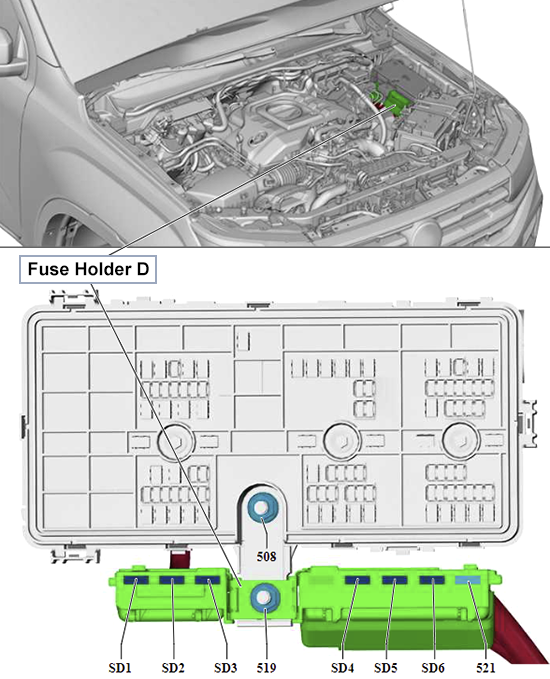

Fuse Box (D)

Location and Diagram

High Voltage Fuses

Assignment of the high voltage fuses in the engine compartment fuse box D

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SD180ARadiator fan relay
SD280APetrol: Radiator fan 2 relay
SD370ADiesel: Automatic glow period control unit, Glow plug relay
SD4210A
Petrol		Alternator with voltage regulator
250A
Diesel
SD5 – SD650APower steering control unit

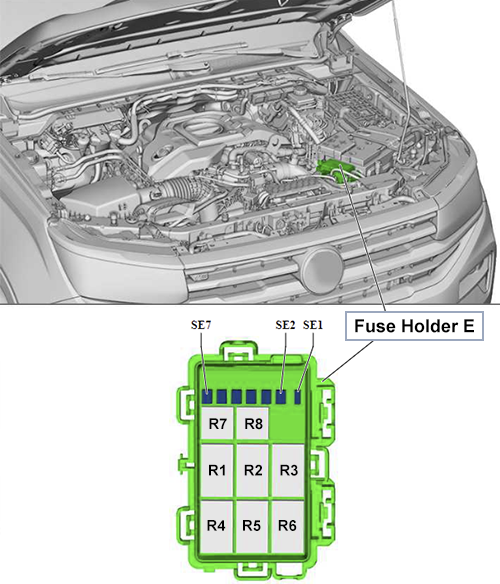

Fuse Box (E)

Location and Diagram

Fuses

Assignment of the fuses in the engine compartment fuse box E

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SE15ARelay 1 for external use -J1378-
SE2––
SE315ARelay 2 for external use -J1379-
SE415ARelay 3 for external use -J1380-
SE515ARelay 4 for external use -J1381-
SE625ARelay 5 for external use -J1382-
SE725ARelay 6 for external use -J1383-

Relays

Assignment of the relays in the engine compartment fuse box E

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Relay 1 for external use -J1378-
R2Relay 2 for external use -J1379-
R3Relay 3 for external use -J1380-
R4Relay 4 for external use -J1381-
R5Relay 5 for external use -J1382-
R6Relay 6 for external use -J1383-
R7–
R8Relay 8 for external use -J1385-

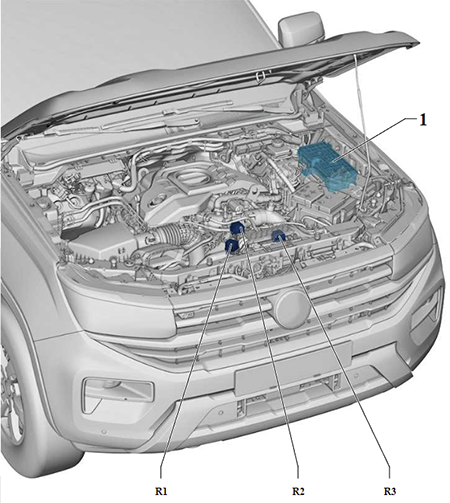

Relays (Diesel)

Location and Diagram

Relays

Assignment of the relays in the engine compartment (Diesel)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Glow plug relay -J52- (For models with reducing agent metering system)
R2Radiator fan relay -J26- (For models with reducing agent metering system)
R3Radiator fan relay -J26- (For vehicles without reducing agent metering system)

Integrated Relays (Fuse Box 1)

Assignment of the integrated relays in the engine compartment fuse box 1 (Diesel)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Description
Heated rear window relay -J9-
Fresh air blower relay -J13-
Magnetic clutch relay -J44-
Starter motor relay -J53-
Headlight cut-off relay -J86-
Relay to close convertible roof -J238-
Relay to open convertible roof -J239-
Cut-out relay for air conditioning system magnetic clutch -J246-
Main relay -J271-
Terminal 15 voltage supply relay -J329-
Wiper motor relay 1 -J368-
Heated windscreen relay for left side -J410-
Heated windscreen relay for right side -J411-
Horn relay -J413-
Fuel filter heater relay -J686-
Terminal 15 voltage supply relay 2 -J681-
Voltage supply relay 1 -J701-
Voltage supply relay 2 -J710-
Relay for power sockets -J807-
Starter relay 1 -J906-
Terminal 15 relay -J940-
Relay for reducing agent metering system -J963-
Charge enable relay -J978-
Auxiliary air heater relay -J1027-

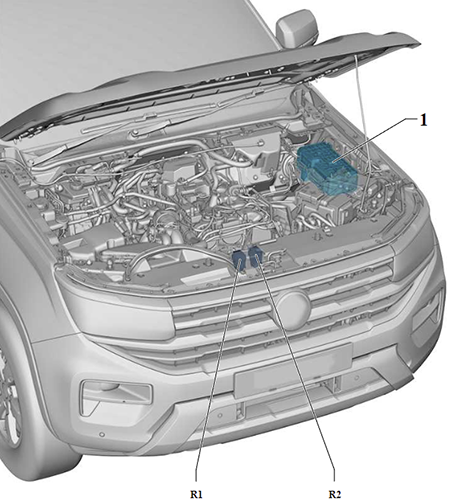

Relays (Petrol)

Location and Diagram

Relays

Assignment of the relays in the engine compartment (Petrol)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Radiator fan relay -J26-
R2Radiator fan 2 relay -J1180-

Integrated Relays

Assignment of the integrated relays in the engine compartment fuse box 1 (Petrol)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Description
Heated rear window relay -J9-
Fresh air blower relay -J13-
Magnetic clutch relay -J44-
Starter motor relay -J53-
Headlight cut-off relay -J86-
Relay to close convertible roof -J238-
Relay to open convertible roof -J239-
Cut-out relay for air conditioning system magnetic clutch -J246-
Main relay -J271-
Terminal 15 voltage supply relay -J329-
Wiper motor relay 1 -J368-
Heated windscreen relay for left side -J410-
Heated windscreen relay for right side -J411-
Horn relay -J413-
Terminal 15 voltage supply relay 2 -J681-
Voltage supply relay 1 -J701-
Voltage supply relay 2 -J710-
Relay for power sockets -J807-
Starter relay 1 -J906-
Terminal 15 relay -J940-
Charge enable relay -J978-
Auxiliary air heater relay -J1027-

Passenger Compartment

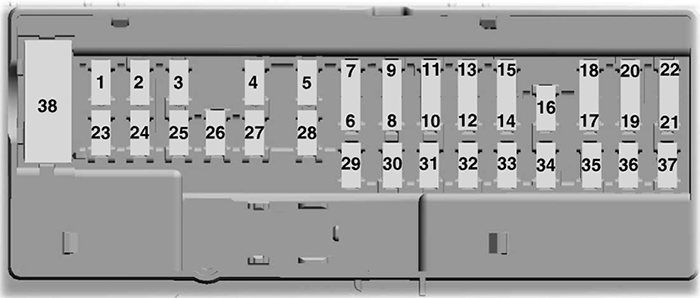

Fuse Box (C)

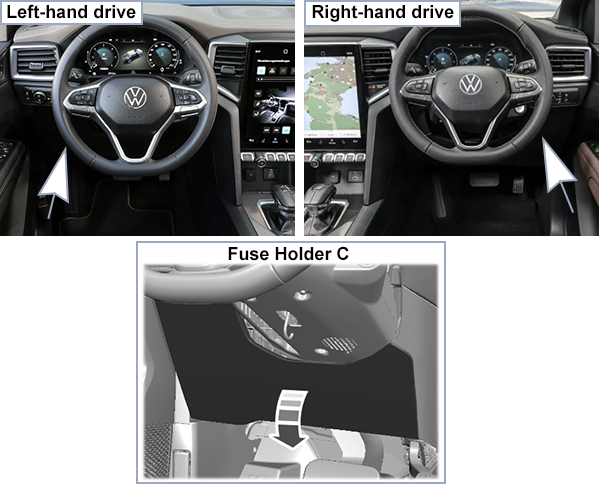

Location

Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC1––
SC210ADriver side interior locking button for central locking system -E308-
Front passenger side interior locking button for central locking system -E309-
DC/AC converter with socket, 12 V – 230 V -U13-
Operating unit for window regulator in driver door -EX36-
SC37.5ACharging unit 1 for mobile devices -J1146-
SC4––
SC5––
SC610AAnti-theft alarm system horn -H8-
SC7––
SC85AEmergency call module control unit and communication unit -J949-
SC95AInterior monitor send and receive module 1 -G303-
SC10––
SC11––
SC127.5AData bus diagnostic interface -J533-
Selector lever -E313-
Heater and air conditioning system control unit -J979-
SC137.5ASteering column electronics control unit -J527-
Dash panel insert -KX2-
SC14––
SC1515AMultimedia system control unit -J650-
Diagnostic connection -U31-
SC16––
SC177.5AControl unit for cornering light and headlight range control -J745-
Control unit for reducing agent metering system -J880-
SC187.5ARelay and fuse carrier A for special vehicles -SRSA-
SC195AOperating unit for lighting -EX59-
SC205AIgnition/starter switch -D-
Starter button -E378-
SC21––
SC22––
SC23––
SC24––
SC25––
SC26––
SC27––
SC28––
SC2915ADisplay unit for front information display and operating unit control unit -J685-
SC30––
SC3110ACentre operating unit for dash panel -J819-
Switch module 1 in centre console -EX23-
Entry and start authorisation control unit -J965-
SC3220ARadio -R-
SC33––
SC3430AFuse 17 on fuse holder C -SC17-
Fuse 18 on fuse holder C -SC18-
Fuse 36 on fuse holder C -SC36-
Fuse 37 on fuse holder C -SC37-
SC35––
SC3615AParking aid control unit -J446-
SC3720ASteering column electronics control unit -J527-
– Heated steering wheel -FX1-
Automatic anti-dazzle interior mirror -Y7-
SC38––

Relays

Assignment of the integrated relays in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Description
Central locking system relay -J110- (RHD)
Alarm horn relay -J641-
Terminal 15 relay -J940- (LHD)
