Volkswagen Fox (2004-2008)

Looking for Volkswagen Fox fuse box diagrams? This article covers the subcompact Volkswagen Fox (also known as VW CrossFox), produced from 2004, and includes fuse box diagrams for Volkswagen Fox 2004, 2005, 2006, 2007 and 2008, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout), helping you quickly identify circuits and carry out basic electrical checks.

Engine Compartment

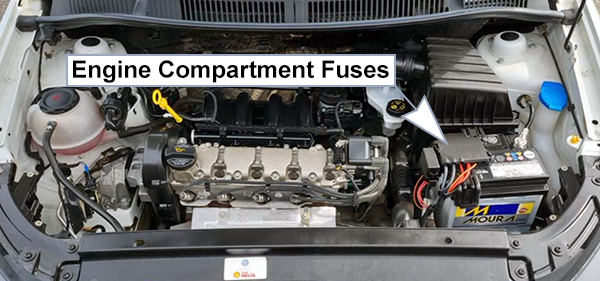

Fuse Box Location

Fuse panel is located in the engine compartment above the vehicle’s battery.

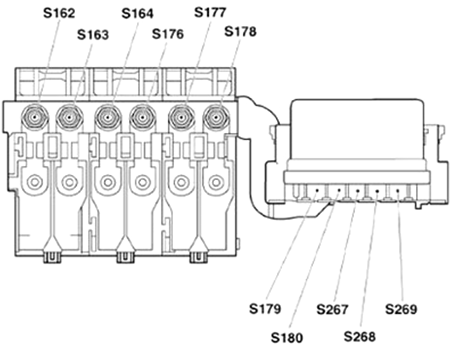

Fuse Box Diagram

High Voltage Fuses

Assignment of the high voltage fuses in engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1175AAlternator -C- Voltage regulator -C1-
2110ATerminal 30 wiring junction -TV2-
340ARadiator fan control unit -J293-
450AABS control unit -J104-
540ASteering hydraulics pump -V119-
ABS control unit -J104-
Radiator fan control unit -J293-
Power steering control unit -J500-
50ASteering hydraulics pump -V119- (Until December, 2006)
Power steering control unit -J500- (Until December, 2006)
650AGlow plug relay -J52- (Only for vehicles with 1.4L Diesel engine)
725AABS control unit -J104-
830ARadiator fan thermal switch -F18- (Only for vehicles with 1.2L and 1.4L Diesel engines)
Radiator fan 2nd speed relay -J101- (Only for vehicles with 1.4L engine)
Fresh air blower and radiator fan relay -J209- (Only for vehicles with 1.4L engine)
Radiator fan control unit -J293-
95ARadiator fan control unit -J293-
1015AOnboard supply control unit -J519- (Until December, 2006)
Engine control unit -J623-
115AAir conditioning system control unit -J301-
Radiator fan control unit -J293-

Passenger Compartment

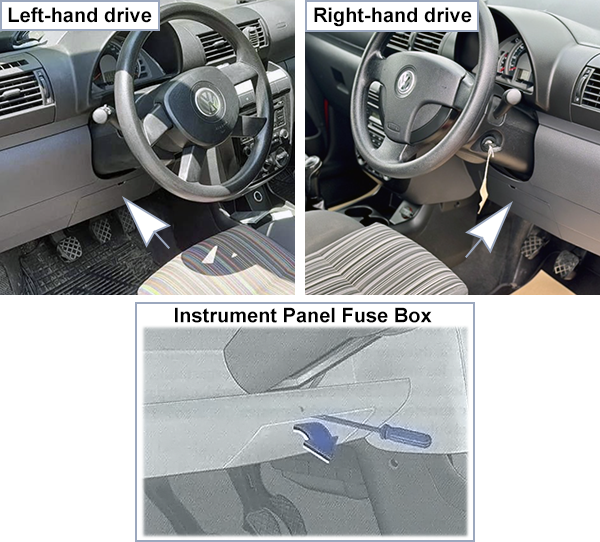

Fuse Box Location

The fuse box is located behind the cover under the steering wheel. Insert a screwdriver into the recess and remove the fuse box cover.

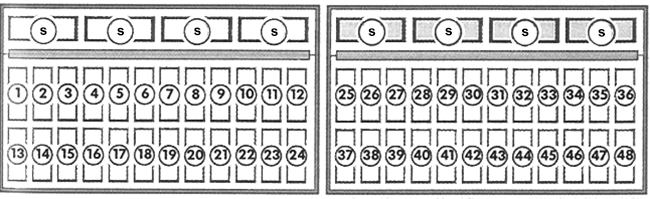

Fuse Box Diagram

Fuses

Assignment of the fuses in passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC15AHigh-pressure sender -G65-
Radiator fan control unit -J293-
Air conditioning system control unit -J301-
SC25AConvenience system central control unit -J393-
Onboard supply control unit -J519-
SC35ASpeedometer sender -G22-
Power steering control unit -J500-
Spray jet heater element for windscreen washer -N113-
SC45ADriver door exterior handle switch for anti-theft -F121-
SC520ARadio -R-
SC620AHeated rear window control relay -J48-
Onboard supply control unit -J519-
SC710AIntermittent wiper switch -E22-
SC85AOnboard supply control unit -J519-
SC9––
SC1020ASliding sunroof adjustment control unit -J245-
SC1110AFront right turn signal bulb -M7-
Rear right turn signal bulb -M8-
Right turn signal repeater bulb -M19-
Convenience system central control unit -J393-
Onboard supply control unit -J519-
SC1210AFront left turn signal bulb -M5-
Rear left turn signal bulb -M6-
Left turn signal repeater bulb -M18-
Convenience system central control unit -J393-
Onboard supply control unit -J519-
SC13––
SC145AMirror adjustment switch -E43-
Convenience system central control unit -J393-
SC1515AHeated driver seat regulator -E94-
Heated front passenger seat regulator -E95-
Heated driver seat control unit -J131-
SC1625AConvenience system central control unit -J393-
SC1715AFront and rear fog light switch -E23-
Front and rear fog light switch illumination bulb -L40-
SC1810ARear window wiper motor -V12-
SC19––
SC205AHeated exterior mirror on driver side -Z4-
Heated exterior mirror on front passenger side -Z5-
Onboard supply control unit -J519-
SC21––
SC22––
SC235ASteering angle sender -G85-
TCS and ESP button -E256-
Switches and instruments regulator illumination -L155-
ABS control unit -J104-
SC2410ASteering angle sender -G85-
ABS control unit -J104-
SB2510AFront left turn signal bulb -M5-
Rear left turn signal bulb -M6-
Front right turn signal bulb -M7-
Rear right turn signal bulb -M8-
Onboard supply control unit -J519-
SB2610AIgnition coil 1 with output stage -N70-
Ignition coil 2 with output stage -N127-
Ignition coil 3 with output stage -N291-
Ignition transformer -N152- (Only for vehicles with 1.4L engine)
Engine control unit -J623-
SB2715AAir conditioning system control unit -J301-
Fitting connector, 16-pole, in diagnosis -T16a-
SB285ADash panel insert -K-
Convenience system central control unit -J393-
SB2920AAutomatic intermittent wash and wipe relay -J31-
Onboard supply control unit -J519-
SB305AHeater element for crankcase breather -N79- (Only for vehicles with 1.4L Petrol engine)
Air mass meter -G70- (Only for vehicles with 1.4L Diesel engine)
Current supply relay -J16- (Only for vehicles with 1.2L engine)
Engine control unit -J623-
SB315ARight tail light bulb -M2- (Until December, 2006)
Right side light bulb -M3-
Right brake and tail light bulb -M22-
Dash panel insert -K-
SB325ANumber plate light -X-
SB3315AFuel gauge sender -G-
Fuel system pressurisation pump -G6-
SB3410AHall sender -G40- (Only for vehicles with 1.2L and 1.4L Petrol engines)
Intake manifold flap motor -V157- (Only for vehicles with 1.4L Diesel engine)
Exhaust gas recirculation valve -N18- (Only for vehicles with 1.4L Diesel engine)
Charge pressure control solenoid valve -N75- (Only for vehicles with 1.4L Diesel engine)
Activated charcoal filter solenoid valve 1 -N80- (Only for vehicles with 1.2L and 1.4L Petrol engines)
SB3510AFront and rear fog light switch -E23-
Front and rear fog light switch illumination bulb -L40-
Left headlight twin filament bulb -L1-
Dash panel insert -K-
Left headlight main beam bulb -M30- (Until November, 2006)
SB3610AFront and rear fog light switch -E23-
Front and rear fog light switch illumination bulb -L40-
Left headlight twin filament bulb -L1-
Headlight range control regulator -E102-
Left headlight range control motor -V48-
Left headlight dipped beam bulb -M29- (Until November, 2006)
SB3710AReversing light switch -F4-
Left reversing light bulb -M16-
Right reversing light bulb -M17-
Onboard supply control unit -J519-
SB385AClutch pedal switch -F36-
Brake pedal switch -F47-
Fuel pump relay -J17-
Dash panel insert -K-
SB3910ALuggage compartment light -W3-
Onboard supply control unit -J519-
SB4010ABrake light switch -F-
SB4110AHorn or dual tone horn -H1-
Onboard supply control unit -J519-
SB4225AFresh air blower switch -E9-
SB435ALeft side light bulb -M1-
Left tail light bulb -M4- (Until December, 2006)
Left brake and tail light bulb -M21-
Dash panel insert -K-
SB4410AInjector, cylinder 1 -N30-
Injector, cylinder 2 -N31-
Injector, cylinder 3 -N32-
Injector, cylinder 4 -N33- (Only for vehicles with 1.4L Petrol engine)
Engine control unit -J623-
SB4510ALambda probe -G39-
Lambda probe after catalytic converter -G130-
5AClutch pedal switch -F36-
Brake pedal switch -F47-
Low heat output relay -J359-
High heat output relay -J360-
SB4610ARight headlight twin filament bulb -L2-
Right headlight main beam bulb -M32- (Until November, 2006)
SB4710ARight headlight twin filament bulb -L2-
Right headlight dipped beam bulb -M31- (Until November, 2006)
Right headlight range control motor -V49-
SB4820ACigarette lighter -U1-
Cigarette lighter illumination bulb -L28-

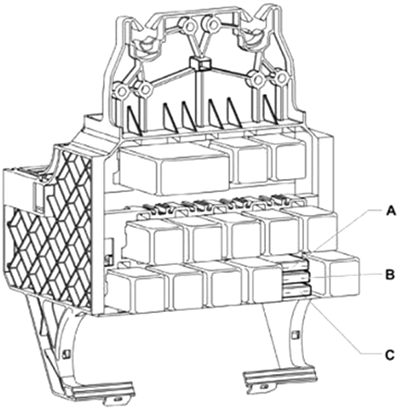

Passenger Compartment (additional)

Location and Diagram

Near the main fuse box.

Fuses

Assignment of the fuses in the passenger compartment near the main fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A40AHeating resistance Fuse 1-S276-
B40AHeating resistance Fuse 2 -S277-
C40AHeating resistance Fuse 3 -S278-

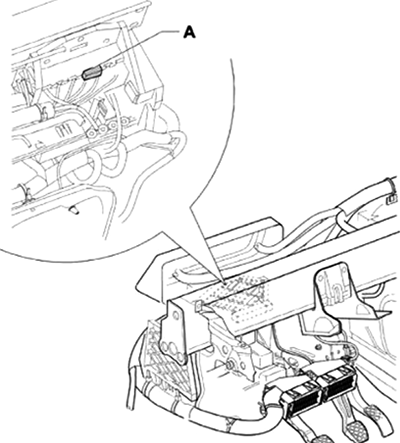

Passenger Compartment (Single fuse)

Location and Diagram

Fuse

Assignment of the fuse deep in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A20ASpecific door window control fuse -S37-
