Volkswagen Fox (2009-2012) Fuse Box Diagrams and Locations

Looking for Volkswagen Fox fuse box diagrams? This article covers the subcompact Volkswagen Fox (also known as VW Crossfox), available from 2009, and includes fuse box diagrams for Volkswagen Fox 2009, 2010, 2011 and 2012, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout), making it easier to identify circuits and handle electrical checks.

Engine Compartment

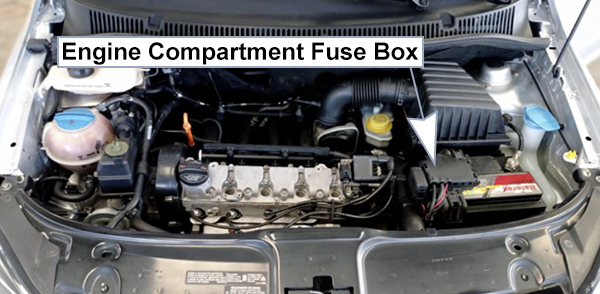

Fuse Box Location

Fuse Box Diagram

To February 2011

Manual Gearbox

High Voltage Fuses

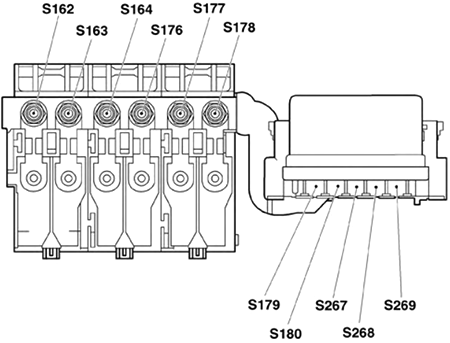

Assignment of the high voltage fuses in engine compartment (Manual Gearbox)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
S162	175A	Alternator – C- Voltage regulator -C1-
S163	110A	Terminal 30 wiring junction -TV2-
S164	40A	Radiator fan 2nd speed relay -J101-
S176	40A	ABS control unit – J104-
S177	–	–
S178	–	–
S179	25A	ABS control unit -J104-
S180	30A	Voltage supply relay 1 -J701-
S267	–	–
S268	15A	Engine control unit -J623-
S269	–	–

Auto Gearbox

High Voltage Fuses

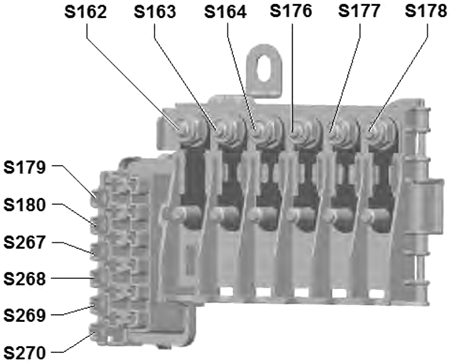

Assignment of the high voltage fuses in engine compartment (Automatic Gearbox)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
S162	150A	Alternator -C- Voltage regulator -C1-
S163	110A	Terminal 30 wiring junction -TV2-
S164	–	Empty
S176	40A	ABS control unit -J104-
S177	40A	Radiator fan 2nd speed relay -J101-
S178	–	Empty
S179	25A	ABS control unit -J104-
S180	30A	Voltage supply relay 1 -J701-
S267	5A	Engine control unit -J623-
S268	–	Empty
S269	5A	Automatic gearbox control unit -J217-
S270	5A	Hydraulic pump for gearbox – V387-

From February 2011

High Voltage Fuses

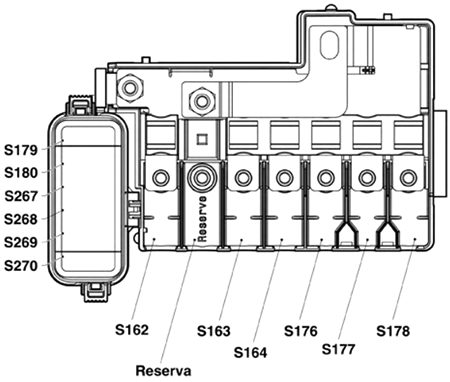

Assignment of the high voltage fuses in engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
S162	175A	Alternator -C- Voltage regulator -C1-
S163	110A	Terminal 30 wiring junction -TV2-
S164	40A	Radiator fan 2nd speed relay -J101-
S176	–	–
S177	40A	ABS control unit -J104-
S178	–	–
S179	30A	Hydraulic pump for gearbox -V387-
S180	10A	Automatic gearbox control unit -J217-
S267	–	–
S268	15A	Engine control unit -J623-
S269	30A	Fresh air blower and radiator fan relay -J209-
S270	25A	ABS control unit -J104-

Passenger Compartment

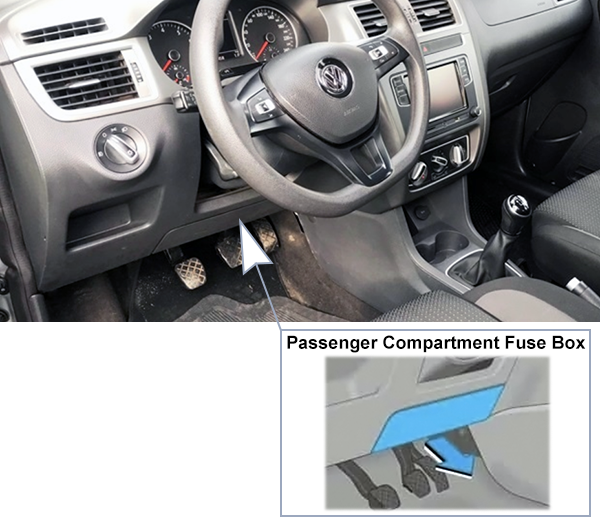

Fuse Box Location

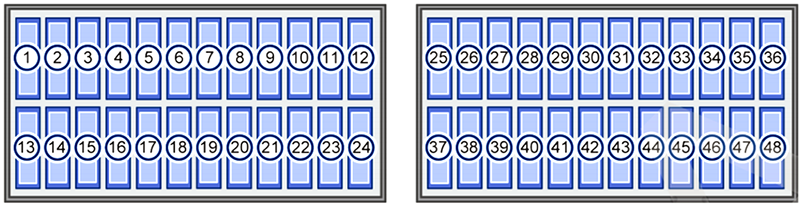

Fuse Box Digram

Fuses

Assignment of the fuses in passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
SC1	10A	Left main beam headlight and fog light bulb -M94-
SC2	5A	Control unit in dash panel insert -J285- Convenience system central control unit -J393- Radio -R-
SC3	10A	Right main beam headlight and fog light bulb -M95-
SC4	5A	Rear lid release switch -E165- Spare wheel release button -E405-
SC5	20A	Radio -R-
SC6	20A	Heated rear window control relay -J48-
SC7	5A	Front and rear fog light switch -E23- Front and rear fog light switch illumination bulb -140- Fog light relay -J5-
SC8	20A	Sliding sunroof adjustment control unit -J245-
SC9	10A	Automatic gearbox control unit -J217-
SC10	–	Empty
SC11	10A	Turn signal switch -E2- Hazard warning light switch -E3- Indicator lamp for hazard warning light -K6- Right turn signal warning lamp -K94- Front right turn signal bulb -M7- Rear right turn signal bulb -MS- Front passenger side turn signal repeater bulb -L132-
SC12	10A	Turn signal switch -E2- Hazard warning light switch -E3- Indicator lamp for hazard warning light -K6- Left turn signal warning lamp -K65- Front left turn signal bulb -MS- Rear left turn signal bulb -M6- Driver side turn signal repeater bulb -L131-
SC13	5A	Selector lever sensors control unit -J587-
SC14	5A	Mirror adjustment changeover switch -E48- Rear lid release switch -E165- Spare wheel release button -E405- Folding exterior mirror control unit -J351- Convenience system central control unit -J393- Front passenger side mirror adjustment motor 2 -V25-
SC15	25A	Air conditioning system switch-off relay -J365-
SC16	25A	Convenience system central control unit -J393-
SC17	5A	Front and rear fog light switch -E23- Front and rear fog light switch illumination bulb -L40-
SC18	10A	Rear window wiper motor -V12-
SC19	5A	Selector lever sensors control unit -J587-
SC20	15A	12 V socket 2 -U18- Socket illumination bulb -L42-
SC21	5A	Airbag coil connector and return ring with slip ring -F138-
SC22	30A	Convenience system central control unit -J393- (as of December 2009)
SC23	5A	ABS control unit -J104-
SC24	10A	ABS control unit -J104-
SB25	10A	Hazard warning light switch -E3- Indicator lamp for hazard warning light -K6-
SB26	10A	Voltage supply relay 1 -J701-
SB27	15A	Interior light rear switch -E6- Indicator lamp for hazard warning light -K6- Fitting connector, 16-pole, in diagnosis -T16a-
SB28	5A	Control unit in dash panel insert -J285- Air conditioning system control unit -J301-
SB29	15A	Intermittent wiper switch -E22- Automatic intermittent wash and wipe relay -J31- Windscreen wiper motor -V- Automatic intermittent wash and wipe control unit -J932-
SB30	5A	Engine control unit -J623-
SB31	5A	Left side light bulb -M1- Right tail light bulb -M2- Right side light bulb -M3-
SB32	5A	Number plate light -X-Hazard warning light switch -E3- Indicator lamp for hazard warning light -K6- Control unit for lighting and wiper functions -J917- Dash panel insert -K-
SB33	15A	Fuel gauge sender -G- Fuel system pressurisation pump -G6-
SB34	10A	Cold start valve -N17- Activated charcoal filter solenoid valve 1 -N80- Cold start device relay -J41-
SB35	10A/15A)	Left headlight main beam bulb -M30- Left headlight twin filament bulb -L1- Main beam warning lamp -K1- Right headlight twin filament bulb -L2- (as of May 2011) Right headlight main beam bulb -M32- (as of May 2011)
SB36	10A	Left headlight dipped beam bulb -M29- Left headlight twin filament bulb -L1 –
SB37	10A	Reversing light switch -F4-
SB38	5A	Fuel pump relay -J17- Cold start device relay -J41- Control unit in dash panel insert -J285- Air conditioning system switch-off relay -J365- Parking aid control unit -J446- Clutch pedal switch -F36- Brake pedal switch -F47- Speedometer sender -G22- High-pressure sender -G65- Left ultrasonic sensor for anti-theft alarm system -G170- Glove compartment light -W6- Heated rear window button -E230-
SB39	10A	Front interior light -W1- Luggage compartment light -W3- Rear left reading light -W11- Rear right reading light -W12- Front passenger side illuminated vanity mirror -W14- Driver side illuminated vanity mirror -W20- Folding exterior mirror control unit -J351- Fresh air and air recirculation flap control motor -V154-
SB40	10A	Brake light switch -F-
SB41	10A	Horn or dual tone horn -H1- Dual tone horn relay -J4-
SB42	25A	Fresh air blower switch -E9- Air conditioning system control unit -J301- Fresh air and air recirculation flap control motor -V154-
SB43	5A	Left side light bulb -M1- Right side light bulb -M3- Left tail light bulb -M4-
SB44	10A	Injector, cylinder 1 -N30- Injector, cylinder 2 -N31- Injector, cylinder 3 -N32- Injector, cylinder 4 -N33-
SB45	10A	Lambda Probe -G39- Lambda probe after catalytic converter -G130-
SB46	10A	Right headlight twin filament bulb -L2- (until May, 2011) Right headlight main beam bulb -M32- (until May, 2011) Empty (as of May, 2011)
SB47	10A	Right headlight twin filament bulb -L2- Right headlight main beam bulb -M31-
SB48	20A	12 V socket -U5- Socket illumination bulb -L42- X-contact relief relay -J59-

Relays

Relay Box Location and Diagram (1)

To October 2011

Relay panel is located to the left side under the dashboard.

Relays

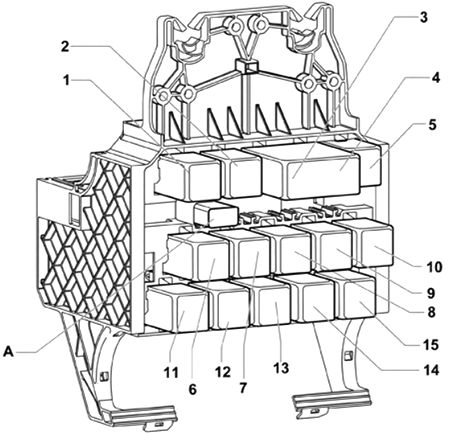

Assignment of the relays under the dashboard (until October 2011)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Air conditioning system switch-off relay (Black)
2	Cold start device relay (Black)
3 – 4	Folding exterior mirror control unit (Dark-grey)
5	Voltage supply relay 1 (1.0L Total Flex engine, Grey) / Fog light relay (CROSS vehicles, Blue)
6	Heated rear window control relay (Blue)
7	Automatic intermittent wash and wipe relay (Red)
8	X-contact relief relay (Grey)
9	Fresh air blower and radiator fan relay (Black)
10	Radiator fan 2nd speed relay (Black)
11	Fuel pump relay (Black)
12	Dual tone horn relay (Black)
13	X contact relief relay 2 (Blue)
14	Headlight main beam relay (Black) / Automatic intermittent wash and wipe control unit (with rain/sunlight sensor, Dark-grey)
15	Dipped beam relay (Black) / Automatic intermittent wash and wipe control unit (with rain/sunlight sensor, Dark-grey)
A	up to Dec 2009: Window regulator thermal fuse (Yellow)

From October 2011

Relays

Assignment of the relays under the dashboard (from October 2011)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1a	Air conditioning system switch-off relay (Grey)
1b	X contact relief relay 2 (Black)
2	Starter motor relay (Black)
3 – 4	Folding exterior mirror control unit (Black)
5	Voltage supply relay 1 (1.0L Total Flex engine, Grey) / Fog light relay (CROSS vehicles, Blue)
6	Heated rear window control relay (Blue)
7	Gearbox hydraulic pump relay (Black)
8	X-contact relief relay (Grey)
9	Fresh air blower and radiator fan relay (Black)
10	Radiator fan 2nd speed relay (Black)
11	Fuel pump relay (Black)
12a	Dual tone horn relay (Grey)
12b	Cold start device relay (Black)
13	Starter motor relay 2 (Black)
14a	Dipped beam relay (Grey)
14b	Headlight main beam relay (Grey)
15	Automatic intermittent wash and wipe relay (Red)

Relay Box Location and Diagram (2)

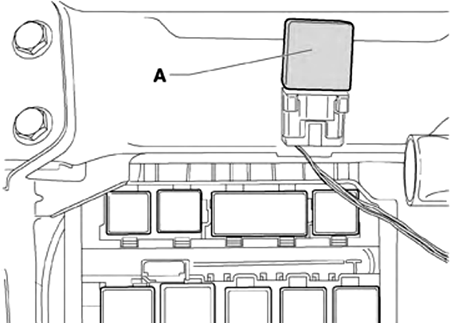

Single relay holder above the relay box.

Relay

Assignment of the single relay above the relay box

Fuse Data

Full access is available to registered users — log in or register.

ID.	Description
A	Hazard warning light relay -J2- Colour: Yellow

Relay Box Location and Diagram (3)

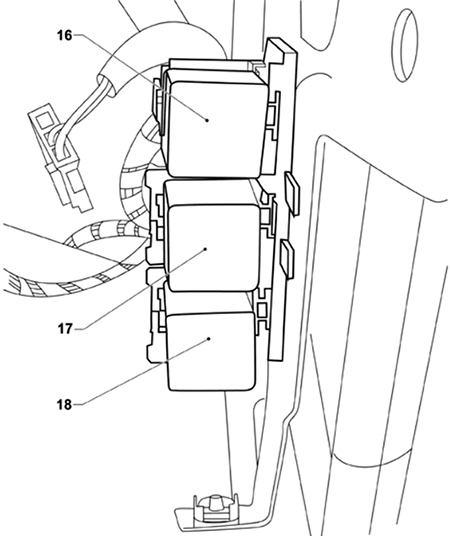

On the passenger side behind the glove compartment.

Relays

Assignment of the relays behind the glove compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
16	Starter motor relay -J53- Colour: Black
17	Starter motor relay 2 -J695- Colour: Black
18	Gearbox hydraulic pump relay -J510- Colour: Black
