Volkswagen Fox (2013-2015) Fuse Box Diagrams and Locations

Looking for Volkswagen Fox fuse box diagrams? This article covers the Volkswagen Fox, available from 2013, and includes fuse box diagrams for Volkswagen Fox 2013, 2014 and 2015, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout), helping you quickly identify circuits and handle basic electrical troubleshooting.

What’s Included

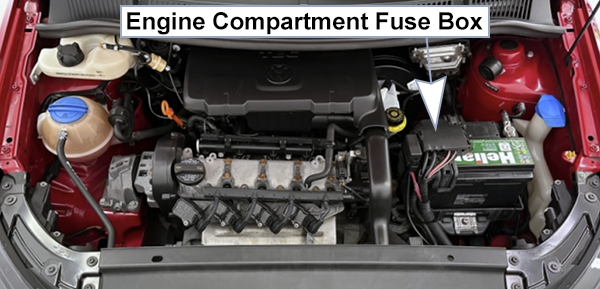

Engine Compartment

Fuse Box Location

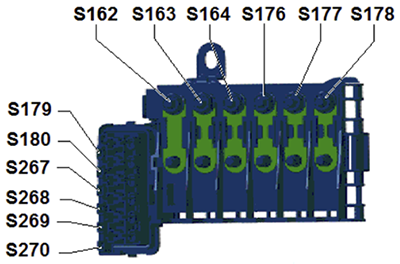

Fuse Box Diagram

High Voltage Fuses

Assignment of the high voltage fuses in engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
S162	175A	Generator (Alternator) -C- Voltage regulator -C1-
S163	110A	Cable connections for terminal 30 -TV2-
S164	40A	Radiator fan’s 2nd speed relay -J101-
S176	50A	Electric-power steering wheel motor -V235-
S177	40A	ABS control unit -J104-
S178	–	Empty

Fuses

Assignment of the fuses in engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
S179	30A	Gearbox hydraulic pump -V387-
S180	10A	Automatic gearbox control unit -J217-
S267	5A	Onboard network control unit -J519-
S268	–	Empty
S269	30A	Radiator fan and natural air fan relay -J209-
S270	25A	ABS control unit -J104-

Engine Compartment (Relay)

Location and Diagram

Relay

Assignment of the relay in engine compartment

Fuse Data

Full access is available to registered users — log in or register.

ID.	Description
A	Spark plugs relay -J52-; Colour: Black

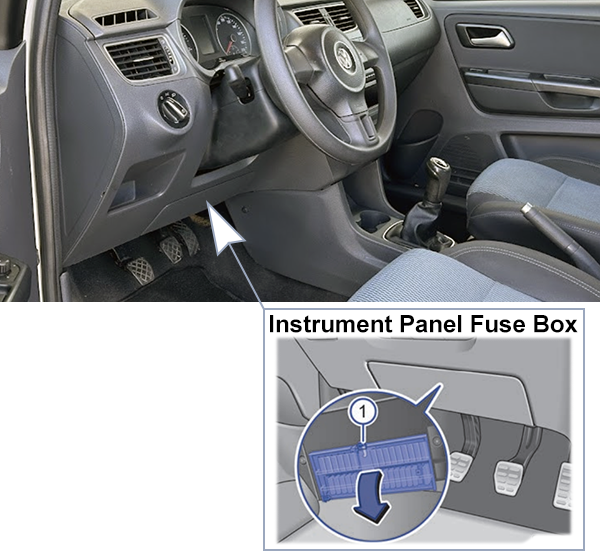

Dashboard (Driver’s Side)

Fuse Box Location

Open: press the locking lever (1) until the cover opens. Fold the cover down.
Close: fold the cover in the opposite direction of the arrow until it locks audibly on the locking lever.

Fuse Box Diagram

Fuses

Assignment of the fuses in passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	15A	Onboard network control unit (Fog lights), Fog lights switch
2	5A	Onboard network control unit
3	15A	Relay 2 for long-range headlights
4	15A	Alarm horn relay
5	20A	Radio
6	20A	Onboard network control unit (Rear window defogger)
7	10A	Airbag control unit
8	20A	Sunroof movement control unit
9	10A	Automatic gearbox control unit
10	5A	Electric-hydraulic motor housing control unit
11	5A	Fog lights switch
12	–	Not Assigned
13	5A	Selector lever sensors control unit
14	5A	External side mirror folding control unit
15	25A	Air conditioning system cut-off relay, Power output 2 (12V)
16	25A	Onboard network control unit (Central locking system)
17	5A	Light switch
18	10A	Rear window wiper motor
19	5A	Selector lever sensors control unit
20	15A	Power output 2 (12V)
21	5A	Contact of the airbag coil and return spring with slip ring
22	30A	Central control unit for window control
23	15A (BFM) 25A (BCM)	Ignition coils 1-3 with final power stage, Ignition transformer
24	10A	ABS control unit
25	20A	Onboard network control unit (Brakes)
26	10A	Windscreen wiper delay relay switch (intermittent operation)
27	5A	Fitting connector, 16-pole, in diagnosis
28	5A	External side mirror folding control unit, Engine control unit, Voltage input relay 1, Fuel pump relay
29	15A	Onboard network control unit (Windscreen washer, wiper)
30	15A	Engine control unit
31	5A	Onboard network control unit (Right side lights), Rear right lamp, Front right side lamp
32	5A	Onboard network control unit (License plate), License plate light, Instrument cluster
33	15A	Fuel pump (pre-input pump)
34	10A	Spark plugs relay, Heating system control unit
35	15A	Sealed left and right headlight double-filament lamps, Front left and right side lamps, Instrument cluster
36	10A (BFM) 25A (BCM)	Onboard network control unit (Left low beam), Sealed left headlight double-filament lamp
37	10A	Reverse gear light switch
38	10A	Glove compartment light, Internal rearview mirror with automatic anti-glare feature, Parking assist control unit, Instrument cluster
39	10A	Alarm system ultrasound sensors, Rain sensor and photodetector, Onboard network control unit (Side mirror folding), Boot light, Rear left and right reading lights, Lighted passenger and driver vanity mirrors
40	10A	Onboard network control unit
41	10A	Onboard network control unit (Horn)
42	25A	Natural air fan switch, Air conditioning control unit
43	5A	Front left side lamp, Rear left lamp, Onboard network control unit (Left side lights)
44	10A	Clutch pedal switch, Brake pedal switch, Cold start valve
45	10A	Lambda Probes (before and after catalytic converter), Magnetic valve 1 for the activated charcoal reservoir
46	–	Not Assigned
47	10A (BFM) 25A (BCM)	Onboard network control unit (Right low beam), Sealed right headlight double-filament lamp
48	15A (12V outlet) 25A (lighter)	Headlights relay, Relief relay for contact X, Fog lights switch

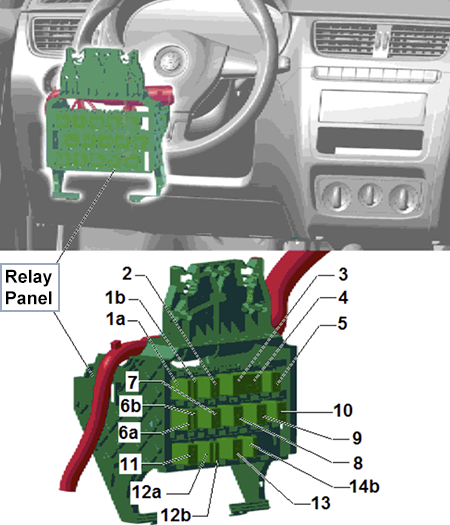

Relays

Assignment of the relays in passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1a	Air conditioning system cut-off relay (Gray)
1b	Relief relay 2 of contact X (Black)
2	Starter relay (Black)
3	External side mirror folding control unit (Black)
4	External side mirror folding control unit (Black)
5	Voltage input relay 1: Gray: CSEA, CFZA, and CCRA engines Black: CPBA engine
6a	Alarm horn relay (Gray)
6b	Relay 2 for long-range headlights (Black)
7	Gearbox hydraulic pump relay (Light-green)
8	Relief relay for contact X (Light-green)
9	Radiator fan and natural air fan relay (Black)
10	Radiator fan’s 2nd speed relay (Black)
11	Fuel pump relay (Black)
12a	Cold start device relay (Gray)
12b	Fog lights relay (Black)
13	Relief relay of terminal 15 (Black)
14b	Headlights relay (Gray)

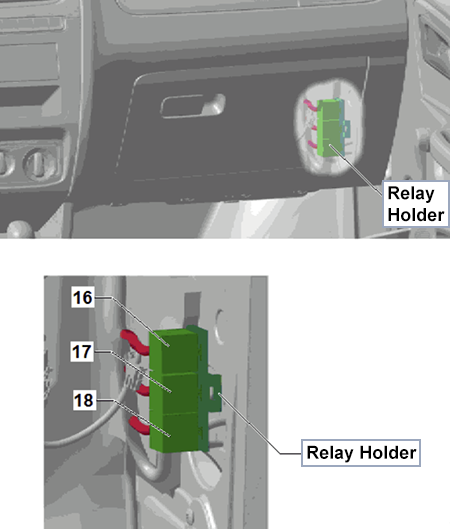

Dashboard (Passenger’s Side)

Location and Diagram

Relay

Assignment of the relay in passenger compartment (Passenger’s side)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
17	Starter relay 2 -J695-; Colour: Black
