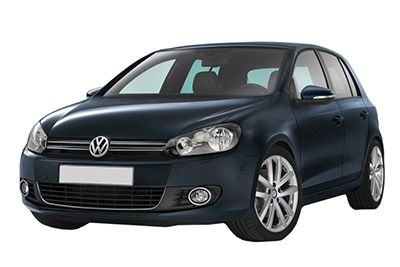

Volkswagen Golf (2009-2013)

Looking for Volkswagen Golf fuse box diagrams? This article covers the sixth-generation Volkswagen Golf (Model Code: 5K), available from 2009, and includes fuse box diagrams for Volkswagen Golf (Mk6) 2009, 2010, 2011, 2012 and 2013, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Engine Compartment

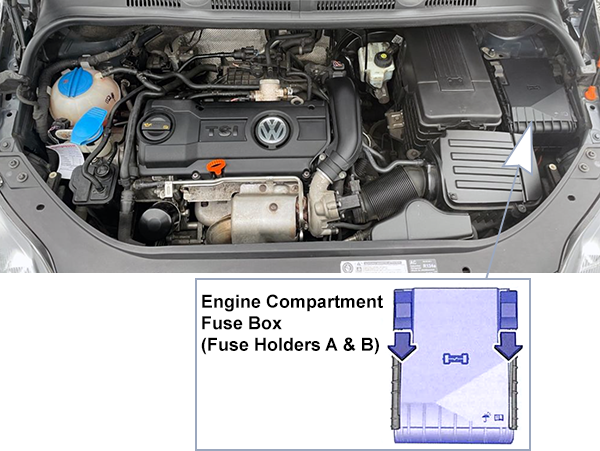

Fuse Box Location (SA, SB)

Opening the fuse box in the engine compartment:

  1. Slide the release buttons forward in the direction of the arrows to unlock the fuse box cover.
  2. Remove the cover upward.
  3. To install, place the cover on the fuse box. Slide release buttons backward against the direction of the arrows until they latch with an audible “click”.

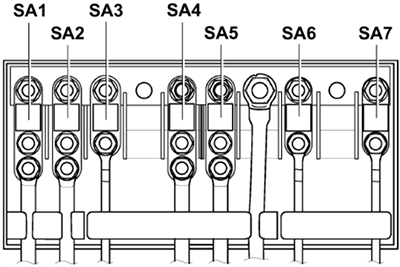

Fuse Box Diagram (SA) V1

High Voltage Fuses

Assignment of the high voltage fuses in engine compartment (SA) Version 1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1150A
200A		Standard: Generator (150A for 90A/140A, 200A for 140A)
Golf Blue-E-Motion: Electric drive power and control electronics (200A)
SA280APower steering control module, Electromechanical power steering motor
SA350ACoolant fan control module, Coolant fan (Coolant fan 2 on standard models)
SA430A
80A
–		Standard: High heat output relay (80A), Natural gas operation control module (30A, engine code CHGA)
Golf Blue-E-Motion: Not Assigned
SA580ATerminal 30, interior fuse box
SA640A
80A		Standard: Low heat output relay (40A)
Golf Blue-E-Motion: Terminal 30, interior fuse box (80A)
SA7––

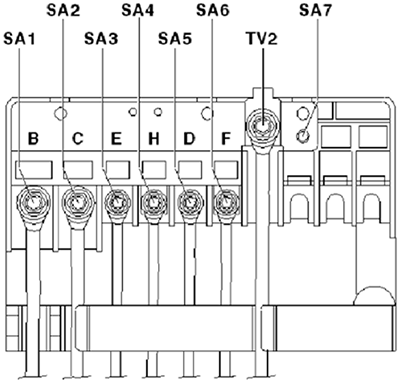

Fuse Box Diagram (SA) V2

High Voltage Fuses

Assignment of the high voltage fuses in engine compartment (SA) Version 2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1150AGenerator -C- (90A/140A)
200AGenerator -C- (140A)
SA280APower steering control module -J500-
Electromechanical power steering motor -V187-
SA350ACoolant fan control module -J293-
Coolant fan -V7-
Coolant fan 2 -V177-
SA480A–
SA580ATerminal 30, interior fuse box
SA6––
SA7––

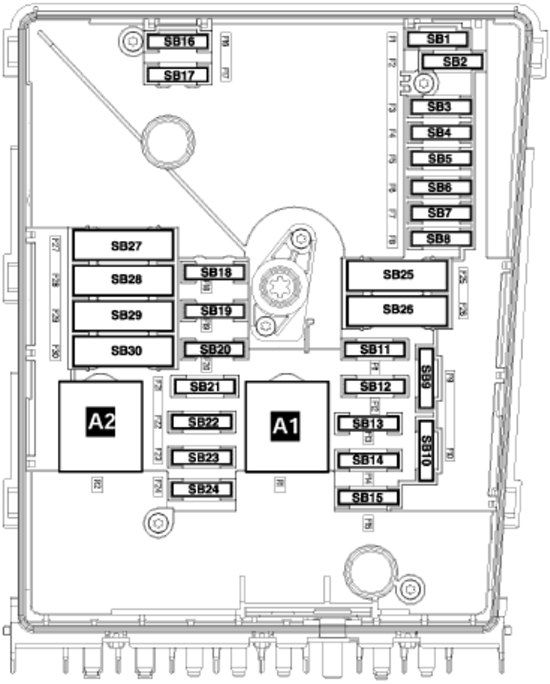

Fuse Box Diagram (SB) V1

Fuses

Assignment of the fuses in engine compartment (SB) Version 1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB130A
20A		Standard: Windshield wiper motor (up to Oct 2009)
Golf Blue-E-Motion: Structure borne sound control module (20A)
SB230A
–		Standard: DSG transmission Mechatronic, Engine component power supply relay (engine code CBFA from Nov 2009)
Golf Blue-E-Motion: Not Assigned
SB35A
20A		Standard: Vehicle electrical system control module (5A up to Oct 2009, 20A from Nov 2009), Battery monitoring control module (Stop/Start from Nov 2009)
Golf Blue-E-Motion: Vehicle electrical system control module, Battery monitoring control module (20A)
SB420A
30A		Standard: ABS control module (20A up to Oct 2009, 30A from Nov 2009)
Golf Blue-E-Motion: ABS control module (30A)
SB515A
–		Standard: DSG transmission Mechatronic
Golf Blue-E-Motion: Not Assigned
SB65AInstrument cluster control module, Steering column electronics control module
SB740ATerminal 15 power supply relay
SB815A / 25A (20A from May 2011)Radio, TV tuner (from Nov 2009), Radio/navigation display unit control module, Voltage stabilizer
SB95ATelephone transceiver (up to Oct 2009) / Cell phone operating electronics control module
SB1010A / 5A
–		Standard: Engine control module, Terminal 30 power supply relay (from Nov 2009), Motronic engine control module power supply relay
Golf Blue-E-Motion: Not Assigned
SB1120A
–		Standard: Auxiliary heater relay (up to Oct 2009), Auxiliary heater control module
Golf Blue-E-Motion: Not Assigned
SB125AData bus on board diagnostic interface
SB1315A / 30AEngine control module
SB1420A
25A		Standard: Transfer fuel pump (up to Oct 2009), Ignition Coils 1-4 with power output stage, Ignition coil (engine code CHGA from Nov 2009), Fuel pressure regulator valve (from May 2011), Fuel metering valve (from May 2011) (20A)
Golf Blue-E-Motion: Vacuum pump relay, Brake booster vacuum pump (25A)
SB155A / 10A / 15AStandard: Oxygen sensor heater, Fuel pump relays, High/Low heat output relays, Automatic glow time control module, Leak detection pump, Radiator identification sensor, Heater for oxygen sensors, Cylinder 1-4 fuel injectors
Golf Blue-E-Motion: Coolant pump in front of electric drive power and control electronics (10A)
SB1630AVehicle electrical system control module (terminal 30 right), Right front/rear turn signal bulbs, Right brake lamp bulb, Right tail lamp bulb, Right side marker lamp bulb, Right back-up lamp bulb, Right low/high beam headlamp bulbs, Right fog lamp bulb
SB1715ADual tone horn relay, Low/High tone horns
SB1830AAmplifier, Special purpose vehicle control module
SB1930AWindshield wiper motor, Driver windshield wiper motor, Wiper motor control module
SB2010A / 20A
–		Standard: Coolant recirculation pump, After-run coolant pump (up to Oct 2009), Fuel pressure regulator valve (from Nov 2009)
Golf Blue-E-Motion: Not Assigned
SB2110A / 15A / 20AStandard: Oxygen sensor heaters, Front passenger door central locking system motor, Compressor magnetic clutch, Brake system vacuum pump
Golf Blue-E-Motion: Heater coolant shut-off valve, High voltage battery coolant shut-off valve (10A)
SB225AClutch position sensor, Brake lamp switch
SB235A / 10A / 15A
–		Standard: Wastegate bypass regulator valve, EVAP canister purge regulator valve 1 (up to Oct 2009), Turbocharger recirculation valve, Secondary air injection solenoid valve, Leak detection pump, Fuel pressure regulator valve, Secondary air pump relay, Engine component power supply relay, Coolant circulation pump relay, Auxiliary coolant pump relay
Golf Blue-E-Motion: Not Assigned
SB2410A
5A		Standard: Secondary air injection pump relay (up to Oct 2009), Cylinder 1-4 fuel injectors (up to Oct 2009), Camshaft adjustment valve 1, Coolant fan, EVAP canister purge regulator valve 1, Intake manifold tuning valve, Throttle valve control module, Auxiliary coolant pump relay, Oil pressure regulation valve, Wastegate bypass regulator valve, Intake manifold runner control valve, Secondary air injection solenoid valve, Turbocharger recirculation valve (10A)
Golf Blue-E-Motion: Coolant fan control module (5A)
SB2540AABS control module, ABS hydraulic pump
SB2630AVehicle electrical system control module (terminal 30 left), Left sidemarker lamp bulb, Left front/rear turn signal bulbs, Left tail lamp bulb, Left brake lamp bulb, Left low/high beam headlamp bulbs, Left back-up lamp bulb, Left front/rear fog lamp bulbs
SB2740A / 50A
60A		Standard: Automatic glow time control module, Secondary air injection pump motor
Golf Blue-E-Motion: Windshield Heater Relay (60A)
SB2830A / 40A
–		Standard: Terminal 15 power supply relay 2, Terminal 15 power supply relay (up to Oct 2009)
Standard & Golf Blue-E-Motion: Not Assigned (from Nov 2009)
SB2950AFuse 32 on fuse panel C, Driver power seat adjustment circuit breaker
SB3050ALoad reduction relay

Relays

Assignment of the relays in engine compartment (SB) Version 1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
A1Terminal 30 power supply relay, Motronic engine control module power supply relay
A2Standard: Secondary air pump relay, Connection bridge (diesel)
Golf Blue-E-Motion: Connection bridge

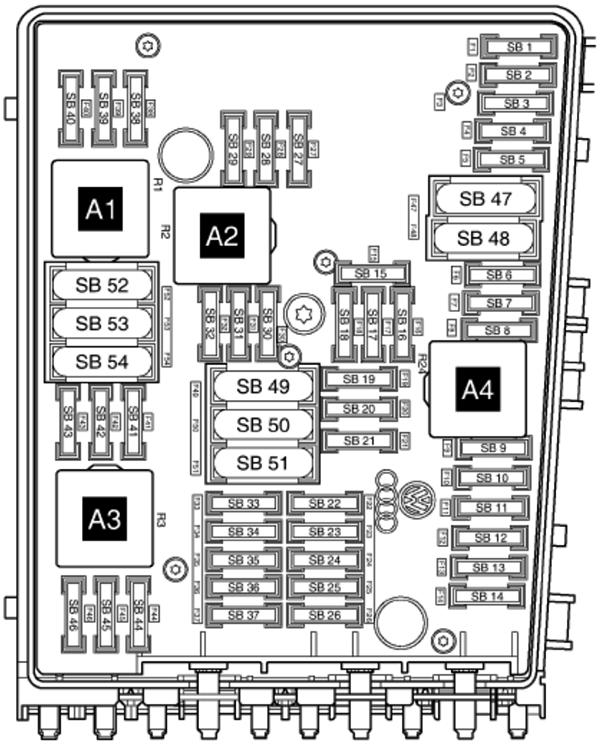

Fuse Box Diagram (SB) V2

Fuses

Assignment of the fuses in engine compartment (SB) Version 2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB130AVehicle electrical system control module -J519-
SB220AABS control module -J104-
SB3–Not used
SB45AVehicle electrical system control module -J519-
Battery monitoring control module -J367-
SB515ASignal horn and dual tone horn -H1-
SB6–Not used
SB715AFuel pressure regulator valve -N276-
SB8–Not used
SB910AWastegate bypass regulator valve -N75-
EVAP canister purge regulator valve 1 -N80-
Turbocharger recirculation valve -N249-
SB1010AMass airflow sensor -G70-
Leak detection pump -V144-
SB1110AOxygen sensor heater -Z19-
SB1210AHeater for oxygen sensor 1 after catalytic converter -Z29-
Heater for oxygen sensor 2 after catalytic converter -Z30-
SB1315ADSG transmission Mechatronic -J743-
SB14–Not used
SB1510ACoolant recirculation pump -V50-
After-run coolant pump -V51-
SB16–Not used
SB175AInstrument cluster control module -J285-
Steering column electronics control module -J527-
Fuse 47 on fuse panel C -SC47-
SB1830AAmplifier -R12-
SB1915ARadio -R-
Radio/navigation display unit control module -J503-
Fuse 28 on ofuse panel C -SC28-
SB205AAuxiliary heater radio receiver -R64-
Cell phone operating electronics control module -J412-
20ACoolant recirculation pump -V50-
SB21–Not used
SB22–Not used
SB2310AEngine control module -J623-
Motronic engine control module power supply relay -J271-
SB245AData bus on board diagnostic interface -J533-
SB25–Not used
SB26–Not used
SB275AExhaust door valve 1 -N321-
SB2815AEngine control module -J623-
SB295AAuxiliary coolant pump relay -J496-
Clutch position sensor -G476-
SB305AAuxiliary heater radio receiver -R64-
SB3130AWindshield wiper motor -V-
SB32–Not used
SB33–Not used
SB34–Not used
SB35–Not used
SB36–Not used
SB37–Not used
SB3810ACamshaft adjustment valve 1 -N205-
Coolant fan control module -J293-
Coolant fan -V7-
SB395AClutch position sensor -G476-
Brake lamp switch -F-
SB4020AIgnition coil 1 with power output stage -N70-
Ignition coil 2 with power output stage -N127-
Ignition coil 3 with power output stage -N291-
Ignition coil 4 with power output stage -N292-
SB41–Not used
SB425AEngine component power supply relay -J757-
SB43–Not used
SB44–Not used
SB45–Not used
SB46–Not used
SB4730AVehicle electrical system control module -J519-
SB4840AABS control module -J104-
SB4940ATerminal 15 power supply relay 2 -J681-
Fuel pump control module -J538-
Terminal 15 power supply relay -J329-
SB50–Not used
SB51–Not used
SB5250ALoad reduction relay -J59-
SB5350AFuse 32 on fuse panel C -SC32 –
SB54–Not used

Relays

Assignment of the relays in engine compartment (SB) Version 2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
A1Motronic engine control module power supply relay -J271-
A2Auxiliary coolant pump relay -J496-
A3–
A4Engine component current supply relay -J757- (167)

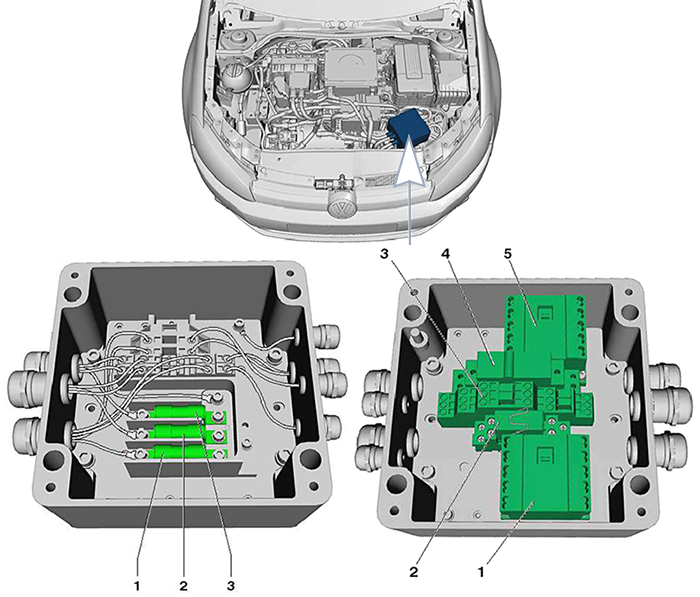

Fuse Box Location and Diagram (SF)

Golf Blue-E-Motion

Fuses

Assignment of the fuses in engine compartment (SF) Golf Blue-E-Motion

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SF120ACharger 1 for high-voltage battery -AX4-
SF220ACharger 2 for high-voltage battery -AX5-
SF320ACharger 3 for high-voltage battery -AX6-

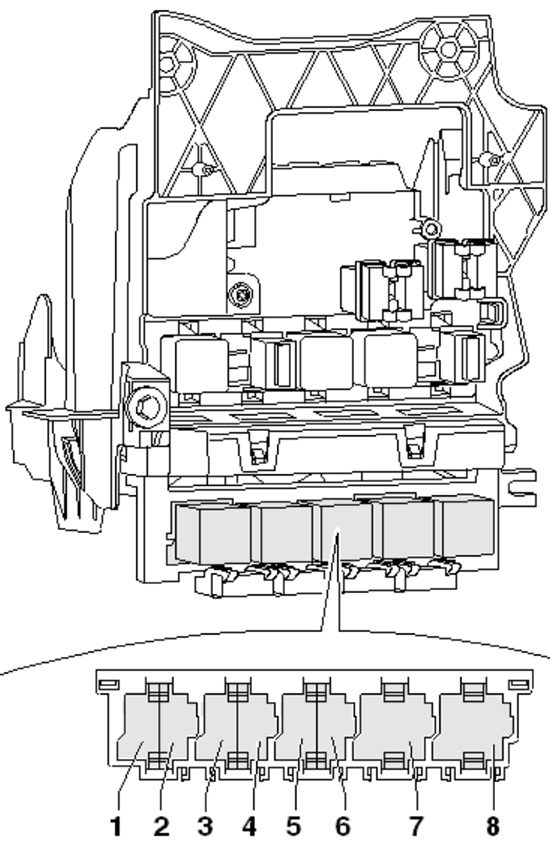

Relays

Assignment of the relays in engine compartment (SF) Golf Blue-E-Motion

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1High voltage charging socket 2 relay -J972- K2
2High voltage charging socket activation relay -J973-
3Wire junction -TV1 -, neutral conductor wire junction -TV50-, ground wire junction -TV51-
4Lock Relay -J771-
5High voltage charging socket 1 relay -J971- K1

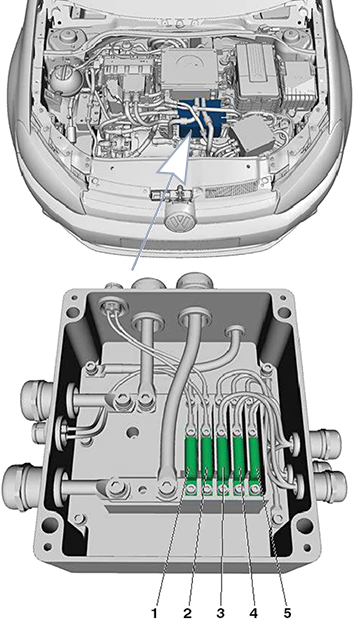

Fuse Box Location and Diagram (SD)

Golf Blue-E-Motion

Fuses

Assignment of the fuses in engine compartment (SD) Golf Blue-E-Motion

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SD130AElectrical A/C compressor -V470-
A/C compressor control module -J842-
SD230AHigh voltage heating system (PTC) -Z115-
SD320ACharger 1 for high-voltage battery -AX4-
SD420ACharger 2 for high-voltage battery -AX5-
SD520ACharger 3 for high-voltage battery -AX6-

Passenger Compartment

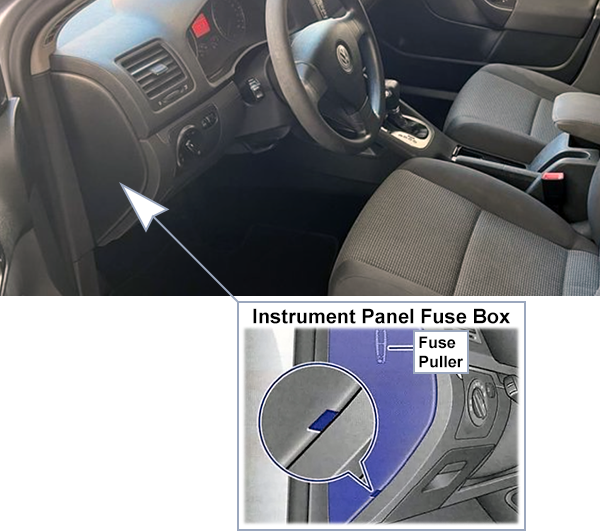

Fuse Box Location (SC)

Opening the fuse box in the instrument panel:

  1. Insert a flat object, such as a screwdriver from the vehicle tool kit, into the opening (magnified view) and carefully lift off the cover.
  2. To install, guide the cover from the bottom into the instrument panel and push until you can hear it latch into place.

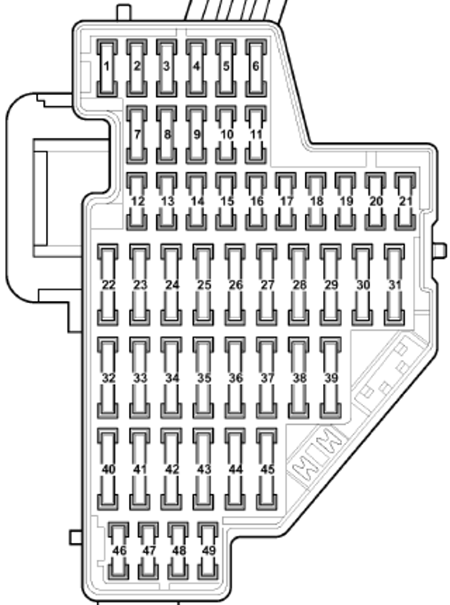

Fuse Box Diagram (SC)

Fuses

Assignment of the fuses in passenger compartment (SC)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC110AStandard: 16-pin connector (diagnostic connector), Instrument panel and switch illumination dimmer switch, Mass airflow sensor, Auxiliary heater operation relay, Electronic damping control module, Cornering lamp and headlamp range control module (up to Oct 2009), Headlamp range control module (from Nov 2009), Positive crankcase ventilation heating element, Left/Right headlamp beam adjustment motors, Adaptive cruise control sensor (up to Oct 2009), Distance regulation control module (from Nov 2009), Headlamp range control adjuster (from Nov 2009), Brake lamp switch, Parallel parking assistance control module, Structure-borne sound actuator (engine code CDLA from Nov 2009), Voltage stabilizer (Stop/Start from Nov 2009)
Golf Blue-E-Motion: 16-pin connector (diagnostic connector), Instrument panel and switch illumination dimmer switch, Left/Right headlamp beam adjustment motors, Headlamp range control adjuster, Parallel parking assistance control module, Cornering lamp and headlamp range control module
SC210AStandard: Light switch, Brake lamp switch, ABS control module, Instrument cluster control module, Towing recognition control module, Power steering control module, Data bus on board diagnostic interface, Fuel pump control module, Selector lever sensor system control module, Engine control module (up to Oct 2009 / gasoline from Nov 2009), DSG transmission Mechatronic, Voltage stabilizer (Stop/Start from Nov 2009), Fuel pump relay (engine codes CBTA/CBUA from Nov 2009), Driving program button (engine code CDLA from Nov 2009), Starter relays 1 & 2 (Stop/Start from Nov 2009), All wheel drive control module (from Nov 2009)
Golf Blue-E-Motion: 16-pin connector (diagnostic connector), Data bus on board diagnostic interface, Instrument cluster control module
SC35AAirbag control module
SC45A
5A / 10A		Standard: High pressure sensor, Oil level thermal sensor, Climatronic control unit (up to Oct 2009), Automatic dimming interior rearview mirror, Air quality sensor, Back-up lamp switch, ASR/ESP button, Heater/heat output switch, Garage door opener button 1, Tire pressure monitoring display button, Parallel parking assistance control module, Passenger occupant detection system control module (from Nov 2009), Automatic dimming interior rearview mirror switch (from Nov 2009), A/C system time delay relay (from Nov 2009), Airbag control module (from Nov 2009), Start/Stop mode button (Stop/Start from Nov 2009), Power steering control module (from Nov 2009), Parking aid control module (from May 2011)
Golf Blue-E-Motion: Air quality sensor, Parallel parking assistance control module, Tire pressure monitoring display button, Power steering control module (5A)
SC510A
–		Standard: Cornering lamp and headlamp range control module (right, from Nov 2009), Left headlamp power output stage (from May 2011)
Golf Blue-E-Motion: Right headlamp power output stage (10A)
SC610A
–		Standard: Cornering lamp and headlamp range control module (left, from Nov 2009), Right headlamp power output stage (from May 2011)
Golf Blue-E-Motion: Left headlamp power output stage (10A)
SC710A
–		Standard: Not Assigned
Golf Blue-E-Motion: Diagnostic connection (10A)
SC85A
–		Standard: Not Assigned
Golf Blue-E-Motion: Emergency button (5A)
SC95A
–		Standard: Not Assigned
Golf Blue-E-Motion: Not Assigned (5A)
SC105A
–		Standard: Not Assigned
Golf Blue-E-Motion: Heating and air conditioning control module (5A)
SC115A
–		Standard: Not Assigned
Golf Blue-E-Motion: Structure borne sound control module (5A)
SC1210A
–		Standard: Driver/Front passenger door control modules (central locking)
Golf Blue-E-Motion: Not Assigned
SC1310AStandard: Light switch, 16-pin connector (diagnostic connector), Rain/light recognition sensor, Rearview camera (up to Oct 2009), Rear window defogger relay (from Nov 2009), Fog lamp switch (from Nov 2009), Compass magnetic field sensor (from Nov 2009)
Golf Blue-E-Motion: Light switch, Rain/light recognition sensor, Rear window defogger relay, Fog lamp switch, 16-pin connector (diagnostic connector)
SC1410AStandard: Climatronic control unit, A/C control module, Selector lever sensor system control module (up to Apr 2011), Auxiliary engine coolant heater radio frequency receiver, Automatic transmission control module (from Nov 2009), Tiptronic switch (from Nov 2009), Vehicle electrical system control module (from Nov 2009), Selector lever park position lock switch (from May 2011), Heater/heat output switch (from May 2011), Selector lever (from May 2011)
Golf Blue-E-Motion: Climatronic control unit, Selector lever
SC1520AStandard: Vehicle electrical system control module (up to Oct 2009 / from May 2011), Left/Right rear door control modules (central locking) (from Nov 2009)
Golf Blue-E-Motion: Vehicle electrical system control module
SC165A
10A		Standard: Release button in rear lid handle (5A up to Oct 2009, 10A from Nov 2009), Rearview camera (from Nov 2009)
Golf Blue-E-Motion: High-voltage battery 2 (10A)
SC175A / 10AAlarm horn, Interior monitoring transceiver modules 1 & 2, Vehicle inclination sensor, Vehicle electrical system control module (from Nov 2009), Dual tone horn relay (from Nov 2009), Interior monitoring sensor (from May 2011)
SC185A
–		Standard: Not Assigned
Golf Blue-E-Motion: Indicator lamps (connections 1 & 2 for high voltage battery charger), High voltage battery charging voltage control module (5A)
SC195A
–		Standard: Special purpose vehicle control module (from Nov 2009), Engine speed decrease control module (from Nov 2009)
Golf Blue-E-Motion: Not Assigned
SC205A
20A
–		Standard: Access/start authorization control module (from May 2010), Voltage stabilizer (Stop/Start from May 2010)
Golf Blue-E-Motion: Emergency button, Terminal 30 power supply relay, Terminal 30 relay, Load enabling relay (5A)
SC2110A
–		Standard: Electronic steering column lock control module (from May 2010)
Golf Blue-E-Motion: Not Assigned
SC2240AFresh air blower control module, Fresh air blower (Golf Blue-E-Motion)
SC2330AStandard: Driver/Front passenger door control modules (up to Oct 2009), Driver/Front passenger door control modules (window regulator) (from Nov 2009), Left rear door control module (window regulator) (from May 2011)
Golf Blue-E-Motion: Front passenger/Left rear door control modules (window regulator)
SC2420AStandard: Left/Right rear door control modules (up to Oct 2009), Vehicle electrical system control module (from Nov 2009)
Golf Blue-E-Motion: Vehicle electrical system control module
SC2525AHeated rear window (auxiliary heater up to Oct 2009), Rear window defogger relay (from Nov 2009), Fresh air blower relay (from Nov 2009)
SC2630A
–		Standard: Left/Right rear door control modules (up to Oct 2009), Left/Right rear door control modules (window regulator) (from Nov 2009), Driver door control module (window regulator) (from May 2011)
Golf Blue-E-Motion: Driver/Left rear door control modules (window regulator)
SC2715A
–		Standard: Fuel pump control module, Fuel pump relay, Auxiliary fuel pump relay, Fuel primer relay (from Nov 2009)
Golf Blue-E-Motion: High voltage charge door lock relays 1 & 2 (USA)
SC2815A
–		Standard: Radio (Stop/Start from Nov 2009), TV tuner (Stop/Start from Nov 2009), Radio/navigation display unit control module (Stop/Start from Nov 2009), Voltage stabilizer (Stop/Start from May 2010)
Golf Blue-E-Motion: Not Assigned
SC29 – SC31––
SC3020A
–		Standard: Automatic transmission control module, DSG transmission Mechatronic
Golf Blue-E-Motion: Not Assigned
SC3120A
–		Standard: Brake system vacuum pump
Golf Blue-E-Motion: Not Assigned
SC3210A
30A		Standard: Converter with socket 12V-230V (30A), Special purpose vehicle control module (10A, from Nov 2009)
Golf Blue-E-Motion: High-voltage battery 1 (10A)
SC3325A
–		Standard: Power sunroof control module
Golf Blue-E-Motion: Not Assigned
SC3415AStandard: Driver/Front passenger seat lumbar support adjustment switches
Golf Blue-E-Motion: Heating and air conditioning control module
SC3510AStandard: Electronic damping control module
Golf Blue-E-Motion: High-voltage battery 1
SC3620A
–		Standard: Headlamp washer relay, Headlamp washer system pump
Golf Blue-E-Motion: Not Assigned
SC3730AFront seat heating control module
SC38 – SC3910A
–		Standard: Not Assigned
Golf Blue-E-Motion: Emergency button (10A)
SC4040A
–		Standard: A/C control module, Auxiliary heater operation relay, Heater/heat output switch (from Nov 2009)
Golf Blue-E-Motion: Not Assigned
SC4115ARear window wiper motor
SC4220ABlocking diode 2, Cigarette lighter, 12 V socket
SC4315A
–		Standard: Towing recognition control module
Golf Blue-E-Motion: Not Assigned
SC445A
20A		Standard: Towing recognition control module (20A)
Golf Blue-E-Motion: High voltage charging socket activation relay, Diagnostic connection (5A)
SC4510A
15A		Standard: Towing recognition control module (15A)
Golf Blue-E-Motion: Chargers 1, 2, 3 for high-voltage battery (10A)
SC4610A
–		Standard: Not Assigned
Golf Blue-E-Motion: Two-way radio (10A)
SC475A
–		Standard: Instrument cluster control module (Stop/Start from Nov 2009), Voltage stabilizer (Stop/Start from May 2010)
Golf Blue-E-Motion: Instrument cluster control module, Telematics control module (5A)
SC485A
10A
–		Standard: Compass magnetic field sensor (Stop/Start from Nov 2009), Cell phone operating electronics control module (Stop/Start from Nov 2009), Voltage stabilizer (from May 2010)
Golf Blue-E-Motion: High voltage charge door lock relays 1 & 2, Windshield Heater Relay (5A)
SC4915A
–		Standard: Not Assigned
Golf Blue-E-Motion: Engine coolant pump relay (15A)

Relays

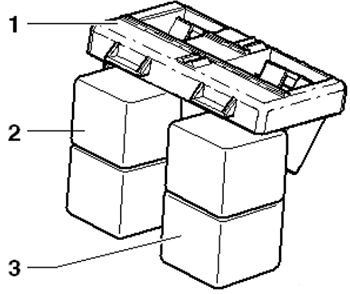

Auxiliary Relay Panel (Under E-Box)

Relays

Assignment of the relays in passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Auxiliary Relay Carrier under Electronics Box, in engine compartment, left
2Automatic glow time control module -J179- (457)

Auxiliary Relay Panel (Under E-Box) Blue-E-Motion

Relays

Assignment of the relays in passenger compartment (Blue-E-Motion)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Auxiliary Relay Carrier under Electronics Box, in engine compartment, left
2Vacuum pump relay -J318-
3Windshield Heater Relay -J47-

Relays under dashboard (Driver’s side)

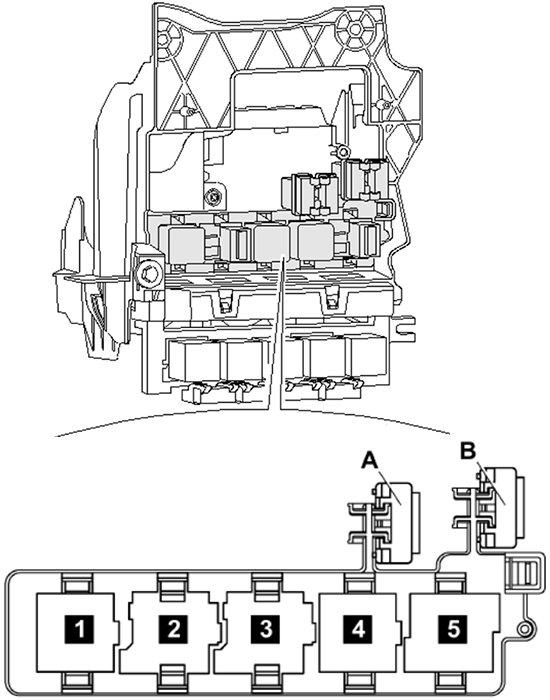

Upper part (To October 2009)

Relays

Assignment of the relays under dashboard (Upper part to October 2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Terminal 15 power supply relay -J329- (643)
2Load reduction relay -J59- (53)
3/1Dual tone horn relay -J4- (449)
3/2Headlamp washer system relay -J39- (449)
4Rear window defogger relay -J9- (53)
5Terminal 50 power supply relay -J682- (643)
ADriver power seat adjustment circuit breaker 1 -S44-
B–

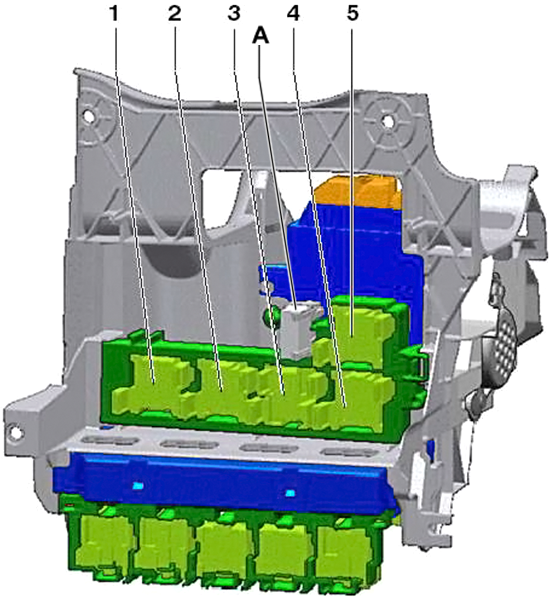

Upper part (From November 2009)

Relays

Assignment of the relays under dashboard (Upper part From November 2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Terminal 15 power supply relay -J329- (645)
2Load reduction relay -J59- (644)
3Dual tone horn relay -J4- (646)
Headlamp washer system relay -J39- (646)
4Rear window defogger relay -J9- (645)
5Terminal 50 power supply relay -J682- (645)1
Starter relay 1 -J906- (645)2
ADriver power seat adjustment circuit breaker 1 -S44-

Lower part (To October 2009)

Relays

Assignment of the relays under dashboard (Lower part to October 2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Fuel pump relay 2 -J49-
2Coolant circulation pump relay -J151-
3Fuel primer relay -J643-
4Fuel pump relay -J17-
5Low heat output relay -J359-
6Auxiliary heater operation relay -J485-
7High heat output relay -J360-
8Fresh air blower relay -J13-

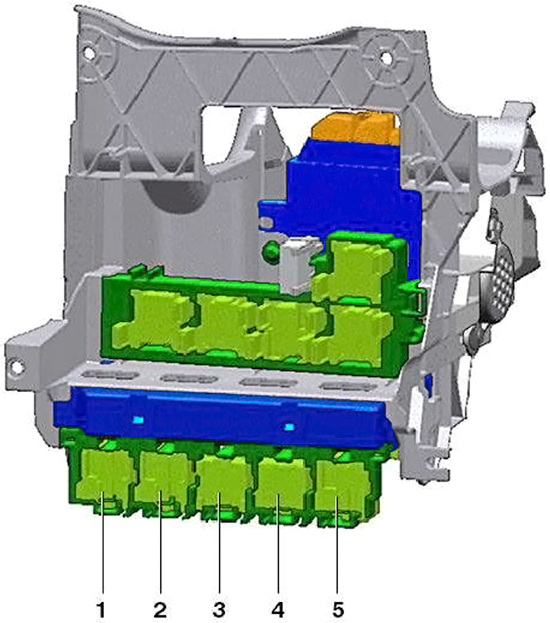

Lower part (From November 2009)

Relays

Assignment of the relays under dashboard (Lower part from November 2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1
1/1
1/2		up to Oct 2011:
Starter relay 2 (with stop/start) [slot 1], Fuel pump relay 2 [slot 1/1], Coolant circulation pump relay [slot 1/2]
from Nov 2011:
Coolant circulation pump relay (2.0L gasoline), Terminal 50 power supply relay, Starter relay 2 (with stop/start system), Fuel pump relay 2 [all in slot 1]
2/1Fuel primer relay
2/2Fuel pump relay (diesel from Nov 2011)
3Low heat output relay (without parking heater from Nov 2011), Auxiliary heater operation relay
4up to Oct 2011:
Fresh air blower relay
from Nov 2011:
High heat output relay (without parking heater)
5up to Oct 2011:
High heat output relay
from Nov 2011:
Fresh air blower relay (models with Climatic or heater)

Scroll to Top
