Volkswagen Golf (2012-2020)

Looking for Volkswagen Golf fuse box diagrams? This article covers the seventh-generation Volkswagen Golf (Mk7), produced from 2012 to 2020, and includes fuse box diagrams for Volkswagen Golf (Mk7) 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 and 2020, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Engine Compartment

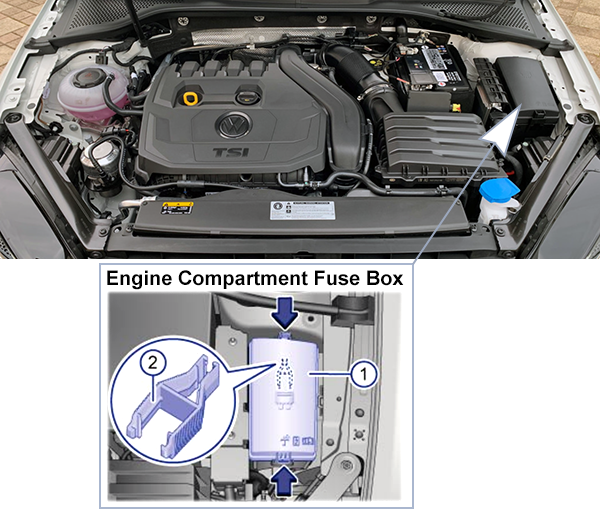

Fuse Box Location (-SA-, -SB-)

  1. Press the release tabs in the direction of the arrows to unlock the fuse box cover 1.
  2. Remove the cover upward.
  3. To install push the cover onto the fuse box. The locking tabs must latch with an audible click.

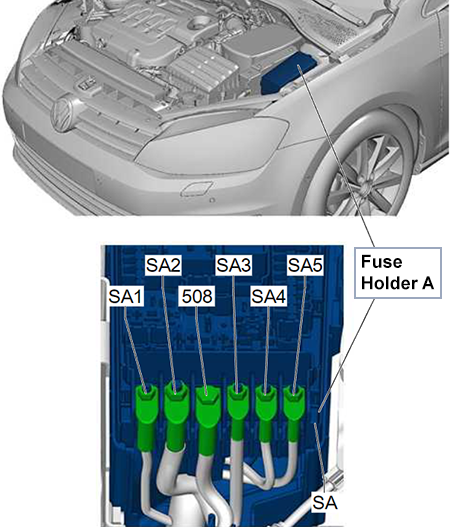

Fuse Box Diagram (-SA-)

High Voltage Fuses

Assignment of the high voltage fuses in engine compartment (-SA-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1125AFuses Supply:
-SC2-
-SC4- to -SC14-
-SC30- to -SC42-
-SC47- to -SC49-
-SC53-
Terminal 15 Power Supply Relay -J329-
Sockets Relay -J807-
Starter Relay 2 -J907-
SA2400AGenerator -C-
SA380APower Steering Control Module -J500-
SA480AFuses Supply:
-SC15- to -SC20-
-SC23- to -SC28-
-SB43- to -SB45-
SA550ARadiator Fan -VX57-

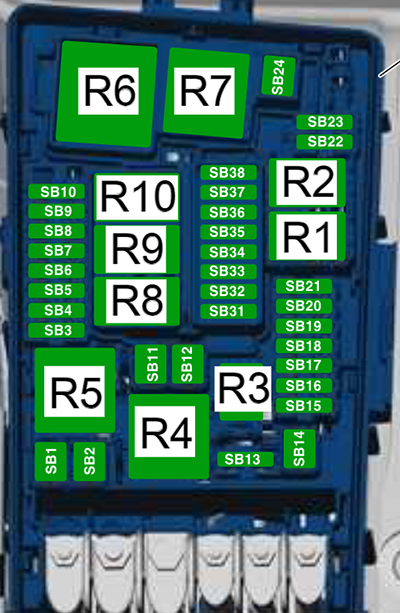

Fuse Box Diagram (-SB-)

Fuses

Assignment of the fuses in engine compartment (-SB-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB1up to Oct 2013:
40A
Nov 2013 to Apr 2017:
40A (w/o electronic parking brake)
20A (w/ electronic parking brake)
from May 2017:
25A		ABS Control Module
SB2up to Apr 2017:
40A
from May 2017:
40A / 60A (extended pedestrian protection)		ABS Control Module, ABS Hydraulic Pump
SB315A (gasoline)
30A (diesel)		Engine Control Module
SB45A / 7.5A / 10A (depending on engine)Oil Level Thermal Sensor, Radiator Fan Control Module.
Gasoline: EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1, Oil Pressure Regulation Valve, Cylinder 2/3 Intake/Exhaust Cam Actuators, Ethanol Concentration Sensor, Intake Camshaft Adjustment Valve 1 (from May 2017), Vacuum Pump Relay (1.5L from Jul 2018).
Diesel: High/Low Heat Output Relays, EGR Cooler Switch-Over Valve, Wastegate Bypass Regulator Valve, Reducing Agent Metering System Relay (May 2014 to Apr 2017).
CNG: Natural Gas High Pressure Valve (from Nov 2013).
GTI: Turbocharger Recirculation Valve, Intake Manifold Runner Control Valve, Piston Cooling Nozzle Control Valve (from Nov 2013).
SB57.5A / 10AFuel Pressure Regulator Valve, Fuel Metering Valve, Cylinder 1-4 Fuel Injectors (MPI), Engine Component Power Supply Relay (GTI), Gas Shut-Off Valve Relay (CNG), Fuel Injection Valves 1-4 (CNG)
SB6up to Jun 2018:
5A
from Jul 2018:
7.5A		Brake Lamp Switch
SB77.5A (gasoline)
10A (diesel)		Fuel Pressure Regulator Valve (gasoline), Charge Air Cooling Pump, Oil Pressure Regulation Valve (diesel), Cooling Circuit Solenoid Valve (diesel), Heater Support Pump (diesel), Transmission Fluid Cooling Pump (GTI), Coolant Shut-Off Valve (GTI), Radiator Shutter Motor (diesel), Positive Crankcase Ventilation Heating Element (diesel, from Jul 2018)
SB810A / 15AOxygen Sensor 1 Before/After Catalytic Converter and heaters, NOx Sensor Control Modules 1 and 2 (diesel, from May 2017)
SB95A (diesel)
10A / 20A (gasoline)		Ignition Coils 1-4 with Power Output Stage, Automatic Glow Time Control Module (diesel), Mass Airflow Sensor, Positive Crankcase Ventilation Heating Element (diesel), Exhaust Door Control Unit (gasoline), Secondary Air Injection Sensor 1 (gasoline), Charge Air Cooling Pump (gasoline), EVAP Canister Purge Regulator Valve 1 (gasoline), Camshaft Adjustment Valve 1 (gasoline), Exhaust Camshaft Adjustment Valve 1 (gasoline)
SB1010A / 15A / 20AFuel Pump Control Module, Fuel Pump Relay (MPI)
SB11up to Apr 2014:
40A
from May 2014:
40A / 50A (US/CDN)		Auxiliary Heater Heating Element, Secondary Air Injection Pump Motor (US/CDN)
SB1240AAuxiliary Heater Heating Element
SB13up to Jun 2018:
15A / 30A
from Jul 2018:
30A		up to Jun 2018: Dual-Clutch Transmission Mechatronic, Transmission Control Module
from Jul 2018: Transmission Fluid Auxiliary Hydraulic Pump 1
SB14–up to Oct 2013:
Not Assigned
40Afrom Nov 2013:
Windshield Defogger Relay
SB1515AHorn Relay
SB165A / 7.5A / 15A / 20A (depending on engine)up to Oct 2013: Not Assigned
from Nov 2013: Engine Component Power Supply Relay (GTI), Gas Shut-Off Valve Relay (CNG), Fuel Pump Relay (MPI, from May 2014)
SB177.5AMotronic Engine Control Module Power Supply Relay (gasoline), Terminal 30 Power Supply Relay (diesel), Engine Control Module, ABS Control Module, Windshield Defogger Relay
SB18up to Jun 2018:
5A
from Jul 2018:
7.5A		Battery Monitoring Control Module, Data Bus on Board Diagnostic Interface (w/o Stop/Start), Battery regulation control module (from Jul 2018)
SB1930AWiper Motor Control Module
SB20up to Oct 2013:
20A
Nov 2013 to Jun 2018:
10A
from Jul 2018:
–		up to Jun 2018: Alarm Horn
from Jul 2018: Not Assigned
SB21–up to Jun 2018:
Not Assigned
30Afrom Jul 2018:
Dual-Clutch Transmission Mechatronic, Transmission Control Module
SB22up to Jun 2018:
5A
from Jul 2018:
7.5A		Engine Control Module
SB2330AStarter
SB2440AAuxiliary Heater Heating Element
SB25 – SB30––
SB31–up to Oct 2013:
Not Assigned
15Afrom Nov 2013:
Brake System Vacuum Pump, Vacuum Pump Relay
SB32–up to Jun 2018:
Not Assigned
15Afrom Jul 2018:
Differential Locks Control Module (GTI)
SB3330A
–		May 2017 to Jun 2018: Transmission Fluid Auxiliary Hydraulic Pump 1
Otherwise: Not Assigned
SB3415A
–		Nov 2013 to Jun 2018: Differential Locks Control Module (GTI)
Otherwise: Not Assigned
SB35 – SB36––
SB3720AAuxiliary Heater Control Module
SB38––

Relays

Assignment of the relays in engine compartment (-SB-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Starter relay 1
R2Starter relay 2
R3Horn relay
R4Secondary air injection pump relay (US/CDN), High heat output relay (aux heater)
R5Motronic engine control module power supply relay (gasoline)
R6Low engine coolant indicator control module (hybrid), Automatic glow time control module (diesel)
R7Low heat output relay (aux heater)
R8Engine component power supply relay, A/C relay (hybrid), Fuel pump relay (MPI)
R9 – R10Windshield defogger relay (Only for vehicles with windshield defogger)

Passenger Compartment

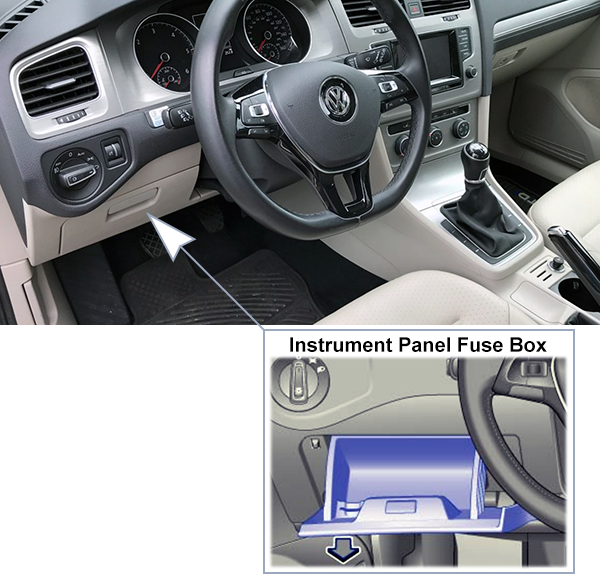

Fuse Box Location

  1. Pull the lower part of the cover straight out (in the direction of the arrow) and remove the cover from the bottom. This action may require moderate force.
  2. To install, guide the cover from the bottom into the instrument panel and push in the direction opposite to the arrow until you can hear it latch into place.

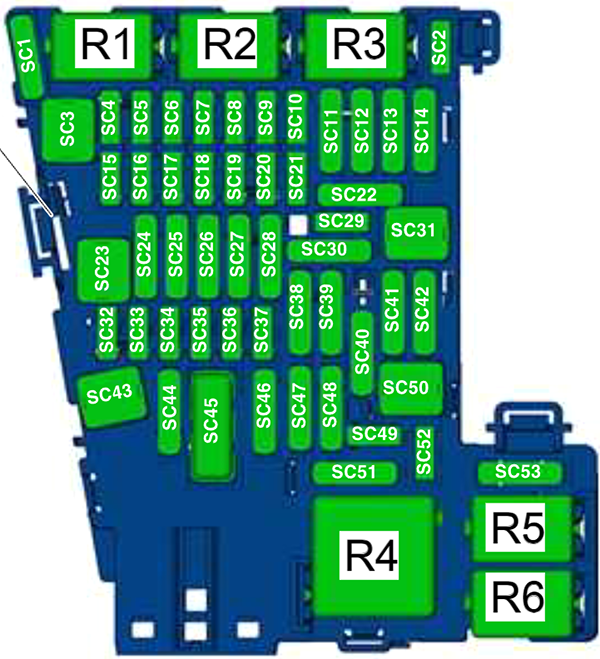

Fuse Box Diagram (-SC-)

Fuses

Assignment of the fuses in passenger compartment (-SC-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC1up to Apr 2017:
–
from May 2017:
30A / 20A		from May 2017: Reducing Agent Heater Control Module
SC2up to Oct 2013:
–
Nov 2013 to Apr 2017:
15A / 10A
from May 2017:
10A / 15A		from Nov 2013: Steering Column Electronics Control Module (heated steering wheel)
SC3–Fuse for special purpose vehicles / depending on equipment
SC410A / 7.5AVehicle Electrical System Control Module – Anti-theft alarm system (up to Jun 2018)
Alarm horn (from Jul 2018)
SC55A
7.5A		up to Jun 2018: Data Bus on Board Diagnostic Interface (5A)
from Jul 2018: Data Bus on Board Diagnostic Interface (7.5A)
SC65A / 7.5AAnti-Theft Alarm System Sensor (up to Oct 2015)
Selector Lever (from Nov 2015)
SC710AHeater and A/C Controls, Heater Control Module, Climatronic Control Module, A/C Control Module, Auxiliary Coolant Heater Radio Frequency Receiver, Rear Window Defogger Relay, Selector Lever (up to Oct 2015), A/C clutch relay (from Jul 2019)
SC810A
7.5A		up to Jun 2018: Rotary Light Switch, Electromechanical Parking Brake Button, Rain/Light Recognition Sensor, Diagnostic Connection, Anti-Theft Alarm System Sensor (from Nov 2015)
from Jul 2018: Rotary Light Switch, Electromechanical Parking Brake Button, Rain/Light Recognition Sensor, Diagnostic Connection, Anti-Theft Alarm System Sensor
SC9up to Oct 2013:
–
Nov 2013 to Jun 2018:
1A / 5A
from Jul 2018:
7.5A		from Nov 2013: Steering Column Electronics Control Module
SC1010A / 7.5AFront Information Display Control Head, Navigation System Control Module (up to Oct 2015), TV Tuner (from Nov 2013), CD Player (from May 2017)
SC11up to Oct 2013:
15A
Nov 2013 to Apr 2017:
25A
from May 2017:
40A		up to Oct 2013: All Wheel Drive Control Module
Nov 2013 to Apr 2017: Left Front Seat Belt Tensioner Control Module
from May 2017: Vehicle Electrical System Control Module – Left Front Headlamp
SC1220A / 5A / 7.5AInformation Electronics Control Module 1, Navigation System Control Module (from Nov 2015)
SC13up to Apr 2017:
15A
from May 2017:
25A		up to Apr 2017: Electronic Damping Control Module
from May 2017: Left Front Seat Belt Tensioner Control Module
SC1430A
40A		up to Apr 2017: Fresh Air Blower Control Module (30A)
from May 2017: Fresh Air Blower Control Module (40A)
SC1510AElectronic Steering Column Lock Control Module
SC167.5AMobile Communication 2-Way Signal Amplifier, Telephone Baseplate (from Nov 2014), Chip Card Reader Control Module (from Nov 2013), USB Distributor (from Nov 2013), Antenna Amplifier 3 (up to Oct 2014), Voltage Converter for USB Charge Module (up to Apr 2017), TV Tuner (Nov 2015 to Apr 2017)
SC175A
7.5A		up to Apr 2017: Instrument Cluster Control Module, Instrument Cluster
from May 2017: Instrument Cluster Control Module, Instrument Cluster, Control Module for Emergency Call Module and Communication Unit
SC187.5ARearview Camera, Release Button in Rear Lid Handle
SC197.5AAccess/Start System Interface
SC20up to Oct 2014:
–
Nov 2014 to Jun 2018:
7.5A / 5A / 10A
from Jul 2018:
10A / 7.5A / 15A		from Nov 2014: Fuel Tank Leak Detection Control Module (up to Jun 2018), Reducing Agent Metering System Relay (from May 2017), High-Voltage Battery Charging Voltage Control Module (from May 2017), Brake System Vacuum Pump (from Jul 2018)
SC21up to Oct 2013:
–
from Nov 2013:
15A		from Nov 2013: All Wheel Drive Control Module
SC22up to Oct 2014:
–
from Nov 2014:
15A		from Nov 2014: Towing Recognition Control Module
SC2340A
30A
20A		up to Oct 2014: Vehicle Electrical System Control Module – Right Front Headlamp
Nov 2014 to Jun 2018: Power Sunroof Control Module
from Jul 2018: Power Sunroof Control Module
SC2430A
40A		up to Oct 2014: Power Sunroof Control Module
from Nov 2014: Vehicle Electrical System Control Module – Right Front Headlamp
SC2530ADoor Control Modules (Driver, Front Passenger), Rear Window Regulator Motors (Driver Side, Passenger Side)
SC2630AVehicle Electrical System Control Module – Front heated seat
SC2730ADigital Sound System Control Module (up to Apr 2017)
Vehicle Electrical System Control Module (from May 2017)
SC2820A / 25ATowing Recognition Control Module
SC29–Fuse for special purpose vehicles / depending on equipment (Nov 2013 to Oct 2014)
SC3025A
–		Left Front Seat Belt Tensioner Control Module (up to Oct 2013)
SC3140A
–		Vehicle Electrical System Control Module – Left Front Headlamp (up to Apr 2017)
SC327.5A / 10ADriver Assistance Systems Front Camera, Distance Regulation Control Module, Parking Aid Control Module, Parallel Parking Assistance Control Module, Blind Spot Detection Control Modules 1 & 2 (from Nov 2014)
SC335A
7.5A		up to Jun 2018: Airbag Control Module, Front Passenger Airbag -Disabled- Indicator Lamp
from Jul 2018: Airbag Control Module, Front Passenger Airbag -Disabled- Indicator Lamp
SC347.5ARotary Light Switch, Interior Rearview Mirror, Sockets Relay, Back-Up Lamp Switch, Refrigerant Circuit Pressure Sensor, Air Quality Sensor, Electromechanical Parking Brake Button (from Nov 2013), ASR/ESP Button, Structure Borne Sound Control Module (from Nov 2013), Terminal 15 Load Reduction Relay (up to Oct 2013)
SC3510A
7.5A		up to Jun 2018: Diagnostic Connection, Headlamp Range Control and Instrument Illumination Regulator, Cornering Lamp and Headlamp Range Control Module, Headlamp Beam Adjustment Motors (Left, Right)
from Jul 2018: Diagnostic Connection, Headlamp Range Control and Instrument Illumination Regulator, Cornering Lamp and Headlamp Range Control Module, Headlamp Beam Adjustment Motors (Left, Right)
SC3610A
7.5A		Right Daytime Running Lamp and Position Lamp Control Module, Right Headlamp Power Output Modules (from May 2017), Right Light Control Module (from Jul 2019)
SC3710A
7.5A		Left Daytime Running Lamp and Position Lamp Control Module, Left Headlamp Power Output Modules (from May 2017), Left Light Control Module (from Jul 2019)
SC3820A / 25ATowing Recognition Control Module
SC3930ADoor Control Modules (Driver, Front Passenger), Rear Window Regulator Motors (Driver Side, Passenger Side)
SC4020ACigarette Lighter, 12 V Socket, 12 V Socket 2
*Note: Factory supplied by terminal 15, can be swapped to terminal 30. Ensure equipment is disconnected when engine is off to prevent battery drain.
SC411A
25A		Steering Column Electronics Control Module (up to Oct 2013)
Right Front Seat Belt Tensioner Control Module (from Nov 2013)
SC4240AVehicle Electrical System Control Module – Central locking system
SC4330AVehicle Electrical System Control Module (up to Apr 2017)
Digital Sound System Control Module (from May 2017)
SC4415ATowing Recognition Control Module
SC4515ADriver Seat Lumbar Support Adjustment Switch, Driver Seat Adjustment Control Head, Driver Seat Adjustment Control Module (from May 2017)
SC46––
SC4715ARear Window Wiper Motor
SC48up to Oct 2013:
–
Nov 2013 to Jun 2018:
10A
from Jul 2018:
7.5A		from Nov 2013: Engine Sound Generator Control Module
SC495A
7.5A		up to Jun 2018: Clutch Position Sensor, Starter Relay 1, Starter Relay 2
from Jul 2018: Clutch Position Sensor, Starter Relay 1, Starter Relay 2
SC50 – SC51––
SC52up to Apr 2017:
–
from May 2017:
15A		from May 2017: Electronic Damping Control Module
SC5330ARear Window Defogger Relay

Relays

Assignment of the relays in passenger compartment (-SC-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Reducing agent metering system relay (diesel, from May 2017), Vacuum pump relay (1.5L gasoline, from Jul 2018)
R2Terminal 15 load reduction relay (up to Oct 2013), A/C clutch relay (from Jul 2019)
R3–
R4Power supply relay terminal 15
R5Rear window defogger relay
R6Sockets relay
