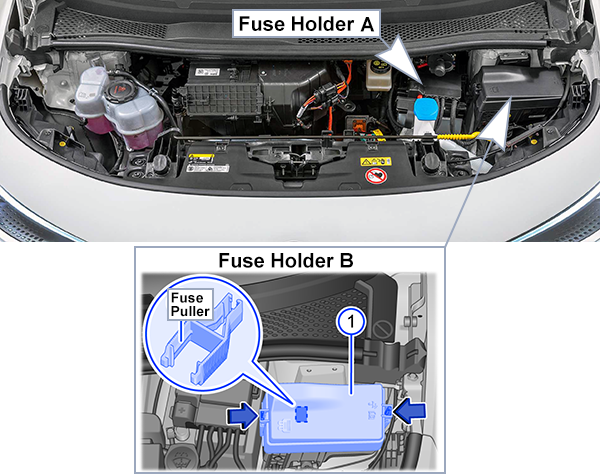

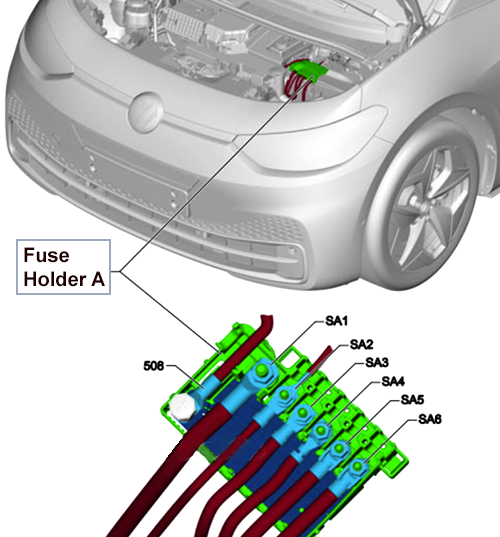

Looking for Volkswagen ID.3 fuse box diagrams? This article covers the battery electric small family car Volkswagen ID.3 (Model Codes: E11, E12), available from 2019, and includes fuse box diagrams for Volkswagen ID.3 2019, 2020, 2021, 2022, 2023, 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.

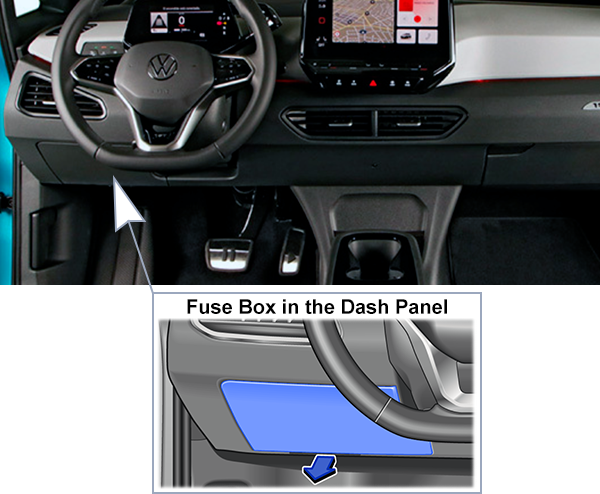

For left-hand drive vehicles: Reach behind the cover and pull off in the direction of the arrow.
Right-Hand Drive

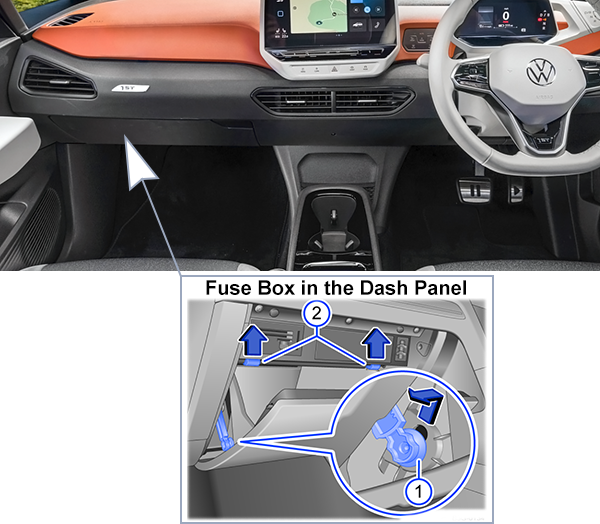

For right-hand drive vehicles: Push damper element upwards into the opening of the holder and pull out to the side (1). Push catches upwards in the direction of the arrow at the same time open the stowage compartment further (2).

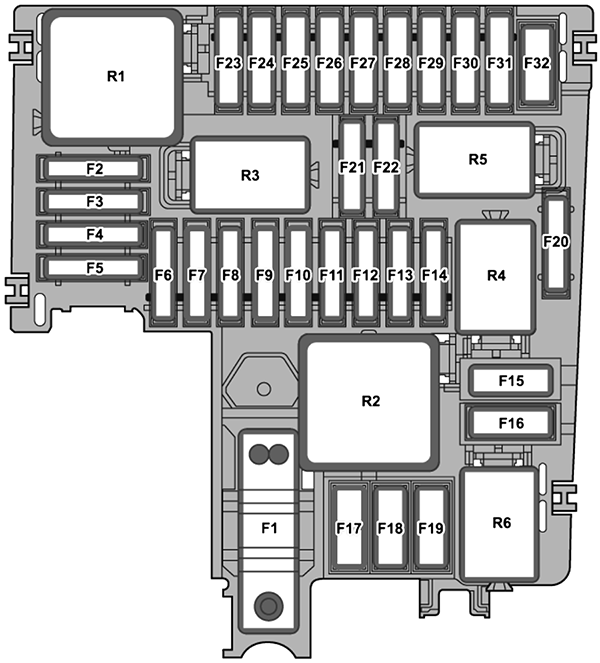

Fuse Box Diagram
Fuses

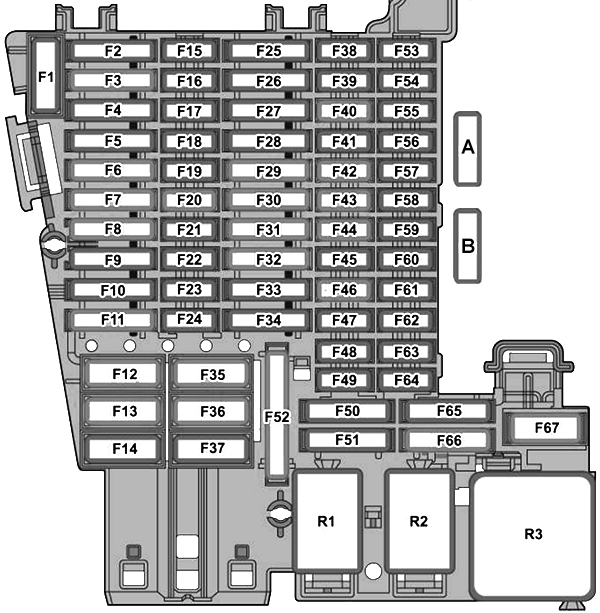

Assignment of the fuses in passenger compartment (-SC-)
Fuse Data
Full access is available to registered users — log in or register.
Onboard supply control unit – left exterior lighting
SC6
30A
Onboard supply control unit – interior lighting
SC7
30A
Heater and air conditioning system control unit – seat heating
SC8
15A
Sliding sunroof adjustment control unit
SC9
30A
Door control units (driver, front passenger), Rear window regulator motors (driver side, passenger side)
SC10
10A
Left tail light cluster
SC11
15A
Trailer detector control unit
SC12
–
–
SC13
40A
Onboard supply control unit – central locking
SC14
30A
Digital sound package control unit
SC15 – SC16
–
–
SC17
5A
Parking aid control unit, Lane change assist control unit 1 and 2, Driver and Passenger side exterior mirror (Lane change assist warning lamp)
SC18
5A
Chip card reader control unit, Control unit for electronic steering column lock, Interface for entry and start system, Control unit 2, 3, 4, and 5 for break-in protection
SC19
5A
Emergency call module control unit and communication unit, Control unit with display unit for driver information system
SC20
10A
Telephone bracket, Transmission and reception stabilisation control unit, USB connection 1
SC21
7.5A
Rear lid handle, Control unit for overhead view camera
SC22
10A
Engine/motor control unit
SC23
5A
Internet access control unit
SC24
10A
Right tail light cluster
SC25
25A
Front left seat belt
SC26
30A
Door control units (driver, front passenger), Rear window regulator motors (driver side, passenger side)
SC27
25A
Front right seat belt
SC28
10A
Voltage converter, Battery regulation control unit, Maintenance connector for high-voltage system
SC29
15A
Trailer detector control unit
SC30
20A
Control unit 1 for information electronics
SC31
25A
Trailer detector control unit
SC32
25A
Onboard supply control unit
SC33
–
–
SC34
15A
Heater and air conditioning system control unit
SC35
40A
Rear seat heating
SC36
40A
Fresh air blower control unit
SC37
–
–
SC38
7.5A
Control unit for front left and right massage seat
SC39
15A
Steering column electronics control unit
SC40
10A
Alarm horn
SC41
5A
Data bus diagnostic interface
SC42
–
–
SC43
7.5A
Sensor for interior carbon dioxide concentration, Vehicle interior temperature sensor, Heated rear window relay
SC44
7.5A
Centre switch module in dash panel, Window regulator operating unit, Operating unit for lighting, Rain and light sensor, Anti-theft alarm sensor, Dynamic light strip 1 for information in dash panel, Front interior light, Diagnostic connection
SC45
5A
Steering column electronics control unit
SC46
10A
Display unit for front information display and operating unit control unit, Control unit for Head-up Display
SC47
–
up to Jun 2020: Not Assigned
10A
from Jul 2020: Electronically controlled damping control unit
SC48
10A
USB charging socket 1
SC49 – SC51
–
–
SC52
20A
12 V socket 3
SC53 – SC57
–
–
SC58
7.5A
Chip card reader control unit
SC59
7.5A
Relay for power sockets, Automatic anti-dazzle interior mirror
SC60
7.5A
Diagnostic connection
SC61
5A
Power and control electronics for electric drive
SC62 – SC65
–
–
SC66
15A
Rear window wiper motor
SC67
30A
Heated rear window
Single Fuses
Assignment of the single fuses in passenger compartment (-SC-)
Fuse Data
Full access is available to registered users — log in or register.
