Volkswagen ID. Buzz (2022-2026)

Looking for Volkswagen ID. Buzz fuse box diagrams? This article covers the battery electric minivan Volkswagen ID. Buzz, available from 2022, and includes fuse box diagrams for Volkswagen ID. Buzz 2022, 2023, 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Passenger Compartment (-SA-)

Location and Diagram

The fuse carrier is located under front left seat.

High Voltage Fuses

Assignment of the high voltage fuses under the driver seat

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
508–Threaded connection (30), on E-box:
Battery -A-
SA1350AVoltage converter -A19-
SA2100ABattery monitor control unit -J367-
Power steering control unit -J500-
SA3100ALoad Compartment Fuses:
Fuse holder D -SD-
Fuse holder E -SE-
Fuse carrier 4 -ST4-
Fuse carrier 6 -ST6-
SA4––
SA5125AInstrument Panel Fuses:
Fuse holder C -SC-
SA6125AInstrument Panel Fuses:
Fuse holder C -SC-

Passenger Compartment (-SC-)

Fuse Box Location

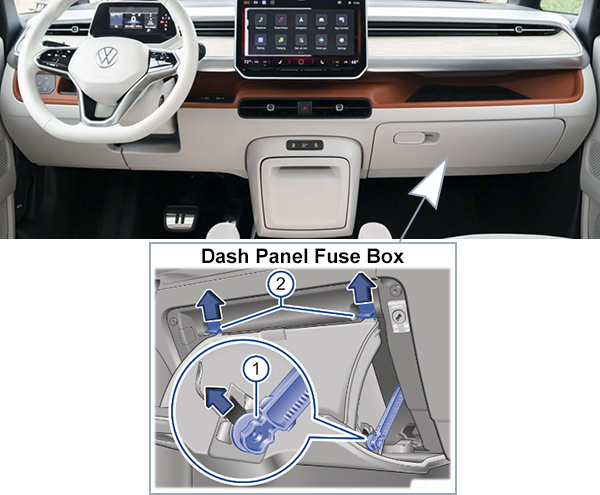

Left-hand drive vehicles

  1. Open the glove box and empty if necessary.
  2. Pull the restrictor up and out (1).
  3. Push catches upwards in the direction of the arrow at the same time open the glove box further (2).

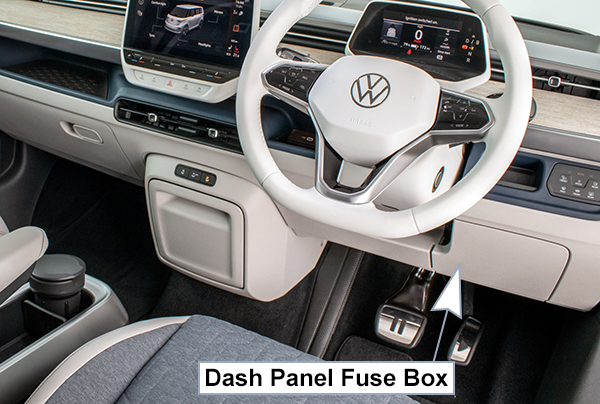

Right-hand drive vehicles

Open the cover to the right of the steering column and fold it down.

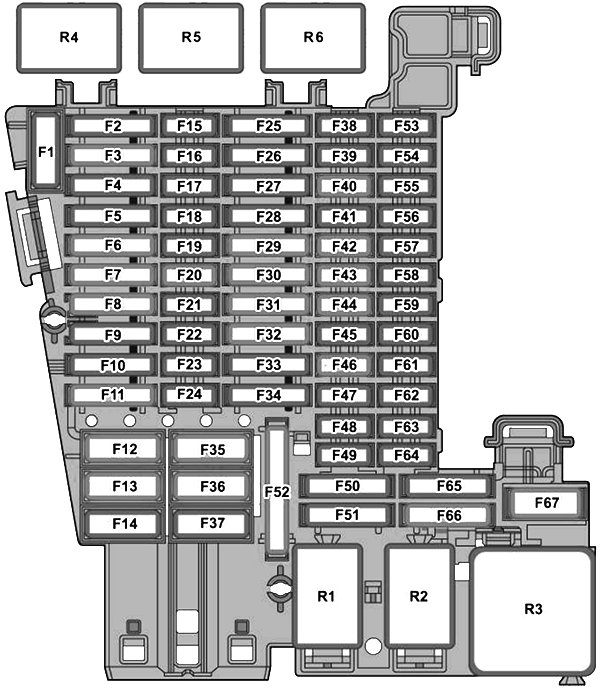

Fuse Box Diagram

Fuses

Assignment of the fuses in the instrument panel fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC160ABrake servo
SC215AAirbag control unit
SC325AOnboard supply control unit
SC430AFront left windscreen wiper motor
SC530AFront right windscreen wiper motor
SC625AOnboard supply control unit
SC730AHeater and air conditioning system control unit
SC820A12 V socket, 12 V socket 4 (ID BUZZ CARGO)
SC930ADriver and front passenger door control unit (front electric window)
SC1025AFront left headlight
SC1125AFront right headlight
SC1240AHeated windscreen relay (Left heating circuit)
SC1340AOnboard supply control unit
SC1450AABS control unit
SC15 – SC16––
SC1720ACigarette lighter, sockets
SC1810AAlarm horn
SC195AEmergency call module control unit and communication unit, Control unit with display unit for driver information system, Charging unit 1 for mobile devices, Aerial amplifier for mobile telephone
SC207.5ACentre switch module in dash panel, Operating unit for window regulator in driver door, Operating unit for lighting, Humidity sender for air conditioning system, Rain and light sensor, Anti-theft alarm sensor, Dynamic light strip 3 for information in dash panel, Diagnostic connection, Front roof module
SC217.5AInternet access control unit
SC2210AEngine/motor control unit
SC237.5AAdaptive cruise control unit
SC247.5A (PR: U9C)
10A (PR: U9E/U9G, A8B/A8C/A9Q)		USB connection 1, USB charging socket 3
SC2530AFront left and right seat belt
SC2630AOnboard supply control unit
SC2730AFront right and left seat belt
SC28––
SC2930AFresh air blower control unit
SC3030AControl unit 1 for information electronics
SC3130AABS control unit
SC3230AFront passenger and driver door control unit (front electric window)
SC33––
SC3415AHeater and air conditioning system control unit
SC3540AHeated windscreen relay 2 (Right heating circuit)
SC3640ADC/AC converter with socket, 12 V – 230 V
SC3750ARadiator fan, Jump-start connection point for low-voltage electrical system (positive terminal)
SC387.5AControl unit for front left and right massage seat
SC3915ASteering column electronics control unit (Heated steering wheel)
SC407.5AControl unit for electronic steering column lock, Entry and start authorisation control unit, Control unit 2 and 3 for break-in protection
SC417.5AData bus diagnostic interface
SC4215AHorn relay (Left horn)
SC437.5AABS control unit, Main relay
SC447.5AFront camera for driver assist systems
SC457.5ASteering column electronics control unit
SC467.5ADisplay unit for front information display and operating unit control unit
SC4710AEngine sound generator module 1
SC48––
SC4910AEngine/motor control unit
SC507.5ARadiator fan
SC5110APTC heater element 3, Coolant pump for high-voltage battery
SC5215AControl motor for radiator roller blind, Coolant pump for low-temperature circuit
SC53 – SC58––
SC597.5AAutomatic anti-dazzle interior mirror
SC607.5ADiagnostic connection
SC617.5APower and control electronics for electric drive
SC6210AUSB charging socket 1, USB charging socket for seat row 2 (left/right), USB charging socket for seat row 3 (left/right), USB charging socket in headlining, USB charging socket 3
SC63 – SC65––
SC6615ARear window wiper motor
SC67––

Relays

Assignment of the relays in the instrument panel fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Main relay
R2Terminal 15 voltage supply relay
R3–
R4Heated windscreen relay (Left heating circuit)
R5Heated windscreen relay 2 (Right heating circuit)
R6Horn relay

Passenger Compartment (Single Fuses)

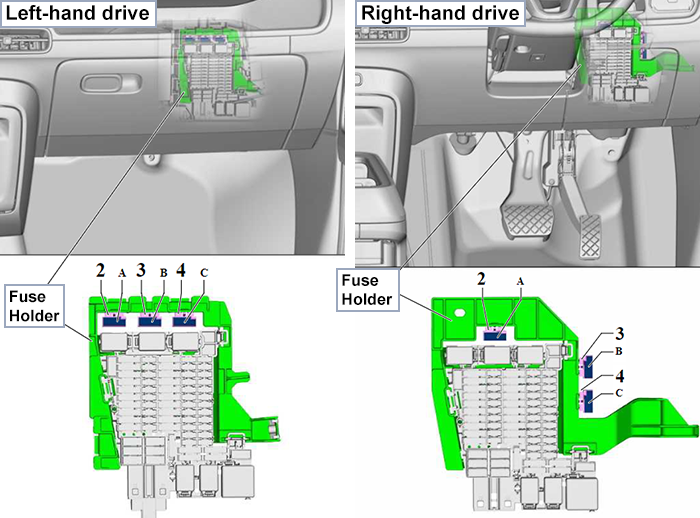

Location and Diagram

Fuses

Assignment of the individual fuses in the instrument panel fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A––
B20AFront passenger seat adjustment with memory control unit -J521-
C20ASeat and steering column adjustment control unit with memory -J136-

Luggage Compartment (-SD-, -SE-)

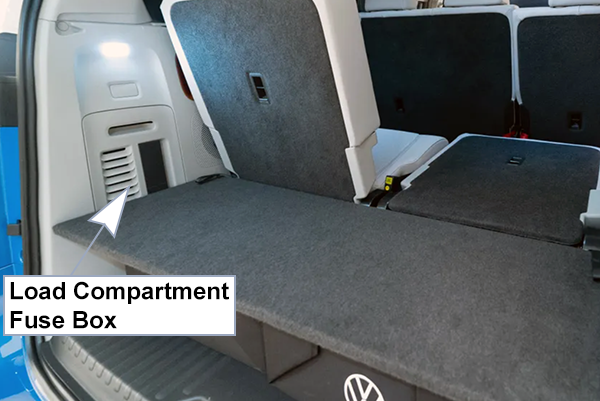

Fuse Box Location

  1. Reach into the opening of the maintenance flap and pull the maintenance flap out of the catches.
  2. Lift off the maintenance flap.

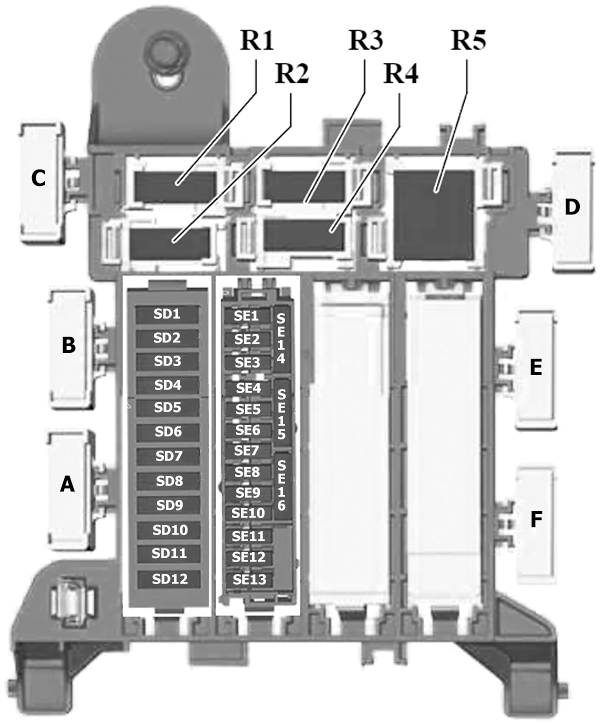

Fuse Box Diagram

Fuses (-SD-)

Assignment of the fuses in the luggage compartment fuse holder (-SD-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SD130ATrailer detector control unit
SD27.5ALeft tail light cluster, Centre tail light cluster (Left brake light bulb 2)
SD320ATrailer detector control unit
SD4 – SD5––
SD630AHeated rear window relay (Rear window, Frequency modulation (FM) frequency filter in positive wire)
SD720ATrailer detector control unit
SD830ATrailer detector control unit
SD920A12 V socket 3 (socket in the luggage compartment)
SD1030ARear seat heating
SD1115AHigh-voltage battery 1 (Battery regulation control unit), Maintenance connector for high-voltage system
SD12––

Fuses (-SE-)

Assignment of the fuses in the luggage compartment fuse holder (-SE-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SE17.5AInterior monitor send and receive module 2, Vehicle interior temperature sensor, Heated rear window relay, Rear lid power opening control unit, Control unit 4 and 5 for break-in protection
SE27.5ARight tail light cluster, Centre tail light cluster (Right brake light bulb 2)
SE315ALeft sliding door relay (Rear left sliding door lock unit)
SE4––
SE57.5AControl unit for overhead view camera, Reversing camera (depending on equipment)
SE6––
SE715ARight sliding door relay (Rear right sliding door lock unit)
SE87.5AAir conditioning system relay (Air quality sensor, Air conditioner compressor)
SE910AUSB charging socket for seat row 2, left and right
SE1010AUSB charging socket for seat row 3, left and right
SE1115AVoltage converter, Charging unit 1 for high-voltage battery, Power and control electronics for electric drive
SE127.5AParking aid control unit, Lane change assist control unit 1 and 2
SE13 – SE15––
SE1630ARear lid control unit

Single Fuses

Assignment of the single fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A40AID BUZZ CARGO:
Fuse 1 on fuse carrier 6: Rear driver side door control unit (left-hand drive) / Passenger side rear door control unit (right-hand drive)
B40AID BUZZ CARGO:
Fuse 1 on fuse carrier 4: Rear passenger side door control unit (left-hand drive) / Rear driver side door control unit (right-hand drive)
C – D––
E40AID BUZZ:
Fuse 1 on fuse carrier 4: Rear passenger side door control unit (left-hand drive) / Rear driver side door control unit (right-hand drive)
F40AID BUZZ:
Fuse 1 on fuse carrier 6: Rear driver side door control unit (left-hand drive) / Passenger side rear door control unit (right-hand drive)
G––

Relays

Assignment of the relays in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Air conditioning system relay
R2–
R3Left sliding door relay
R4Right sliding door relay
R5Heated rear window relay
