Volkswagen Multivan (2022-2026) Fuse Box Diagrams and Locations

Looking for Volkswagen Multivan fuse box diagrams? This article covers the seventh-generation Volkswagen Multivan (Model Code: T7), produced from 2022, and includes fuse box diagrams for Volkswagen Multivan (T7) 2022, 2023, 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Fuse Holder A

Location and Diagram

High Voltage Fuses

Assignment of the fuses in the Fuse Holder A

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
SA1	80A	Fuse holder K -SK-
SA2	125A	Fuse holder C -SC-
SA3	125A	Fuse holder C -SC-
SA4	150A/200A	Fuse holder B -SB- Connection and distribution box 1 -SX1-

Fuse Holder B

Fuse Box Location

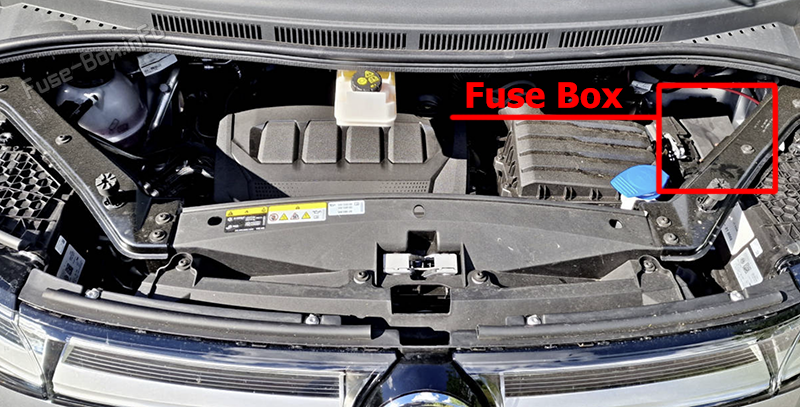

Location of the fuses in the engine compartment: Volkswagen Multivan (T7; 2022-2024)

Fuse Box Diagram

Fuses

Assignment of the fuses in the Fuse Holder B

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
SB1	80A	Power steering control unit -J500-
SB2	7.5A	ABS control unit -J104- Main relay -J271- Engine/motor control unit -J623- Air conditioning system relay -J32- (For models with 1.4L hybrid drive) – Pressure sender for refrigerant circuit -G805- – Air conditioner compressor -VX81- – High-voltage heater (PTC) -ZX17- Engine sound generator control unit -J943- (For models with 1.4L hybrid drive) Circulation pump relay -J160- – Circulation pump 2 -V403-
SB3	10A	Power and control electronics for electric drive -JX1- (For models with 1.4L hybrid drive) Charging unit 1 for high-voltage battery -AX4- (For models with 1.4L hybrid drive)
SB3	20A	For models with 2.0L petrol engine: Engine component power supply relay -J757- – Ignition coil 1 with output stage -N70- – Ignition coil 2 with output stage -N127- – Ignition coil 3 with output stage -N291- – Ignition coil 4 with output stage -N292-
SB4	15A	Front left headlight -MX1-
SB5	15A	Front right headlight -MX2-
SB6	–	–
SB7	30A	For models without hybrid drive system: Auxiliary hydraulic pump 1 for gearbox oil -V475-
SB8	–	–
SB9	15A	Horn relay -J413- – Right horn -H34-
SB10	30A	Wiper motor relay 1 -J368- Wiper motor relay 2 -J369- – Wiper motor control unit -J400-
SB11	7.5A	For models without hybrid drive system: Circulation pump relay -J160- – Circulation pump 2 -V403-
SB12	15A	For models without hybrid drive system: Mechatronic unit for dual clutch gearbox -J743-
SB13	25A	ABS control unit -J104-
SB14	20A	Auxiliary heater control unit -J364-
SB15	40A	ABS control unit -J104-
SB16	50A	Mechatronic unit for dual clutch gearbox -J743- (For models with 1.4L hybrid drive)
SB17	50A	Secondary air pump motor -V101- (For models with 2.0L petrol engine)
SB18	–	–
SB19	40A	Heated windscreen relay for left side -J410- – Heated windscreen -Z2-
SB20	40A	Heated windscreen relay for right side -J411- – Heated windscreen -Z2-
SB21	7.5A	For models without hybrid drive system: Engine control unit -J623-
SB22	30A	For models without hybrid drive system: Starter -B-
SB23	15A	Engine/motor control unit -J623-
SB24	10A	For models with 1.4L hybrid drive: Oil level and oil temperature sender -G266- Secondary air pump relay -J299- Activated charcoal filter solenoid valve 1 -N80- Cut-off valve for activated charcoal filter air flushing -N754- Inlet camshaft control valve 1 -N727- Exhaust camshaft control valve 1 -N318- Valve for oil pressure control -N428- Radiator fan -VX57-
	10A	For models with 1.5L petrol engine: Oil level and oil temperature sender -G266- Activated charcoal filter solenoid valve 1 -N80- Inlet camshaft control valve 1 -N727- Exhaust camshaft control valve 1 -N318- Valve for oil pressure control -N428- Inlet cam actuator for cylinder 2 -N583- Exhaust cam actuator for cylinder 2 -N587- Inlet cam actuator for cylinder 3 -N591- Exhaust cam actuator for cylinder 3 -N595- Radiator fan -VX57-
	10A	For models with 2.0L petrol engine: Oil level and oil temperature sender -G266- Secondary air pump relay -J299- Engine component power supply relay -J757- Activated charcoal filter solenoid valve 1 -N80- Camshaft control valve 1 -N205- Turbocharger air recirculation valve -N249- Intake manifold flap valve -N316- Exhaust camshaft control valve 1 -N318- Valve for oil pressure control -N428- Piston cooling jet control valve -N522- Radiator fan -VX57-
	10A	For models with 2.0L diesel engine: Oil level and oil temperature sender -G266- Automatic glow period control unit -J179- Control unit for reducing agent heater -J891- Fuel pressure regulating valve -N276- Radiator fan -VX57- Reducing agent tank -VX85-
SB25	10A	For models with 1.4L hybrid drive: Coolant changeover valve 2 -N633- Coolant pump for high-temperature circuit -V467- Coolant valve for gearbox -N488-
SB26	10A	For models with 1.4L hybrid drive: Activated charcoal filter air flushing pump -V700- Charge air cooling pump -V188-
	10A	For models with 2.0L petrol engine: Coolant valve for gearbox -N488- Coolant circulation pump -V50-
	10A	For models with 2.0L diesel engine: Heater element for crankcase breather -N79- Valve for oil pressure control -N428- Coolant regulating valve -N515- Piston cooling jet control valve -N522- Coolant pump for high-temperature circuit -V467- Auxiliary pump for heating -V488-
SB27	10A	For models with 1.4L hybrid drive, for models with 2.0L petrol engine: Lambda probe 1 after catalytic converter -GX7- Lambda probe 1 before catalytic converter -GX10-
	10A	For models with 1.5L petrol engine: Lambda probe 1 after catalytic converter -GX7- Lambda probe 1 before catalytic converter -GX10- Charge air cooling pump -V188-
	15A	For models with 2.0L diesel engine: Control unit for NOx sender -GX30- Control unit 2 for NOx sender -GX46- Control unit 3 for NOx sender -GX50- Control unit 1 for particulate sensor -GX52-
SB28	10A	For models with 2.0L petrol engine: Cam adjustment actuator 1 -F366- Cam adjustment actuator 2 -F367- Cam adjustment actuator 3 -F368- Cam adjustment actuator 4 -F369- Cam adjustment actuator 5 -F370- Cam adjustment actuator 6 -F371- Cam adjustment actuator 7 -F372- Cam adjustment actuator 8 -F373-
SB28	20A	For models with 1.4L hybrid drive, for models with 1.5L petrol engine: Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292-
SB29	15A	For models with 1.4L hybrid drive, for models with 1.5L petrol engine, for models with 2.0L petrol engine: Fuel pump control unit -J538- – Fuel delivery unit -GX1-
SB29	20A	For models with 2.0L diesel engine: Fuel pump control unit -J538- – Fuel delivery unit -GX1-
SB30	10A	Fuel tank shut-off valve -N288- (For models with 1.4L hybrid drive) Auxiliary pump for heating -V488- (For models with 1.4L hybrid drive) Coolant circulation pump before power and control electronics for electric drive -V508- (For models with 1.4L hybrid drive)
SB31	–	–
SB32	40A	Brake servo -NX6-

Relays

Assignment of the relays in the Fuse Holder B

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Main relay -J271- (For models with petrol engine)
R2	Secondary air pump relay -J299- (For models with 2.0L petrol engine)
R3	Horn relay -J413-
R4	Starter relay 1 -J906- (For models with no hybrid drive)
R5	Starter relay 2 -J907- (For models with no hybrid drive)
R6	Air conditioning system relay -J32- (For models with hybrid drive)
R6	Engine component current supply relay -J757- (For models with 2.0L petrol engine)
R7	Automatic glow period control unit -J179- (For models with diesel engine)
R8	–
R9	Heated windscreen relay for left side -J410-
R10	Heated windscreen relay for right side -J411-
R11	Wiper motor relay 1 -J368-
R12	Wiper motor relay 2 -J369-

Fuse Holder C

Fuse Box Location

Left-hand drive vehicle

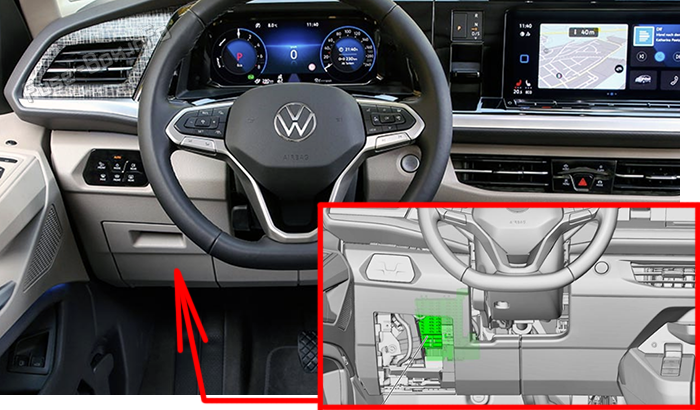

Location of the fuses in the passenger compartment (LHD): Volkswagen Multivan (T7; 2022-2024)

Right-hand drive vehicle

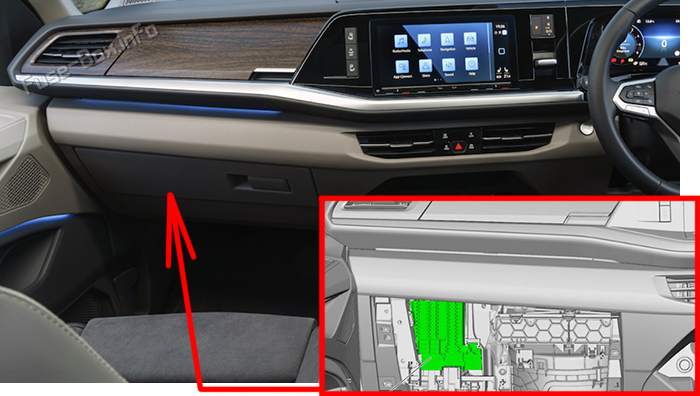

Location of the fuses in the passenger compartment (RHD): Volkswagen Multivan (T7; 2022-2024)

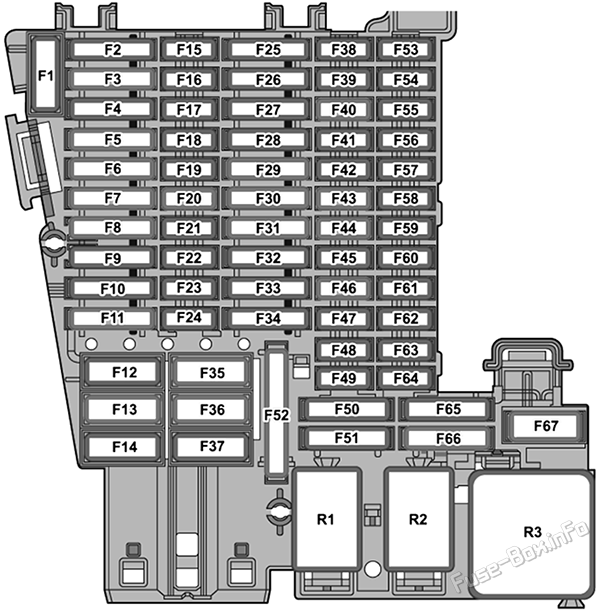

Fuse Box Diagram

Fuses

Assignment of the fuses in the Fuse Holder C

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
SC1	40A	Passenger side rear door control unit -J927- (For left-hand drive models) Rear driver side door control unit -J926- (For right-hand drive models)
SC2	30A	Rear fresh air blower control unit -J391-
SC3	25A	Trailer detector control unit -J345-
SC4	30A	Rear lid control unit -J605-
SC5	25A	Parking lock actuator -V682-
SC6	30A	Onboard supply control unit -J519-
SC7	30A	Heater and air conditioning system control unit -J979-
SC8	20A	For left-hand drive models: Driver seat lumbar support adjustment switch -E176- Driver seat adjustment control unit -J810-
SC8	20A	For right-hand drive models: Front passenger seat lumbar support adjustment switch -E177- Front passenger seat adjustment operating unit -E471-
SC9	30A	Driver door control unit -J386- (For left-hand drive models) Front passenger door control unit -J387- (For right-hand drive models)
SC10	30A	Control unit for power-operated seat rails, left-side -J1255-
SC11	15A	Trailer detector control unit -J345-
SC12	40A	Onboard supply control unit -J519-
SC13	40A	Onboard supply control unit -J519-
SC14	40A	Digital sound package control unit -J525-
SC15	–	–
SC16	7.5A	Airbag control unit -J234- Control unit for wireless connection of seat occupied sensors -J1247-
SC17	15A	Heater and air conditioning system control unit -J979-
SC18	7.5A	Control unit for electronic steering column lock -J764- Entry and start authorisation control unit -J965- Control unit 2 for break-in protection -J1192- Control unit 3 for break-in protection -J1193- Control unit 4 for break-in protection -J1194- Control unit 5 for break-in protection -J1195-
SC19	7.5A	Dash panel insert -KX2- Emergency call module control unit and communication unit -J949-
SC20	7.5A	Internet access control unit -J666- Control unit for overhead view camera -J928- Reversing camera -R189- Storage compartment with interface for mobile telephone -R265- Transmission and reception stabilisation control unit -R308- USB connection 1 -U41-
SC21	7.5A	Lane change assist control unit -J769- Lane change assist control unit 2 -J770-
SC22	5A	Front left seat backrest fan 1 -V512- Front left seat cushion fan 1 -V514- Front right seat backrest fan 1 -V516- Front right seat cushion fan 1 -V518-
SC23	–	–
SC24	7.5A	Rear right power latching motor -V308- Right sliding door relay -J1270- – Rear right sliding door lock unit -VX108-
SC25	25A	Front left seat belt -NX10- (For left-hand drive models) – For models with control unit for front left belt tensioner -J854- Front right seat belt -NX11- (For right-hand drive models) – For models with control unit for front right belt tensioner -J855-
SC26	30A	Front passenger door control unit -J387- (For left-hand drive models) Driver door control unit -J386- (For right-hand drive models)
SC27	25A	Front right seat belt -NX11- (For left-hand drive models) – For models with control unit for front right belt tensioner -J855- Front left seat belt -NX10- (For right-hand drive models) – For models with control unit for front left belt tensioner -J854-
SC28	10A	Maintenance connector for high-voltage system -TW- (For models with hybrid drive system) High-voltage battery 1 -AX2- (For models with hybrid drive system)
SC29	15A	Trailer detector control unit -J345-
SC30	30A	Control unit 1 for information electronics -J794-
SC31	25A	Trailer detector control unit -J345-
SC32	30A	Control unit for power-operated seat rails, right-side -J1256-
SC33	7.5A	Rear left power latching motor -V307- Left sliding door relay -J1269- – Rear left sliding door lock unit -VX107-
SC34	20A	For left-hand drive models: Front passenger seat lumbar support adjustment switch -E177- Front passenger seat adjustment operating unit -E471-
SC34	20A	For right-hand drive models: Driver seat adjustment control unit -J810- Driver seat lumbar support adjustment switch -E176-
SC35	40A	Onboard supply control unit -J519-
SC36	40A	Fresh air blower control unit -J126-
SC37	40A	Control unit for reducing agent heater -J891- (For models with diesel engine)
SC38	–	–
SC39	10A	Steering column electronics control unit -J527-
SC40	7.5A	Anti-theft alarm system horn -H8-
SC41	7.5A	Data bus diagnostic interface -J533-
SC42	7.5A	Selector mechanism -EX2- Selector lever position display -Y6-
SC43	7.5A	Operating and display unit for rear air conditioning system -E265- Vehicle interior temperature sensor -G1090- Rear lid power opening control unit -J938- Heated rear window relay -J9- Control unit for contactless opening of sliding door, driver side -J1321- Control unit for contactless opening of sliding door, passenger side -J1322- Remote control receiver for auxiliary heater -R64-
SC44	7.5A	Parking brake button -EX12- Centre switch module in dash panel -EX22- Operating unit for lighting -EX59- Interior monitoring sensor -G273- Anti-theft alarm sensor -G578- Air humidity, rain and light sensor -G823- Control unit for cornering light and headlight range control -J745- Diagnostic connection -U31- Front interior light -WX1-
SC45	7.5A	Steering column electronics control unit -J527-
SC46	7.5A	Display unit for front information display and operating unit control unit -J685- Control unit for Head-up Display -J898-
SC47	10A	Electronically controlled damping control unit -J250-
SC48	–	–
SC49	–	–
SC50	–	–
SC51	–	–
SC52	20A	12 V socket -U5- 12 V socket 2 -U18- 12 V socket 3 -U19-
SC53	–	–
SC54	–	–
SC55	–	–
SC56	–	–
SC57	–	–
SC58	7.5A	Adaptive cruise control unit -J428- Parking aid control unit -J446- Park assist steering control unit -J791- Front camera for driver assist systems -R242-
SC59	7.5A	Parking brake button -EX12- Air quality sensor -G238- Pressure sender for refrigerant circuit -G805- Automatic anti-dazzle interior mirror -Y7-
SC60	7.5A	Diagnostic connection -U31-
SC61	7.5A	Starter relay 1 -J906- (For models without hybrid drive system) Starter relay 2 -J907- (For models without hybrid drive system)
SC61	7.5A	Power and control electronics for electric drive -JX1- (For models with hybrid drive system)
SC62	7.5A	USB charging socket for seat row 2, left -U98- USB charging socket for seat row 2, right -U99- USB chafging socket for seat row 3, left -U100- USB charging socket for seat row 3, right -U101-
SC63	10A	For models with taxi equipment: Taximeter -G41- Mirror taximeter -G511- Two-way radio -R8-
SC64	–	–
SC65	–	–
SC66	15A	Rear window wiper motor -V12-
SC67	30A	Heated rear window -Z1 –

Relays

Assignment of the relays in the Fuse Holder C

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	–
R2	Terminal 15 voltage supply relay -J329-
R3	Heated rear window relay -J9-

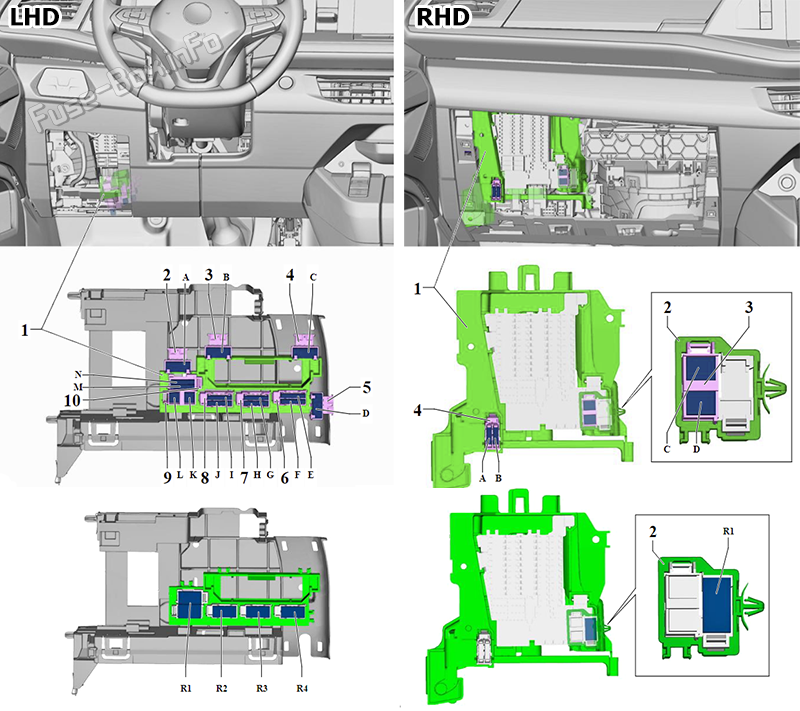

Individual Fuses

Location and Diagram

Fuses

Assignment of the individual fuses

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
A	–	–
B	–	–
C	–	–
D / -SJ1-	40A	Passenger side rear door control unit -J927- (For right-hand drive models)
E	–	–
F	–	–
H	–	–
G	–	–
I	–	–
J	–	–
K / -SJ1-	40A	Rear driver side door control unit -J926- (For left-hand drive models)
L	–	–
M	–	–
N	–	–
R1		Left sliding door relay -J1269-

Fuse Holder H (Hybrid)

Location and Diagram

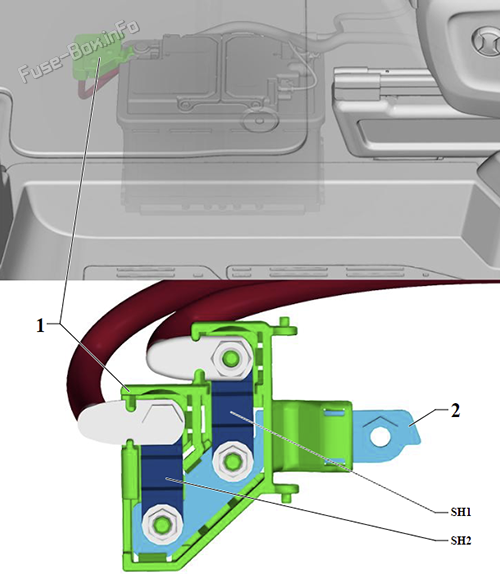

Fuse Holder H: Volkswagen Multivan (T7; 2022-2024)

High Voltage Fuses

Assignment of the fuses in the Fuse Holder H

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
SH1	200A	Connection and distribution box 1 -SX1- Jump start connection -TV32-
SH2	80A	Fuse holder K -SK-

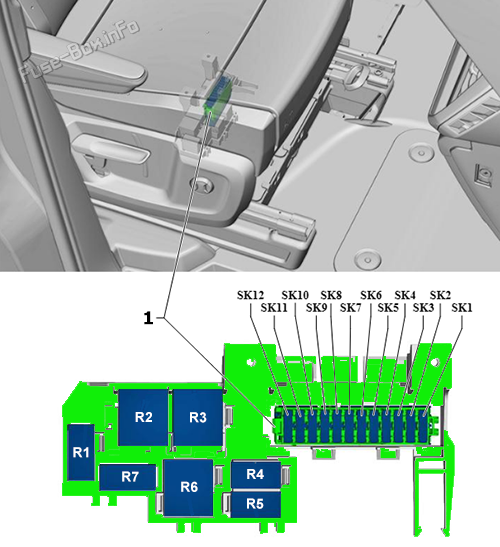

Fuse Holder K

Location and Diagram

Fuses

Assignment of the fuses in the Fuse Holder K

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
SK1	–	–
SK2	–	–
SK3	–	–
SK4	–	–
SK5	25A	Special vehicle control unit -J608-
SK6	25A	Special vehicle control unit -J608-
SK7	25A	Special vehicle control unit -J608-
SK8	25A	Special vehicle control unit -J608-
SK9	7.5A	Taximeter -G41- Mirror taximeter -G511-
SK10	–	–
SK11	–	–
SK12	–	–

Relays

Assignment of the relays in the Fuse Holder K

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	–
R2	–
R3	–
R4	Right sliding door relay -J1270-
R5	Circulation pump relay -J160-
R6	–
R7	–

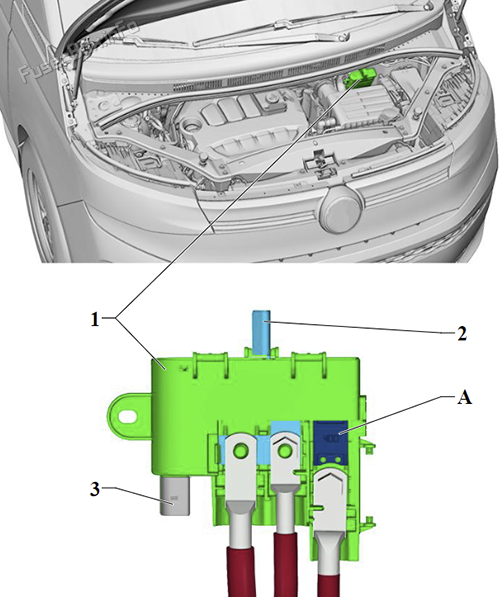

Fuse Holder O

Location and Diagram

High Voltage Fuses

Assignment of the fuses in the Fuse Holder O

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
A	400A	Alternator with voltage regulator -CX1- Starter -B-

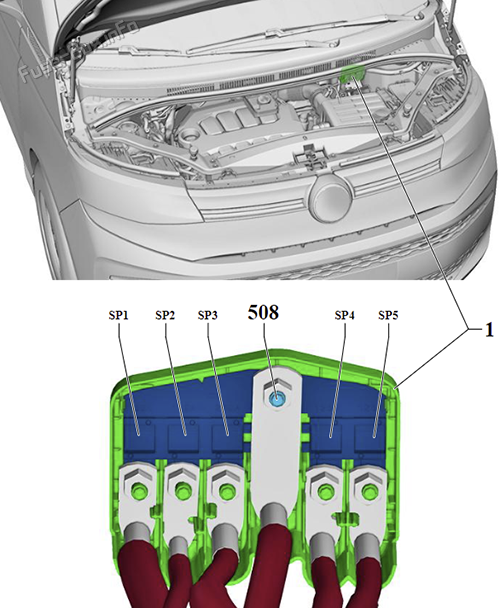

Fuse Holder P

Location and Diagram

High Voltage Fuses

Assignment of the fuses in the Fuse Holder P

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
SP1	150A	Fuse holder B -SB- (For models with hybrid drive system)
SP2	100A	Radiator fan -VX57-
SP3	200A	Fuse 1 in fuse holder H -SH1- (For models with hybrid drive system)
508	–	Threaded connection (30) on E-box: Power and control electronics for electric drive -JX1- (For models with hybrid drive system) Terminal 30 wiring junction -TV2- (For models with no hybrid drive system)
SP4	125A	Fuse holder C -SC- (For models with hybrid drive system)
SP5	125A	Fuse holder C -SC- (For models with hybrid drive system, from June 2022)

Fuse Box 1 – S350- (Hybrid)

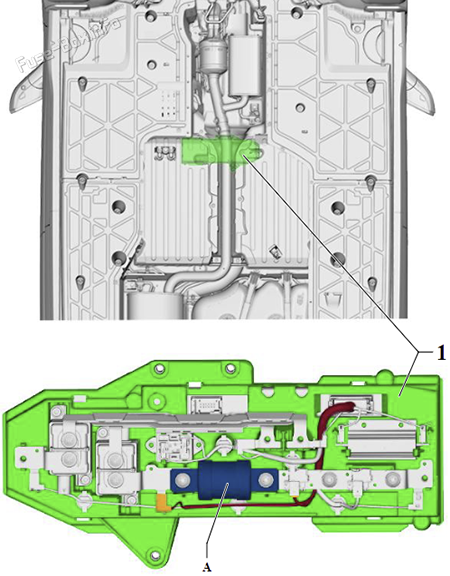

High-voltage system fuse 1 – S350- (Hybrid)

Location and Diagram

High-voltage system fuse 1: Volkswagen Multivan (T7; 2022-2024)

High Voltage Fuses

Assignment of the fuses in the High-voltage system fuse 1 – S350-

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
A	350A	High-voltage battery 1 -AX2-

Fuse Box 3 – S353- (Hybrid)

High-voltage system fuse 3 – S353- (Hybrid)

Location and Diagram

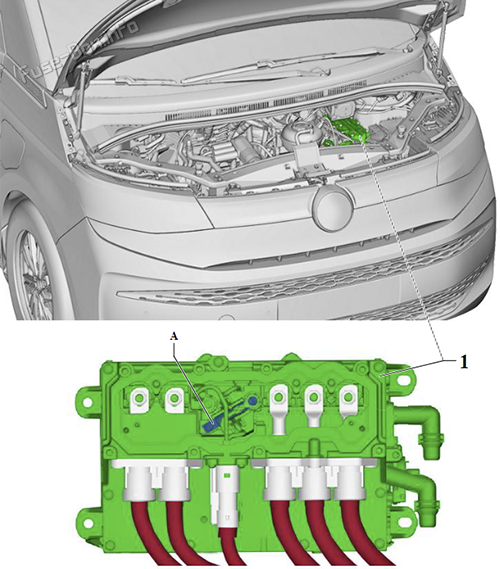

High-voltage system fuse 3: Volkswagen Multivan (T7; 2022-2024)

High Voltage Fuses

Assignment of the fuses in the High-voltage system fuse 3 – S353-

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
A	80A	Power and control electronics for electric drive -JX1-

Relay in switching unit – SX6-

Relay in switching unit for high-voltage battery – SX6-

Location and Diagram

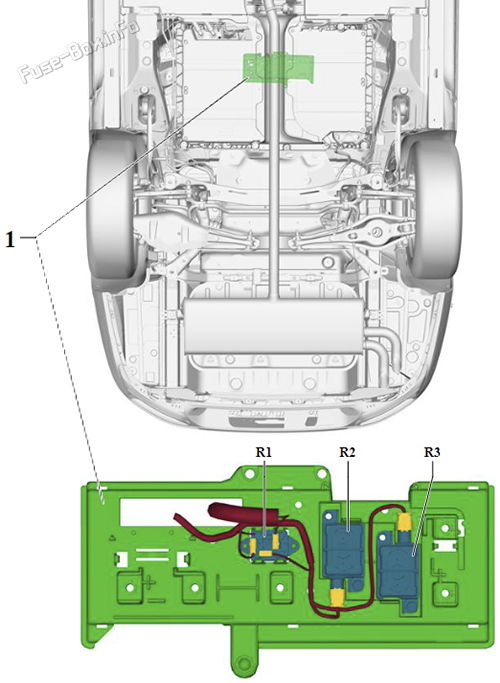

Relay in switching unit for high-voltage battery: Volkswagen Multivan (T7; 2022-2024)

Relays

Assignment of the relays in switching unit for high-voltage battery – SX6-

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Precharge contactor for high-voltage battery -J1044-
R2	High-voltage battery power contactor 1 -J1057-
R3	High-voltage battery power contactor 2 -J1058-
