Looking for Volkswagen Polo fuse box diagrams ? This article covers the third-generation Volkswagen Polo (Model Codes: 6N, 6KV) , produced from 1994 to 2002 , and includes fuse box diagrams for Volkswagen Polo 1995, 1996, 1997, 1998, 1999, 2000, 2001 and 2002 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

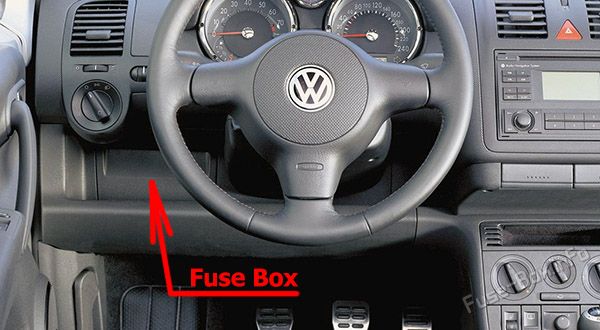

The fuse box is located behind the cover in driver’s storage compartment.

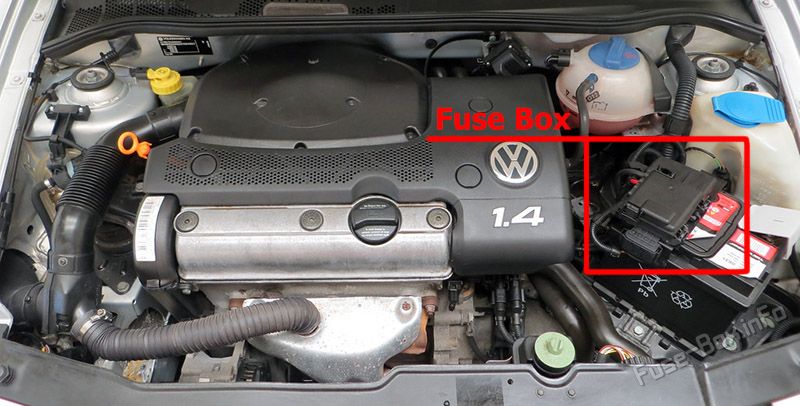

It is located on the battery.

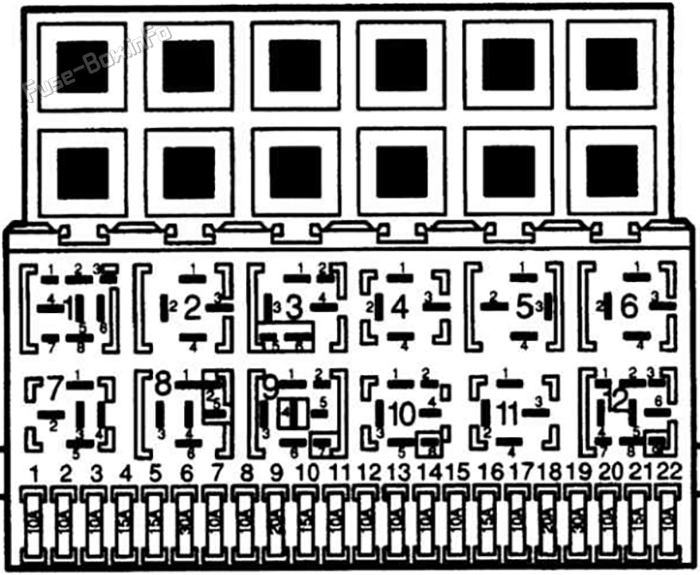

Assignment of the fuses in the instrument panel (1994-1996)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 10A Dipped beam left, headlight range control, left 2 10A Dipped beam right, headlight range control, right 3 10A Number plate light 4 15A Rear window wiper 5 15A Windscreen wipe/wash system, heated washer jets 6 20A Fresh air blower, air conditioner 7 10A Side light and tail light, right 8 10A Side and tail light, left 9 20A Heated rear window 10 15A Rear fog light 11 10A Main beam, left 12 10A Main beam, right 13 10A Horn 14 15A Reversing lights, additional equipment 15 10A Engine electrics 16 15A Dash panel insert 17 10A Turn signals 18 20A Fuel pump, Lambda probe 19 30A Radiator fan 20 10A Brake light 21 15A Interior lights, dash panel insert, self-diagnosis 22 10A Radio system, cigarette lighter
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel (1994-1996)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Air conditioner relay 2 Rear window wipe/wash relay 3 – 4 Relief relay for X contact 5 – 6 Hazard warning light relay 7 Headlight washer system relay 8 Intermittent wipe/wash relay 9 Light switched on. warning buzzer 10 Bridge for fog light 11 Bridge for horn 12 Fuel pump relay
This content requires JavaScript and a valid membership to view.
Assignment of the relays above relay plate in the instrument panel (1994-1996)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Amps Description Window lifter relay and/or folding sliding roof Junction box for terminal Junction box for terminal Starter inhibitor relay Intake manifold preheating relay Glow period control unit 30A Control unit fuse 1 – ABS (hydraulic pump) 30A Control unit fuse 2 – ABS (valves) Window lifter thermo fuse and/or folding sliding roof 50A Glow plug fuse
This content requires JavaScript and a valid membership to view.
Under driver’s seat: Control unit for heated driver’s seat
Under passenger’s seat: Control unit for heated passenger’s seat
In engine compartment (left): Radiator fan control unit

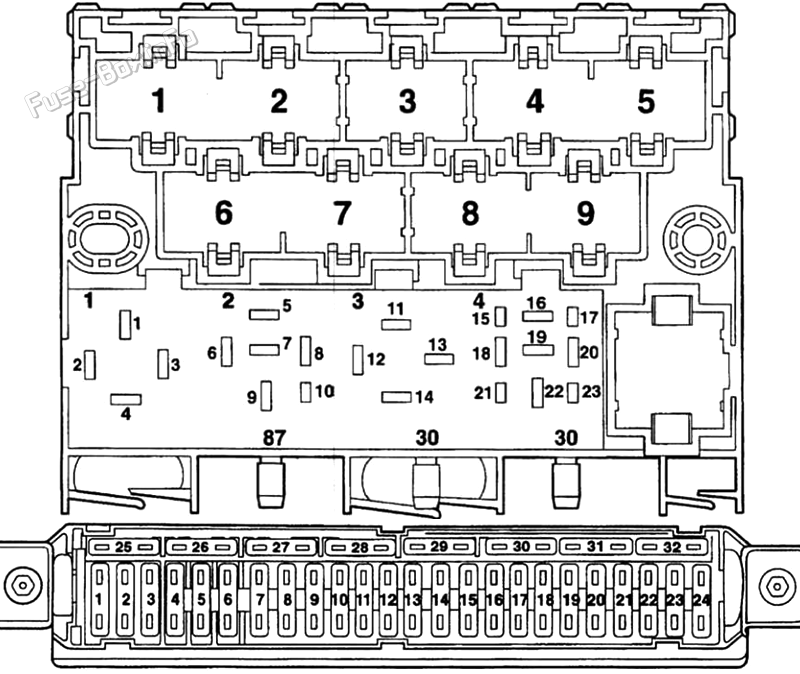

Assignment of the fuses in the instrument panel (1997-1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 15A Engine control unit 2 10A Engine control unit (only on petrol engines) 3 7.5A Engine electrics 4 15A Ignition transformer 5 10A Auto, gearbox control unit, shift lock 6 5A Auto, gearbox control unit 7 5A ABS control unit 8 15A Injectors, Lambda probe 9 10A Engine control unit 10 15A Engine control unit (only on petrol engines) 11 15A Horn, seat heating 12 10A Right main beam, main beam warning lamp 13 10A Left main beam 14 10A Right dipped beam, right headlight range control, headlight range control adjuster 15 10A Left dipped beam, left headlight range control 16 5A Right side and tail lights 17 5A Left side and tail lights 18 7.5A Reversing light, heated washer jets, selector lever illumination 19 15A Fog lights, rear fog light 20 10A Brake lights 21 10A Hazard warning lights 22 5A Turn signals 23 15A Windscreen wipe/wash system 24 10A Rear window wiper, heated and adjustable exterior mirrors 25 15A Heated rear window 26 5A Dash panel insert, immobiliser 27 5A Self-diagnosis connection, dash panel insert, interior light, luggage compartment light 28 15A Radio, cigarette lighter, central locking 29 5A Interior light, fresh/recirculating air blower actuating motor 30 20A Fresh air blower 31 5A Licence plate lights 32 15A Fuel pump
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel (1997-1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Hazard warning light relay 2 Automatic intermittent wipe and wash relay 3 X contact relief relay 4 Fuel pump relay
This content requires JavaScript and a valid membership to view.

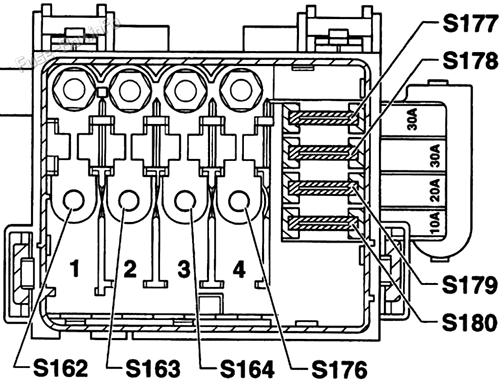

Assignment of the fuses in the engine compartment (1997-1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description S162 110A Alternator S163 50A Relay carrier S164 50A Engine glow plugs S176 50A Coolant heater elements S176 30A Air conditioner S177 30A ABS control unit S176 30A ABS control unit S179 20A Radiator fan S180 10A Air conditioner
This content requires JavaScript and a valid membership to view.

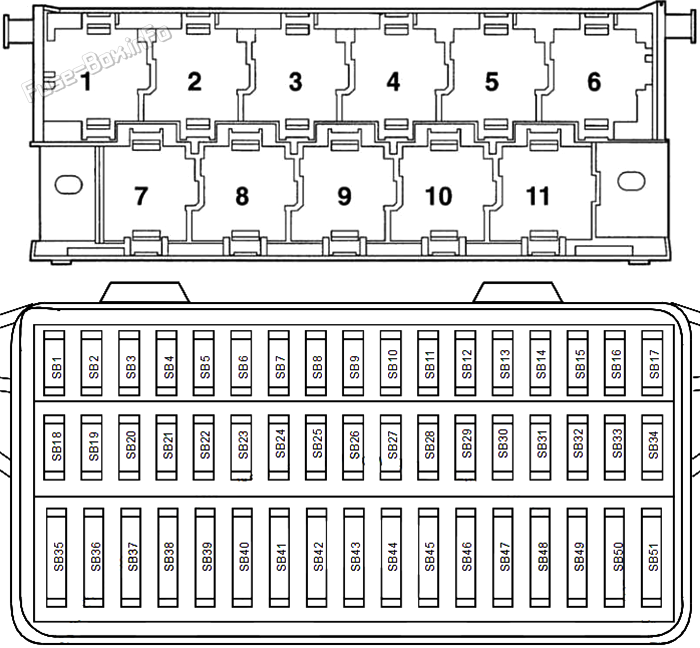

Assignment of the fuses in the instrument panel (1999-2002)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description SB1 10A Lambda probe heating, ACF; camshaft variable timing adjuster SB2 5A Number plate lights SB3 10A Injectors SB4 5A Side bulb left SB5 5A Side light bulb SB6 15A Rear wiper SB7 75A Turn signals SB8 5A ABS with EDL/ESP SB9 5A Headlight range control SB10 7.5A Interior lighting, glove box, mirror, door entry, luggage compartment light SB11 5A Self-diagnosis connection voltage supply, dash panel insert, Climatronic SB12 10A Right headlight main beam, main beam warning lamp SB13 10A Left main beam headlight SB14 10A Hazard warning lights system, anti-theft alarm system SB15 10A Brake lights SB16 5A Ignition/starter switch S-contact SB17 – – SB18 5A Mirror heating SB19 15A Horn SB20 10A Telephone/preparationfor telephone SB21 5A Automatic gearbox control unit SB22 15A Anti-theft alarm system horn SB23 5A EGR, air mass meter, addit. heater relay, glow plug relay SB24 5A Clutch pedal switch (diesel), brake light suppression switch (EPC) SB25 5A Selector lever switch (AG4) SB26 7.5A Air conditioner, central locking, electric windows, electric mirrors, navigation SB27 5A Dash panel insert SB28 5A Speedometer sender, immobilizer SB29 75A Reversing lights, washer jet heating, headlight range control motor SB30 5A Exhaust gas recirculation valve, activated charcoal filter solenoid, heater pipe SB31 5A Fuel shut-off control unit, engine control unit SB32 5A Fuel shut-off control unit (diesel) SB33 10A Automatic gearbox selector lever lock SB34 10A Ignition transformer SB35 25A Glass sunroof, fabric sunroof SB36 15A Engine control unit SB37 15A Engine control unit SB38 25A Driver’s door power window SB39 25A Front passenger’s power window SB40 15A Fuel pump SB41 15A Central locking, anti-theft alarm system SB42 15A Radio, navigation SB43 15A Fog light, rear fog light SB44 15A Dipped beam, left headlight SB45 15A Dipped beam right headlight SB46 15A Cigarette lighter SB47 20A Headlight washer system SB48 20A Heated rear window SB49 25A Fresh air blower SB50 15A Windscreen wiper system, windscreen washer pump SB51 15A Seat heating
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel (1999-2002)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Fuel pump relay (petrol engines only) 2 Automatic intermittent wash/wipe and rain sensor relay 7 X contact relief relay 8 Heated exterior mirror relay
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (1999-2002)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description S162 110A Alternator S163 80A Relay carrier S164 50A Glow plugs (engine) S176 50A Glow plugs (radiator fan) S176 30A Air conditioning system S177 30A ABS control unit S178 30A ABS control unit S179 20A Radiator fan S180 10A Air conditioning system SA9 30A Air conditioner – glow plugs (diesel)
