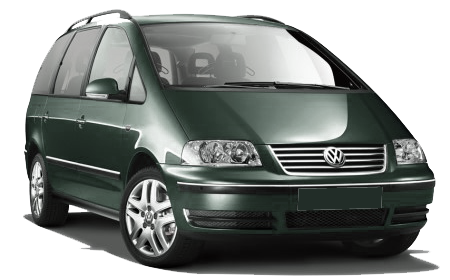

Volkswagen Sharan 1995-2009

Before Facelift
After Facelift

Looking for Volkswagen Sharan fuse box diagrams? This article covers the first-generation Volkswagen Sharan (Model Code: 7M), produced from 1995 to 2010, and includes fuse box diagrams for Volkswagen Sharan 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 and 2009, along with information about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Fuse Box Location

The fuse box is located in the instrument panel.

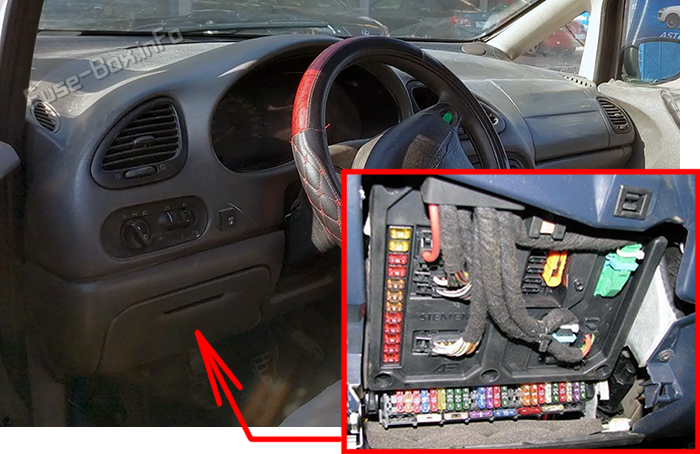

Location of the fuses in the passenger compartment: Volkswagen Sharan (7M; 1995-2000)

Fuse Box Diagrams

1995-1997

Fuse/Relay Panel

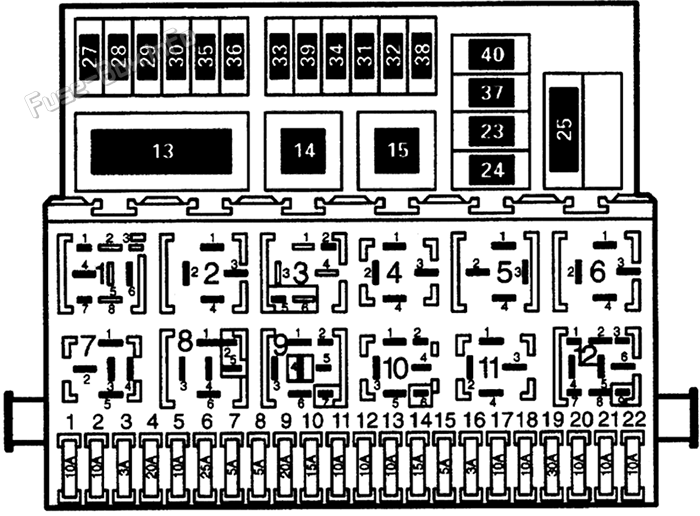

Instrument panel fuse box diagram: Volkswagen Sharan (1995, 1996, 1997)
Fuses

Assignment of the fuses in the instrument panel (1995-1997)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

№AmpFunction
110ADip beam, left
Headlight range control, left
210ADip beam, right
Headlight range control right
33ANumber plate light
420ARear window wiper
Daylight driving lights
Rear warm air blower
510AWindscreen wipe/wash system
Heated washer jets
625AFresh air blower
Climatronic
75ASide and tail lights, right
Engine compartment light
85ASide and tail lights, left
920AHeated rear window
Heated windscreen relay
1015ARear fog light
1110AMain beam, left
1210AMain beam, right
1310AHorn
1415AReversing lights CCS (not for automatic gearbox)
Heated windscreen relay
Central locking control unit
Electric window control unit/relay
Rear electric vent windows
Adjustable and heated exterior mirrors
Seat heating
Climatronic control unit
D3W water heater controls
Freewheel lock valve (Syncro)
Automatic gearbox control unit
Selector lever illumination
1510A/5AEngine control
Immobiliser
Selector lever illumination
Crankcase breather heater element
Exhaust gas recirculation
Activated charcoal filter system
163ADigital clock
Front interior light
Glove box light
Heated rear window relay
Bulb monitoring unit
1710ATurn signal system
1810AFuel pump
Lambda probe
1930ARadiator fan
Radiator fan control
2010ABrake lights
2110ADash panel insert
Digital clock
Radio, CD changer, Amplifier
Interior lights
Front/rear sunroof
2210ASelf-diagnosis
Climatronic control unit
237.5ARadiator fan 3rd speed and magnetic coupling fuse
Radiator fan control unit fuse
Coolant pump fuse
2430AWiper motor fuse
2560AGlow plugs fuse (engine)
265AVacant
2750AHeated windscreen fuse
2830AABS control unit fuse 1 (hydraulic pump)
2930AABS control unit fuse 2 (valves)
3010ACentral locking fuse (Additionally: Door warning lights)
3110ACentral locking / anti-theft alarm system horn fuse
3210ACentral locking / anti-theft alarm system hazard warning lights fuse
3330A/25AHeater fuse (D3W water heater; B4W/D4W water heater)
3425ARear Climatronic fuse (fresh air blower)
3520ACigarette lighter fuse
12 V socket fuse
Towing fuse (terminal 30)
3610ATelephone fuse
3730AElectric window single fuse
Electric window thermo fuse
(Additionally: Vent window convenience system)
3820AVacant
3925AFront Climatronic fuse (fresh air blower)
405ARadiator fan 1 st and 2nd speeds fuse

Relays

Assignment of the relays in the instrument panel (1995-1997)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Vacant
2Rear window wipe and wash relay (72)
3Current supply relay (30) (ADY, AKT )
Current supply relay (109) (1Z, AHU, AFN)
4X contact relief relay (18)
5Vacant
6Hazard warning light relay (21)
Hazard warning light relay for trailer towing (22)
7Headlight washer system relay (95)
8Automatic intermittent wipe and wash relay (19)
Automatic intermittent wipe and wash relay, program (99)
9Lights switched on warning buzzer (36)
10Bridge for rear fog light
Fog light relay (53)
11Bridge for horn
Dual tone horn relay (53)
12Fuel pump relay (167) (AAA, ADY, AKT )
Glow plug relay (103) (1Z, AHU, AFN)
13Dip and main beam relay (128)
14Heated rear window relay (169)
Bridge for heated rear window
15Wiper motor relief relay (53), (204)

Additional relay plate and junctions behind dash panel, left

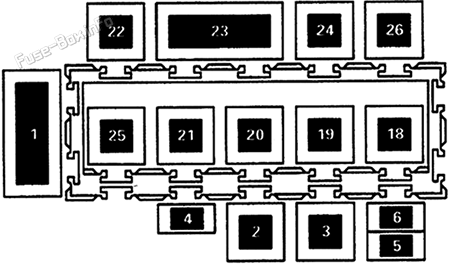

Additional relay plate and junctions: Volkswagen Sharan (1995, 1996, 1997)
Fuses

Assignment of the additional relays and junctions in the instrument panel (1995-1997)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Self-diagnosis junction
2Terminal 15a junction (8-pin)
3Terminal 58b junction (8-pin)
4Speed signal junction (8-pin)
5Terminal 54 junction (8-pin)
6Door contact switch junction (8-pin)
18Radio/telephone loudspeaker switch-over relay (8-pin)
19Daylight driving lights switch-on relay (200)
20Freewheel lock control unit (149)
21Rear vent window relay (149)
22Heated windscreen relay (170)
23Vacant
24Electric window relay (without convenience closing) (53)
25Rear warm air blower switch-off relay (94)
26Seat belt warning system relay

Additional relay plate and fuse holder, left in engine compartment

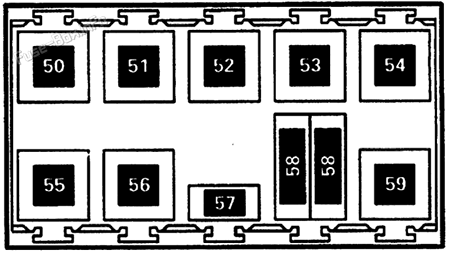

Additional relay/fuse holder in engine compartment: Volkswagen Sharan (1995, 1996, 1997)

Assignment of the additional relays and junctions in the engine compartment (1995-1997)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
50Air conditioner de-coupling relay (114)
Blocking diode (153)
51Air conditioner switch-off relay (147) (AAA, ADY, AKT)
Air conditioner magnetic coupling switch-off relay (94) (1Z, AHU, AFN)
52Vacant
53Magnetic coupling relay (168)
54Coolant run-on blocking diode (153) (AAA)
Large heater output relay (103) (1Z, AHU, AFN)
55Starter inhibitor and reversing light relay (158)
56Secondary air pump relay (53)
57Secondary air pump fuse (AAA)
Heater element fuse 2 (coolant) (1Z, AHU, AFN)
5830A
25A		Radiator fan fuse (AAA )
Heater element fuse 1 (coolant) (1Z, AHU, AFN)
5925A
50A		Coolant run-on control unit (131) (AAA )
Small heater output relay (103) (1Z, AHU, AFN)

1997-2009

Fuse/Relay Panel

Instrument panel fuse box diagram: Volkswagen Sharan (1997, 1998, 1999, 2000)
Fuses

Assignment of the fuses in the instrument panel (1997-2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
120AHeated seats
210AElectric windows
Adjustable and heated exterior mirror
Rear opening vent wing windows
Seat belt warning system (Japanese vehicles only)
Catalyst monitor (Japanese vehicles only)
35ACruise control system (CCS)
Sunroof
Glove compartment lighting, digital clock
Multi-function unit
Navigation system
Climatronic
Ambient temperature switch (Auxiliary water heater D3W/D4W for engine codes: AFN, AHU)
410AImmobilizer
Engine control unit (Engine codes: AAA, AJH, ADY)
Heater element (crankcase breather) (Engine codes: AAA, AFN, AHU)
515AAutomatic gearbox
Reversing lights
Syncro
610ADual tone horn
720ACigarette lighter
830AWindscreen wipers
930AAnti-lock brake system hydraulic pump (ABS)
1030AAnti-lock brake system valves (ABS)
1120AHeadlight washer system
1215AMulti-function unit (Rear window wiper, central locking)
Sunroof
Digital clock
133AEngine control unit (Engine codes: AAA, AJH)
1420AFuel pump (Engine codes: AAA, AJH, ADY)
1410AVoltage supply (Engine codes: ADY, AFN, AHU)
1410ACoolant heater element relay (Engine code: AHU)
1530ARadiator fan run-on (Engine codes: AAA, AFN)
1630ARadiator fan thermo-switch (Radiator fan: 2-speed / 3-speed)
1710A
30A		Automatic gearbox
Coolant heater element, low heater output (Engine code: AHU)
1810ARadiator fan thermo-switch (Radiator fan: 2-speed with radiator fan run-on / 3-speed with radiator fan run-on)
195ACentral locking
Telephone system
Climatronic
Dash panel insert
Radio system
Self-diagnostics
2010ABrake lights
2130ARear fresh air blower (Climatronic)
2225AFront fresh air blower (Climatronic)
2310ARadio system
CD changer
Navigation system
2425AAuxiliary water heater D3W
253AMulti-function unit
Telephone system Radio system
2630AStarter (Automatic gearbox)
Starter inhibitor and reversing light relay
2725ARadiator fan run-on
Air conditioner magnetic coupling
2810AAnti-lock brake system (ABS)
Radiator fan thermo-switch
Radiator fan run-on
Windscreen and rear window washer pump (Windscreen washer switch)
295AMulti-function unit
Heated windscreen washer jets
Wiper motor relief relay
Heated windscreen and rear window (Switches on and off)
Auxiliary water heater B4W/D4W
Rear warm air blower
Climatronic (2nd heat exchanger switch-off)
303ANumber plate light
3115AFog light
323ACurrent supply relay (Engine code: ADY)
Engine glow plugs (Engine codes: AFN, AHU)
Fuel pump relay (Engine codes: AAA, AJH, ADY)
3325A2nd battery
12V sockets
Trailer towing (permanent positive)
3425AFront fresh air blower (Except Climatronic with auxiliary water heater B4W/D4W: With 2nd heat exchanger; With manual air conditioner)
Rear warm air blower (2nd heat exchanger)
5120AHeated rear window
5220ATurn signal system
5310AConsumer switch-off (Interior lighting)
5410AAlarm horn (Anti-theft alarm system)
555AVoltage supply
565ASide and tail lights, right
575ASide and tail lights, left
5810AHeadlight range control
5910ADip beam, left
6010ADip beam, right
6110AMain beam, left
6210AMain beam, right

Connectors

Assignment of the connectors in the instrument panel (1997-2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
P1Terminal 30 power supply
P2Position lights, Left parking light, Brake light, Anti-theft alarm system (alarm sound)
P3Terminal 30e power supply, Terminal 31e (ground), Right parking light, Turn signals, Headlight range control, Load shedding, Heated rear window, Anti-theft alarm system
P4Terminal 31e power supply, Right parking light, Turn signals, Headlight range control, Load shedding, Heated rear window, Anti-theft alarm system
P5Self-diagnosis connector, Rear wiper, Central locking
P6Anti-theft alarm system (ultrasonic sensors), Central locking, Electric windows, Side electric windows, Instrument panel (warning lights), Windshield wipers
P7Ignition switch terminal 15 and S-contact, X-contact relief relay, Heated windshield, Door contact switches, Windshield washer systems, Headlight washer system

Fuses on lower relay plate behind multi-function unit

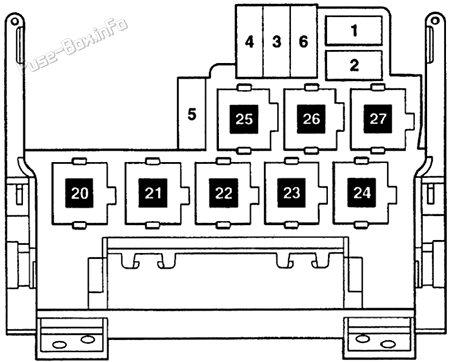

Fuses on lower relay plate: Volkswagen Sharan (1997, 1998, 1999, 2000)
Fuses

Assignment of the fuses on lower relay plate (1997-2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
140ARadiator fan
240ARadiator fan
380AEngine glow plugs (Engine codes: AFN, AHU)
350ASecondary air pump (Engine code: AJH)
450AHeated windscreen
Coolant heater elements, high heater output (Engine code: AHU)
530AElectric windows
630ASecondary air pump (Engine code: AAA)

Relays

Assignment of the relays on lower relay plate (1997-2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R20Fan relay [Models with additional coolant heating]
R21Fuel pump relay [Models with gasoline engine]
R22Secondary air pump relay / Terminal 30 voltage supply relay
R23Left side heated windshield relay
R24Glow plug relay [Except for diesel engines with engine codes BRT, BVH]
R25Brake light suppression relay [Models with ABS/EDL]
R26X-contact relief relay
R27Windshield washer pump relay

Relay locations on upper relay plate behind multi-function unit

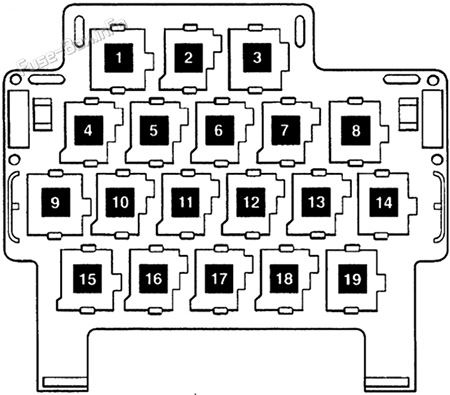

Relay locations on upper relay plate: Volkswagen Sharan (1997, 1998, 1999, 2000)
Relays

Assignment of the relays on upper relay plate (1997-2009)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Mirror fold-in function control unit
2Mirror fold-in function control unit
3Radio/telephone loudspeaker switch-over relay (Engine codes: AJH, ADY, AFN, AHU; Engine code: AAA, not Japanese vehicles)
3Catalyst monitor control unit (Engine code: AAA, Japanese vehicles only)
4Seat belt warning system relay (Engine code: AAA, Japanese vehicles only)
4Blower relay (Air conditioning system)
4Warm air blower relay (Warm air blower switch-off (2nd heat exchanger) on vehicles with a heated windscreen)
5Radiator fan run-on control unit (Engine code: AAA)
5Radiator fan run-on control unit (Engine code: AJH)
5Radiator fan run-on relay (Engine code: AFN)
6Starter inhibitor and reversing light relay
7Auxiliary heater relay (Auxiliary water heater B4W/D4W)
8Headlight washer system relay
9Daylight driving light relay
10Dual tone horn
11Air conditioner system switch-off relay (Engine codes: AAA; AJH, ADY)
11Air conditioner magnetic coupling switch-off relay (Engine codes: AFN, AHU)
12Magnetic coupling relay
13Blocking diode
14Immobilizer relay
15Fresh air blower and air recirculation relay (Auxiliary water heater B4W/D4W)
16Rear opening wing window relay
17Fresh air blower separation relay (Auxiliary water heater B4W/D4W in conjunction with manual air conditioning system)
18Coolant circulation cut-off relay, 2nd heat exchanger
18Radio / telephone loudspeaker switch-over relay (Engine code: AAA, Japanese vehicles only)
19Continued coolant circulation blocking diode (Engine code: AAA)
19Terminal 30 voltage supply relay (Engine codes: AFN, AHU)

Scroll to Top
