Volkswagen T-Roc 2017-2025

Need Volkswagen T-Roc fuse box diagrams without digging through manuals? This guide focuses on the first-generation Volkswagen T-Roc (model codes A11/D11, AC7/AC8 Cabriolet), produced from 2017 to 2025, and covers Volkswagen T-Roc 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 and 2025, showing the exact fuse panel locations, clearly explaining the fuse layout, and identifying each fuse and relay, so troubleshooting electrical gremlins feels more like a quick fix than a treasure hunt.

Engine Compartment

Fuse Box Location

Press the release buttons in the direction of the arrow to release the fuse box cover (1). In some vehicles, there is a pair of plastic pliers (2) for removing fuses on the inside of the cover.

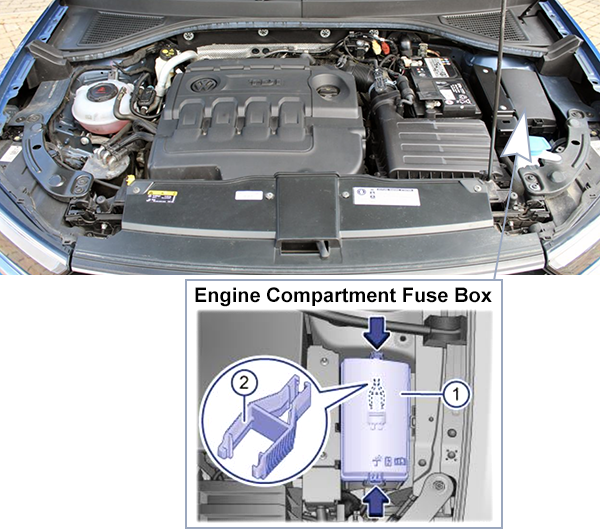

Volkswagen T-Roc (2018-2021): Engine compartment fuse box location

Fuse Box Diagrams

From November 2017

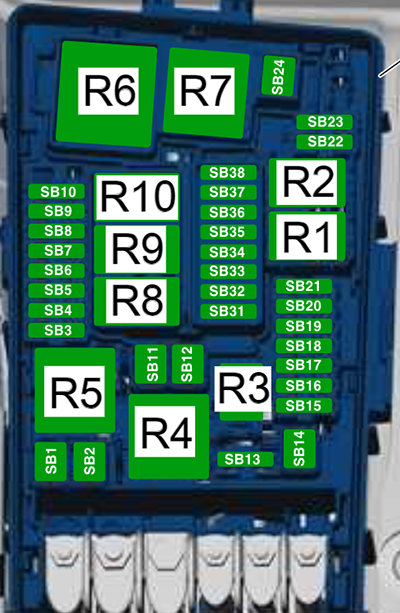

Volkswagen T-Roc (2017-2018): Engine compartment fuse box diagram
Fuses

Assignment of the fuses in the engine compartment fuse box (From November 2017)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB125AABS control unit -J104-
SB240A 5
60A 6		ABS control unit -J104-
– ABS hydraulic pump -V64-
SB315A 1
30A 1		Engine/motor control unit -J623-
SB45A 2
10A 1		Radiator fan -VX57- 3
Oil level and oil temperature sender -G266-
High heat output relay -J360-
Low heat output relay -J359- 2, 3
Glow plug 1 -Q10- 2
Glow plug 3 -QX3- 2
Exhaust camshaft control valve 1 -N318-
Camshaft control valve 1 -N205-
Inlet cam actuator for cylinder 2 -N583-
Exhaust cam actuator for cylinder 2 -N587-
Inlet cam actuator for cylinder 3 -N591-
Exhaust cam actuator for cylinder 3 -N595-
Charge pressure control solenoid valve -N75- 3
Inlet camshaft control valve 1 -N727-
Activated charcoal filter solenoid valve 1 -N80-
Valve for oil pressure control -N428- 1, 3
SB510AFuel pressure regulating valve -N276- 2, 3
Fuel metering valve -N290- 2, 3
Engine component current supply relay -J757- 1, 3
SB65ABrake light switch -F-
SB710A 2Charge air cooling pump -V188-
Coolant valve for gearbox -N488-
Turbocharger air recirculation valve -N249-
Intake manifold flap valve -N316-
Piston cooling jet control valve -N522-
Coolant valve for cylinder head -N489- 2, 3
Oil pressure sender -G10-
Auxiliary pump for heating -V488- 3
Exhaust flap control unit -J883- 4
Coolant shut-off valve -N82- 1, 3
Valve for oil pressure control -N428- 2, 3
SB815ALambda probe 1 before catalytic converter -GX10- 3
Control unit for NOx sender -GX30- 3
Control unit 2 for NOx sender -GX46- 3
Lambda probe 1 after catalytic converter -GX7- 3
SB95A 2
10A 1		Automatic glow period control unit -J179- 2, 3
Heater element for crankcase breather -N79-
Air mass meter -G70-
Ignition coil 4 with output stage -N292-
Ignition coil 3 with output stage -N291-
Ignition coil 2 with output stage -N127-
Ignition coil 1 with output stage -N70-
Activated charcoal filter solenoid valve 1 -N80-
Exhaust camshaft control valve 1 -N318-
Camshaft control valve 1 -N205-
SB1015A 1
20A 2		Fuel pump control unit -J538-
SB1140A 2Auxiliary air heater element -Z35-
SB1240A 2Auxiliary air heater element -Z35-
SB1330AMechatronic unit for dual clutch gearbox -J743-
SB14––
SB1515AHorn relay -J413-
SB1620A 1Engine component current supply relay -J757- 1, 3
SB177.5AEngine/motor control unit -J623-
ABS control unit -J104-
SB185ABattery monitor control unit -J367-
SB1930AWiper motor relay 1 -J368-
Wiper motor relay 2 -J369-
SB2010AAlarm horn -H12-
SB21––
SB225AEngine/motor control unit -J623-
SB2330AStarter -B-
SB2440AAuxiliary air heater element -Z35- 2
SB3115AVacuum pump for brakes -V192-
SB32––
SB3315AAuxiliary hydraulic pump 1 for gearbox oil -V475-
SB34––
SB35––
SB36––
SB3720AAuxiliary heater control unit -J364-
SB38––
1) For models with petrol engine
2) For models with diesel engine
3) According to equipment
4) For models with 1.5L petrol engine
5) For models with extended pedestrian protection system
6) For models with extended pedestrian protection system that scans front area

Relays

Assignment of the relays in the engine compartment fuse box (From November 2017)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Starter relay 1 -J906-
R2Starter relay 2 -J907-
R3Horn relay -J413-
R4High heat output relay -J360- (For models with diesel engine)
R5Main relay -J271- (For models with petrol engine)
Terminal 30 voltage supply relay -J317- (For models with diesel engine)
R6Automatic glow period control unit -J179- (For models with diesel engine)
R7Low heat output relay -J359- (For models with diesel engine)
R8Engine component current supply relay -J757- (For models with 2.0L petrol engine)
R9Wiper motor relay 1 -J368-
R10Wiper motor relay 2 -J369-

From November 2018

Volkswagen T-Roc (2018-2021): Engine compartment fuse box diagram
Fuses

Assignment of the fuses in the engine compartment fuse box (From November 2018)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB125AABS control unit -J104-
SB240A 5
60A 6		ABS control unit -J104-
– ABS hydraulic pump -V64-
SB315A 1
30A 2		Engine/motor control unit -J623-
SB45A 2
7.5A 2, 7
10A 1		Radiator fan -VX57- 3
Oil level and oil temperature sender -G266-
High heat output relay -J360-
Low heat output relay -J359- 2, 3
Glow plug 1 -Q10- 2
Glow plug 3 -QX3- 2
Exhaust camshaft control valve 1 -N318-
Camshaft control valve 1 -N205-
Inlet cam actuator for cylinder 2 -N583-
Exhaust cam actuator for cylinder 2 -N587-
Inlet cam actuator for cylinder 3 -N591-
Exhaust cam actuator for cylinder 3 -N595-
Charge pressure control solenoid valve -N75- 3
Inlet camshaft control valve 1 -N727-
Activated charcoal filter solenoid valve 1 -N80-
Valve for oil pressure control -N428- 1, 3
SB510AFuel pressure regulating valve -N276- 2, 3
Fuel metering valve -N290- 2, 3
Engine component current supply relay -J757- 1, 3
SB67.5ABrake light switch -F-
SB77.5A 8, 9
10A		Charge air cooling pump -V188-
Heater element for crankcase breather -N79-
Coolant valve for gearbox -N488-
Turbocharger air recirculation valve -N249-
Intake manifold flap valve -N316-
Piston cooling jet control valve -N522-
Coolant valve for cylinder head -N489- 2, 3
Oil pressure sender -G10-
Auxiliary pump for heating -V488- 3
Exhaust flap control unit -J883- 4
Coolant shut-off valve -N82- 1, 3
Valve for oil pressure control -N428- 2, 3
SB810A 4, 10
15A		Lambda probe 1 before catalytic converter -GX10- 3
Control unit for NOx sender -GX30- 3
Control unit 2 for NOx sender -GX46- 3
Lambda probe 1 after catalytic converter -GX7- 3
SB910A 2
20A 1		Automatic glow period control unit -J179- 2, 3
Air mass meter -G70-
Ignition coil 4 with output stage -N292-
Ignition coil 3 with output stage -N291-
Ignition coil 2 with output stage -N127-
Ignition coil 1 with output stage -N70-
Activated charcoal filter solenoid valve 1 -N80-
Exhaust camshaft control valve 1 -N318-
Camshaft control valve 1 -N205-
SB1015A 1
20A 2		Fuel pump control unit -J538-
SB1140A 2Auxiliary air heater element -Z35-
SB1240A 2Auxiliary air heater element -Z35-
SB1330AAuxiliary hydraulic pump 1 for gearbox oil -V475-
SB14––
SB1515AHorn relay -J413-
SB1620A 1Engine component current supply relay -J757- 1, 3
SB177.5AEngine/motor control unit -J623-
ABS control unit -J104-
SB187.5ABattery monitor control unit -J367-
SB1930AWiper motor relay 1 -J368-
Wiper motor relay 2 -J369-
SB20––
SB2115A 11
30A 12		Mechatronic unit for dual clutch gearbox -J743-
SB227.5AEngine/motor control unit -J623-
SB2330AStarter -B-
SB2440AAuxiliary air heater element -Z35- 2
SB3115AVacuum pump for brakes -V192-
SB32––
SB33––
SB34––
SB35––
SB36––
SB3720AAuxiliary heater control unit -J364-
SB38––
1) For models with petrol engine
2) For models with diesel engine
3) According to equipment
4) For models with 1.5L petrol engine
5) For models with extended pedestrian protection system
6) For models with extended pedestrian protection system that scans front area
7) For models with exhaust concept, EU6 AG/H/I
8) For models with 2.0L petrol engine
9) For models with all-wheel drive
10) For models with 1.0L petrol engine
11) For models with dual clutch gearbox 0GC
12) For models with dual clutch gearbox 0CW

Relays

Assignment of the relays in the engine compartment fuse box (From November 2018)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Starter relay 1 -J906-
R2Starter relay 2 -J907-
R3Horn relay -J413-
R4High heat output relay -J360- (For models with diesel engine)
R5Main relay -J271- (For models with petrol engine)
Terminal 30 voltage supply relay -J317- (For models with diesel engine)
R6Automatic glow period control unit -J179- (For models with diesel engine)
R7Low heat output relay -J359- (For models with diesel engine)
R8Engine component current supply relay -J757- (For models with 2.0L petrol engine)
R9Wiper motor relay 1 -J368-
R10Wiper motor relay 2 -J369-

High Power Fuses

The fuse strip (multifuse) can be replaced as a complete unit.

Volkswagen T-Roc (2018-2021): Multifuse strip on fuse holder B
Harness Connectors

Assignment of the harness connectors in the instrument panel fuse box (From November 2017)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SBJ125AFuse holder C:
– Fuse 4 on fuse holder C -SC4- to fuse 14 on fuse holder C -SC14-
– Fuse 22 on fuse holder C -SC22-
– Fuse 31 on fuse holder C -SC31-
– Fuse 38 on fuse holder C -SC38- to fuse 42 on fuse holder C -SC42-
– Fuse 53 on fuse holder C -SC53-
Terminal 15 voltage supply relay -J329-
Relay for power sockets -J807-
SBG400AAlternator -C-
508–Threaded connection (30), on E-box: Battery -A-
SBE80APower steering control unit -J500-
SBK80AFuse holder C:
– Fuse 1 on fuse holder C -SC1- to fuse 3 on fuse holder C -SC3-
– Fuse 15 on fuse holder C -SC15- to fuse 30 on fuse holder C -SC30-
– Fuse 43 on fuse holder C -SC43- to fuse 46 on fuse holder C -SC46-
– Fuse 50 on fuse holder C -SC50- to fuse 52 on fuse holder C -SC52-
SBL50ARadiator fan -VX57-

Passenger Compartment

Fuse Box Location

Left-Hand Driver

Under the steering wheel. Reach behind the cover and pull it forward.

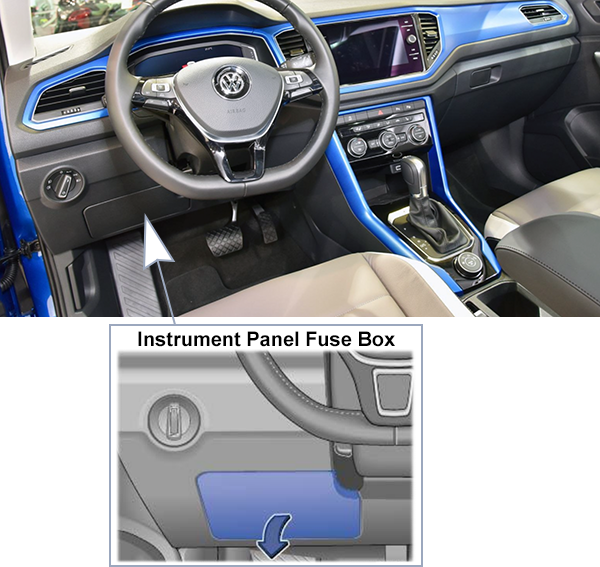

Volkswagen T-Roc (2018-2021): Instrument panel fuse box location (LHD)

Right-Hand Drive

  1. Open the stowage compartment on the front passenger side and remove the contents if necessary.
  2. Slide the braking element (1) downwards into the opening in the holder and pull it out sideways.
  3. Push catches (2) upwards in the direction of the arrow whilst opening the stowage compartment further.

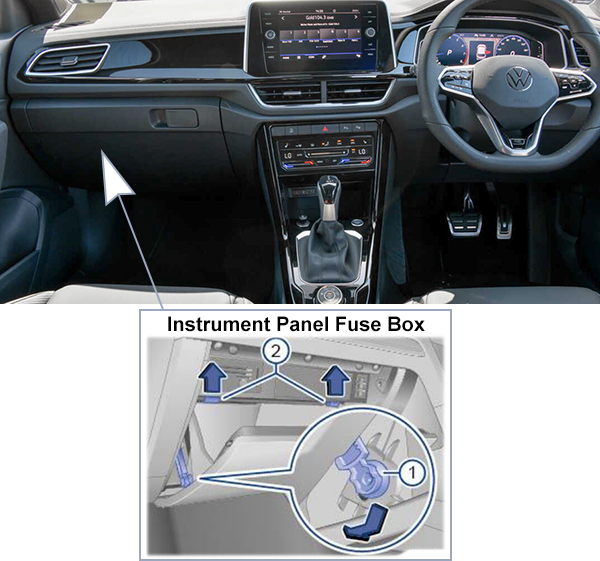

    Volkswagen T-Roc (2018-2021): Instrument panel fuse box location (RHD)

    Fuse Box Diagrams

    From November 2017

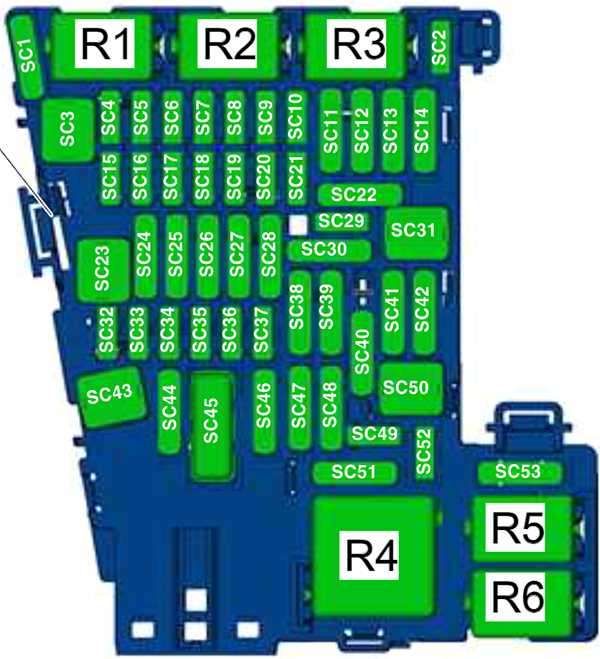

    Volkswagen T-Roc (2017-2018): Instrument panel fuse box diagram
    Fuses

    Assignment of the fuses in the instrument panel fuse box (From November 2017)

    Fuse Data
    Full access is available to registered users — log in or register.
    Log in or register

    No.AmpsDescription
    SC130AControl unit for reducing agent heater -J891-
    SC210ASteering column electronics control unit -J527-
    SC3––
    SC4––
    SC55AData bus diagnostic interface -J533-
    SC65ASelector lever -E313-
    SC710AHeater and air conditioning controls -EX21-
    Remote control receiver for auxiliary coolant heater -R149-
    Heated rear window relay -J9-
    SC810ARotary light switch -EX1-
    Electromechanical parking brake button -E538-
    Rain and light sensor -G397-
    Diagnostic connection -U31-
    Anti-theft alarm sensor -G578-
    Operating unit for driving mode selection -E881-
    Control unit for cornering light and headlight range control -J745-
    SC95ASteering column electronics control unit -J527-
    SC107.5ADisplay unit for front information display and operating unit control unit -J685-
    CD player -R89-
    SC1140AOnboard supply control unit -J519-
    SC1220AControl unit 1 for information electronics -J794-
    SC1325AFront left seat belt -NX10- 2
    Front right seat belt -NX11- 3
    SC1440AFresh air blower control unit -J126-
    SC1510AControl unit for electronic steering column lock -J764-
    SC167.5ATransmission and reception stabilisation control unit -R308-
    Storage compartment with interface for mobile telephone -R265-
    USB hub -R293-
    SC177.5ADash panel insert -KX2-
    Emergency call module control unit and communication unit -J949-
    SC187.5ARear lid handle -EX37-
    SC197.5AInterface for entry and start system -J965-
    SC207.5ARelay for reducing agent metering system -J963-
    SC2115AAll-wheel drive control unit -J492-
    SC2215ATrailer detector control unit -J345-
    SC2330ASliding sunroof adjustment control unit -J245-
    SC2440AOnboard supply control unit -J519-
    SC2530ADriver door control unit -J386-
    SC2630AOnboard supply control unit -J519-
    SC2730AOnboard supply control unit -J519-
    SC2825ATrailer detector control unit -J345-
    SC29––
    SC30––
    SC31––
    SC3210AFront camera for driver assist systems -R242-
    Adaptive cruise control unit -J428-
    Parking aid control unit -J446-
    SC335AAirbag control unit -J234-
    SC347.5AInterior mirror -EX5-
    Relay for power sockets -J807-
    Reversing light switch -F4-
    Pressure sender for refrigerant circuit -G805-
    Air quality sensor -G238-
    Electromechanical parking brake button -E538-
    SC3510ADiagnostic connection -U31-
    SC365AFront right headlight -MX2-
    SC375AFront left headlight -MX1-
    SC3825ATrailer detector control unit -J345-
    SC3930AFront passenger door control unit -J387-
    SC4020A12 V socket 2 -U18-
    12 V socket 3 -U19-
    SC4125AFront right seat belt -NX11- 2
    Front left seat belt -NX10- 3
    SC4240AOnboard supply control unit -J519-
    SC4340ADigital sound package control unit -J525-
    SC4415ATrailer detector control unit -J345-
    SC45––
    SC46––
    SC4715ARear window wiper motor -V12-
    SC48––
    SC495AClutch position sender-G476-
    SC5040ARear lid control unit -J605-
    SC51––
    SC5215AElectronically controlled damping control unit -J250-
    SC5330AHeated rear window relay -J9-
    2) For left-hand drive models
    3) For right-hand drive models

    Relays

    Assignment of the relays in the instrument panel fuse box (From November 2017)

    Fuse Data
    Full access is available to registered users — log in or register.
    Log in or register

    No.Description
    R1Relay for reducing agent metering system -J963-
    R2–
    R3–
    R4Terminal 15 voltage supply relay -J329-
    R5Heated rear window relay -J9-
    R6Relay for power sockets -J807-

    From November 2018

    Volkswagen T-Roc (2018-2021): Instrument panel fuse box diagram
    Fuses

    Assignment of the fuses in the instrument panel fuse box (From November 2018)

    Fuse Data
    Full access is available to registered users — log in or register.
    Log in or register

    No.AmpsDescription
    SC120AControl unit for reducing agent heater -J891-
    SC210ASteering column electronics control unit -J527-
    SC3––
    SC47.5AAlarm horn -H12-
    SC57.5AData bus diagnostic interface -J533-
    SC67.5ASelector lever -E313-
    SC710AHeater and air conditioning controls -EX21-
    Remote control receiver for auxiliary coolant heater -R149-
    Heated rear window relay -J9-
    SC87.5ARotary light switch -EX1-
    Electromechanical parking brake button -E538-
    Rain and light sensor -G397-
    Diagnostic connection -U31-
    Anti-theft alarm sensor -G578-
    Operating unit for driving mode selection -E881-
    Control unit for cornering light and headlight range control -J745-
    SC95A 4
    7.5A 5    		Steering column electronics control unit -J527-
    Ignition/starter switch -D-
    SC107.5ADisplay unit for front information display and operating unit control unit -J685-
    CD player -R89-
    SC1140AOnboard supply control unit -J519-
    SC1220AControl unit 1 for information electronics -J794-
    SC1325AFront left seat belt -NX10- 2
    Front right seat belt -NX11- 3
    SC1440AFresh air blower control unit -J126-
    SC1510AControl unit for electronic steering column lock -J764-
    SC167.5ATransmission and reception stabilisation control unit -R308-
    Storage compartment with interface for mobile telephone -R265-
    USB hub -R293-
    SC177.5ADash panel insert -KX2-
    Emergency call module control unit and communication unit -J949-
    SC187.5ARear lid handle -EX37-
    SC197.5AInterface for entry and start system -J965-
    SC2010A 6Relay for reducing agent metering system -J963-
    SC2115AAll-wheel drive control unit -J492-
    SC2215ATrailer detector control unit -J345-
    SC2320ASliding sunroof adjustment control unit -J245-
    SC2440AOnboard supply control unit -J519-
    SC2530ADriver door control unit -J386-
    SC2630AOnboard supply control unit -J519-
    SC2730AOnboard supply control unit -J519-
    SC2825ATrailer detector control unit -J345-
    SC29––
    SC30––
    SC3130ARear lid control unit -J605-
    SC3210AFront camera for driver assist systems -R242-
    Adaptive cruise control unit -J428-
    Parking aid control unit -J446-
    SC337.5AAirbag control unit -J234-
    SC347.5AInterior mirror-EX5-
    Relay for power sockets -J807-
    Reversing light switch -F4-
    Pressure sender for refrigerant circuit -G805-
    Air quality sensor -G238-
    Electromechanical parking brake button -E538-
    SC357.5ADiagnostic connection -U31-
    SC367.5AFront right headlight -MX2-
    SC377.5AFront left headlight -MX1-
    SC3825ATrailer detector control unit -J345-
    SC3930AFront passenger door control unit -J387-
    SC4020A12 V socket 2 -U18-
    12 V socket 3 -U19-
    SC4125AFront right seat belt -NX11- 2
    Front left seat belt -NX10- 3
    SC4240AOnboard supply control unit -J519-
    SC4340ADigital sound package control unit -J525-
    SC4415ATrailer detector control unit -J345-
    SC45––
    SC46––
    SC4715ARear window wiper motor -V12-
    SC48––
    SC497.5AClutch position sender -G476-
    SC50––
    SC51––
    SC5215AElectronically controlled damping control unit -J250-
    SC5330AHeated rear window relay -J9-
    2) For left-hand drive models
    3) For right-hand drive models
    4) For models with remote controlled central locking
    5) For models with entry and start authorisation
    6) For models with diesel engine

    Relays

    Assignment of the relays in the instrument panel fuse box (From November 2018)

    Fuse Data
    Full access is available to registered users — log in or register.
    Log in or register

    No.Description
    R1Relay for reducing agent metering system -J963-
    R2–
    R3–
    R4Terminal 15 voltage supply relay -J329-
    R5Heated rear window relay -J9-
    R6Relay for power sockets -J807-

    Scroll to Top
