Volkswagen Taro 1990-1997 Fuse Box Diagrams and Locations

Looking for Volkswagen Taro fuse box diagrams? This article covers the Volkswagen Taro pickup truck (Model Code: 7A), produced from 1989 to 1997, and includes fuse box diagrams for Volkswagen Taro 1990, 1991, 1992, 1993, 1994, 1995, 1996 and 1997, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Fuse Box Locations

Fuse box (passenger compartment)
The fuse panel is located on the left side of the car, behind the lid below the dashboard.
Relay block
Fuse box (engine compartment)
Main fuse (FL MAIN)

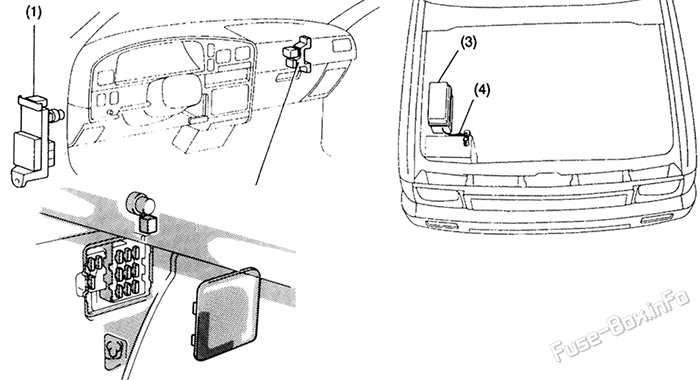

Fuse Box Location: Volkswagen Taro (1989-1997)

Fuse Box Diagrams

Passenger Compartment

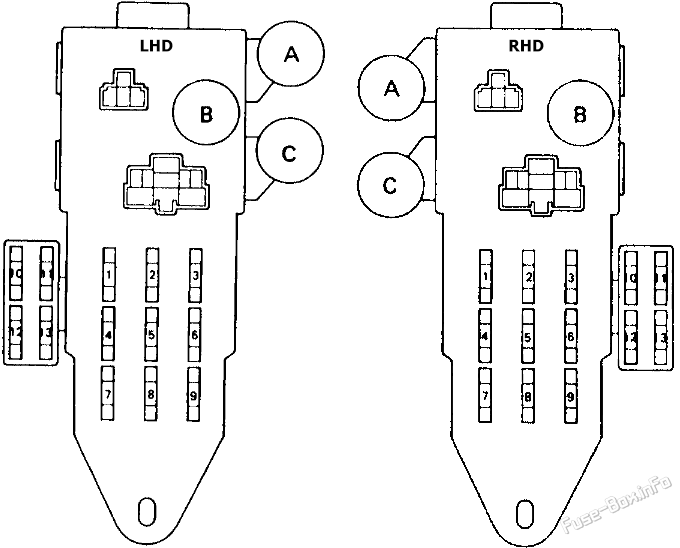

Interior fuse box diagram: Volkswagen Taro (1989-1997)

Fuses

Assignment of the fuses in the instrument panel

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	10A	ENGINE: Main relay, Cruise control ECU
2	7.5A	IGN: EFI main relay, O/D indicator light, Pattern select switch, Oil temp. select switch
3	10A	REAR: Taillight, Integration relay, Light reminder relay, Daytime running light relay
4	20A	WIPER: Washer / Wiper
5	10A	GAUGE: Combination meter, Antenna, Cruise control ECU, Cruise control indicator light, Brake warning light, Parking brake warning switch, brake fluid level warning switch, Door lock control relay, Integration relay, Light reminder relay, Daytime running light relay
6	10A/15A	STOP: Stop light, Stop light switch, Cruise control ECU
7	7.5A	RADIO: Radio, Mirror switch, Light reminder relay
8	15A	CIG: Cigarette lighter, Integration relay
9	10A	TURN: Turn signals, Integration relay
10	15A	REAR ANTI LOCK: Rear anti lock
11	–	–
12	15A	DEMIST: Demister
13	–	–

Relays

Assignment of the relays in the instrument panel

Fuse Data

Full access is available to registered users — log in or register.

ID.	Description
A	Rear Fog light Relay (U.K.)
B	Rearlight Control Relay
C	Demister Relay

Relay block

Relays

Assignment of the relays in the instrument panel relay panel

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	10A	Air conditioner
2	30A	Heater
A		Heater Relay

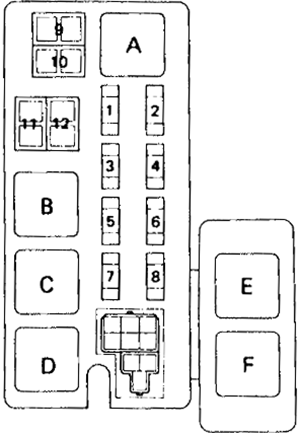

Engine Compartment

Fuses

Assignment of the fuses in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	7.5A	CHARGE / DRL: Charging system / DRL (Daytime Running Light)
2	15A	EFI: EFI main relay, ECM
3	15A	HAZ-HORN: Hazard lights, Turn signals, Horn
4	15A	DOME: Interior lights, Radio, Antenna, Key unlock warning switch, Integration relay
5	10A	HEAD (RH) / HEAD (RH-LO): Right-hand headlight / Right-hand headlights (Low-beam)
6	10A	HEAD (LH) / HEAD (LH-LO): Left-hand headlight / Left-hand headlights (Low-beam)
7	10A	HEAD (RH-HI) / A/C: Right-hand headlight (High-beam) / Air conditioner
8	10A	HEAD (LH-HI): Left-hand headlight (High-beam)
9	80A	ALT (FL) / GLOW (FL): Alternator (22R-E Engine) Glow plugs (L Series Engine)
10	60A/80A	AM1 (FL) / ALT (FL)
11	40A/60A	AM1 (FL ): Ignition switch, Starting system, “POWER”, “REAR ANTI LOCK”, “RADIO”, “CIG”, “WIPER”, “TURN”, “ECM-IG”, “ENGINE” fuses
12	30A	AM2 (FL): Ignition switch, “IGN”, “MFI” fuses

Relays

Assignment of the relays in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

ID.	Amps	Description
A	40A	Heater fuse / Dimmer Relay
B		Headlight Control Relay
C		EFI Relay (22R-E Engine) Fuel Heater Relay (L Series Engine)
D		CMH Relay
E		Dim-Dip Relay №2 (U.K.)
F		Dim-Dip Relay №3 (U.K.)
