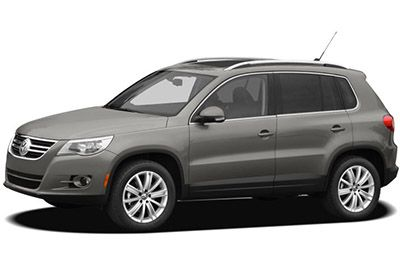

Volkswagen Tiguan 2007-2011

Looking for Volkswagen Tiguan fuse box diagrams? This article covers the first-generation Volkswagen Tiguan before a facelift (Model Code: 5N), available from 2007 to 2011, and includes fuse box diagrams for Volkswagen Tiguan (5N) 2007, 2008, 2009, 2010 and 2011, along with information about the location of the fuse panels inside the vehicle and a detailed breakdown of the assignment of each fuse and relay (fuse layout).

Engine Compartment

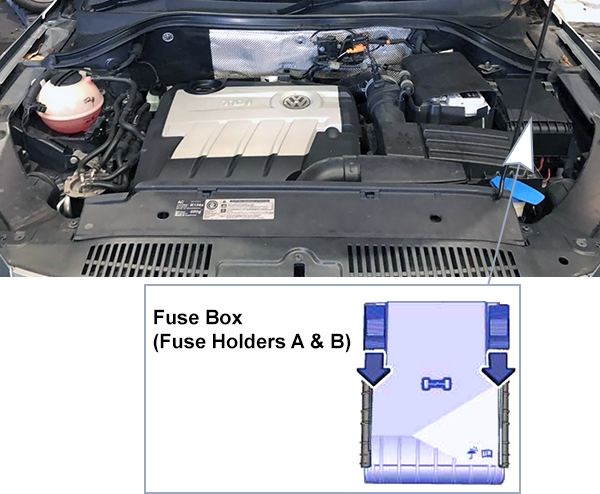

Fuse Box Location

It is located in the engine compartment (left-side).

Move the release tabs in the direction of the arrows to unlock the fuse box cover.

Fuse Box Diagram (A)

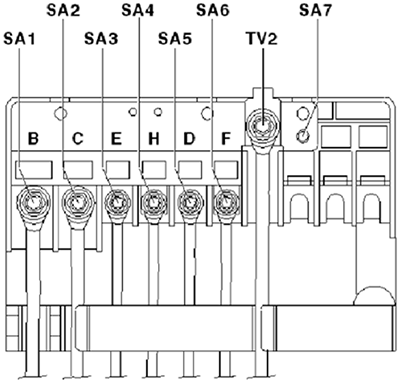

From November 2007

High Voltage Fuses

Assignment of the high voltage fuses in the Engine Compartment (From November 2007)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1150AC – Alternator (90A/120A)
200AC – Alternator (140A)
Metal stripC – Generator (180A), 200A fuse integrated in wiring harness
SA280AJ500 – Power steering control unit
V187 – Electromechanical power steering motor
SA380A/50AJ293 – Radiator fan control unit
V7 – Radiator fan
V177 – Radiator fan 2
SA440A/80AJ359 – Low heat output relay
J360 – High heat output relay
Z35 – Auxiliary air heater element
SA580A/100AFuse Holder C
508–Threaded connection (30), on E – box – Supply terminal 30
SA640A/80AJ359 – Low heat output relay
J360 – High heat output relay
Z35 – Auxiliary air heater element
SA750AJ345 – Trailer detector control unit/preparation for tow coupling

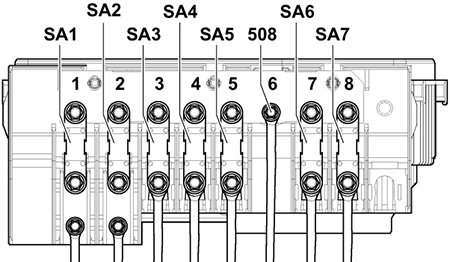

From November 2008

High Voltage Fuses

Assignment of the high voltage fuses in the Engine Compartment (From November 2008)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1150A/200A 1Alternator -C-
SA280APower steering control unit -J500-
Electromechanical power steering motor -V187-
SA380A/50A 1Radiator fan control unit -J293-
Radiator fan -V7-
Radiator fan 2 -V177-
SA480ARadiator fan control unit -J293- 2
High heat output relay -J360- 1
Auxiliary air heater element -Z35-
SA580Afuses on fuse holder C: SC20 – SC24, SC43 – SC53
SA640ALow heat output relay -J359- 1
Auxiliary air heater element -Z35-
TV2–508 Threaded connection (30), on E-box
SA750ATrailer detector control unit -J345-
1) Depends on equipment
2) Only models with a 1.4L petrol engine

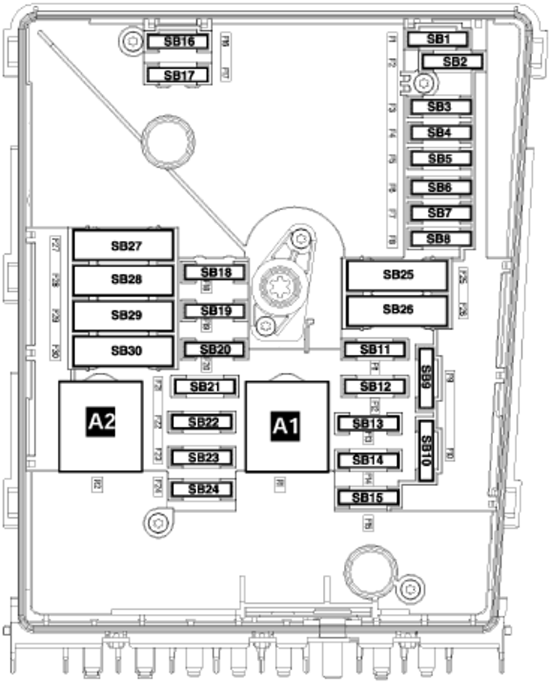

Fuse Box Diagram (B)

Fuses

Assignment of the fuses in the Engine Compartment fuse box (B)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB1––
SB25AFrom Nov 2007:
Steering column electronics control unit -J527-
–From May 2009:
–
SB35AFrom Nov 2007:
Onboard supply control unit -J519-
From May 2009:
Onboard supply control unit -J519- (T52a/24)
SB430AABS control unit -J104-
ABS hydraulic unit -N55-
SB5––
SB65AFrom Nov 2007:
Control unit in dash panel insert -J285-
From May 2009:
Added Steering column electronics control unit -J527-
SB730A (Up to May 2008)
40A (From May 2008)		From Nov 2007:
Onboard supply control unit -J519- (From May 2008)
Terminal 15 voltage supply relay 2 -J681- (From May 2008)
40AFrom May 2009:
Terminal 15 voltage supply relay 2 -J681-
SB825AFrom Nov 2007:
Control unit with display for radio and navigation system -J503-
Radio -R-
TV tuner -R78-
Satellite digital radio tuner -R190-
Interface for external multimedia unit -R215-
From May 2009:
Control unit with display for radio and navigation -J503-
Radio -R-
TV tuner -R78- (According to equipment)
Satellite digital radio tuner -R190-
Multimedia system control unit -J650-
Voltage stabiliser -J532- (Only models with start/stop system)
SB95AFrom Nov 2007:
Mobile telephone operating electronics control unit -J412-
Telephone transmitter and receiver unit -R36-
From May 2009:
Mobile telephone operating electronics control unit -J412-
SB105A (Depends on equipment)
10A (Depends on equipment)		From Nov 2007:
Motronic current supply relay -J271-
Terminal 30 voltage supply relay -J317-
Engine control unit -J623-
5A/10A (According to equipment)From May 2009:
Terminal 30 voltage supply relay -J317-
Engine control unit -J623-
SB1120AFrom Nov 2007:
Auxiliary heater control unit -J364-
20A
30A (from November 2010)		From May 2009:
Auxiliary heater control unit -J364-
SB125AData bus diagnostic interface -J533-
SB1315A
30A (Only models with a diesel engine)		Engine control unit -J623-
SB1420AFrom Nov 2007:
Fuel pressure regulating valve -N276- (CBAA, CBAB, CBBA, BXDB, CBBB)
Fuel Metering Valve -N290- (CBAA, CBAB, CBBA, BXDB, CBBB)
lgnition coil 1 with output stage -N70-
Ignition coil 2 with output stage -N127-
Ignition coil 3 with output stage -N291-
lgnition coil 4 with output stage -N292-
From May 2009:
Added Magnetic clutch for supercharger -N421-
Lambda probe heater -Z19-
Lambda probe 1 heater after catalytic converter -Z29-
Fuel system diagnostic pump -V144-
Fuel pump relay -J17-
Automatic glow period control unit -J179-
Electric fuel pump 2 relay -J49-
SB1510A (Depends on equipment)
15A (Depends on equipment)
5A (Only models with a diesel engine)		From Nov 2007:
Magnetic clutch for supercharger -N421- (BWK, CAVA)
Lambda probe heater -Z19- (BWK, CAVA, CAWA, CAWB, CCTA)
Lambda probe 1 heater after catalytic converter -Z29- (BWK, CAVA, CAWA, CAWB, CCTA)
Fuel system diagnostic pump -V144- (CCTA)
Fuel pump relay -J17- (CBAA, CBAB, CBBA, BXDB, CBBB)
Automatic glow period control unit -J179- (CBAA, CBAB, CBBA, BXDB, CBBB)
Auxiliary fuel pump relay -J832- (CBAA, CBAB, CBBA, BXDB, CBBB)
5A/10A/15A (According to equipment)From May 2009:
Engine Components
SB1630AFrom Nov 2007:
Onboard supply control unit -J519-
From May 2009:
Onboard supply control unit -J519- (T52c/42)
SB1715AFrom Nov 2007:
Treble horn -H2-
Bass horn -H7-
Onboard supply control unit -J519-
From May 2009:
Alarm horn relay -J641-
SB1830AFrom Nov 2007:
Special vehicle control unit -J608-
Amplifier -R12-
Digital sound package amplifier -R184-
From May 2009:
Digital sound package amplifier -R184-
SB1930AFrom Nov 2007:
Wiper motor control unit -J400-
Windscreen wiper motor -V-
From May 2009:
Wiper motor control unit -J400-
SB2010AFrom Nov 2007:
Fuel pressure regulating valve -N276- (CAWA, CAWB, CCTA)
10A
15A (from November 2010)		From May 2009:
Fuel pressure regulating valve -N276-
Coolant circulation pump -V50- (According to equipment)
SB2110A (Only models with a diesel engine)
25A
20A (From November 2008)		From Nov 2007:
Lambda probe heater -Z19- (CBAA, CBAB, CBBA, BXDB)
Fuel pump control unit -J538- (BWK, CAVA, CAWA, CAWB, CCTA)
10A (Only models with a diesel engine)
20A (Only models with petrol engine)		From May 2009:
Lambda probe heater -Z19-
Fuel pump control unit -J538-
SB225AClutch position sender -G476-
SB2310AFrom Nov 2007:
Charge pressure control solenoid valve -N75- (CBAA, CBAB, CBBA, BXDB, CBBB)
Exhaust gas recirculation cooler changeover valve -N345- (CBAA, CBAB, CBBA, BXDB, CBBB)
Fuel pressure regulating valve -N276- (BWK, CAVA)
From May 2009:
Charge pressure control solenoid valve -N75-
Exhaust gas recirculation cooler changeover valve -N345-
Fuel pressure regulating valve -N276- (Only models with a 1.4L petrol engine)
Air mass meter -G70- (According to equipment)
SB2410AFrom Nov 2007:
Radiator fan control unit -J293-
Low heat output relay -J359-
High heat output relay -J360-
Magnetic clutch for supercharger -J421-
Additional coolant pump relay -J496-
Motronic current supply relay 2 -J670-
Charge pressure control solenoid valve -N75-
Activated charcoal filter solenoid valve 1 -N80-
Camshaft adjustment valve 1 -N205-
Turbocharger air recirculation valve -N249-
Intake manifold flap valve -N316-
Coolant circulation pump 2 -V178-
Coolant circulation pump -V50-
From May 2009:
Radiator fan control unit -J293-
Low heat output relay -J359-
High heat output relay -J360-
Additional coolant pump relay -J496-
Motronic current supply relay 2 -J670-
Charge pressure control solenoid valve -N75-
Activated charcoal filter solenoid valve 1 -N80-
Camshaft control valve 1 -N205-
Turbocharger air recirculation valve -N249-
Intake manifold flap valve -N316-
Coolant circulation pump 2 -V178-
Coolant circulation pump -V50-
Fuel pump relay -J17- (According to equipment)
SB2540AFrom Nov 2007:
ABS control unit -J104-
ABS hydraulic unit -N55-
From May 2009:
ABS control unit -J104-
SB2640A (Up to May 2008)
30A (From May 2008)		From Nov 2007:
Terminal 15 voltage supply relay 2 -J681- (Up to May 2008)
Onboard supply control unit -J519- (From May 2008)
30AFrom May 2009:
Onboard supply control unit -J519- (T52a/1)
SB27––
SB2850AAutomatic glow period control unit -J179-
SB2950AFrom Nov 2007:
Driver seat adjustment thermal fuse 1 -S44-
Fuse 36 on fuse holder C -SC36- (From November 2008)
Fuse 37 on fuse holder C -SC37- (From November 2008)
Fuse 38 on fuse holder C -SC38- (From November 2008)
Fuse 57 on fuse holder C -SC57- (From November 2008)
From May 2009:
Driver seat adjustment thermal fuse 1 -S44-
Fuse 54 on fuse holder C -SC54-
Fuse 55 on fuse holder C -SC55-
Fuse 56 on fuse holder C -SC56-
Fuse 57 on fuse holder C -SC57-
SB3050AX-contact relief relay -J59-

Relays

Assignment of the relays in the Engine Compartment fuse box (B)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
A1Main relay -J271- (100) (Only models with petrol engine)
Terminal 30 voltage supply relay -J317- (100) (Only models with diesel engine)
A2Engine component current supply relay -J757- (100)

Passenger Compartment

Fuse Box Location

The fuse box is located behind the storage compartment below the steering wheel.

Open storage compartment and pull back firmly in the direction of the arrow.

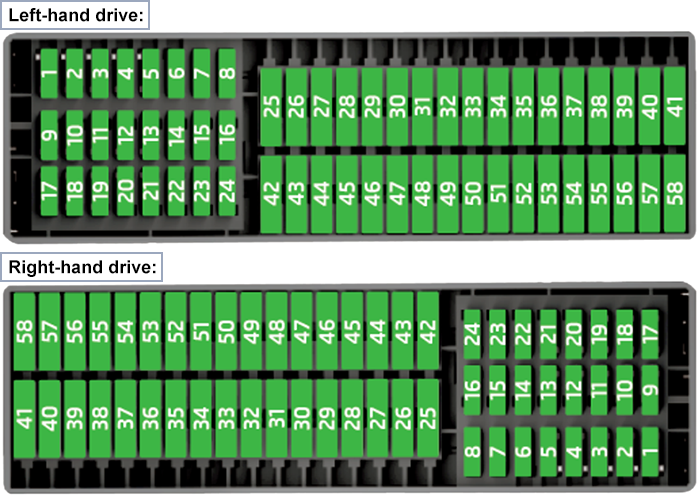

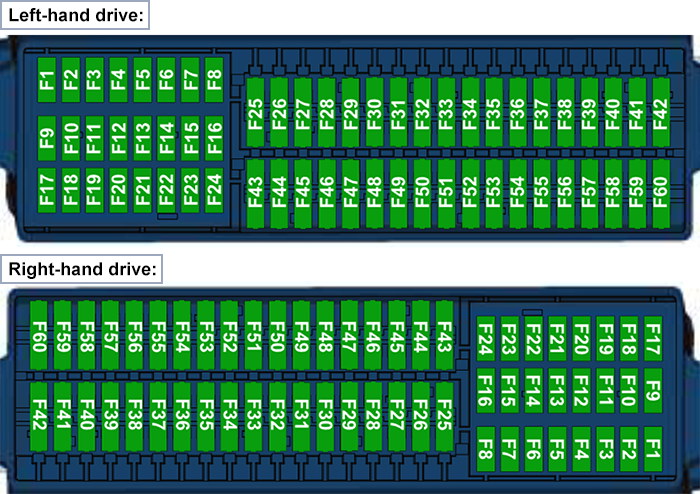

Fuse Box Diagram (C)

From November 2007

From May 2009

Fuses

Assignment of the fuses in the Instrument Panel fuse box (C)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC1 – SC8––
SC95AFront passenger airbag deactivated warning lamp -K145-
Airbag control unit -J234-
SC1010AAll-wheel drive control unit -J492-
SC115AParking aid control unit -J446-
Park assist steering control unit -J791-
SC1210AFrom Nov 2007:
Power output module for left headlight -J667-
From May 2009:
Left gas discharge bulb control unit -J343-
SC135ATCS and ESP button -E256-
Tyre Pressure Loss Indicator button -E492-
Auto-hold button -E540-
Driving program button -E598-
Reversing light switch -F4-
High-pressure sender -G65-
Air quality sensor -G238-
Oil level and oil temperature sender -G266-
Climatronic control unit -J255-
Seat occupied recognition control unit -J706- (Only airbag systems for USA/Canada)
Auto-hold warning lamp -K237-
Automatic anti-dazzle interior mirror -Y7-
Left washer jet heater element -Z20-
Right washer jet heater element -Z21-
SC1410AFrom Nov 2007:
Light switch -E1-
Brake light switch -F
Brake pedal switch -F47-
Tiptronic switch -F189-
ABS control unit -J104-
Electronically controlled damping control unit -J250-
Climatronic control unit -J255- (E94/E95 – heated seats regulator)
Control unit in dash panel insert -J285-
Air conditioning system control unit -J301- (E94/E95 – heated seats regulator)
Trailer detector control unit/ preparation trailer operation -J345-
Data bus diagnostic interface -J533-
Power steering control unit -J500-
Engine control unit -J623-
From May 2009:
Light switch -E1-
Brake light switch -F
Tiptronic switch -F189-
ABS control unit -J104-
Electronically controlled damping control unit -J250-
Climatronic control unit -J255- (up to May 2010)
Control unit in dash panel insert -J285-
Air conditioning system control unit -J301- (up to May 2010)
Trailer detector control unit -J345-
Data bus diagnostic interface -J533-
Power steering control unit -J500-
Engine control unit -J623-
Heater control unit -J162- (From May 2010)
Control unit for vehicle location system -J895- (From May 2010)
SC1510AFrom Nov 2007:
Headlight range control regulator -E102-
Air mass meter -G70- (CBAA, CBAB, CBBA, BXDB)
Auxiliary heater operation relay -J485-
Control unit for electromechanical parking brake -J540-
Control unit for bend lighting and headlight range control -J745-
Headlight range control motor -V48-
Right headlight range control motor -V49-
From May 2009:
Switch and instrument illumination regulator -E20-
Air mass meter -G70-
Auxiliary heater operation relay -J485-
Control unit for electromechanical parking brake -J540-
Control unit for cornering light and headlight range control -J745-
Heater element for crankcase breather -N79-
Diagnostic connection -U31-
Left headlight range control motor -V48-
Right headlight range control motor -V49-
SC1610AFrom Nov 2007:
Power output module for right headlight -J668-
From May 2009:
Right gas discharge bulb control unit -J344-
SC17–From Nov 2007:
–
5AFrom May 2009:
Control unit in dash panel insert -J285- (Only models with start/stop system)
SC18–From Nov 2007:
–
10AFrom May 2009:
Multimedia system control unit -J650- (Only models with start/stop system)
Mobile telephone operating electronics control unit -J412- (Only models with start/stop system)
Magnetic field sender for compass -G197- (Only models with start/stop system)
SC19–From Nov 2007:
–
10AFrom May 2009:
Steering column electronics control unit -J527- (Only models with start/stop system)
SC205AFrom Nov 2007:
Tiptronic switch -F189-
ABS control unit -J104-
Automatic gearbox control unit -J217-
Climatronic control unit -J255-
Air conditioning system control unit -J301-
Remote control receiver for auxiliary coolant heater -R149-
Supply for fuse 57 on fuse holder C -SC57- (To November 2008)
Supply for fuse 58 on fuse holder C -SC58- (From November 2008)
From May 2009:
Tiptronic switch -F189-
ABS control unit -J104-
Automatic gearbox control unit -J217-
Climatronic control unit -J255- (up to May 2010)
Air conditioning system control unit -J301-
Remote control receiver for auxiliary coolant heater -R149-
Heated rear window relay -J9-
Alarm horn relay -J641-
Heater control unit -J162- (up to May 2010)
Fuse 58 on fuse holder C -SC58-
SC217.5AFrom Nov 2007:
Onboard supply control unit -J519-
Windscreen and rear window washer pump -V59-
15AFrom May 2009:
Onboard supply control unit -J519- (T52b/1)
Rear left door control unit -J388-
Rear right door control unit -J389-
Windscreen and rear window washer pump -V59-
SC225AFrom Nov 2007:
Interior monitoring sensor -G273-
Alarm horn -H12-
Alarm horn relay -J641- (USA/Canada/Mexico)
From May 2009:
Interior monitoring sensor -G273-
Alarm horn -H12-
Onboard supply control unit -J519- (T52c/1)
SC2310AFrom Nov 2007:
Light switch -E1-
Electromechanical parking brake button -E538-
Magnetic field sender for compass -G197-
Rain and light detection sensor -G397-
Reversing camera system control unit -J772-
Diagnostic connection -T16-
From May 2009:
Light switch -E1-
Electromechanical parking brake button -E538-
Magnetic field sender for compass -G197-
Rain and light sensor -G397-
Reversing camera system control unit -J772-
Diagnostic connection -U31-
Entry and start authorisation control unit -J518- (From May 2010)
Control unit for vehicle location system -J895- (From May 2010)
Voltage stabiliser -J532- (From May 2010, Only models with start/stop system)
SC2410ADriver door control unit -J386-
Front passenger door control unit -J387-
SC2520AFrom Nov 2007:
Multifunction switch -F125-
Automatic gearbox control unit -J217-
From May 2009:
Added Mechatronic unit for dual clutch gearbox -J743- (According to equipment)
SC26 – SC27––
SC2815AFrom Nov 2007:
Rear window wiper motor -V12-
40AFrom May 2009:
Auxiliary heater operation relay -J485-
Air conditioning system control unit -J301-
SC2915AFrom Nov 2007:
Dual washer pump relay -J730-
From May 2009:
Rear window wiper motor -V12-
SC3020AFrom Nov 2007:
Blocking diode -J29-
Cigarette lighter -U1-
12V socket -U5-
12V socket 2 -U18-
12V socket 3 -U19-
–From May 2009:
–
SC31–From Nov 2007:
–
20AFrom May 2009:
Blocking diode -J29-
Cigarette lighter -U1-
12 V socket -U5-
12 V socket 2 -U18-
12 V socket 3 -U19-
SC32––
SC3340AFrom Nov 2007:
Fresh air blower switch -E9-
Auxiliary heater operation relay -J485-
–From May 2009:
–
SC34 – SC35––
SC3630AFrom Nov 2007:
DC/AC converter with socket, 12 V – 230 V -U13- (From November 2008)
–From May 2009:
–
SC3715AFrom Nov 2007:
Driver seat lumbar support adjustment switch -E176- (From November 2008)
–From May 2009:
–
SC3815AFrom Nov 2007:
Electronically controlled damping control unit -J250- (From November 2008)
10AFrom May 2009:
Control unit for electronic steering column lock -J764- (From May 2010)
SC3915AFrom Nov 2007:
Trailer detector control unit/ preparation trailer operation -J345-
20AFrom May 2009:
Headlight washer system relay -J39- (From May 2010)
SC4015ATrailer detector control unit/ preparation trailer operation -J345-
SC4120AFrom Nov 2007:
Trailer detector control unit/ preparation trailer operation -J345-
15AFrom May 2009:
Trailer detector control unit -J345-
SC4225AFrom Nov 2007:
Sliding sunroof adjustment control unit -J245-
20AFrom May 2009:
Trailer detector control unit -J345-
SC4320AFrom Nov 2007:
Control unit for electromechanical parking brake -J540-
25AFrom May 2009:
Sliding sunroof adjustment control unit -J245-
SC4425AFrom Nov 2007:
Fresh air blower relay -J13-
Onboard supply control unit -J519- (heated rear window)
From May 2009:
Control unit for electromechanical parking brake -J540-
SC4530AFrom Nov 2007:
Driver door control unit (window regulator) -J386-
Front passenger door control unit (window regulator) -J387-
25AFrom May 2009:
Fresh air blower relay -J13-
Heated rear window relay -J9-
SC4630AFrom Nov 2007:
Rear left door control unit (window regulator) -J388-
Rear right door control unit (window regulator) -J389-
From May 2009:
Driver door control unit -J386-
Front passenger door control unit -J387-
SC4715AFrom Nov 2007:
Fuel pump relay -J17-
Relay for supplementary fuel pump -J832-
Fuel pump relay for auxiliary heater -J749-
30AFrom May 2009:
Driver door control unit -J386-
Rear right door control unit -J389-
SC4815AFrom Nov 2007:
Left rear door control module (central locking) -J388-
Rear right door control unit (central locking) -J389-
Convenience system central control unit -J393-
From May 2009:
Fuel pump relay -J17-
Fuel pump relay for auxiliary heater -J749-
Electric fuel pump 2 relay -J49-
SC4920AFrom Nov 2007:
Control unit for electromechanical parking brake -J540-
From May 2009:
Onboard supply control unit -J519- (T52b/42)
SC5040AFrom Nov 2007:
Fresh air blower control unit -J126-
25AFrom May 2009:
Control unit for electromechanical parking brake -J540-
SC5130AFrom Nov 2007:
Heated front seats control unit -J774-
40AFrom May 2009:
Fresh air blower control unit -J126-
SC5220AFrom Nov 2007:
Headlight washer system relay -J39-
30AFrom May 2009:
Heated front seats control unit -J774-
SC5330AFrom Nov 2007:
DC/AC converter with socket, 12 V – 230 V -U13- (To November 2008)
20A (up to May 2010)
30A (From May 2010)		From May 2009:
Headlight washer system relay -J39- (up to May 2010)
Fuse 38 on fuse holder C -SC38- (From May 2010)
Fuse 39 on fuse holder C -SC39- (From May 2010)
SC5415AFrom Nov 2007:
Driver seat lumbar support adjustment switch -E176- (To November 2008)
Front passenger seat lumbar support adjustment switch -E177- (To November 2008)
30AFrom May 2009:
DC/AC converter with socket, 12 V – 230 V -U13-
SC5515AFrom Nov 2007:
Electronically controlled damping control unit -J250- (To November 2008)
From May 2009:
Driver seat lumbar support adjustment switch -E176-
SC5625AFrom Nov 2007:
Sunroof roller blind control unit -J394- (To November 2008)
15AFrom May 2009:
Electronically controlled damping control unit -J250-
SC571A (To Nov 2008)
25A (From Nov 2008)		From Nov 2007:
Trailer towing attachment locked warning lamp -K226- (To November 2008)
Sunroof roller blind control unit -J394- (From November 2008)
25AFrom May 2009:
Sunroof roller blind control unit -J394-
SC581ATrailer towing attachment locked warning lamp -K226- (From November 2008)
SC59–From Nov 2007:
–
20AFrom May 2009:
Control unit with display for radio and navigation -J503- (From May 2010, Only models with start/stop system)
SC60––

Additional Fuses

Fuse Box Location

Above fuse box (C).

Fuse Box Diagram

Fuses

Assignment of the additional fuses in the Instrument Panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A–
B30AFront passenger seat adjustment thermal fuse 1 -S46-
C30ADriver seat adjustment thermal fuse 1 -S44-

Relay carrier on onboard supply control unit

Relay Box Location

Relay box is located in the driver’s footwell.

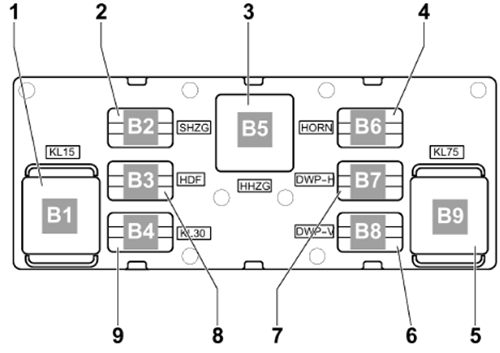

Relay Box Diagram

Relays

Assignment of the relays in the driver’s footwell relay box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Terminal 15 voltage supply relay 2, -J681-, (460) – Slot B1
2Heated exterior mirror relay -J99- (449) – Slot B2
3Heated rear window relay -J9- (53) – Slot B5
4Dual tone horn relay -J4- (449) – Slot B6
5X-contact relief relay -J59- (460) – Slot B9
6Double washer pump relay 2 -J730- (404) – Slot B8
7Double washer pump relay 1 -J729- (404) – Slot B7
8not assigned – Slot B3
9Terminal 30 voltage supply relay 2 -J689- (449) – Slot B4

Relay Box (1)

Relay Box Location

Located above fuse box (C)

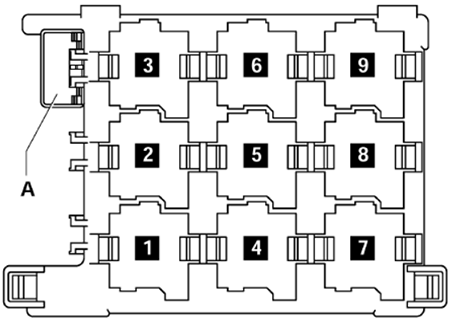

Relay Box Diagram

Relays

Assignment of the relays in the instrument panel relay box (1) above fuse box (C)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1From May 2009:
–
From May 2010:
High heat output relay -J360- (644)
2From May 2009:
–
From May 2010:
X-contact relief relay -J59- (644)
3From May 2009:
Heated rear window relay -J9- (53)
From May 2010:
Terminal 50 voltage supply relay -J682- (644) (According to equipment)
Starter relay 1 -J906- (644) (Only models with start/stop system)
4From May 2009:
X-contact relief relay -J59- (53)
From May 2010:
Fresh air blower relay -J13- (646)
5From May 2009:
Terminal 15 voltage supply relay 2 -J681- (643)
From May 2010:
Starter relay 2 -J907- (507) (Only models with start/stop system)

Relay Box (2)

Relay Box Location

Located near the fuse box (C)

Relay Box Diagram

Relays

Assignment of the relays in the instrument panel relay box (2) above fuse box (C)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1From Nov 2007:
Auxiliary heater operation relay -J485- (53)
From May 2010:
Auxiliary heater operation relay -J485- (645)
2From Nov 2007:
–
From May 2009:
Terminal 50 voltage supply relay -J682- (53)
From May 2010:
Electric fuel pump 2 relay -J49- (646)
3From Nov 2007:
Terminal 50 voltage supply relay -J682- (53)
From May 2009:
–
From May 2010:
Terminal 15 voltage supply relay 2 -J681- (644)
4From Nov 2007:
Fresh air blower relay -J13- (449)
From May 2010:
Heated rear window relay -J9- (645)
5From Nov 2007:
Alarm horn relay -J641- (449)
Headlight washer system relay -J39- (449)
From May 2010:
Fuel pump relay -J17- (646) (Only models with diesel engine)
Additional coolant pump relay -J496- (646) (Only models with petrol engine)
6From Nov 2007:
High heat output relay -J360- (370)
From May 2008:
Relay for supplementary fuel pump -J832- (449) (According to equipment)
From May 2009:
Electric fuel pump 2 relay -J49- (449)
From May 2010:
Headlight washer system relay -J39- (646)
Dual tone horn relay -J4- (646)
7From Nov 2007:
Fuel pump relay -J17- (449)
Additional coolant pump relay -J496- (449)
Fuel pump relay for auxiliary heater -J749- (449)
From May 2008:
Low heat output relay -J359- (53)
From May 2010:
Low heat output relay -J359- (645)
8From Nov 2007:
Low heat output relay -J359- (53)
From May 2008:
Fuel pump relay -J17- (449)
Additional coolant pump relay -J496- (449)
Fuel pump relay for auxiliary heater -J749- (449)
From May 2009:
Fuel pump relay -J17- (449) (Only models with diesel engine)
Additional coolant pump relay -J496- (449) (Only models with petrol engine)
Fuel pump relay for auxiliary heater -J749- (449) (Depends on equipment)
From May 2010:
Fuel pump relay for auxiliary heater -J749- (646)
9From Nov 2007:
Relay for supplementary fuel pump -J832- (449)
From May 2008:
High heat output relay -J360- (370)
From May 2010:
–

Scroll to Top
