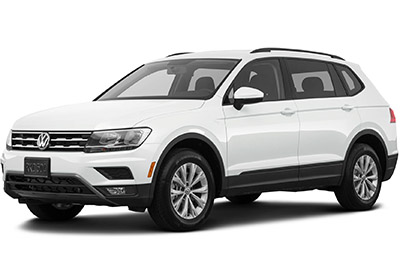

Looking for Volkswagen Tiguan fuse box diagrams? This article covers the pre-facelift second-generation Volkswagen Tiguan (Model Codes: AD, BW), produced from 2016 to 2020, and includes fuse box diagrams for Volkswagen Tiguan 2016, 2017, 2018, 2019 and 2020, along with information about the location of the fuse panels inside the vehicle and a detailed breakdown of the assignment of each fuse (fuse layout).

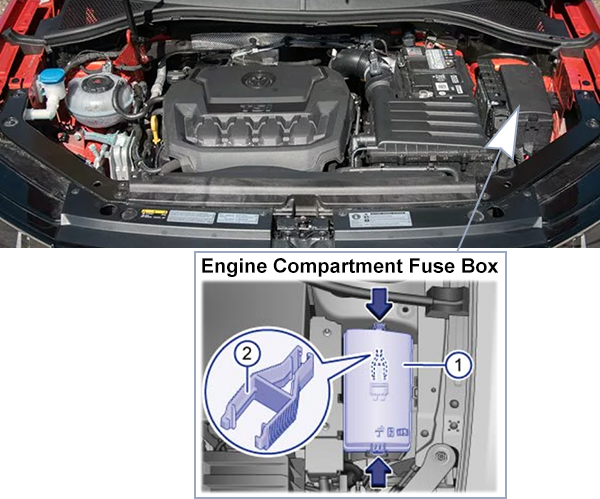

Press the release buttons in the direction of the arrow to release the fuse box cover (1). In some vehicles, there is a pair of plastic pliers (2) for removing fuses on the inside of the cover.

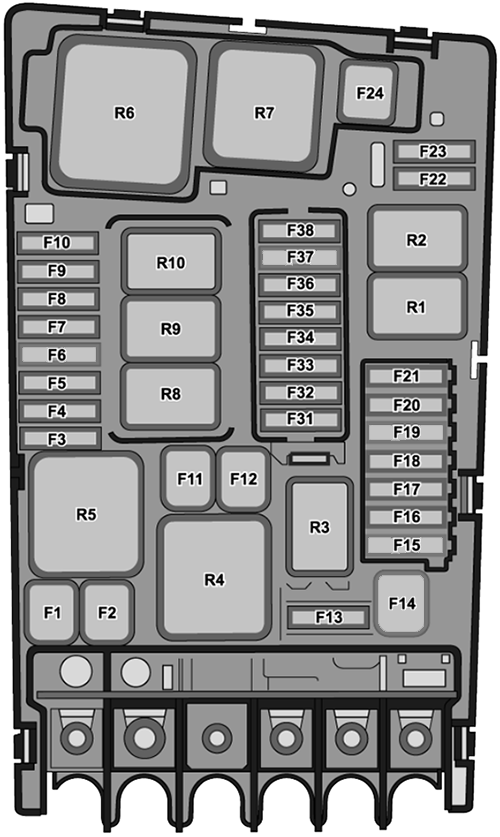

Fuse Box Diagram (A)
Fuses (Engine Compartment)

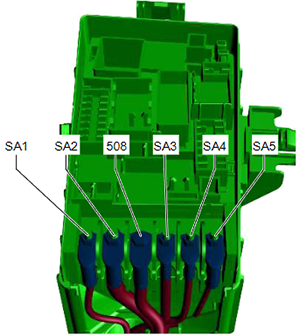

Assignment of the high voltage fuses in the engine compartment (fuse box A)
Models with battery in engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Oil level and oil temperature sender Radiator fan control unit Relay for reducing agent metering system (diesel) Activated charcoal filter solenoid valve 1 (petrol) Piston cooling jet control valve Turbocharger air recirculation valve Intake manifold flap valve Camshaft control valve 1 (petrol) Exhaust camshaft control valve 1 (petrol) Valve for oil pressure control (petrol) Coolant valve for cylinder head (petrol) High heat output relay (diesel) Exhaust gas recirculation cooler changeover valve (diesel) Low heat output relay (diesel) Charge pressure control solenoid valve (diesel) Inlet cam actuator for cylinder 2 (petrol) Exhaust cam actuator for cylinder 2 (petrol) Inlet cam actuator for cylinder 3 (petrol) Exhaust cam actuator for cylinder 3 (petrol) Air mass meter (diesel) Heater element for crankcase breather (diesel)
F5
10 A
Fuel pressure regulating valve (diesel) Fuel metering valve (diesel) Engine component current supply relay Secondary air system Exhaust cam actuator A for cylinders 1-4 (petrol) Exhaust cam actuator B for cylinders 1-4 (petrol) Camshaft control valve 1 (diesel) Injector 2, cylinders 1-4 (petrol) Engine component current supply relay (petrol)
F6
5 A / 7.5 A
Brake light switch
F7
7.5 A / 10 A / 15 A
Auxiliary pump for heating (diesel) Exhaust flap control unit Fuel metering valve Circulation pump Coolant shut-off valve Coolant valve for gearbox Coolant circulation pump Coolant pump for high-temperature circuit Charge air cooling pump Fuel pressure regulating valve (petrol) Valve for oil pressure control (diesel) Coolant valve for cylinder head (diesel)
F8
10 A / 15 A
Lambda probe 1 before catalytic converter Lambda probe heater Lambda probe 1 after catalytic converter Lambda probe 1 heater after catalytic converter NOx sender (diesel)
F9
5 A / 7.5 A / 10 A / 20 A
Auxiliary pump for heating Activated charcoal filter solenoid valve 1 (petrol) Camshaft control valve 1 Exhaust camshaft control valve 1 Air mass meter (diesel) Ignition coils 1-4 with output stage (petrol) Heater element for crankcase breather (diesel)
F10
15 A / 20 A
Fuel pump control unit
F11
40 A
Auxiliary air heater element (diesel)
F12
40 A
Auxiliary air heater element (diesel)
F13
15 A
Mechatronic unit for dual clutch gearbox (Only models with no battery in luggage compartment)
F14
40 A
Heated windscreen relay
F15
15 A
Horn relay
F16
20 A
Engine component current supply relay Ignition coils 1-4 with output stage (2.0l petrol)
F17
7.5 A
Main relay (petrol) Terminal 30 voltage supply relay (diesel) Engine/motor control unit ABS control unit Heated windscreen relay
F18
5 A / 7.5 A
Battery monitor control unit Data bus diagnostic interface
F19
30 A
Windscreen wiper motor (Only models with no battery in luggage compartment)
F20
10 A
Alarm horn
F21
30 A
Heated windscreen relay 2
F21
15 A
Mechatronic unit for dual clutch gearbox
F22
5 A / 7.5 A
Engine/motor control unit
F23
30 A
Starter
F24
40 A
Auxiliary air heater element (diesel)
F25
–
–
F26
–
–
F27
–
–
F28
–
–
F29
–
–
F30
–
–
F31
–
–
F32
–
–
F33
15 A
Mechatronic unit for dual clutch gearbox (Only models with battery in luggage compartment)
F34
30 A
Heated windscreen relay 2
F35
30 A
Windscreen wiper motor (Only models with battery in luggage compartment)
F36
–
–
F37
20 A
Auxiliary heater control unit
F38
–
–
Relays
Assignment of the relays in the engine compartment (fuse box B)
Fuse Data
Full access is available to registered users — log in or register.
Heated windscreen relay -J47- (Only models with climate windscreen (4GW))
Passenger Compartment

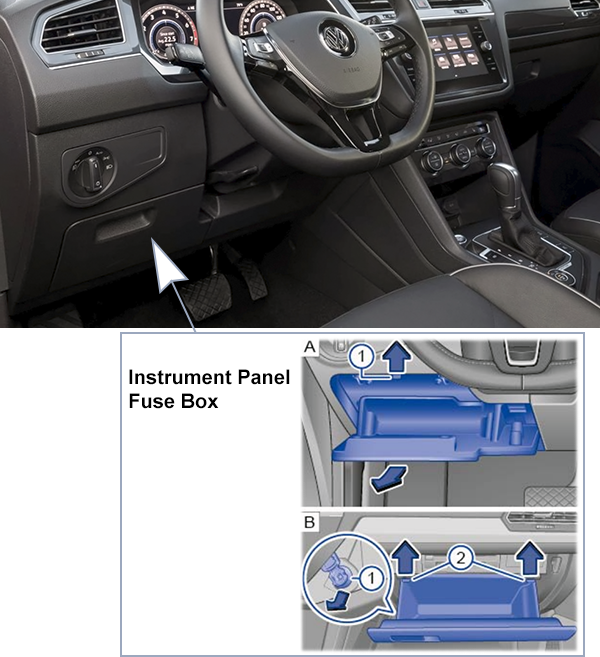

Fuse Box Location

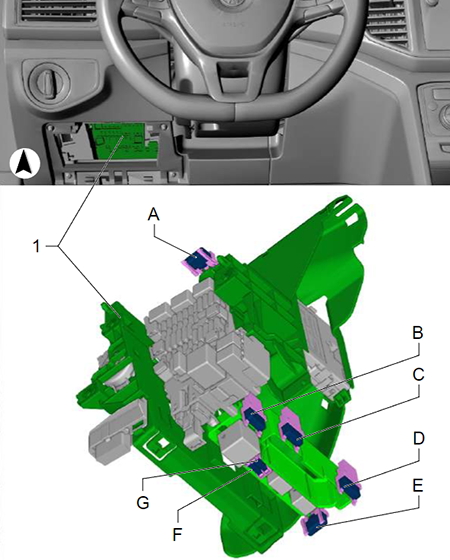

Left-hand Drive
Open the stowage compartment on the driver side.
Empty stowage compartment if necessary.
Push the retaining lugs (1) upwards in the direction of the arrow whilst opening the stowage compartment until the fuse carrier can be accessed.
To install, press the stowage compartment into the mounts on the dash panel until it audibly clicks into place on both sides and then close the compartment.

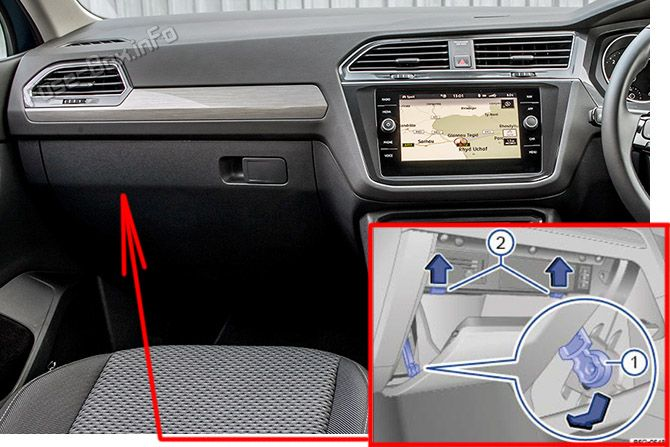

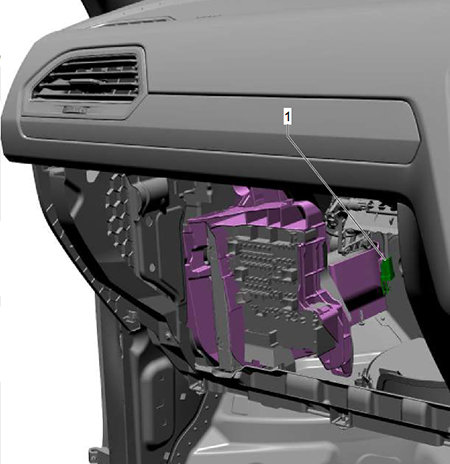

Right-hand Drive
Open the stowage compartment on the front passenger side and remove the contents if necessary.
Slide the braking element (1) downwards into the opening in the holder and pull it out sideways.
Push catches (2) upwards in the direction of the arrow whilst opening the stowage compartment further.
To install: bring storage compartment into position. Insert the brake element in the holder opening and push upwards until it audibly engages. Carefully push the stowage compartment forwards beyond the resistance of the catches (2).

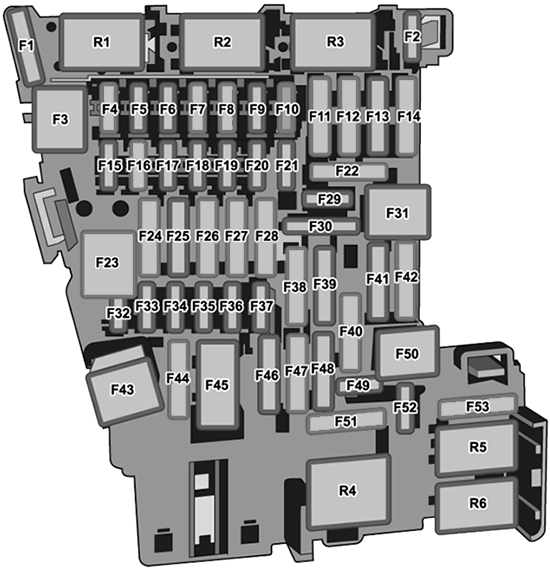

Fuse Box Diagram (C)
Fuses
Assignment of the fuses in the instrument panel fuse box
Fuse Data
Full access is available to registered users — log in or register.
Heater and air conditioning controls Heater control unit Climatronic control unit Air conditioning system control unit Operating and display unit for rear air conditioning system Remote control receiver for auxiliary coolant heater Heated rear window relay Tyre Pressure Monitoring System control unit Control unit for cornering light and headlight range control
F8
10 A / 7.5 A
Rotary light switch Electromechanical parking brake button Rain and light sensor Diagnostic connection Operating unit for driving mode selection Anti-theft alarm sensor Light 1 for roof contour lighting Control unit for cornering light and headlight range control Light 2 for roof contour lighting
F9
5 A / 7.5 A
Steering column electronics control unit
F10
7.5 A
Display unit for front information display and operating unit control unit Control unit for Head-up Display
F11
25 A
Control unit for front left belt tensioner
F11
40 A
Onboard supply control unit
F12
20 A
Control unit 1 for information electronics Control unit for navigation system
F13
15 A
Electronically controlled damping control unit
F13
25 A
Control unit for front left belt tensioner
F14
30 A / 40 A
Fresh air blower control unit
F15
10 A
Control unit for electronic steering column lock
F16
7.5 A
TV tuner Control unit 1 for information electronics Two-way signal amplifier for mobile telephone/data services Storage compartment with interface for mobile telephone Chip card reader USB hub
F17
5 A / 7.5 A
Dash panel insert Control unit in dash panel insert Emergency call module control unit and communication unit
F18
7.5 A
Control unit for overhead view camera
F19
7.5 A
Interface for entry and start system
F20
7.5 A / 10 A / 15 A
Relay for reducing agent metering system Delivery unit for reducing agent metering system
F21
15 A
All-wheel drive control unit
F22
15 A
Trailer detector control unit
F23
40 A
Onboard supply control unit
F23
20 A
Sliding sunroof adjustment control unit Sunroof roller blind control unit
F24
30 A
Sliding sunroof adjustment control unit Light 1 for roof contour lighting Light 2 for roof contour lighting Sunroof roller blind control unit
F24
40 A
Onboard supply control unit
F25
30 A
Driver door control unit (LHD models) Rear left window regulator motor (LHD models) Rear driver side door control unit (LHD models) Front passenger door control unit (RHD models) Rear passenger side door control unit (RHD models) Rear right window regulator motor(RHD models)
F26
30 A
Onboard supply control unit
F27
30 A
Digital sound package control unit Onboard supply control unit
F28
25 A
Trailer detector control unit
F29
–
–
F30
–
–
F31
40 A
Onboard supply control unit
F31
30 A
Rear lid control unit
F32
7.5 A / 10A
Front camera for driver assist systems Adaptive cruise control unit Parking aid control unit Lane change assist control unit Lane change assist control unit 2 Park assist steering control unit
F33
5 A / 7.5 A
Airbag control unit Warning lamp for airbag deactivated on front passenger side
F34
7.5 A
Rotary light switch Interior mirror Relay for power sockets Reversing light switch Pressure sender for refrigerant circuit Air quality sensor Electromechanical parking brake button Button for TCS and electronic stabilisation program
F35
10 A / 7.5 A
Diagnostic connection Headlight range control regulator Headlight range control and instrument illumination regulator Control unit for cornering light and headlight range control Left headlight range control motor Right headlight range control motor Front left headlight Front right headlight
F36
10 A / 5 A
Front right headlight
F37
10 A / 5 A
Front left headlight
F38
25 A
Trailer detector control unit
F39
30 A
Front passenger door control unit (LHD models) Rear passenger side door control unit (LHD models) Rear right window regulator motor (LHD models) Driver door control unit (RHD models) Rear driver side door control unit (RHD models) Rear left window regulator motor (RHD models)
F40
20 A
12V socket 12V socket 2 12V socket 3
F41
25 A
Control unit for front right belt tensioner Control unit for front left belt tensioner
F42
40 A
Onboard supply control unit
F43
30 A
Onboard supply control unit Digital sound package control unit
F44
15 A
Trailer detector control unit
F45
15 A
Driver seat adjustment control unit
F46
30 A
DC/AC converter with socket, 12V – 230V
F47
15 A
Rear window wiper motor
F48
–
–
F49
5 A / 7.5 A
Clutch position sender Starter relay 1 Starter relay 2
F50
40 A
Rear lid control unit
F51
25 A
Operating and display unit for rear air conditioning system
F52
15 A
Electronically controlled damping control unit
F53
30 A
Heated rear window relay
Relays
Assignment of the relays in the instrument panel fuse box
Fuse Data
Full access is available to registered users — log in or register.

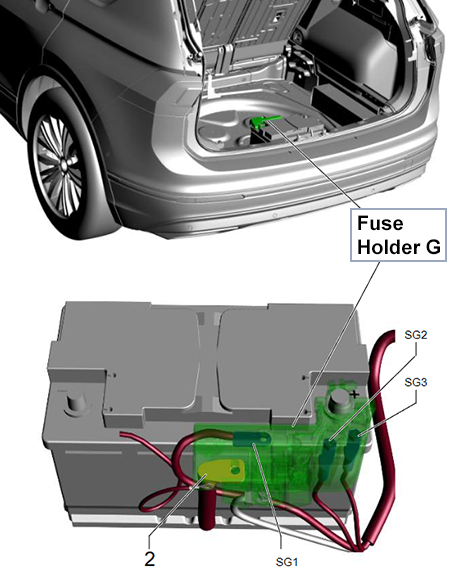

Supply for the fuses: Fuse 3 on fuse holder C -SC3- Fuse 15 on fuse holder C -SC15- to fuse 20 on fuse holder C -SC20- Fuse 23 on fuse holder C -SC23- to fuse 28 on fuse holder C -SC28- Fuse 43 on fuse holder C -SC43- to fuse 45 on fuse holder C -SC45- Fuse 50 on fuse holder C -SC50-
SG2
125A
Supply for the fuses: Fuse 1 on fuse holder C -SC1- Fuse 2 on fuse holder C -SC2- Fuse 5 on fuse holder C -SC5- to fuse 14 on fuse holder C -SC14- Fuse 22 on fuse holder C -SC22- Fuse 32 on fuse holder C -SC32- to fuse 42 on fuse holder C -SC42- Fuse 46 on fuse holder C -SC46- Fuse 47 on fuse holder C -SC47- Fuse 49 on fuse holder C -SC49- Fuse 51 on fuse holder C -SC51- to fuse 53 on fuse holder C -SC53-
SG3
125A
Supply for the fuses: Fuse 4 on fuse holder A -SA4- Fuse 11 on fuse holder B -SB11- Fuse 12 on fuse holder B -SB12- Fuse 33 on fuse holder B -SB33- Fuse 35 on fuse holder B -SB35- Fuse 37 on fuse holder B -SB37-
