Volkswagen Touareg 2002-2005

Looking for Volkswagen Touareg fuse box diagrams? This article covers the first-generation Volkswagen Touareg (Model Code: 7L) before a facelift, produced from 2002 to 2005, and includes fuse box diagrams for Volkswagen Touareg (7L) 2002, 2003, 2004 and 2005, along with information about the location of the fuse panels inside the vehicle and a detailed breakdown of the assignment of each fuse and relay (fuse layout).

Engine Compartment

Fuse Box Location

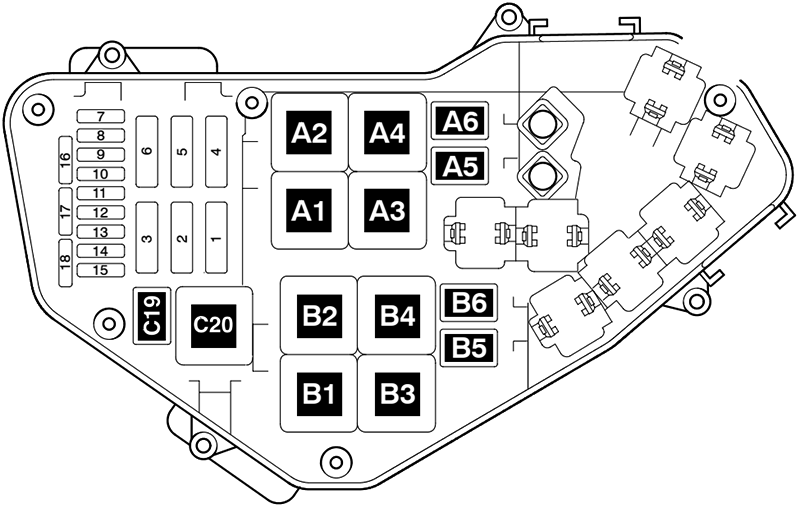

Fuse Box Diagram

Fuses

Assignment of the fuses in the Engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
S160AAll Engines: Fan 1
S230AAll Engines: Fan 2
S340APetrol (All): Secondary air pump motor
60A / 80ADiesel: Glow plugs 1 (2.5L: plugs 1-5; 3.0L: plugs 1-6; 5.0L: plugs 1)
S440APetrol 4.2L: Secondary air pump motor 2
60A / 80ADiesel 5.0L: Glow plugs 2
–Other Engines: Not assigned
S5–All Engines: Not assigned
S660ADiesel 5.0L: Start relevant equipment, fuel pump, ignition system (only models with second battery)
–Other Engines: Not assigned
S720APetrol 3.2L: Ignition coils for cylinders 1-3, injectors for cylinders 1-3
20APetrol 4.2L: Ignition coils with final output stages for cylinders 1-8
10ADiesel 3.0L: Fuel pressure regulating valve, fuel metering valve, coolant pump
Diesel 5.0L: Fuel cooling, additional coolant pump
–Diesel 2.5L: Not assigned
S820APetrol 3.2L: Ignition coils for cylinders 4-6, injectors for cylinders 4-6
20APetrol 4.2L: Injectors cylinders 1-8
30ADiesel 5.0L: Engine control unit 2
–Diesel 2.5L & 3.0L: Not assigned
S930APetrol 3.2L: Engine control unit, inlet camshaft control valve, exhaust camshaft control valve, variable intake manifold changeover valve
Petrol 4.2L: Engine control unit, inlet camshaft control valve 1, exhaust camshaft control valve 2, intake manifold changeover valves 1 & 2
30ADiesel 2.5L & 5.0L: Engine control unit 1
30ADiesel 3.0L: Diesel direct injection system control unit
S1010APetrol 3.2L: Tank leak diagnosis, high-pressure AC sender, activated charcoal filter valve, radiator fan control units 1 & 2, brake servo relay
Petrol 4.2L: Tank leak diagnosis, high-pressure AC sender, charcoal filter valves 1 & 2, radiator fan control units 1 & 2, AC regulator valve, Climatronic, oil level/temp sender
10ADiesel 2.5L: EGR valve, charge pressure control, crankcase breather, high-pressure AC sender, AC regulator, fuel pump relay, radiator fan units 1&2, Climatronic/Climatic, coolant circulation relay, fuel cooling relay, intake manifold flap changeover, radiator changeover, EGR
Diesel 3.0L: Auto glow period unit, EGR valve, EGR cooler changeover, intake flap motors 1&2, throttle valve module, turbo 1 unit, AC regulator, aux coolant pump relay, AC control, Climatronic, radiator fan units 1&2, high-pressure sender, intake manifold changeover, fuel pump relay
Diesel 5.0L: AC pressure sensor, EGR valve, fuel pump relay, radiator fan control units 1 & 2
S1115APetrol 3.2L: Oil level/temp sender, AC regulator, Climatronic
Petrol 4.2L: Secondary air inlet valve
15ADiesel 5.0L: Map-controlled thermostat, AC regulator, oil level/temp sender, turbo motors 1 & 2, intake manifold flap motors 1 & 2
15ADiesel 2.5L & 3.0L: Oil level and oil temperature sender
S125APetrol 3.2L: Sec air pump relay, run-on pump relay, additional coolant pump relay
Petrol 4.2L: Secondary air pump relay
5ADiesel 5.0L: Glow plug relays 1 & 2, additional coolant pump, fuel cooling, brake pedal switch for cruise control
5ADiesel 2.5L: Glow plug relay, continued coolant circulation relay, brake pedal switch
5ADiesel 3.0L: Brake pedal switch
S1315APetrol (All): Fuel pump 2
15ADiesel 5.0L: Fuel pump 1
25ADiesel 2.5L: Fuel system pressurization pump, fuel pump, tank circuit pressurisation relay, fuel cooling pump
Diesel 3.0L: Tank circuit pressurisation relay, fuel pressurisation pump, fuel pump, circulation pump
S1415APetrol (All): Fuel pump 1
–Diesel (All): Not assigned
S1510APetrol 3.2L: Motronic current supply relay 1 and 2
Petrol 4.2L: Engine control unit, Motronic current supply relay, fuel pump relay, electric fuel pump II relay
10ADiesel 3.0L & 5.0L: Terminal 30 voltage supply relay
–Diesel 2.5L: Not assigned
S1630APetrol 3.2L: Continued circulation of coolant pump, vacuum pump for brakes
Petrol 4.2L: Brake servo relay, vacuum pump for brakes, continued coolant circulation relay, coolant pump, circulation pump (with aux heater)
10ADiesel 5.0L: Battery parallel circuit relay
–Diesel 2.5L & 3.0L: Not assigned
S1715APetrol 3.2L: Lambda probes before catalytic converter
Petrol 4.2L: Cylinder bank 1 & 2 Lambda probes before catalytic converter
20ADiesel 3.0L: Lambda probe
Diesel 5.0L: Lambda probe diesel 1 and 2
–Diesel 2.5L: Not assigned
S187.5APetrol 3.2L: Lambda probes after catalytic converter
Petrol 4.2L: Lambda probes after catalytic converter for cylinder banks 1 & 2
–Diesel (All): Not assigned

Relays

Assignment of the relays in the Engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
A1Petrol 3.2L: Motronic current supply relay 2 – J670 (53)
Diesel 2.5L: Fuel pump relay – J17 (53)
Diesel 5.0L: Terminal 30 voltage supply relay – J317 (207)
Petrol 4.2L & Diesel 3.0L: Not assigned
A2Diesel 2.5L: Terminal 30 voltage supply relay – J317 (109)
Diesel 3.0L: Terminal 30 voltage supply relay – J317 (219)
Diesel 5.0L: Terminal 30 voltage supply relay 2 – J689 (207)
Petrol (All): Not assigned
A3Petrol 3.2L: Motronic current supply relay – J271 (167)
Petrol 4.2L: Motronic current supply relay – J271 (614)
Diesel 3.0L: Automatic glow period control unit – J179 (639)
Diesel 2.5L & 5.0L: Not assigned
A4Petrol (All): Secondary air pump relay – J299 (100)
Diesel 2.5L: Glow plug relay – J52 (103)
Diesel 5.0L: Glow plug relay – J52 (202)
Diesel 3.0L: Not assigned
A5All Engines: Relay for additional coolant pump – J496 (404)
A6Petrol 3.2L: Fuel pump relay – J17 (404)
Petrol 4.2L: Electric fuel pump 2 relay – J49 (404)
Diesel 2.5L & 5.0L: Fuel cooling pump relay – J445 (404)
Diesel 3.0L: Not assigned
B1All Engines: Not assigned
B2Diesel 3.0L & 5.0L: Fuel pump relay – J17 (53)
Petrol (All) & Diesel 2.5L: Not assigned
B3Diesel 5.0L: Glow plugs relay 2 – J495 (202)
Petrol (All), Diesel 2.5L & 3.0L: Not assigned
B4Diesel 5.0L: Terminal voltage supply relay 1 – J701 (100)
Petrol (All), Diesel 2.5L & 3.0L: Not assigned
B5All Engines: Not assigned
B6Petrol (All): Brake servo relay – J569 (404), only models with automatic gearbox
Diesel (All): Not assigned
C19Petrol 3.2L: Electric fuel pump 2 relay – J49 (404)
Petrol 4.2L: Fuel pump relay – J17 (404)
Diesel (All): Tank circuit pressurisation relay – J715 (404) only with auxiliary coolant heater
C20All Engines: Terminal 50 voltage supply relay – J682 (433)

Dashboard (Left)

Fuse Box Location

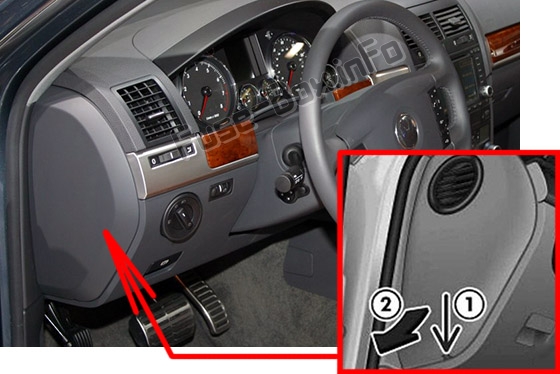

Fuse holder on the left side edge of the instrument panel

The location of the fuses in the passenger compartment: Volkswagen Touareg (2002-2005)

Fuse Box Diagram

Fuses

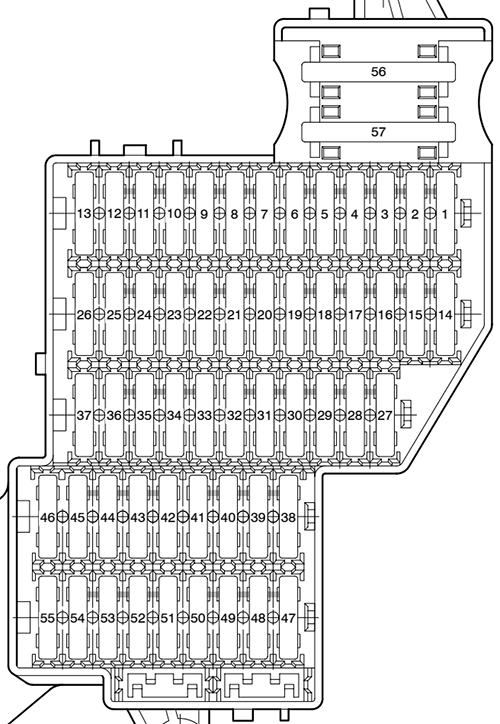

Assignment of the fuses in the left-side of the dash panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB120ACigarette lighter – front
SB25AAuxiliary heater – timer (where applcable)
SB320A12V Outlet (footwell), 12V Outlet (center console, front)
SB415AAuxiliary heater (where applicable)
SB520A12V Outlet – center console, rear, cigarette lighter -rear
SB615AAccess/start control module
SB75AData Link Connector (DLC), Antenna switch
SB830AWiper motor
SB915AVehicle electrical system control module – Windshield washer pump
SB1025ALeft rear window lifter
SB1115ADoor control modules – Central Locking System (left rear & left front)
SB1220AVehicle electrical system control module – Interior lights
SB13––
SB1425ALeft front window lifter
SB1515ACentral control module for comfort system – Left tail lamps
SB1620AVehicle electrical system control module – Horns
SB1710AVehicle electrical system control module – Left parking lamps, turn signals
SB1820AHeadlamp washer pump
SB1915AVehicle electrical system control module – Fog lamps
SB2030APower seats
SB2115AVehicle electrical system control module
SB2230ADifferential lock control module
SB2310ADifferential lock control module
SB245ATire pressure monitoring control module
SB2515APower steering column adjustment
SB2610AAirbag control module, Motronic Engine Control Module (ECM), instrument cluster, brake/clutch switches, ESR Mass Air Flow (MAF) Sensor
SB27––
SB285ABrake light disable realy, brake switch (where applicable)
SB29––
SB30––
SB31––
SB32––
SB335ASteering column electronic systems control module
SB345AAlarm system (sensor), heated seat relay
SB3515AVehicle electrical system control module -Headlamps (high/low beam)
SB3610AVehicle electrical system control module
SB37––
SB3810ABrake light switch
SB395AManual A/C, Power supply relay, instrument cluster, rear window defogger relay, heated seat relay
SB405AInstrument cluster
SB4115AAccess/start control module
SB4230APower sunroof
SB43––
SB4430APower steering column adjustment, power seats, power seats (with memory) control module
SB4530ALeft front power seat, rear seat heating control modules
SB46––
SB4710ADifferential lock control module
SB485AAuxiliary heater (where applicable)
SB495AServotronic control module
SB5010APositive Crankcase Ventilation (PCV) Heating Element, Secondary Air Injection (AIR) Solenoid valve
SB515AAir quality sensor, seat heaters, electronic parking brake
SB5230ARear wiper motor
SB535AMirror heating, light switch, steering column electronics control module
SB5410AHeadlamp range control
SB5515AAuxiliary heater relay (where applcable)
SB5640ABlower – Climatronic 2-Zone
SB5740ARear blower – Climatronic 4-Zone

Dashboard (Right)

Fuse Box Location

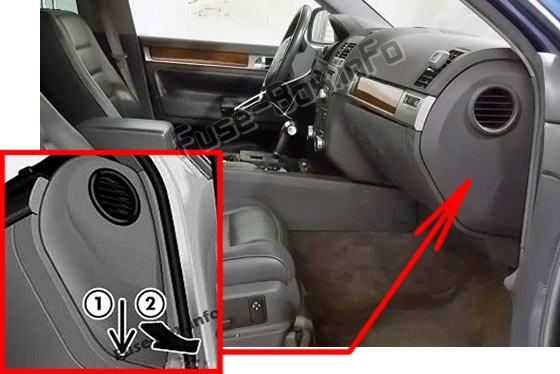

Fuse holder on the right side edge of the instrument panel

The location of the fuses in the passenger compartment: Volkswagen Touareg (2002-2005)

Fuse Box Diagram

Fuses

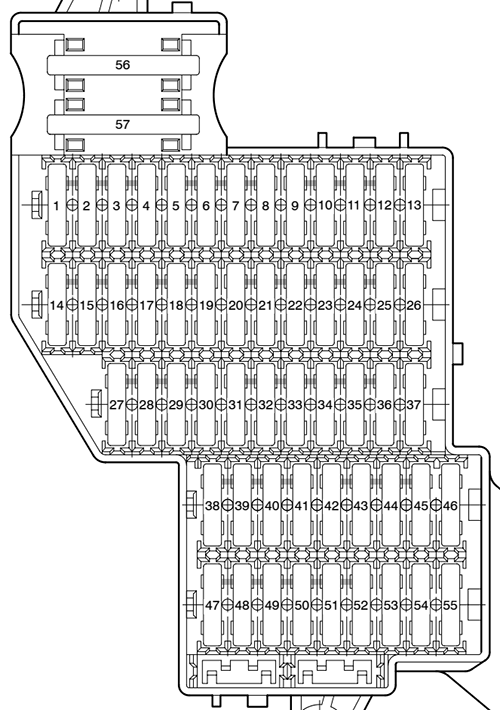

Assignment of the fuses in the right-side of the dash panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.DescriptionAmps
SC1Electric socket for trailer coupling (Hella), trailer detector control unit (Westfalia)15A
SC2Parking aid control unit5A
SC3Trailer detector control unit15A
SC4Telematics, telephone5A
SC5Trailer detector control unit (Westfalia)15A
SC6ABS with EDL control unit30A
SC7Transfer box control unit5A
SC8Onboard supply control unit/supplementary driving light20A
SC9Not assigned–
SC10TV tuner5A
SC11Radio, control unit with display for radio and navigation system10A
SC12Sound system amplifier30A
SC13Not assigned–
SC14Convenience system central control unit, bulbs for left brake and tail lights15A
SC15Rear right window regulator25A
SC16Luggage compartment lights10A
SC17Onboard supply control unit, right dipped beam / main beam15A
SC18Heated rear window relay30A
SC19Not assigned–
SC20Not assigned–
SC21Spare wheel release10A
SC22Heated driver seat control unit heated front passenger seat control unit30A
SC23Climatronic control unit10A
SC24Front passenger seat adjustment with memory control unit30A
SC25Rear Climatronic operating and display unit5A
SC26Not assigned–
SC27Adaptive suspension control unit15A
SC28Not assigned–
SC29Automatic gearbox control unit10A
SC30Power latching system relay20A
SC31Convenience system central control unit15A
SC32Front passenger door control unit, Rear right door control unit10A
SC33Individualisation15A
SC34Window regulator front right25A
SC35Onboard supply control unit/turn signal, right side light10A
SC36Roof module, telephone, compass module (vehicle position recognition control5A
SC37Not assigned–
SC38TCS and ESP button
ABS with EDL control unit		10A
SC39Heated windscreen relay for left side, heated windscreen relay for right side.5A
SC40Transfer box control unit10A
SC41Trailer detector control unit (Westfalia)10A
SC42Garage door operation control unit, garage door opener warning lamp5A
SC43Reversing light switch5A
SC44Regulators for front and rear seat heaters (from 11.2003)5A
SC45Not assigned5A
SC46Not assigned–
SC47Not assigned–
SC48Adaptive suspension control unit10A
SC49Automatic anti-dazzle interior mirror, Telephone5A
SC50Anti-roll bar uncoupling button5A
SC51Automatic gearbox control unit20A
SC52Tiptronic switch, selector lever lock for position P solenoid, multifunction switch5A
SC53Heated windscreen relay for left side30A
SC54Heated windscreen relay for right side30A
SC55Not assigned–
SC56ABS with EDL control unit40A
SC57Transfer box control unit40A

Pre-Fuse Box

Fuse Box Location

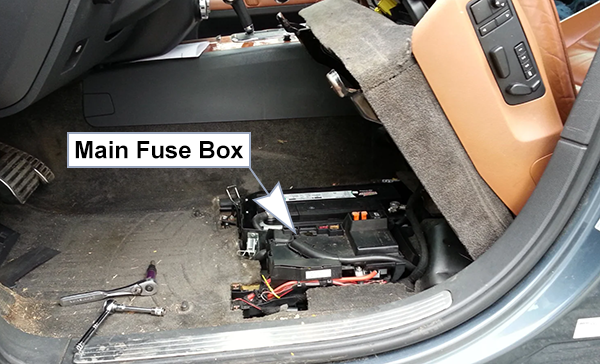

Fuse box is located under the driver seat.

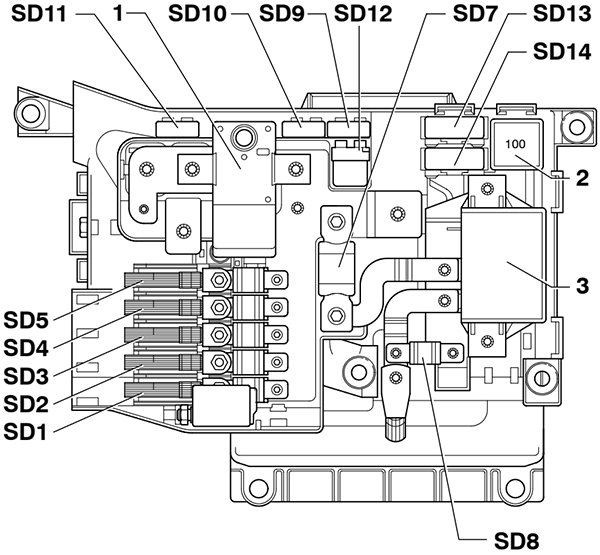

Fuse Box Diagram

Fuses

Assignment of the fuses in the pre-fuse box under the driver seat

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SD1150AFuse for Left instrument panel fuse box
SD2150AFuse for Right instrument panel fuse box
SD360AFuse for Right instrument panel fuse box
SD460AFuse for E-Box
SD560AFuse for voltage supply Terminal 15 relay
SD7250AFuse for second battery charge relay
SD8150AFuse for E-Box
SD95AFuse for vehicle electrical equipment control module
SD1010AFuse for vehicle electrical equipment control module
SD115AFuse for starter circuit diagnostics
SD12––
SD1340AFuse for relay – air suspension
SD14––

Relays

Assignment of the relays in the pre-fuse box under the driver seat

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1-E74- Main Battery Switch (with reset)
2-J329- Voltage Supply Terminal 15 (B+) Relay (433, 100), where applicable
3-J713- Second Battery Charge Relay

Relay E-Box

Relay Box Location

It is located on the left under the steering wheel near center console.

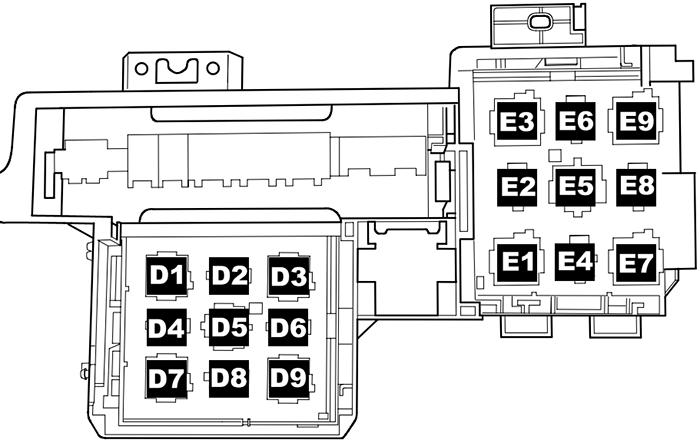

Relay Box Diagram

Relays

Assignments of the relays in Relay panel E-Box on left under dash panel near center console

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
D1Servotronic control unit – J236 (463)
D2Power latching system relay – J714 (404)
D3Adaptive suspension compressor relay – J403 (373)
D4Not assigned
D5Air conditioning system relay – J32 (100)
D6Fresh air blower 2nd speed relay – J486 (404) only models with a manually operated air conditioning system
D7Heated rear window relay – J9 (53)
D8Heated seat relay – J83 (404), up to 01.2003
D9Brake light suppression relay – J508 (444)
E1Solar cell isolation relay – J309 (79)
E2Spare wheel release relay – J732 (404)
E3Air conditioning system relay – J32 (53)
E4Circulation pump relay – J160 (404)
E5Start relevant consumers relay (432), only 5.0L diesel engine
E6Not assigned
E7Headlight washer system relay – J39 (53)
E8Residual heat relay – J708 (404), only models with 3.2L or 4.2L petrol engines
E9Not assigned

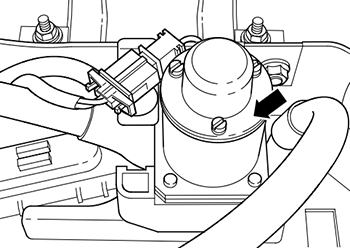

Parallel Battery Relay

Located near second battery in luggage compartment (where applicable).

Parallel Battery Connection Relay -J581-

FAQ

Scroll to Top
