Volkswagen Touareg 2006-2010

Looking for Volkswagen Touareg fuse box diagrams? This article covers the first-generation Volkswagen Touareg (Model Code: 7L) after a facelift, produced from 2006 to 2010, and includes fuse box diagrams for Volkswagen Touareg (7L) 2006, 2007, 2008, 2009 and 2010, along with information about the location of the fuse panels inside the vehicle and a detailed breakdown of the assignment of each fuse and relay (fuse layout).

Engine Compartment

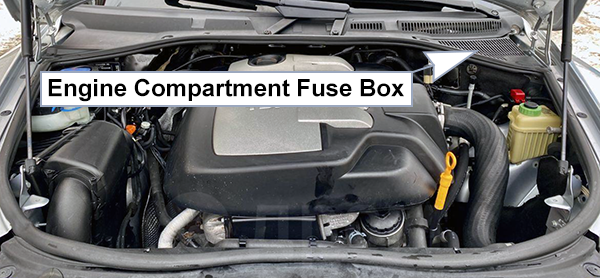

Fuse Box Location

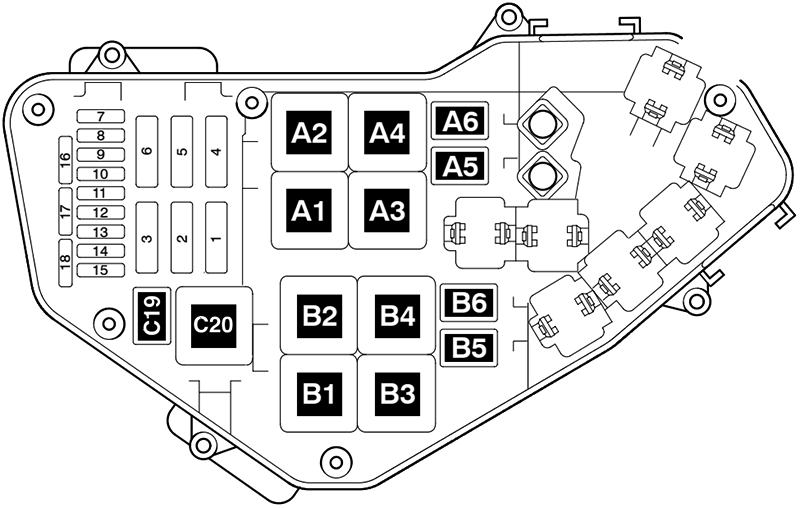

Fuse Box Diagram

Fuses

Assignment of the fuses in the Engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
160A2.5L TDI & 3.2L V6 Gas: J293 – Coolant Fan Control (FC) Control Module
60A / 30A3.0L V6 Diesel: J293 – Coolant Fan Control (FC) Control Module (Where applicable)
60A5.0L V10 TDI & 3.6L V6 FSI: J293 – Coolant Fan Control (FC) Control Module, V7 – Coolant Fan
60A4.2L V8 FSI & 6.0L W12: J671 – Coolant Fan Control (FC) Control Module 2, V177 – Coolant Fan 2
230A2.5L, 3.0L, 3.2L: J671 – Coolant Fan Control (FC) Control Module 2 (Trailer hitch models only on 2.5L)
30A / 60A5.0L V10 TDI & 3.6L V6 FSI: J671 – Coolant Fan Control (FC) Control Module 2, V177 – Coolant Fan 2 (60A on trailer hitch models)
30A / 60A4.2L V8 FSI & 6.0L W12: J293 – Coolant Fan Control (FC) Control Module, V7 – Coolant Fan (60A on trailer hitch models)
340A3.2L V6 Gas: V101 – Secondary Air Injection (AIR) Pump Motor
40A4.2L V8 FSI & 6.0L W12: J299 – Secondary Air Injection (AIR) Pump Relay, V101 – Secondary Air Injection (AIR) Pump Motor
–Other Engines: Unused
440A6.0L W12: J545 – Secondary Air Injection Pump Relay 2, V189 – Secondary Air Injection Pump Motor 2
–Other Engines: Unused
530A6.0L W12: Ignition Coils 7-12 with Power Output Stage (N325 – N330), S7 – Fuse
–Other Engines: Unused
660A5.0L V10 TDI: J701 – Power Supply Relay 1
30A6.0L W12: Ignition Coils 1-6 with Power Output Stage (N70 – N324), S8 – Fuse
–Other Engines: Unused
715A3.0L V6 Diesel: N276 – Fuel Pressure Regulator Valve, N290 – Fuel Metering Valve
10A5.0L V10 TDI: J445 – Fuel Cooling Pump/Relay, J496 – Aux Engine Coolant Pump Relay, J708 – Residual Heat Relay, V166 – Fuel Cooler Pump
20A3.2L V6 Gas & 3.6L V6 FSI: Ignition Coils 1-3 with Output Stage (3.2L adds Fuel Injectors 1-3)
20A4.2L V8 FSI: Ignition Coils 1-8 with Power Output Stage (N70 – N326)
10A6.0L W12: Cylinder 7-12 Fuel Injectors (N85 – N302)
830A5.0L V10 TDI: J624 – Engine Control Module (ECM) 2
20A3.2L V6 Gas & 3.6L V6 FSI: Ignition Coils 4-6 with Power Output Stage (3.2L adds Fuel Injectors 4-6)
10A6.0L W12: Cylinder 1-6 Fuel Injectors (N30 – N84)
–Other Engines: Unused
930AMost Engines: Engine Control Module (ECM) – J623 (or J248 on 3.0L Diesel)
30A3.2L V6 Gas: J220 – Motronic Control Module, N156, N205, N318 Cam/EGR Valves
30A6.0L W12: J623 – ECM, J624 – ECM 2
1010A2.5L TDI: G65, J17, J255, J293, J301, J445, J496, J671, N75, N79, N280, N345
10A3.0L V6 Diesel: G65, J17, J179, J255, J293, J301, J442(2), J445, J496, J671, J724, N18, N280, N345, V157, V275
10A5.0L V10 TDI: G65, J17, J293, J671, N345, N381, V336(3), V337(3)
10A3.2L V6 Gas: G65, J293, J569, J671, N80, N115, V144
10A3.6L V6 FSI: G65, J293, J496, J671, V144
10A4.2L V8 FSI: G70, G246, J299, N80, V144
10A6.0L W12: G65, J255, J293, J301, J442(2), J671, V144
1115A5.0L V10 TDI: F265, J255, J724, J725, N280, V135(3), V157, V275, V280, V281
15A3.2L V6 Gas: G266 – Oil Level Thermal Sensor, J255, N280
10A3.6L V6 FSI: J255, J301, J442(2), N280
15A6.0L W12: N80, N205, N208, N280, N318, N319 (Evap/Camshaft/Compressor valves)
–Other Engines: Unused
1210A2.5L TDI: J179 – Auto Glow Time Module, J496 – Aux Coolant Pump Relay
10A3.0L V6 Diesel: J496 – Aux Engine Coolant Pump Relay
5A5.0L V10 TDI: J179, J445, J496, J703
5A3.2L V6 Gas: J299 – Sec Air Pump Relay, J496
10A3.6L V6 FSI: N80, N205, N316, N318
20A4.2L V8 FSI: F265, G65, J151, J255, J301, J293, J442, J671, N205, N208, N280, N318, N319, V157, V183
5A6.0L W12: J49, J299, J545, J624
1325A2.5L & 3.0L Diesel: G6, G23, J445, J715, V166 (2.5L adds J17 Fuel Pump Relay)
25A / 30A5.0L V10 TDI: G6, G23, J17, J715
15A3.2L V6 Gas: G23 – Fuel Pump (FP)
25A3.6L V6 FSI & 4.2L V8 FSI: J538 – Fuel Pump Control Module
15A6.0L W12: G6 – Transfer Fuel Pump, J17 – Fuel Pump Relay
1415A3.2L V6 Gas: G6 – Transfer Fuel Pump (FP)
15A3.6L V6 FSI: N276 – Fuel Pressure Regulator Valve
10A4.2L V8 FSI: N290 – Fuel Metering Valve, N402 – Fuel Metering Valve 2
15A6.0L W12: G23 – Fuel Pump (FP), J49 – Fuel Pump 2 Relay
–Other Engines: Unused
15–2.5L TDI: Unused
10A3.0L & 5.0L Diesel: J317 – Power Supply Relay (terminal 30)
10A3.2L V6 Gas: J17, J49, J220, J271, J670
10A3.6L & 4.2L FSI: J623 – Engine Control Module, J271 – Motronic ECM Power Supply Relay (3.6L adds J670)
10A6.0L W12: J17, J271, J623, J624
1610A5.0L V10 TDI: J581 – Parallel Battery Connection Relay
15A3.2L V6 Gas: V192 – Brake System Vacuum Pump
15A3.6L V6 FSI: J496 – Auxiliary Engine Coolant (EC) Pump Relay
15A4.2L V8 FSI: J569 – Brake Booster Relay, V192 – Brake System Vacuum Pump
15A6.0L W12: J496, J569, V51, V192
–Other Engines: Unused
1710A / 15A / 20A2.5L, 3.0L, 3.2L, 4.2L: G39 – Oxygen Sensor (O2S) (Most add Z19 Heated Oxygen Sensor, V engines add G108 O2S 2)
20A5.0L V10 TDI: G39, G108, Z19, Z28 (Dual O2 & Heated O2 Sensors)
15A3.6L V6 FSI: G39, G108, Z19, Z28
30A6.0L W12: G39, G108, G285, G286, Z19, Z28, Z62, Z63 (Four sets of O2 Sensors & Heaters)
187.5A3.2L V6 Gas & 3.6L V6 FSI: G130, G131 Oxygen Sensors behind Catalytic Converter (3.6L adds Z29, Z30 Heaters)
10A4.2L V8 FSI: G130, G131 Oxygen Sensors behind Catalytic Converter
15A6.0L W12: G130, G131, G287, G288, Z29, Z30, Z64, Z65 (Four sets behind Catalytic Converter)
–Diesel Engines: Unused

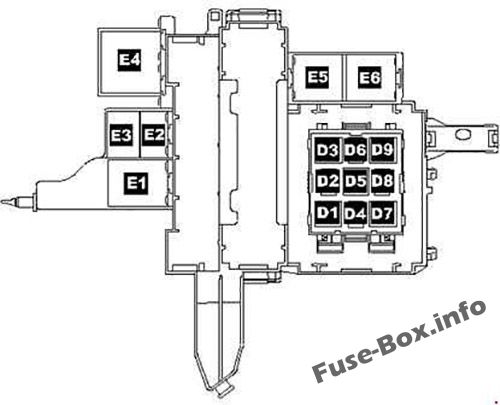

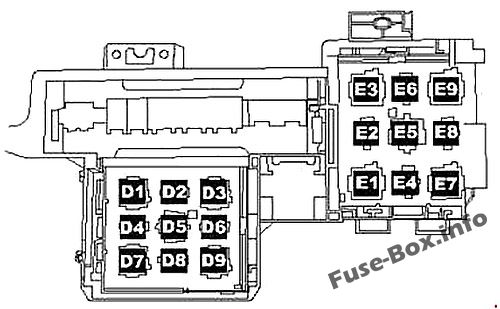

Relays

Assignment of the relays in the Engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
A15.0L V10 TDI: Glow period control unit 2 -J703- (475)
3.2L V6 Petrol: Terminal 30 voltage supply relay 2 -J689- (53)
Other Engines: Not assigned
A22.5L TDI: Terminal 30 voltage supply relay -J317- (109)
3.0L V6 Diesel: Terminal 30 voltage supply relay -J317- (219) / (643) optional installation
5.0L V10 TDI: Terminal 30 voltage supply relay 2 -J689- (219)
Petrol & FSI Engines: Not assigned
A3Diesels (2.5L, 3.0L, 5.0L) & 4.2L V8 FSI: Automatic glow period control unit -J179- (475) [3.0L adds (639)/(647) optional]
3.2L V6 Petrol: Terminal 30 voltage supply relay -J317- (167)
3.6L V6 FSI & 6.0L W12: Motronic current supply relay -J271- (614 on 3.6L; 100/370 on 6.0L)
A42.5L TDI: Fuel pump relay -J17- (53)
3.2L, 4.2L, 6.0L Petrol/FSI: Secondary air pump relay -J299- (100) / (370) optional installation
Other Engines: Not assigned
A5Most Engines: Additional coolant pump relay -J496- (404) [3.0L adds (449) optional]
4.2L V8 FSI: Continued coolant circulation relay -J151- (404)
A6Diesels (2.5L, 3.0L, 5.0L): Fuel cooling pump relay -J445- (404) [3.0L adds (449) optional]
3.2L V6 Petrol: Fuel pump relay -J17- (53)
6.0L W12: Electric fuel pump 2 relay -J49- (404)
Other Petrols: Not assigned
B15.0L V10 TDI: Terminal 30 voltage supply relay -J317- (219)
Other Engines: Not assigned
B23.0L V6 Diesel & 5.0L V10 TDI: Fuel pump relay -J17- (53)
Other Engines: Not assigned
B33.0L V6 Diesel: High heat output relay -J360- (100)
6.0L W12: Secondary air pump relay 2 -J545- (100) / (370) optional installation
Other Engines: Not assigned
B43.0L V6 Diesel: Low heat output relay -J359- (100)
5.0L V10 TDI: Voltage supply relay 1 -J701- (100) / (370) optional installation
3.6L V6 FSI: Motronic current supply relay 2 -J670- (614) (Up to May 2007)
4.2L V8 FSI: Engine components current supply relay -J757- (614)
Other Engines: Not assigned
B5All Engines: Not assigned
B63.0L V6 Diesel: Supplementary fuel pump relay -J832- (449)
3.2L V6, 4.2L V8 FSI, 6.0L W12: Brake servo relay -J569- (404) (Only models with automatic gearbox)
Other Engines: Not assigned
C19Diesels (2.5L, 3.0L, 5.0L): Tank circuit pressurisation relay -J715- (404) (Only auxiliary coolant heater / Not for American markets)
3.2L V6 Petrol: Electric fuel pump 2 relay -J49- (404)
6.0L W12: Fuel pump relay -J17- (404)
3.6L & 4.2L FSI: Not assigned
C20All Engines: Terminal 50 voltage supply relay -J682- (433)

Dashboard (Left)

Fuse Box Location

Fuse holder on the left side edge of the instrument panel

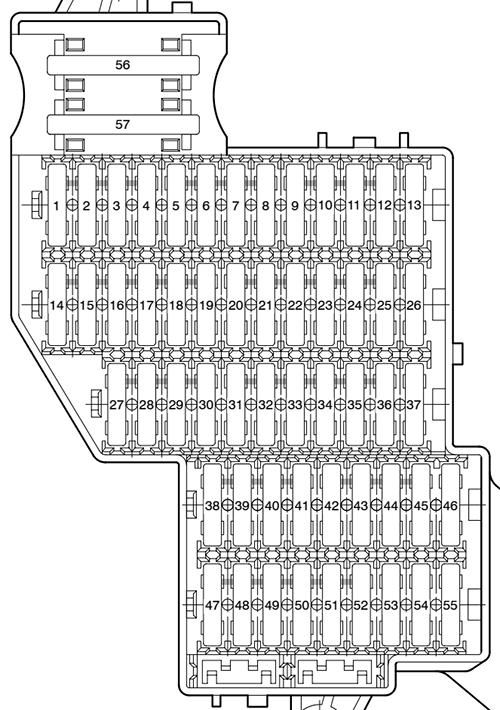

Fuse Box Diagram

Fuses

Assignment of the fuses in the left-side of the dash panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
115A
20A (Only auxiliary battery and two battery onboard supply)		U1 – Cigarette lighter
U9 – Rear cigarette lighter
25A
15A		J160 – Circulation pump relay (Only auxiliary battery and two battery onboard supply)
J708 – Residual heat relay (Only auxiliary battery and two battery onboard supply)
R149 – Remote control receiver for auxiliary coolant heater (Only auxiliary battery and two battery onboard supply)
U18 – 12 V socket 2 (Only one battery onboard supply)
U20 – 12 V socket 4 (Only one battery onboard supply)
315A
20A (Only auxiliary battery and two battery onboard supply)		U5 – 12 V socket
U19 – 12 V socket 3
420AJ162 – Heater control unit
520AU18 – 12 V socket 2 (Only auxiliary battery and two battery onboard supply)
U19 – 12 V socket 4 (Only auxiliary battery and two battery onboard supply)
J807 – Relay for power sockets (Only one battery onboard supply)
615AJ518 – Entry and start authorisation control unit (Only V10 TDI)
J708 – Residual heat relay (Only one battery onboard supply)
75AT16b – Diagnostic connection
J515 – Aerial selection control unit
G397 – Rain and light detector sensor
825A
30A (From November 2007)		V – Windscreen wiper motor
915AJ519 – Onboard supply control unit (windscreen wiper pump)
1025A
30A (From November 2007)		J388 – Rear left door control unit (window regulator)
1115AJ386 – Driver door control unit (central locking)
J388 – Rear left door control unit (central locking)
1210AJ519 – Onboard supply control unit (interior light)
13–Not assigned
1425A
30A (From November 2007)		J386 – Driver door control unit (window regulator)
1515AJ393 – Convenience system central control unit (right tail light cluster)
1620AJ519 – Onboard supply control unit (fanfare)
1730AJ519 – Onboard supply control unit (left light)
1820A
25A (From November 2007)		J39 – Headlight washer system relay
19–Not assigned
2030AJ519 – Onboard supply control unit (battery 1)
21–Not assigned
2230AJ647 – Axle differential lock control unit
J605 – Rear lid control unit
2310AJ647 – Axle differential lock control unit
245AJ502 – Tyre pressure monitor control unit
2515AJ352 – Steering column and belt height adjustment control unit
2610AF36 – Clutch pedal switch
J… – Engine control units
J234 – Airbag control unit
J285 – Control unit in dash panel insert
J519 – Onboard supply control unit
K145 – Front passenger side airbag deactivated warning lamp
N378 – Driver seat belt inertia reel magnet
N379 – Front passenger side seat inertia reel magnet
275AE183 – Interior monitoring switch
W11 – Rear left reading light
W12 – Rear right reading light
W14 – Front passenger side illuminated vanity mirror
W20 – Driver side illuminated vanity mirror
W51 – Rear lid light
28–Not assigned
29–Not assigned
30–Not assigned
31–Not assigned
32–Not assigned
3315AJ527 – Steering column electronics control unit
345AG273 – Interior monitoring sensor
G384 – Vehicle inclination sender
J285 – Control unit in dash panel insert (Only auxiliary battery and two battery onboard supply)
3530AJ519 – Onboard supply control unit
3630AE470 – Driver seat adjustment operating unit
37–Not assigned
38–Not assigned
395AJ9 – Heated rear window relay
J32 – Air conditioning system relay
J329 – Terminal 15 voltage supply relay
J755 – Transport mode relay
J807 – Relay for power sockets (Only one battery onboard supply)
405AJ285 – Control unit in dash panel insert
4115AJ518 – Entry and start authorisation control unit
4230AJ245 – Sliding sunroof adjustment control unit
43–Not assigned
4430AE470 – Driver seat adjustment operating unit
J136 – Seat and steering column adjustment control unit with memory
J810 – Driver seat adjustment control unit
46–Not assigned
4710AJ647 – Axle differential lock control unit
485AJ769 – Lane change assist control unit
J770 – Lane change assist control unit 2
495AJ236 – Servotronic control unit
5010AG266 – Oil level and oil temperature sender
N79 – Crankcase breather heater element (Only models with engine codes BHK, BHL)
515AT16b – Diagnostic connection
F321 – Parking brake contact switch
G238 – Air quality sensor
G550 – Sensor for automatic distance control
J755 – Transport mode relay
5230A
15A (From November 2007)		V12 – Rear window wiper motor
535AE1 – Light switch
J527 – Steering column electronics control unit
J393 – Convenience system central control unit
5410AE102 – Headlight range control regulator (Only models with halogen headlights)
J667 – Power output module for left headlight (Only models with cornering light)
V48 – Left headlight range control motor (Only models with halogen headlights)
V49 – Right headlight range control motor (Only models with halogen headlights)
5515AJ486 – Fresh air blower relay for 2nd speed
5640AJ32 – Air conditioning system relay
J309 – Solar cell isolation relay
J486 – Fresh air blower relay, 2nd speed
SB55 – Fuse 55 on fuse holder B
V305 – Motor for front Bitron blower regulation
5740AV306 – Motor for rear Bitron blower regulation (Up to November 2007)
J403 – Adaptive suspension compressor relay (From November 2007)

Dashboard (Right)

Fuse Box Location

Fuse holder on the right side edge of the instrument panel

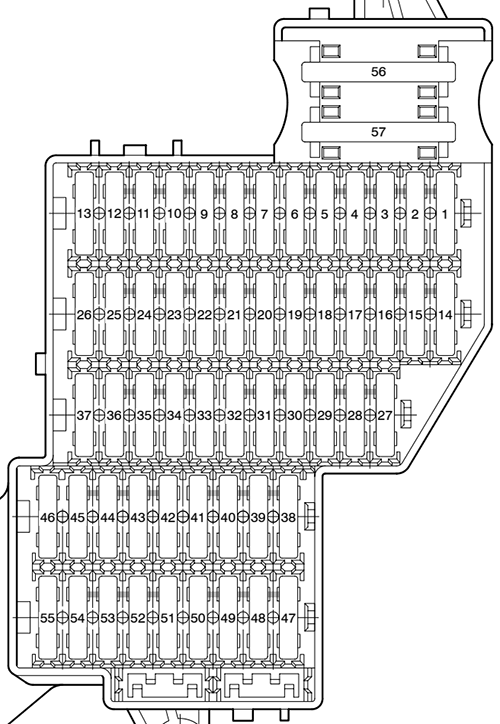

Fuse Box Diagram

Fuses

Assignment of the fuses in the right-side of the dash panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
115A
20A (From May 2008)		J345 – Trailer detector control unit
25AJ446 – Parking aid control unit
315AJ345 – Trailer detector control unit
45AJ412 – Mobile telephone operating electronics control unit
515A
25A (From May 2008)		J345 – Trailer detector control unit
630AJ104 – ABS control unit
75AJ646 – Transfer box control unit
830AJ519 – Onboard supply control unit (right light)
910AIndividualisation
R190 – Satellite digital radio tuner (Only American markets)
105AJ772 – Reversing camera system control unit
R78 – TV tuner
1120AJ503 – Control unit with display for radio and navigation system
R – Radio
R – Preparation for radio and navigation system with TV (models for Japan)
1230AR12 – Amplifier
13–Not assigned
1415AJ393 – Convenience system central control unit
1525A
30A (From November 2007)		J389 – Rear right door control unit (window regulator)
1610A
5A (From November 2007)		W3 – Luggage compartment light
17–Not assigned
1830AJ9 – Heated rear window relay
19–Not assigned
2030AU13 – AC./DC converter with socket 12 V – 230 V
U27 – AC/DC converter with socket 12 V – 115 V (Only American markets)
2110AF266 – Bonnet contact switch
2225AJ774 – Heated front seats control unit
2310AJ255 – Climatronic control unit
2430AE471 – Front passenger seat adjustment operating unit
J521 – Front passenger seat adjustment with memory control unit
255AE265 – Rear Climatronic operating and display unit
J301 – Air conditioning system control unit
26–Not assigned
2715AJ197 – Adaptive suspension control unit
28–Not assigned
2910A
5A (From November 2007)		J217 – Automatic gearbox control unit
3020AJ714 – Power latching system relay
3115AJ393 – Convenience system central control unit
3210AJ387 – Front passenger door control unit (central locking)
J389 – Rear right door control unit (central locking)
3315AIndividualisation
3425A
30A (From November 2007)		J387 – Front passenger side door control unit (window regulator)
3530AE471 – Front passenger seat adjustment operating unit
365AJ603 – Vehicle position recognition control unit
J702 – Roof display unit
37–Not assigned
3810AJ104 – ABS control unit
395AJ410 – Heated windscreen relay for left side
J411 – Heated windscreen relay for right side
J745 – Cornering light and headlight range control unit
Individualisation
4010AJ646 – Transfer box control unit
4110AJ345 – Trailer detector control unit
425AE284 – Garage door operating unit
J530 – Garage door operation control unit
435AF41 – Reversing switch
445AE94 – Heated driver seat regulator
E95 – Heated front passenger seat regulator
E128 – Heated rear left seat switch with regulator
E129 – Heated rear right seat switch with regulator
E281 – Operating unit to regulate suspension height
Z20 – Left washer jet heater element
Z21 – Right washer jet heater element
45–Not assigned
46–Not assigned
4710AJ668 – Power output module for right headlight
4810AJ197 – Adaptive suspension control unit
495AY7 – Automatic anti-dazzle interior mirror
505AE256 – TCS and ESP button
5115AJ217 – Automatic gearbox control unit
525AF125 – Multifunction switch
F189 – Tiptronic switch
N380 – Selector lever lock for position P solenoid
5330AJ411 – Heated windscreen relay for right side
5430AJ410 – Heated windscreen relay for left side
55–Not assigned
5640AJ104 – ABS control unit
5740AJ646 – Transfer box control unit

Pre-Fuse Box

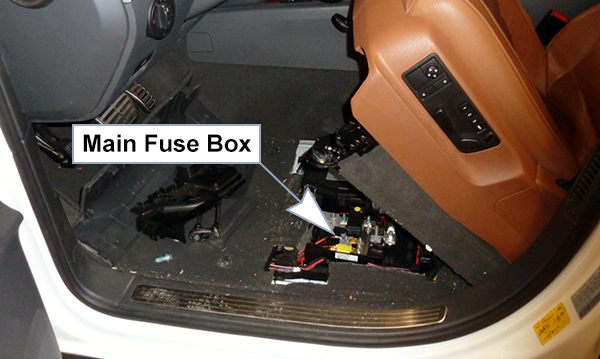

Fuse Box Location

Located under driver’s seat.

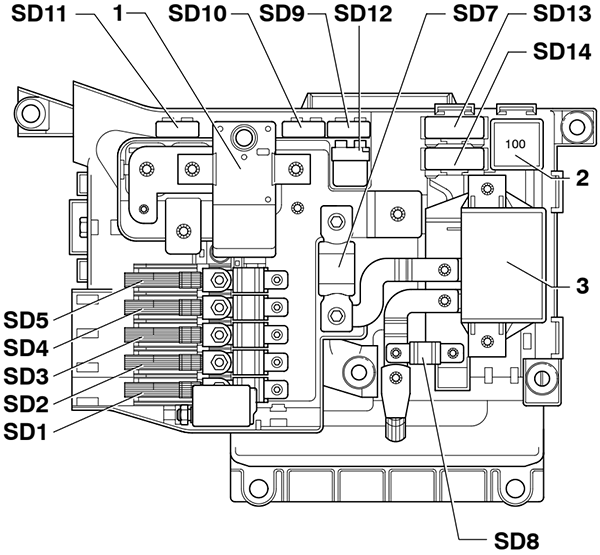

Fuse Box Diagram

High Voltage Fuses

Assignment of the high voltage fuses in the passenger compartment under the driver’s seat

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SD1150Left fuse carrier
SD2150Right fuse carrier
SD360Right fuse carrier
SD460
40 (From November 2007)		J701 – Voltage supply relay 2 (Only V10 TDI)
V306 – Motor for rear Bitron blower regulation (From November 2007)
SD560
40 (From November 2007)		J329 – Terminal 15 voltage supply relay
SD6–Not assigned
SD7250J713 – Charger relay for second battery
SD8150 (Only V10 TDI)
60 (Only models with additional battery)		Left fuse carrier
J701 – Voltage supply relay 1 (Only V10 TDI)
SD95J519 – Onboard supply control unit
SD1010
5 (From November 2007)		J519 – Onboard supply control unit (Only V10 TDI)
SD115J519 – Onboard supply control unit (Only V10 TDI)
SD12–Not assigned
SD1340J403 – Adaptive suspension compressor relay
V306 – Motor for rear Bitron blower regulation (Only V10 TDI) (From November 2007)
SD14–Not assigned

Relays

Assignment of the relays in the passenger compartment under the driver’s seat

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Battery master/isolator switch -E74-
2Terminal 15 voltage supply relay -J329- (433)
3Second battery charging circuit relay -J713-

Relay Carrier E-Box (1)

Relay Box Location

Located on the left side under the steering wheel.

Relay Box Diagram

Relay panel 1: Volkswagen Touareg (2006, 2007, 2008, 2009, 2010)

Relays (D)

Relay panel E-Box 1-D (on left under dash panel near center console)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
D1Servotronic control unit -J236- (476)
D2Power latching system relay -J714- (404)
D3Adaptive suspension compressor relay -J403- (373)
D4Power sockets relay -J807- (404)
D5Air conditioning system relay -J32- (100) / (370) optional installation
D6Fresh air blower relay, 2nd speed -J486- (404), only manually operated air conditioning system
D7Heated rear window relay -J9- (53)
D8Circulation pump relay -J160- (404), only VR6 with auxiliary heater
D9Alternator cut-in relay -J442- (53)

Relays (E)

Relay panel E-Box 1-E (on left under dash panel near center console)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
E1Solar cells isolation relay -J309- (79)
E2Not assigned
E3Heated windscreen relay for left side -J410- (53)
E4Not assigned
E5Voltage supply relay 2 -J710- (432), only V10 TDI
E6Not assigned
E7Headlight washer system relay -J39- (53)
E8Residual heat relay -J708- (404)
E9Heated windscreen relay for right side -J411- (53)

Relay Carrier E-Box (2)

Relay Box Location

Located under the steering wheel on the right side.

Relay Box Diagram

Relay panel 2: Volkswagen Touareg (2006, 2007, 2008, 2009, 2010)

Relays (D)

Relay panel E-box-2-D (on right under dash panel, near right a-pillar)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
D1Servotronic control unit -J236- (476)
D2Power latching system relay -J714- (404)
D3Adaptive suspension compressor relay -J403- (373)
D4Power sockets relay -J807- (404)
D5Air conditioning system relay -J32- (100) / (370) optional installation
D6Fresh air blower relay, 2nd speed -J486- (404), only manually operated air conditioning system
D7Heated rear window relay -J9- (53)
D8Circulation pump relay -J160- (404), only VR6 with auxiliary heater
D9Alternator cut-in relay -J442- (53)

Relays (E)

Relay panel E-box-2-E (on right under dash panel, near right a-pillar)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
E1Solar cells isolation relay -J309- (79)
E2Residual heat relay -J708- (404)
E3Heated windscreen relay for left side -J410- (53)
E4Voltage supply relay 2 -J710- (432), only V10 TDI
E5Heated windscreen relay for right side -J411- (53)
E6Headlight washer system relay -J39- (53)

FAQ

Scroll to Top
