Volkswagen Touareg 2010-2018

Looking for Volkswagen Touareg fuse box diagrams? This article covers the second-generation Volkswagen Touareg (Model Code: 7P), produced from 2010 to 2018, and includes fuse box diagrams for Volkswagen Touareg (7P) 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 and 2018, along with information about the location of the fuse panels inside the vehicle and a detailed breakdown of the assignment of each fuse and relay (fuse layout).

Dashboard (Left)

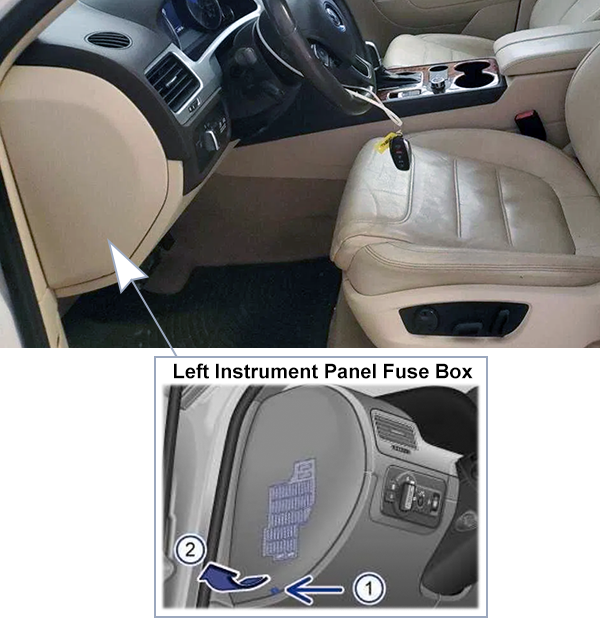

Fuse Box Location

Fuse holder on the left side edge of the instrument panel.

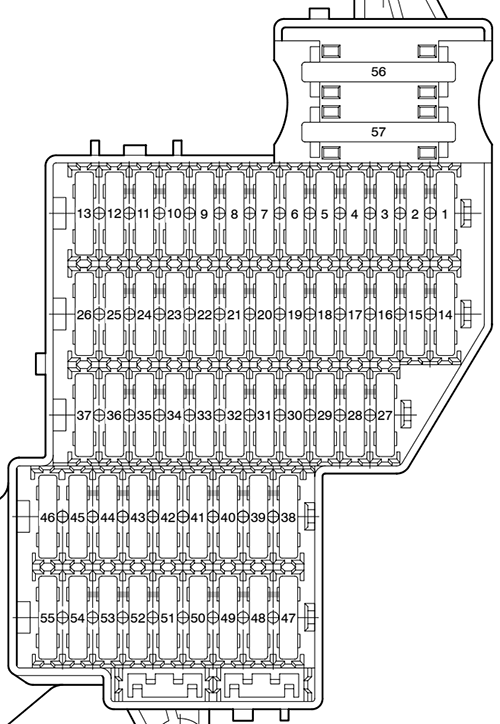

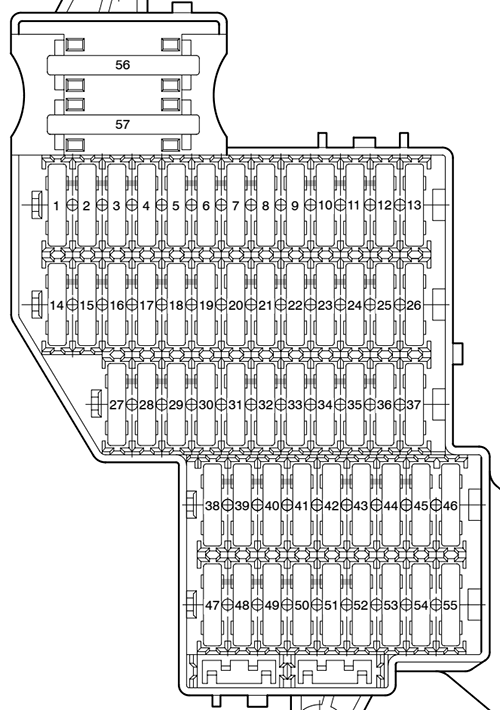

Fuse Box Diagram

Fuses

Assignment of the fuses in the instrument panel (left side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB125ADriver seat adjustment control unit -J810- (4), Valve block 1 in driver seat -N475- (4), Control unit for driver multicontour seat -J873- (4), Driver seat rake adjustment switch -E222- (4), Driver seat longitudinal adjustment switch -E363- (4), Driver side height adjustment switch -E289- (4), Driver seat backrest adjustment switch -E96- (4), Driver seat lumbar support adjustment switch -E176- (4), Control unit for front left seat ventilation -J800- (4)
SB230AHeater control unit -J162-
SB320AFrom April 2010: Horn relay -J413-, Treble horn -H2-, Bass horn -H7-
15AFrom November 2012 / August 2014: Horn relay -J413-, Treble horn -H2-, Bass horn -H7-
SB430AWindscreen wiper motor -V-
SB530ASliding sunroof adjustment control unit -J245-
SB615AFrom April 2010: Backrest release control unit -J930-
30AFrom November 2012 / August 2014: Backrest release control unit -J930-
SB715AControl unit for electrically adjustable steering column -J866-
SB810AFrom April 2010: Tyre Pressure Monitoring System control unit -J502-, Control unit for electronic steering column lock -J764-, Steering column electronics control unit -J527-
5AFrom November 2012 / August 2014: Steering column electronics control unit -J527-
SB95AFrom April 2010: Light switch -E1-, Rain sensor -G213-
5AFrom November 2012: Light switch -E1-, Rain sensor -G213-, Front roof module -WX3-, Tyre Pressure Monitoring System control unit -J502-
5AFrom August 2014: Light switch -E1-, Rain and light sensor -G397-, Front roof module -WX3-, Tyre Pressure Monitoring System control unit -J502-
SB1030ASunroof roller blind control unit -J394-
SB1115AFrom April 2010: Heated steering wheel -Z36-
10AFrom November 2012: Heated steering wheel -Z36-
10AFrom August 2014: Heated steering wheel -Z36-, Steering column electronics control unit -J527-
SB12–Unused
SB13–Unused
SB1430AOnboard supply control unit -J519- (T17/16)
SB1530AFrom April 2010: Onboard supply control unit -J519- (T17b/16)
25AFrom November 2012 / August 2014: Onboard supply control unit -J519- (T17b/16)
SB1630ADriver door control unit -J386-
SB1710AFrom April 2010: Interior monitoring sensor -G273-, Alarm horn -H12-
5AFrom November 2012: Interior monitoring sensor -G273-, Alarm horn -H12-
5AFrom August 2014: Interior monitoring sensor -G273-, Bonnet contact switch -F266-, Alarm horn -H12-
SB1830AOnboard supply control unit -J519- (T17/15)
SB1910AEngine control unit -J623-
SB2030AOnboard supply control unit -J519- (T6/3), Heated driver seat -Z6-, Heated seat cushion for front passenger seat -Z8-
SB2110AResidual heat relay -J708-
SB2230AOnboard supply control unit -J519- (T17a/16)
SB237.5AFrom April 2010: Diagnostic connection -U31-, Ignition/starter switch -D-, Data bus diagnostic interface -J533-, Interface for infotainment CAN bus -J885-
7.5AFrom November 2012 / August 2014: Ignition/starter switch -D-, Data bus diagnostic interface -J533-, Control unit for electronic steering column lock -J764-
SB2430AHeated windscreen relay for left side -J410-
SB2530AHeated windscreen relay for right side -J411-
SB2615ABattery fan 1 -V457- (3)
SB275AFrom April 2010 / Nov 2012: Coolant shortage indicator control unit -J120- (3), Coolant level relay -J816-, Battery regulation control unit -J840- (3)
5AFrom August 2014: Battery regulation control unit -J840- (3)
SB285AElectric drive control unit -J841- (3)
SB295APressure regulator for disengagement clutch -N511- (3)
SB305AFrom April 2010 / Nov 2012: Power steering control unit -J500- (3)
5AFrom August 2014: Electrical power steering pump -V466- (3)
SB31–Unused
SB3215AControl unit for air conditioning compressor -J842- (3)
SB3330ARear left door control unit -J388-
SB34–From April 2010: Unused
5AFrom November 2012 / August 2014: Rear lid power opening control unit -J938-
SB35–From April 2010: Unused
7.5AFrom November 2012 / August 2014: Diagnostic connection -U31-, Interface for infotainment CAN bus -J885-
SB365AElectromechanical parking brake button -E538-
SB3715ABattery fan 2 -V458- (3)
SB385AElectric drive control unit -J841- (3), Fan enabling relay -J937- (3)
SB3930APressure regulator for disengagement clutch -N511- (3)
SB4030AFan enabling relay -J937- (3), Fuse 26 on fuse holder B -SB26- (3), Fuse 37 on fuse holder B -SB37- (3)
SB4110ABattery regulation control unit -J840- (3)
SB425AAutomatic anti-dazzle interior mirror -Y7-
SB437.5AFrom April 2010 / Nov 2012: Front left headlight -MX1-, Front right headlight -MX2-, Headlight range control regulator -E102-
–From August 2014: Unused
SB445AHeated rear seats control unit -J786-
SB455AFrom April 2010 / Nov 2012: Image processing control unit -J851-, Pitch rate sender -G752-
5AFrom August 2014: Image processing control unit -J851-, Front camera for driver assist systems -R242-, Pitch rate sender -G752-
SB465ALane change assist control unit -J769-, Lane change assist control unit 2 -J770-
SB475AFrom April 2010 / Nov 2012: Parking aid control unit -J446-, Garage door operation control unit -J530-, Data bus diagnostic interface -J533-, Interface for infotainment CAN bus -J885-, Diagnostic connection -U31-
5AFrom August 2014: Parking aid control unit -J446-, Garage door operation control unit -J530-, Data bus diagnostic interface -J533-, Interface for infotainment CAN bus -J885-, Diagnostic connection -U31-, Garage door operating unit -E284-
SB4810AFrom April 2010: High-pressure sender -G65-, Air mass meter -G70-, Engine control unit -J623-, Starter motor relay -J53-, Starter motor relay 2 -J695-, Starter relay 1 -J906- (2), Starter relay 2 -J907- (2), Engine control unit 2 -J624- (1), Air mass meter 2 -G246- (1)
10AFrom November 2012 / August 2014: High-pressure sender -G65-, Air mass meter -G70-, Engine control unit -J623-, Starter motor relay -J53-, Starter motor relay 2 -J695-, Starter relay 1 -J906- (2), Starter relay 2 -J907- (2), Engine control unit 2 -J624- (1), Air mass meter 2 -G246- (1), Control unit for vehicle location system -J895-
SB497.5AAdaptive cruise control unit -J428-, Control unit 2 for adaptive cruise control -J850-
SB5030AFrom April 2010: Igniter for driver side seat belt tensioner 2 -N297-
5AFrom November 2012: Igniter for driver side seat belt tensioner 2 -N297-
30AFrom August 2014: Igniter for driver side seat belt tensioner 2 -N297-
SB51–Unused
SB5215ARear window wiper motor -V12-
SB535AControl unit for cornering light and headlight range control -J745-, Steering column electronics control unit -J527-, Onboard supply control unit -J519- (T32c/16)
SB5415AFront left headlight -MX1-
SB55–Unused
SB5640AAdaptive suspension compressor relay -J403-
SB5740AFresh air blower -V2-

Dashboard (Right)

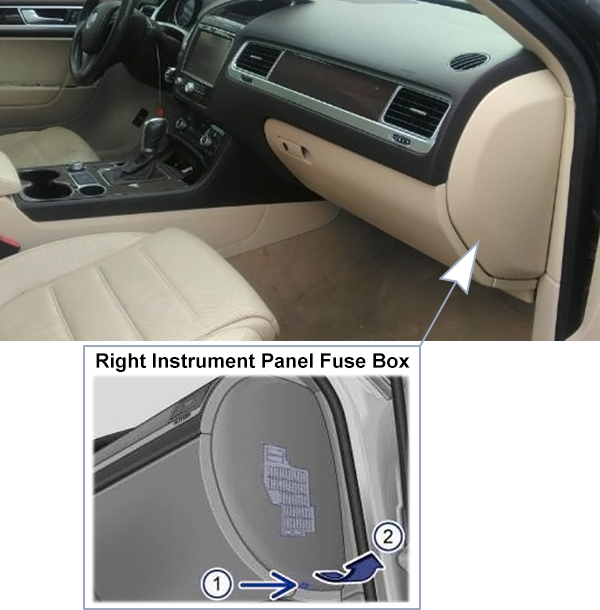

Fuse Box Location

Fuse holder on the right side edge of the instrument panel.

Fuse Box Diagram

Fuses

Assignment of the fuses in the instrument panel (right side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC1–Unused
SC215AAdaptive suspension control unit -J197-
SC310AAxle differential lock control unit -J647-
SC430AAxle differential lock control unit -J647-
SC525AApril 2010 / Nov 2012: Trailer detector control unit -J345-
15AAug 2014 / Nov 2016: Trailer detector control unit -J345-
SC615ATrailer detector control unit -J345-
SC715AApril 2010 / Nov 2012: Trailer detector control unit -J345-
25AAug 2014 / Nov 2016: Trailer detector control unit -J345-
SC815AApril 2010 / Nov 2012: Trailer detector control unit -J345-
25AAug 2014 / Nov 2016: Trailer detector control unit -J345-
SC930ARear right door control unit -J389-
SC10–Unused
SC1130AFront passenger door control unit -J387-
SC12–Unused
SC13–April 2010 / Nov 2012: Unused
15AAug 2014 / Nov 2016: Trailer detector control unit -J345-
SC1410AAirbag control unit -J234-, Front passenger side airbag deactivated warning lamp -K145-, Seat occupied recognition control unit -J706- (3)
SC1510ATransfer box control unit -J646-
SC165AApril 2010 / Nov 2012: Control unit for electromechanical parking brake, Operating unit to regulate suspension height, Left/Right washer jet heater element, TCS and ESP button, ABS control unit, Hill descent control button, Electromechanical parking brake button -E538-, Voltage stabiliser -J532- (2)
5AAug 2014 / Nov 2016: Control unit for electromechanical parking brake, Operating unit to regulate suspension height, Left/Right washer jet heater element, TCS and ESP button, ABS control unit, Hill descent control button, Auto-hold button -E540-, Voltage stabiliser -J532- (2)
SC1715AFront right headlight -MX2-
SC1830AIgniter for front passenger side seat belt tensioner 2 -N298-
SC195ATiptronic switch -F189-, Multifunction switch -F125-, Automatic gearbox control unit -J217-
SC2025AFront passenger seat position control unit -J720- (1), Valve block 1 in front passenger seat -N477- (1), Control unit for front passenger multicontour seat -J872- (1), Control unit for front right seat ventilation -J799- (1), Front passenger seat rake adjustment button -E334- (1), Front passenger seat longitudinal adjustment switch -E64- (1), Front passenger side height adjustment switch -E290- (1), Front passenger seat backrest adjustment switch -E98- (1), Front passenger seat lumbar support adjustment switch -E177- (1)
SC2125AHeated rear seats control unit -J786-, Operating and display unit for rear air conditioning system -E265- (1)
SC22–Unused
SC2325ARear lid control unit -J605-
SC2410AClimatronic control unit -J255-, Operating and display unit for rear air conditioning system -E265- (1)
SC255AControl unit for overhead view camera -J928-, Reversing camera system control unit -J772-
SC2630AHeated rear window relay -J9-
SC275ARemote control receiver for auxiliary coolant heater -R149-
SC2820AApril 2010: Gearbox hydraulic pump relay -J510-, Transfer box control unit -J646-, Automatic gearbox control unit -J217-
5ANov 2012: Transfer box control unit -J646-
20AAug 2014 / Nov 2016: Transfer box control unit -J646-
SC2930AABS control unit -J104-
SC30–April 2010: Unused
5ANov 2012 / Aug 2014 / Nov 2016: Tiptronic switch -F189-
SC3130AApril 2010 / Aug 2014 / Nov 2016: Convenience system central control unit -J393-
20ANov 2012: Convenience system central control unit -J393-
SC32–April 2010: Unused
30ANov 2012 / Aug 2014 / Nov 2016: Rear fresh air blower -V80-
SC3330AConvenience system central control unit -J393-
SC34–April 2010 / Nov 2012 / Aug 2014: Unused
5ANov 2016: Emergency call module control unit and communication unit -J949-
SC35–April 2010: Unused
5ANov 2012 / Aug 2014 / Nov 2016: Control unit for vehicle location system -J895-
SC3630AConvenience system central control unit -J393-
SC37–April 2010: Unused
20ANov 2012 / Aug 2014 / Nov 2016: Automatic gearbox control unit -J217-, Gearbox hydraulic pump relay -J510-
SC3815AApril 2010 / Nov 2012: Cigarette lighter -U1-, 12 V socket 2 -U18-, Heated rear seats control unit -J786-
15AAug 2014 / Nov 2016: Cigarette lighter -U1-, 12 V socket 2 -U18-
SC3915A12 V socket 3 -U19-, 12 V socket 4 -U20-
SC4020AApril 2010: DC/AC converter with socket, 12 V – 230 V -U13-
30ANov 2012 / Aug 2014 / Nov 2016: DC/AC converter with socket, 12 V – 230 V -U13-
SC41–April 2010 / Aug 2014 / Nov 2016: Unused
10ANov 2012: Connection 2 for external audio sources -R231-
SC425ATrailer detector control unit -J345-
SC4310AAxle differential lock control unit -J647-
SC445AAir quality sensor -G238-
SC4530AVoltage stabiliser -J532- (2)
SC4630AVoltage stabiliser -J532- (2)
SC4710AControl unit 1 for information electronics -J794-, Display unit for front information display and operating unit control unit -J685-
SC4830ADigital sound package control unit -J525- (1)
SC49–Unused
SC505ATV tuner -R78- (1), Mobile telephone operating electronics control unit -J412- (1)
SC5120ARadio -R-
SC525AControl unit in dash panel insert -J285-
SC535ADVD changer -R161-
SC54–April 2010: Unused
5ANov 2012 / Aug 2014 / Nov 2016: Interface for external multimedia unit -R215-
SC55–Unused
SC5640AABS control unit -J104-
SC5740AControl unit for electromechanical parking brake -J540-, Transfer box control unit -J646-

Under Dashboard (Relays)

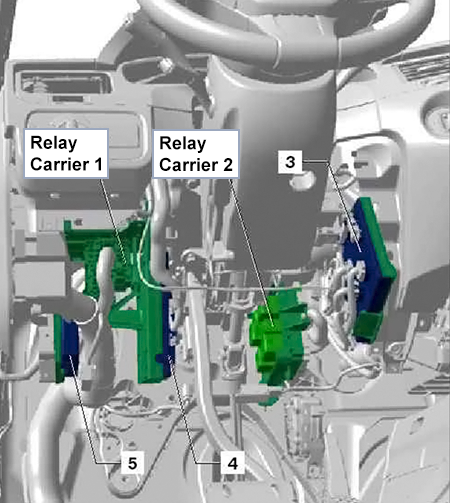

Relays Box Locations

Under the steering wheel there is two (2) relay carriers.

Relay Box Diagram (1)

Relays

Assignment of the relays in relay carrier No.1 (Under the Dashboard)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
E1From April 2010: Heated windscreen relay for left side -J410- (643)
From Nov 2010 / Aug 2014: Unused
E2From April 2010: Heated windscreen relay for right side -J411- (643)
From Nov 2010: Coolant shortage indicator control unit -J120- (422)
From Aug 2014: Unused
E3From April 2010: Relay for power sockets -J807- (100)
From Nov 2010 / Aug 2014: Unused
E4From April 2010: Unused
From Nov 2010: Gearbox hydraulic pump relay -J510- (644) (Only models with hybrid drive system)
From Aug 2014: Gearbox hydraulic pump relay -J510- (644)
E5From April 2010: Residual heat relay -J708- (404)
From Nov 2010: Coolant level relay -J816- (646)
From Aug 2014: Unused
E6From April 2010: Fan enabling relay -J937- (449) (Only models with hybrid drive system)
From Nov 2010 / Aug 2014: Unused

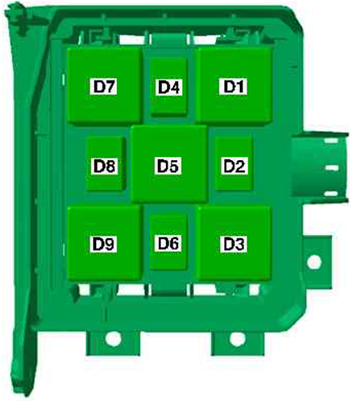

Relay Box Diagram (2)

Relays

Assignment of the relays in relay carrier No.2 (Under the Dashboard)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
D1From April 2010: Adaptive suspension compressor relay -J403- (373)
From November 2010: Adaptive suspension compressor relay -J403- (645)
D2From April 2010: Coolant level relay -J816- (404)
From November 2010: Residual heat relay -J708- (646)
D3From April 2010: Unused
From November 2010: Heated windscreen relay for left side -J410- (645)
D4From April 2010: Horn relay -J413- (395)
From November 2010: Horn relay -J413- (646)
D5From April 2010: Gearbox hydraulic pump relay -J510- (100) (Only models with start/stop system & hybrid drive system)
From November 2010: Relay for power sockets -J807- (644)
D6From April 2010: Gearbox hydraulic pump relay -J510- (404) (Only models with start/stop system)
From November 2010: Gearbox hydraulic pump relay -J510- (646) (Only models with start/stop system)
D7From April 2010: Heated rear window relay -J9- (643)
From November 2010: Heated rear window relay -J9- (645)
D8From April 2010: Unused
From November 2010: Fan enabling relay -J937- (646)
D9From April 2010: Coolant shortage indicator control unit -J120- (422) (Only models with hybrid drive system)
From November 2010: Heated windscreen relay for right side -J411- (645)

Pre-Fuse Box

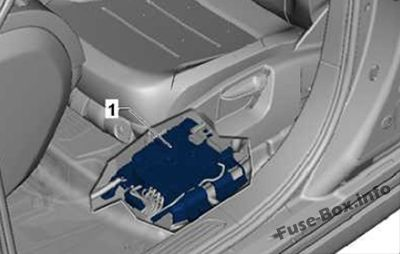

Fuse Box Location

Located under the driver’s seat.

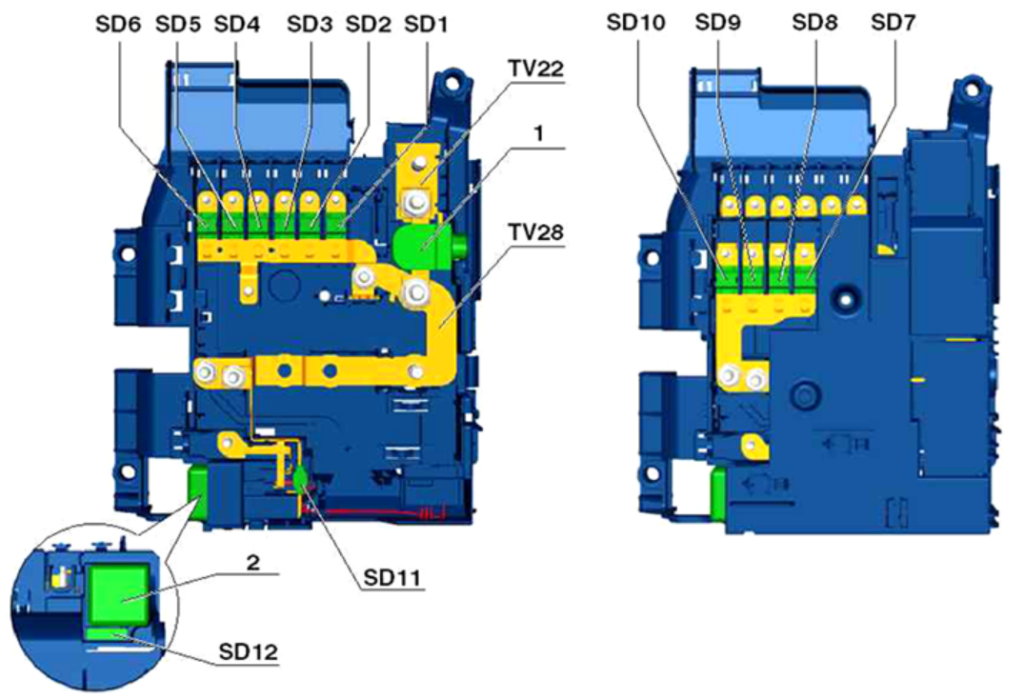

Fuse Box Diagram

Fuses

Assignment of the high voltage fuses in pre-fuse box (Under the driver’s seat)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1100Fuse holder B -SB- (SB1 – SB6, SB7 – SB12, SB38 – SB41, SB57)
250Adaptive suspension control unit -J197-
3100Fuse holder C -SC- (SCI – SC4, SC5 – SC8, SC20 – SC23, SC24 – SC26)
480Fuse holder C -SC- (SC9 – SC12, SC27 – SC30, SC37 , SC45, SC54, SC56, SC57)
540Fuse holder B -SB- (SB33 – SB36)
650Relay for power sockets -J807-
Fuse holder C -SC- (SC38 – SC40)
760Fuse holder C -SC- (SC31 – SC36)
Rear fresh air blower -V80-
860Wiring connector -TV15-
Terminal 30 voltage supply relay -J317-
9125Fuse holder B -SB- (SB14 – SB19, SB20 – SB23, SB24, SB25, SB56)
10150 / 60Auxiliary air heater element -Z35-
Gearbox hydraulic pump relay -J510-
1140Terminal 15 voltage supply relay -J329-
125Diagnosis

Engine Compartment

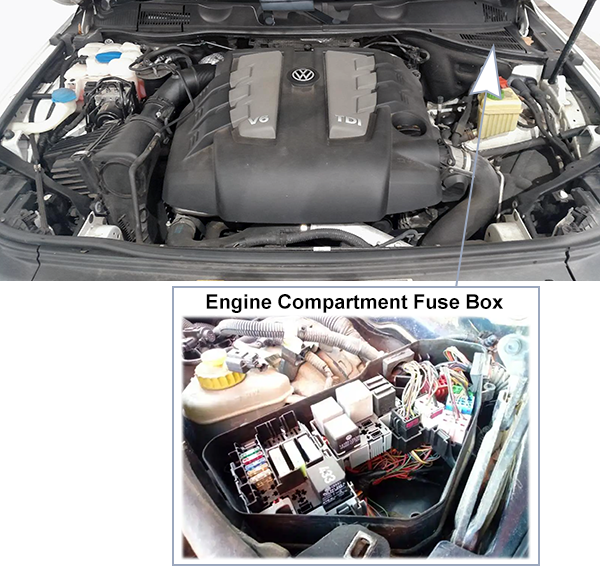

Fuse Box Location

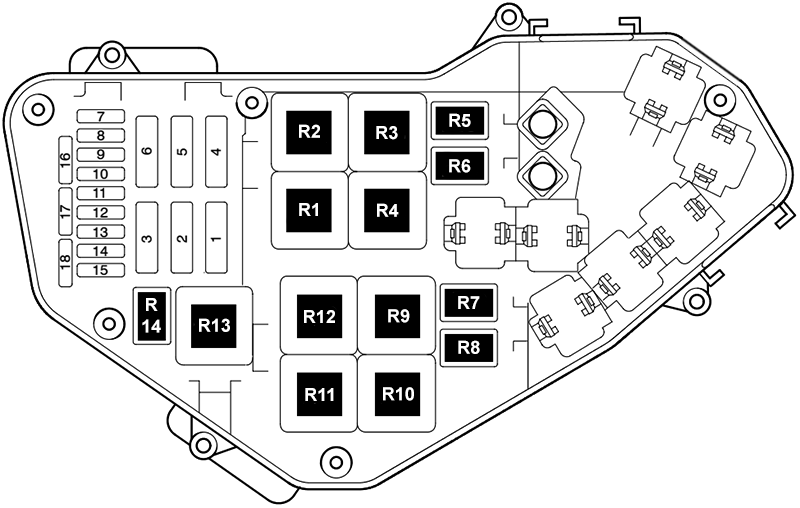

Fuse Box Diagram

Fuses

Assignment of the fuses in the Engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
140AMost Engines: Starter motor relay -J53-, Starter motor relay 2 -J695-, Starter -B-
40AStart/Stop Diesels: Starter motor relay -J53-, Starter motor relay 2 -J695-, Starter relay 1 -J906-, Starter relay 2 -J907-, Starter -B-
40A4.2L V8 Petrol: Starter relay 1 -J906-
–3.0L Hybrid: Unused
2–Unused
3–Most Engines: Unused
40A3.0L Hybrid & 4.2L V8 Petrol: Secondary air pump relay -J299- (Hybrid adds motor -V101-)
4–Most Engines: Unused
30A3.0L Hybrid: Vacuum pump relay -J57-, Brake servo vacuum pump -V469-
5–Unused
6–Unused
715AAll Diesels: Fuel pressure regulating valve -N276-, Fuel metering valve -N290-
20AAll Petrols & Hybrid: Ignition coils 1-6 with output stage (V8 Petrol adds coils 7-8)
810A3.0L (CASA/D/T) & 4.2L Diesels: Pump for exhaust gas recirculation cooler -V400-
10A3.0L Hybrid: Low-temperature circuit coolant pump -V468-
10A3.0L/3.6L Petrols: Coolant pump -VX20-
10A4.2L V8 Petrol: Camshaft control valves (-N205, -N208, -N318, -N319)
–Other Diesels: Unused
930AAll Engines: Engine control unit -J623-
1010ADiesels: Radiator fan control unit, Brake light switch, Auto glow period unit, EGR cooler changeover, Oil pressure control valve
10A3.0L Hybrid: Radiator fan control unit, Brake light switch, Secondary air pump relay, Fuel system diagnostic pump, Vacuum pump relay
10AV6 Petrols: Radiator fan control unit, Brake light switch, Air mass meter, Intake air temp sender, Diagnostic pump
15A4.2L V8 Petrol: Radiator fan control unit, Brake light switch, Secondary air pump relay, Aux coolant pump relay, Engine cooling thermostat, Charcoal filter valve, Coolant valve for cylinder head
1115AAll Diesels: Oil level and oil temperature sender -G266- (V8 Diesel adds breather heaters -N79-, -N483-)
10AHybrid & V6 Petrols: Oil level/temp sender (V6 adds breather heater -N79-)
5A4.2L V8 Petrol: Oil level and oil temperature sender -G266-
1210ADiesels & V8 Petrol: Auxiliary engine coolant pump relay -J496- (Diesels add residual heat relay, coolant circulation pump)
10A3.0L Hybrid: Camshaft control valves, Variable intake manifold changeover valve
10AV6 Petrols: Activated charcoal filter solenoid, Intake manifold flap valve, Changeover valve, Coolant regulating valve
1325AAll Engines: Fuel pump control unit -J538-
1430A3.0L Diesels (CASA/D/T): Pump, Reversing valve, and Evaluation unit for reducing agent
15AOther 3.0L Diesels: Pump for reducing agent -V437-
30A4.2L V8 Diesel: Engine control unit 2 -J624-
15A3.0L Hybrid: Secondary air inlet valves, Refrigerant shut-off, Oil/Fuel pressure valves
10AV6 Petrols: Fuel pressure regulating valve, Camshaft control valves
10A4.2L V8 Petrol: Secondary air inlet valves, Variable intake manifold changeover, Intake manifold flap, Oil pressure control valve
1510AMost Diesels & Hybrid: Terminal 30 voltage supply relay -J317- (Some add Engine control unit -J623-)
30A3.0L Diesel (CVVA/CVWA): Terminal 30 voltage supply relay -J317-
10AV6 Petrols: Main relay -J271-
10A4.2L V8 Petrol: Terminal 30 relay, Engine control unit, Engine component current supply relay
1630A3.0L Diesels: Control unit for reducing-agent heater -J891-
10A3.0L Hybrid: Coolant pump for high-temperature circuit -V467-
15A4.2L V8 Petrol: Fuel metering valves (-N290, -N402-)
–Others: Unused
1715AAll Engines: Lambda probe heater -Z19-
15AV8s & V6 Petrols: Adds Lambda probe heater 2 -Z28-
1810ACASA/D/T Diesel, Hybrid, All Petrols: Lambda probe heater(s) after catalytic converter
–Other Diesels: Unused

Relays

Assignment of the relays in the Engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

R1–Diesels: Automatic glow period control unit -J179-
–Petrols/Hybrid: Unused
R2–Unused
R3–Hybrid & V8 Petrol: Secondary air pump relay -J299-
–Others: Unused
R4–V8 Diesel: Glow period control unit 2 -J703-
–Petrols & Hybrid: Terminal 30 voltage supply relay -J317-
–V6 Diesels: Unused
R5–Unused
R6–Most Diesels & V8 Petrol: Additional coolant pump relay -J496-
–Hybrid & V6 Petrols: Unused
R7–Unused
R8–Unused
R9–Diesels & V6 Petrols: Starter motor relay -J53-
–Start/Stop Diesels & V8 Petrol: Starter relay 1 -J906-
–Hybrid: Unused
R10–Diesels: Terminal 30 voltage supply relay -J317-
–Hybrid: Vacuum pump relay -J57- (up to Jun 2010) or Brake servo relay -J569- (from Jun 2010)
–V8 Petrol: Engine component current supply relay -J757-
–V6 Petrols: Unused
R11–Unused
R12–Unused
R13–Diesels (exc. Start/Stop) & V6 Petrols: Starter motor relay 2 -J695-
–Start/Stop Diesels & V8 Petrol: Starter relay 2 -J907-
–Hybrid: Unused
R14–Unused

Engine Compartment (Additional)

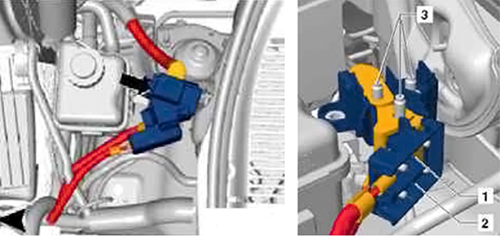

Fuse Box Location and Diagram

Fuses

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1150AFuse 1 -S131-
– Radiator fan -V7-
2100AFuse 2 -S132-
– Electrical power steering pump -V466- 1
3Terminal 30 wiring junction -TV2-
1) Only models with hybrid drive system

Scroll to Top
